Verbinder

Verbindung von Rundleitern für T- und Längsanordnungen.

EST-Verbinder

EinSchrauben-T-Verbinder

1 Product

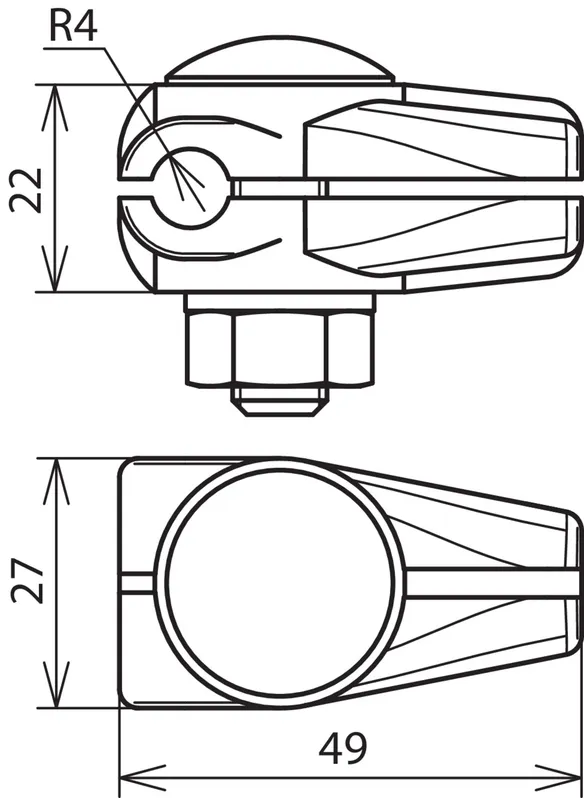

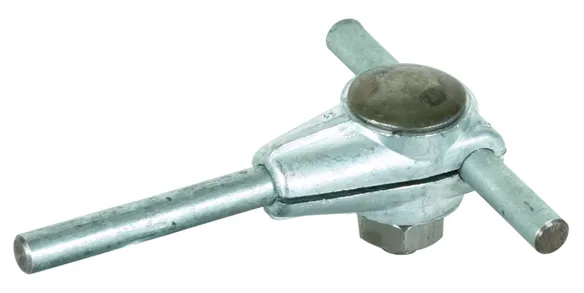

Part No. 310008 ESTV 8 RG

GTIN 4013364024328, Customs tariff No. (EU): 85359000, Gross weight: 125.70 g, PU: 50.00 Stk.

Images

Open PDF

Additional information

CAD files

EST-Verbinder ZG
Verbinder zum Verbinden von Leitern in T-Anordnung
Werkstoff Klemme: ZG
Klemmbereich Rd: 8 mm
Schraube: M10 x 35 mm
Normenbezug: DIN EN 62561-1

Fabrikat: DEHN
Typ: ESTV 8 RG
Art.-Nr.: 310008
oder gleichwertig.

Certificates

Technical data

Werkstoff Klemme	ZG
Klemmbereich Rd	8 mm
Normenbezug	DIN EN 62561-1
*⁾ Genaue Zuordnung siehe Prüfzertifikat.

Product 310008 was added to Notepad.

Go to Notepad

Product 310008 was added to the cart.

Go to Web-Shop

ES-Verbinder

EinSchrauben-Verbinder für Längsanordnungen.

2 Products

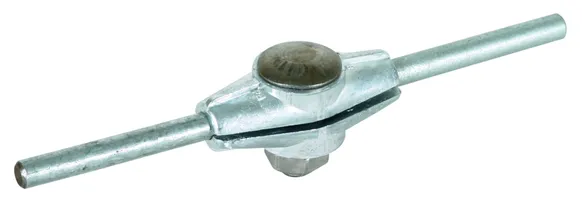

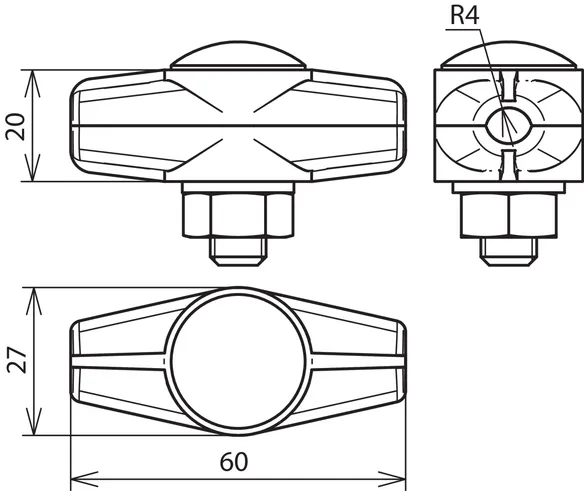

Part No. 309008 ESV 8 ZG

GTIN 4013364024229, Customs tariff No. (EU): 85359000, Gross weight: 142.00 g, PU: 50.00 Stk.

Images

Open PDF

Additional information

CAD files

ES-Verbinder ZG
Verbinder zum Verbinden von Rundleitern
ES-Verbinder für längs Anordnungen
Werkstoff Klemme: ZG
Klemmbereich Rd: 8 mm
Schraube: M10 x 35 mm
Normenbezug: DIN EN 62561-1

Fabrikat: DEHN
Typ: ESV 8 ZG
Art.-Nr.: 309008
oder gleichwertig.

Certificates

Technical data

Werkstoff Klemme	ZG
Klemmbereich Rd	8 mm
Normenbezug	DIN EN 62561-1
*⁾ Genaue Zuordnung siehe Prüfzertifikat.

Product 309008 was added to Notepad.

Go to Notepad

Product 309008 was added to the cart.

Go to Web-Shop

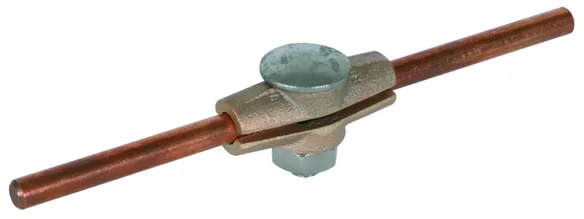

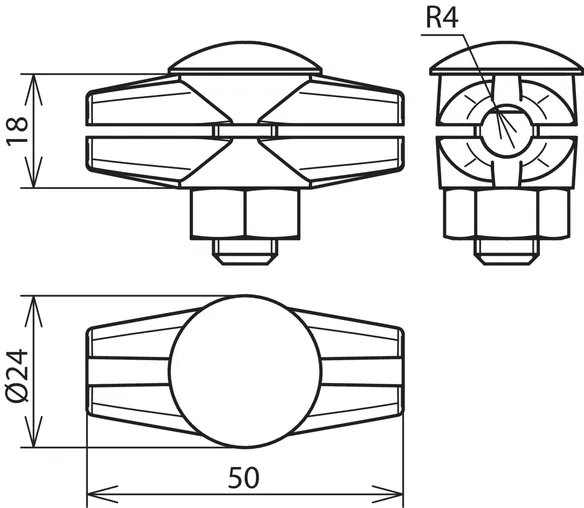

Part No. 309087 ESV 8 RG

GTIN 4013364024243, Customs tariff No. (EU): 85359000, Gross weight: 100.60 g, PU: 50.00 Stk.

Images

Open PDF

Additional information

CAD files

ES-Verbinder RG
Verbinder zum Verbinden von Rundleitern
ES-Verbinder für längs Anordnungen
Werkstoff Klemme: RG
Klemmbereich Rd: 8 mm
Schraube: M10 x 35 mm
Normenbezug: DIN EN 62561-1

Fabrikat: DEHN
Typ: ESV 8 RG
Art.-Nr.: 309087
oder gleichwertig.

Certificates

Technical data

Werkstoff Klemme	RG
Klemmbereich Rd	8 mm
Normenbezug	DIN EN 62561-1
*⁾ Genaue Zuordnung siehe Prüfzertifikat.
