Haltevorrichtungen

Einfache Wandmontage

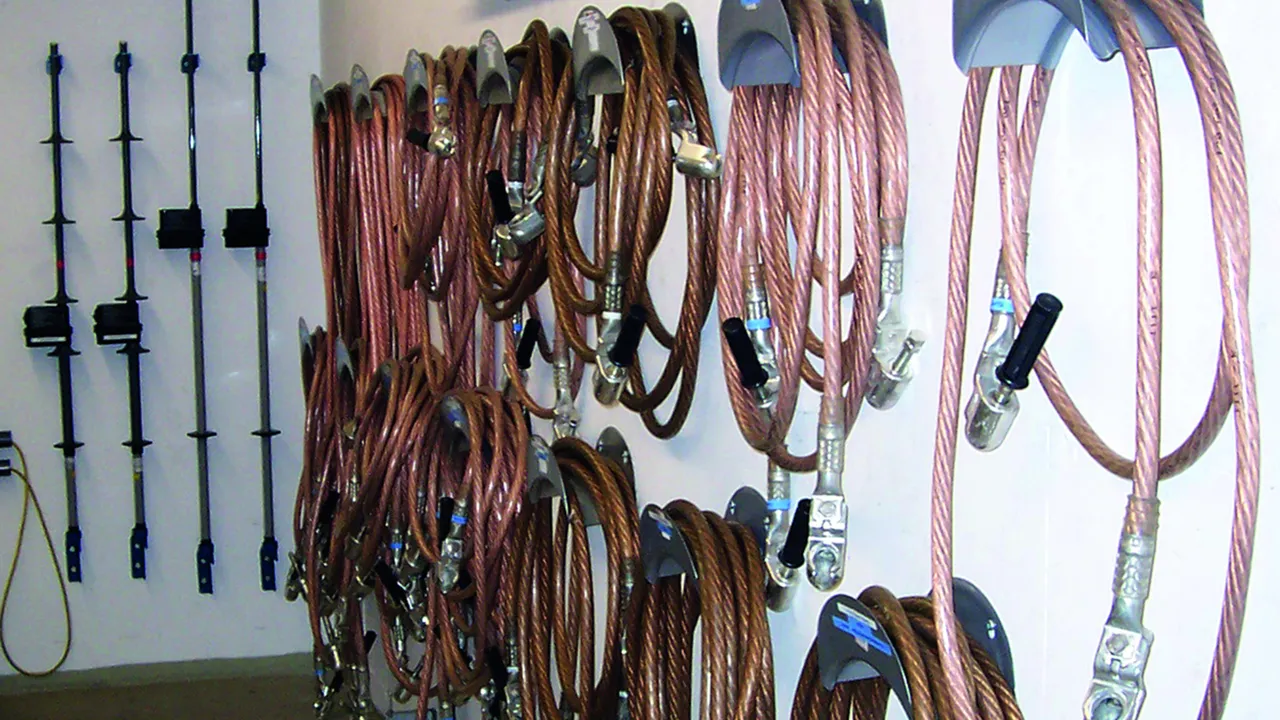

Zur einfachen und sicheren Aufbewahrung von Erdungs- und Kurzschließvorrichtungen, Spannungsprüfern und Betätigungsstangen Ø30 oder 43 mm

Für Spannungsprüfer und Erdungsstange

Für Spannungsprüfer und Erdungsstange beliebiger Länge.
Lochabstand 290/390 mm, Bohrungen Ø7 mm.

3 Products

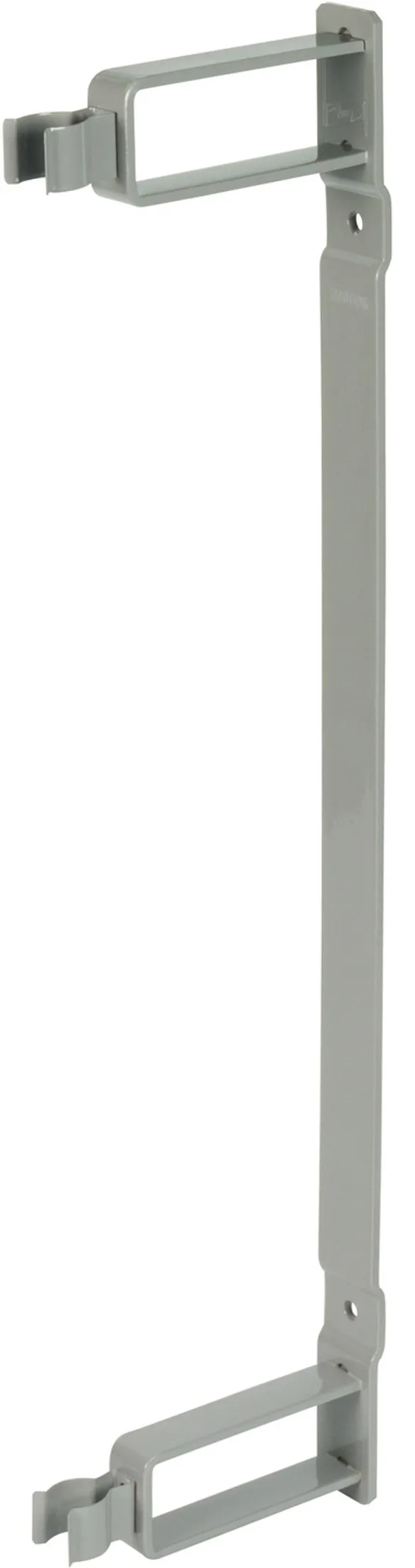

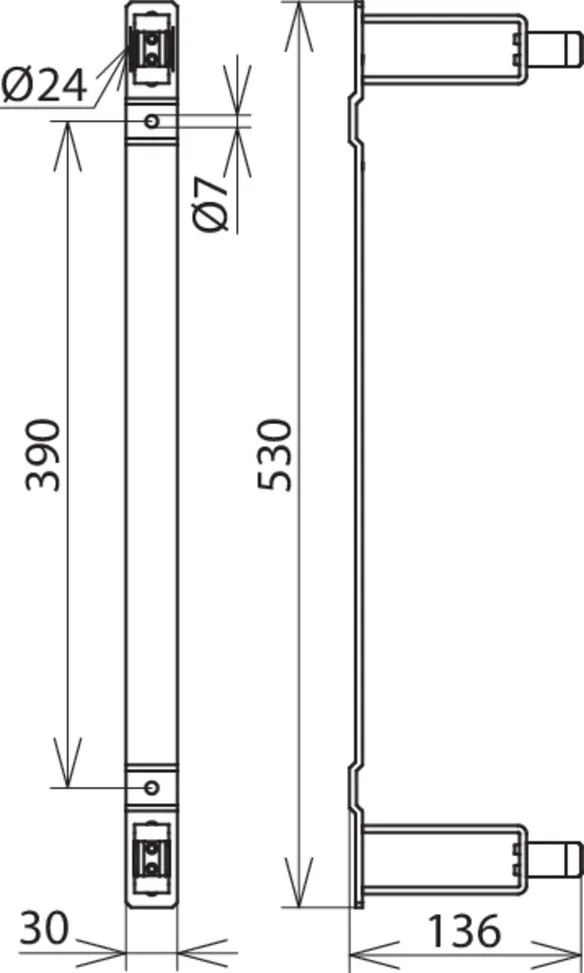

Part No. 700006 HV P ST D24

GTIN 4013364004177, Customs tariff No. (EU): 73269098, Gross weight: 780.00 g, PU: 1.00 Stk.

Images

Open PDF

Additional information

Technical data

Abmessung	530 x 30 x 136 mm
Für Stangendurchmesser	24 mm

Product 700006 was added to Notepad.

Go to Notepad

Product 700006 was added to the cart.

Go to Web-Shop

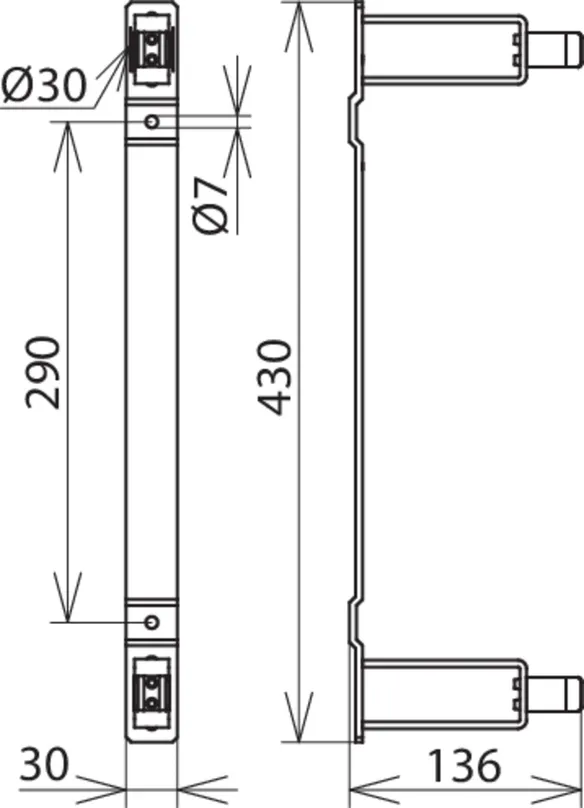

Part No. 700007 HV P ST D30

GTIN 4013364004184, Customs tariff No. (EU): 73269098, Gross weight: 780.00 g, PU: 1.00 Stk.

Images

Open PDF

Additional information

Technical data

Abmessung	430 x 30 x 136 mm
Für Stangendurchmesser	30 mm
DB Mat.-Nr.	828 077

Product 700007 was added to Notepad.

Go to Notepad

Product 700007 was added to the cart.

Go to Web-Shop

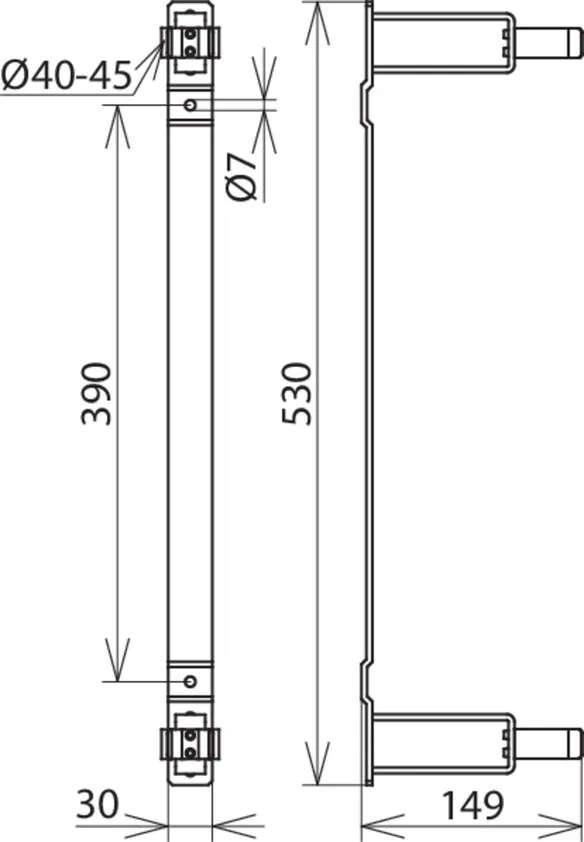

Part No. 700008 HV P ST D40 45

GTIN 4013364004191, Customs tariff No. (EU): 73269098, Gross weight: 802.60 g, PU: 1.00 Stk.

Images

Open PDF

Additional information

Technical data

Abmessung	530 x 30 x 149 mm
Für Stangendurchmesser	40 ... 45 mm

Product 700008 was added to Notepad.

Go to Notepad

Product 700008 was added to the cart.

Go to Web-Shop

Für EuK-Vorrichtung und Erdungsstange

Für Erdungs- und Kurzschließvorrichtung und Erdungsstange beliebiger Länge.
Lochabstand 424 mm, Bohrungen Ø7 mm.

2 Products

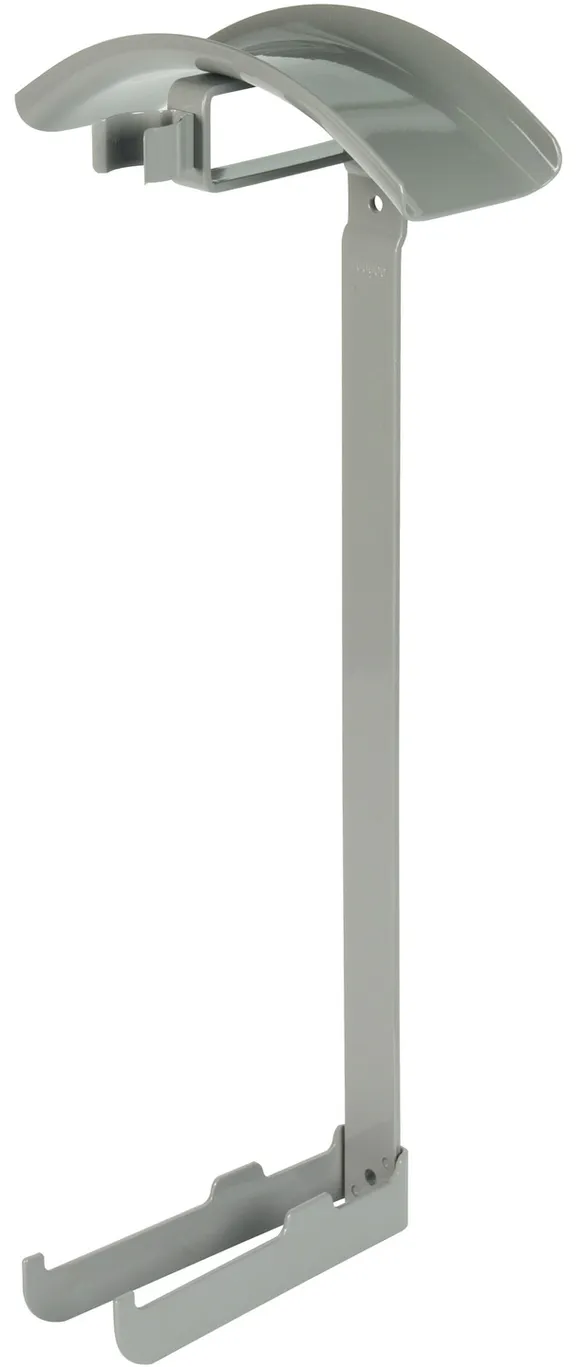

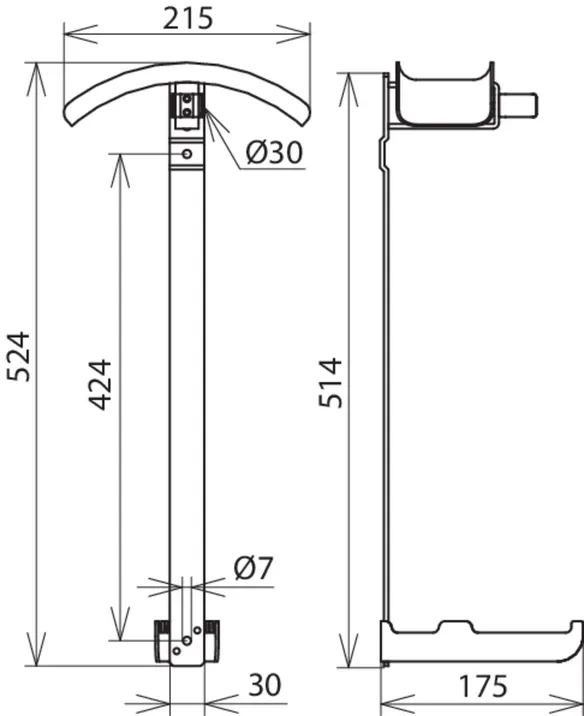

Part No. 700000 HV EKV ES30

GTIN 4013364004122, Customs tariff No. (EU): 73269098, Gross weight: 1.16 kg, PU: 1.00 Stk.

Images

Open PDF

Additional information

Technical data

Abmessung	525 x 175 x 214 mm
Für Stangendurchmesser	30 mm
DB Zeichnungs-Nr.	3 Ebgw 01.70
DB Mat.-Nr.	742 395

Product 700000 was added to Notepad.

Go to Notepad

Product 700000 was added to the cart.

Go to Web-Shop

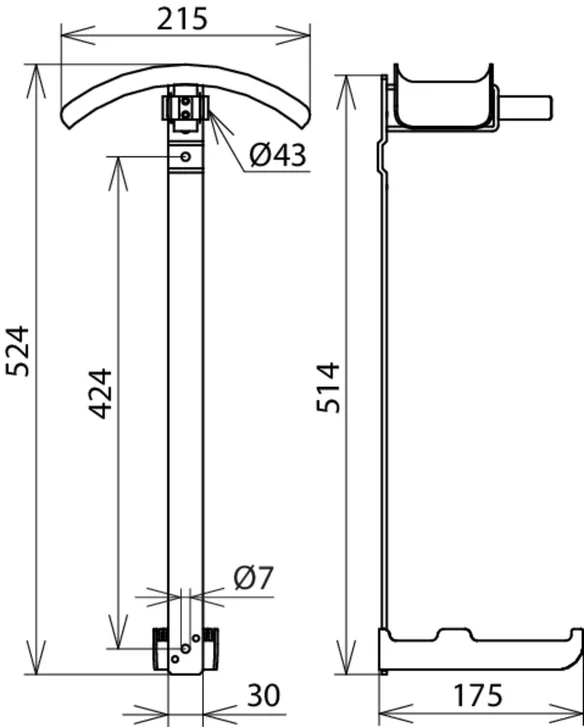

Part No. 700002 HV EKV ES40

GTIN 4013364004139, Customs tariff No. (EU): 73269098, Gross weight: 1.15 kg, PU: 1.00 Stk.

Images

Open PDF

Additional information

Technical data

Abmessung	525 x 175 x 214 mm
Für Stangendurchmesser	43 mm

Product 700002 was added to Notepad.

Go to Notepad

Product 700002 was added to the cart.

Go to Web-Shop

Für EuK-Vorrichtung und Erdungsstange bis 1,5 m

Für Erdungs- und Kurzschließvorrichtung und Erdungsstange bis 1,5 m Länge.
Lochabstand 104 mm, Bohrungen Ø7 mm.

1 Product

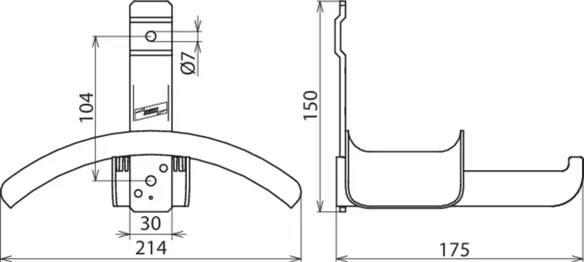

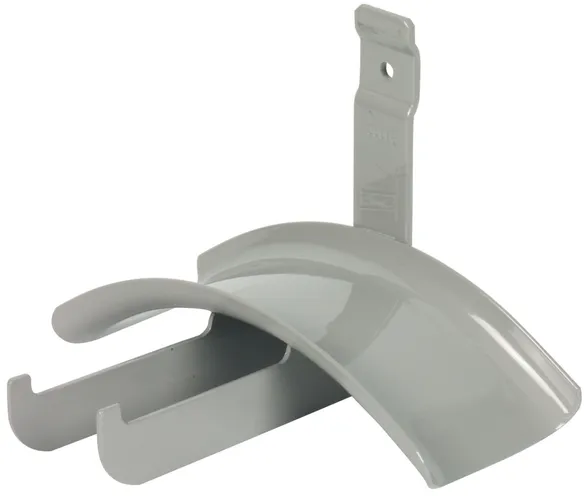

Part No. 700003 HV EKV ES30 1500

GTIN 4013364004146, Customs tariff No. (EU): 73269098, Gross weight: 700.00 g, PU: 1.00 Stk.

Images

Open PDF

Additional information

Technical data

Abmessung	214 x 150 mm
Für Stangendurchmesser	30 / 43 mm

Product 700003 was added to Notepad.

Go to Notepad

Product 700003 was added to the cart.

Go to Web-Shop

Für HH-Sicherungen und Sicherungszange – Einzelteile

Zur Wandmontage, Bohrungen Ø7 mm.

2 Products

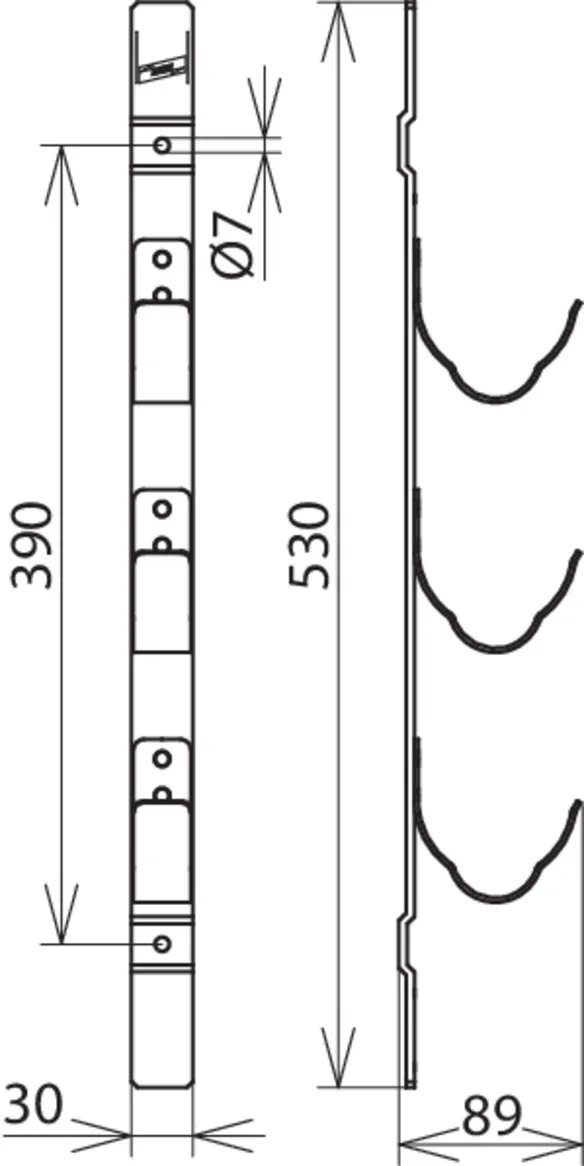

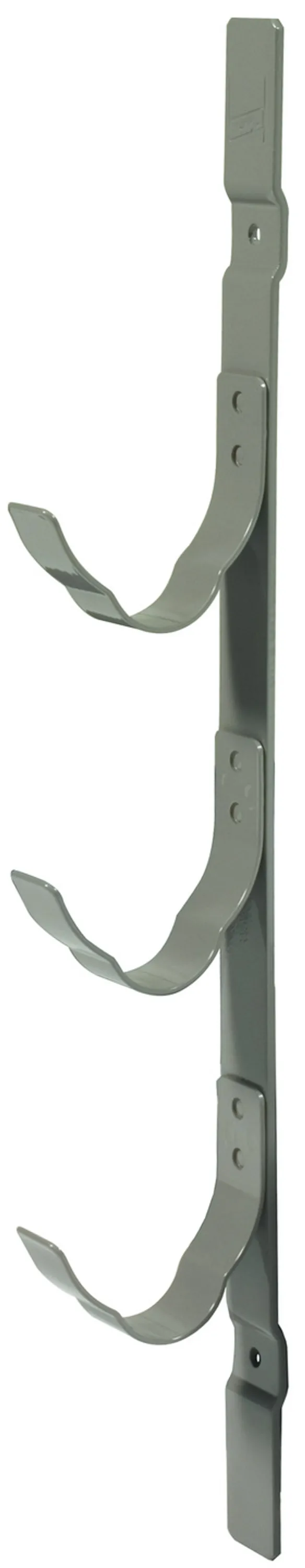

Part No. 700005 HV 3HH ET

GTIN 4013364004160, Customs tariff No. (EU): 73269098, Gross weight: 706.90 g, PU: 1.00 Stk.

Images

Open PDF

Additional information

Technical data

Anwendung	für HH-Sicherungen
Hinweis: Für die Montage werden 2 Haltevorrichtungen benötigt!

Product 700005 was added to Notepad.

Go to Notepad

Product 700005 was added to the cart.

Go to Web-Shop

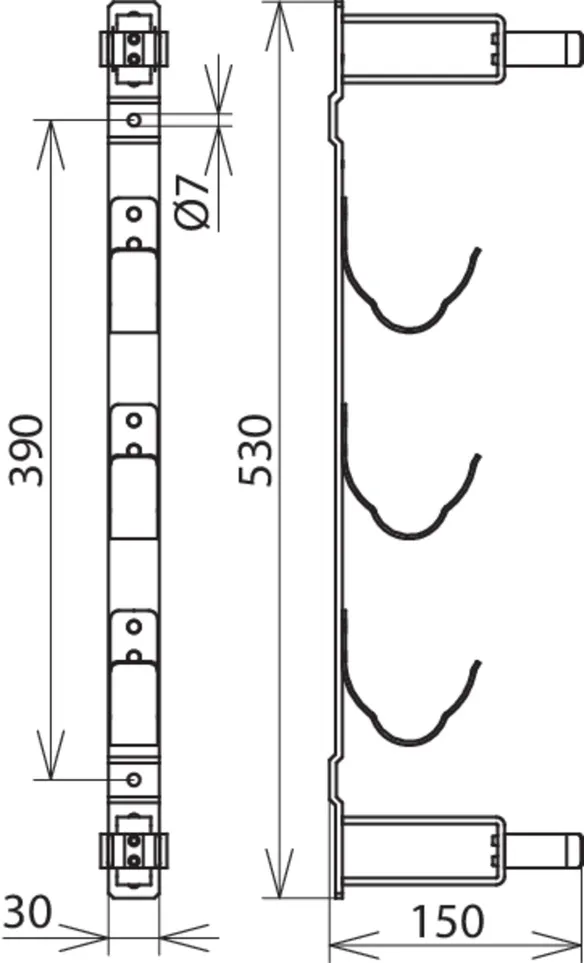

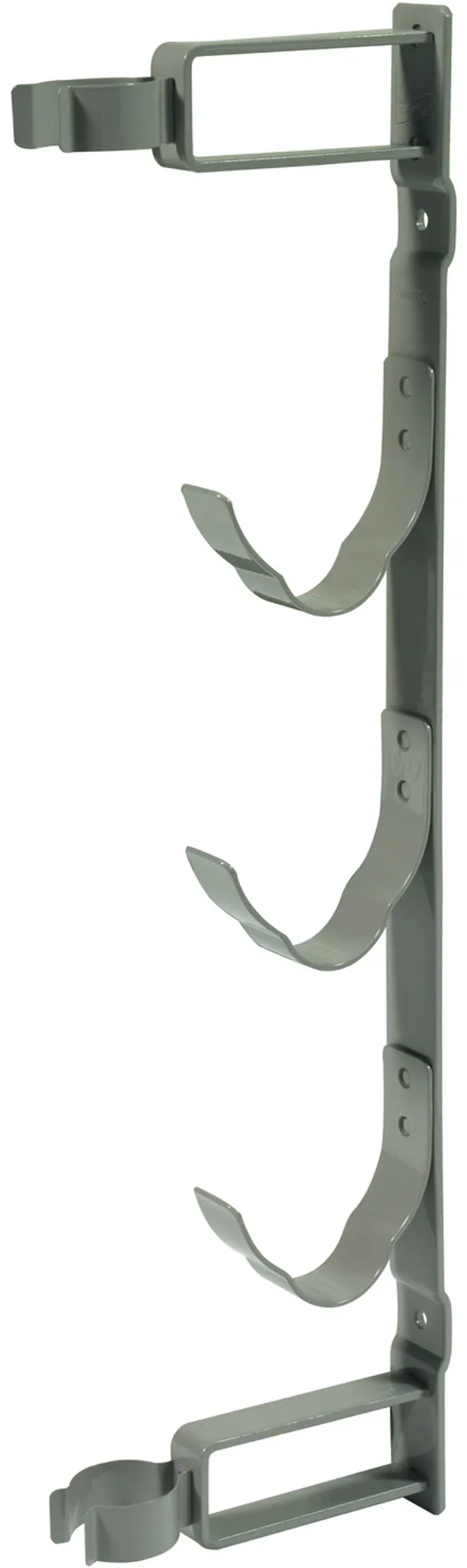

Part No. 700004 HV 3HH SZ ET

GTIN 4013364004153, Customs tariff No. (EU): 73269098, Gross weight: 1.00 kg, PU: 1.00 Stk.

Images

Open PDF

Additional information

Technical data

Anwendung	für HH-Sicherungen und Sicherungszange
Hinweis: Für die Montage werden 2 Haltevorrichtungen benötigt!

Product 700004 was added to Notepad.

Go to Notepad

Product 700004 was added to the cart.

Go to Web-Shop

Für HH-Sicherungen und Sicherungszange – Set-Bestückung

Zur Wandmontage, Bohrungen Ø7 mm.

2 Products

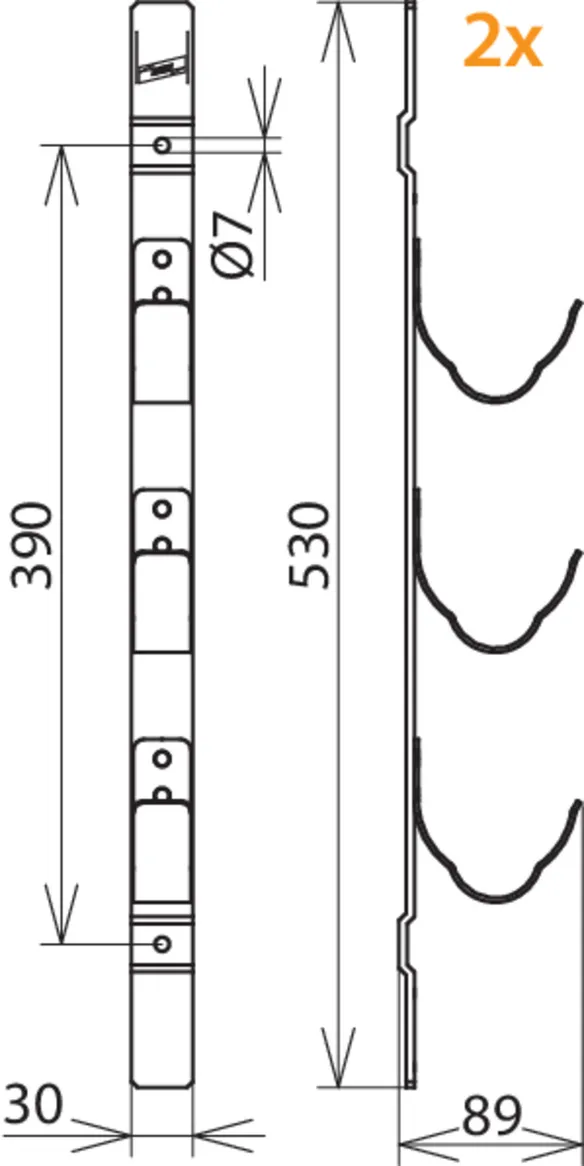

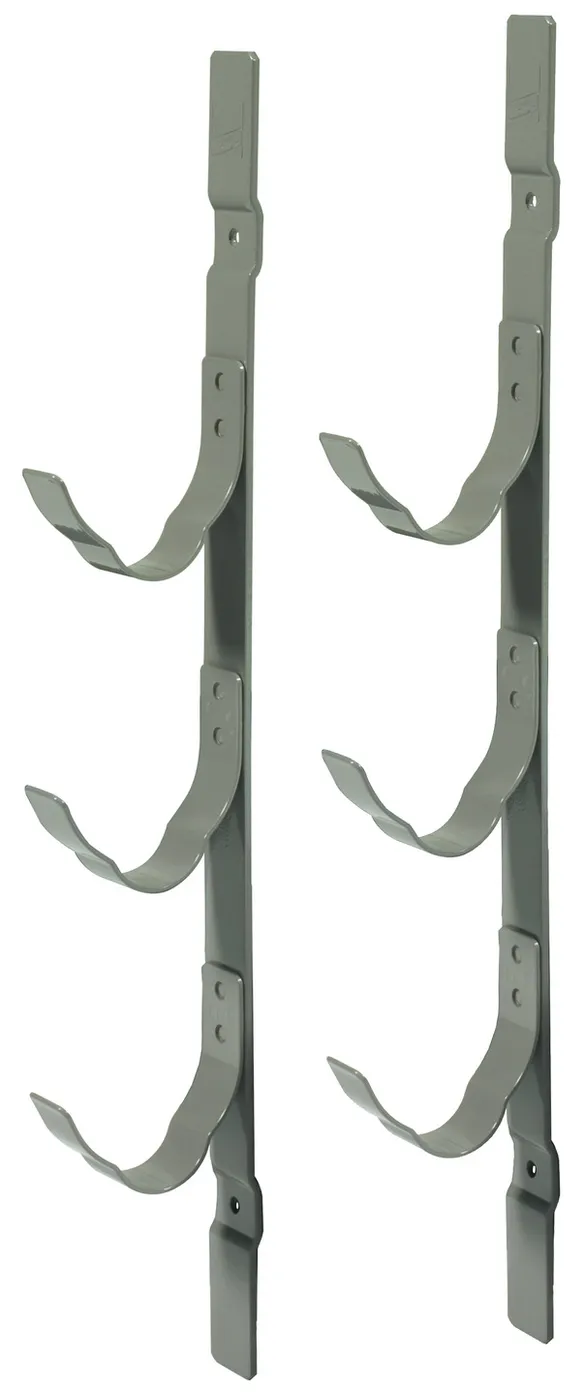

Part No. 700015 HV 3HH

GTIN 4013364007192, Customs tariff No. (EU): 73269098, Gross weight: 1.41 kg, PU: 1.00 Stk.

Images

Open PDF

Additional information

Technical data

Anwendung

für 3 HH-Sicherungen

Product 700015 was added to Notepad.

Go to Notepad

Product 700015 was added to the cart.

Go to Web-Shop

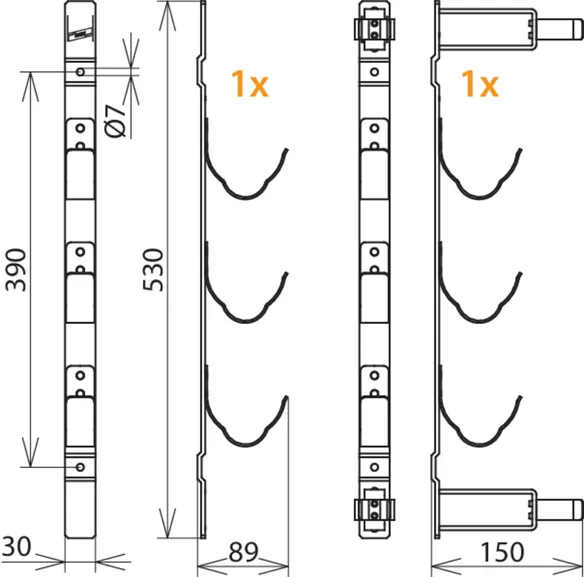

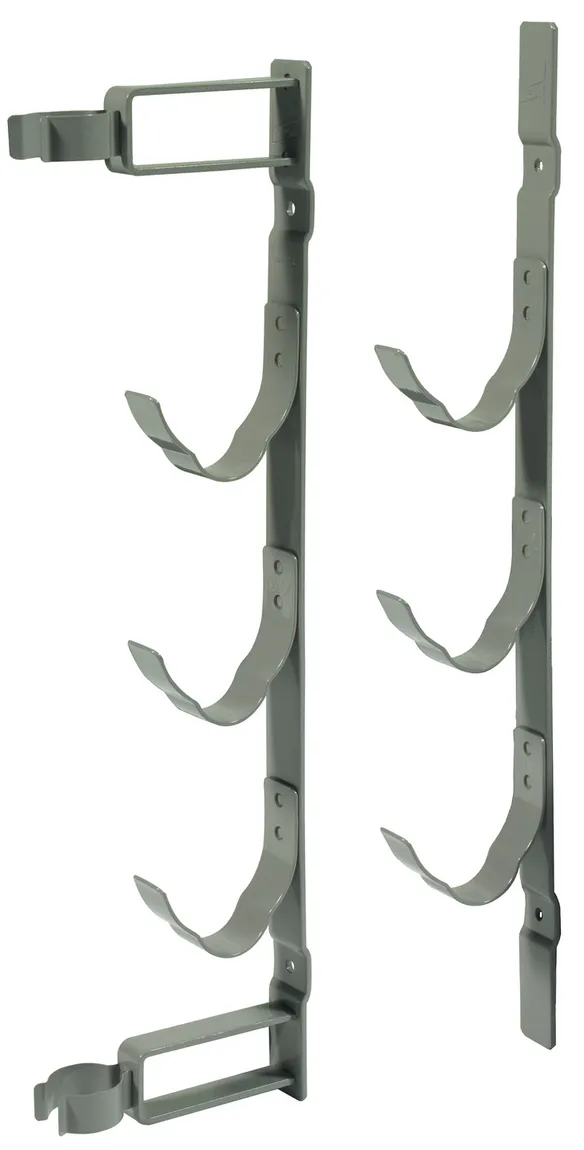

Part No. 700014 HV 3HH SZ

GTIN 4013364007208, Customs tariff No. (EU): 73269098, Gross weight: 1.71 kg, PU: 1.00 Stk.

Images

Open PDF

Additional information

Technical data

Anwendung

für 3 HH-Sicherungen und Sicherungszange

Product 700014 was added to Notepad.

Go to Notepad

Product 700014 was added to the cart.

Go to Web-Shop

Anwendung	für HH-Sicherungen und Sicherungszange
Werkstoff	Stahl
Farbe	grau ●
Hinweis: Für die Montage werden 2 Haltevorrichtungen benötigt!

Bestehend aus	2x HV 3HH ET
Anwendung	für 3 HH-Sicherungen
Werkstoff	Stahl
Farbe	grau ●

Bestehend aus	1x HV 3HH ET und 1x HV 3HH SZ ET
Anwendung	für 3 HH-Sicherungen und Sicherungszange
Werkstoff	Stahl
Farbe	grau ●
