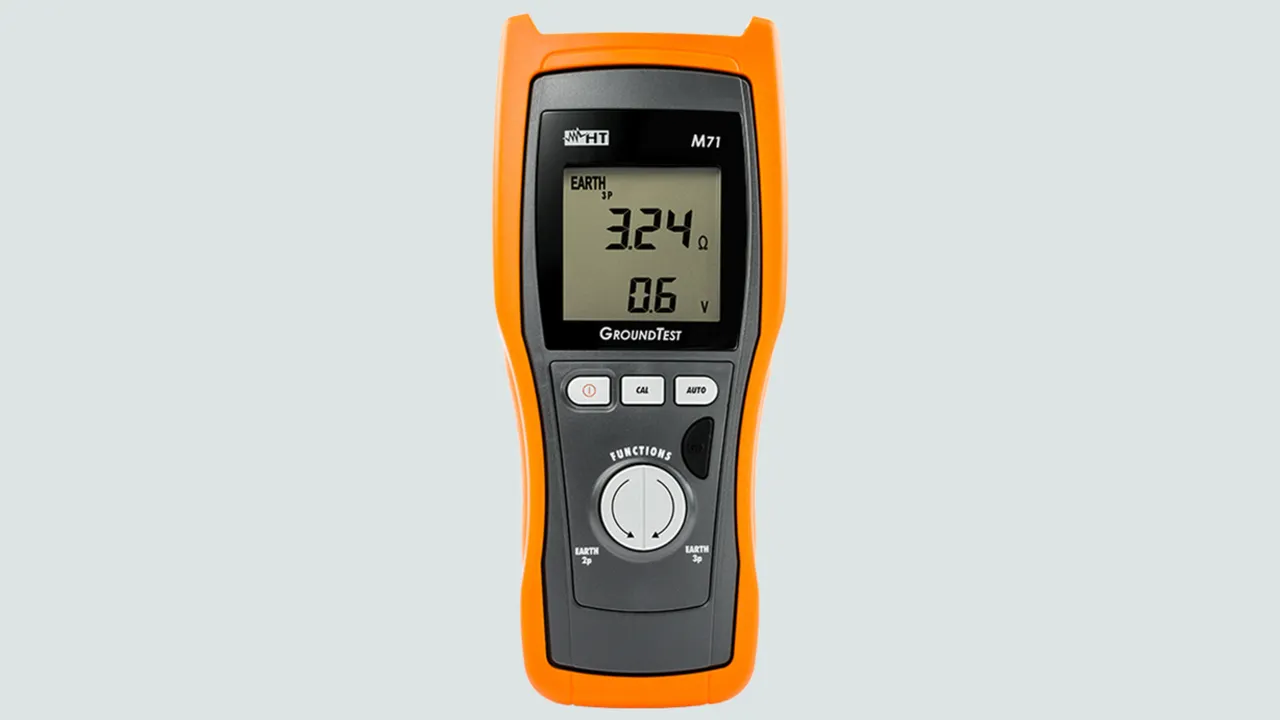

Digital earth resistance meter HT M71
:quality(98)/dehn.us/store/f/55595426/HDVORSCHAU/578320_fam_16-9.jpg)
:quality(98)/dehn.us/store/f/55595426/HDVORSCHAU/578320_fam_16-9.jpg)
Compact earthing resistance meter with ergonomic design and electronic function selector switches. For measuring the earth resistance with the 2- and 3-wire measurement. The device is equipped with interference voltage suppression. Wide range of accessories:
- Storage bag
- 4x 1.5-V AA batteries
- Universal KIT: 3 measuring lines + 3 alligator clips + 2 earth spikes
- Operating instructions
- ISO9000 calibration certificate
Part No. 578320 M71
GTIN 4013364538641, Customs tariff No. (EU): 90318080, Gross weight: 2197.00 g, PU: 1.00 pc(s)

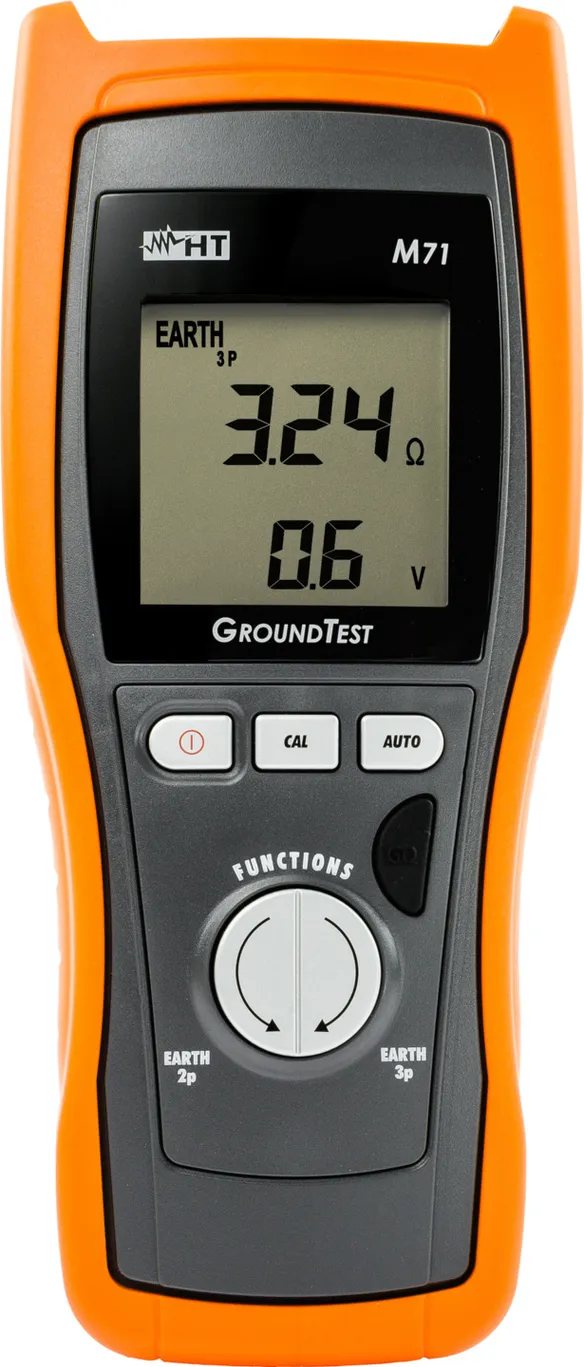

Images
:quality(98)/dehn.us/store/f/55595430/HDVORSCHAU/578320.jpg)
:quality(98)/dehn.us/store/f/55595430/HDVORSCHAU/578320.jpg)
Certificates
Technical data
| Display | Digital LCD display |
| Battery | 4x 1.5-V AA batteries |
| Measuring range | 0.01–50 kΩ |
| Measuring method | 2 or 3 conductor resistance measurement |
| Dimensions (l x w x d) | 240 x 100 x 45 mm |
