DEHNguard modular YPV ... FM

Prewired complete unit for photovoltaic systems consisting of a base part and plug-in protection modules
Fault-resistant Y circuit with three heavy-duty varistors prevents damage to the surge protective device in case of insulation faults in the generator circuit
Tested to EN 61643-31
High reliability due to "Thermo Dynamic Control" disconnector
Fault indication by red indicator flag in the inspection window
Suitable for use in accordance with IEC 60364-7-712 [Photovoltaic (PV) power systems]

DEHNguard MP YPV ... FM

Multipole modular surge arrester for use in PV systems; with remote signalling contact for monitoring device (floating changeover contact).

2 Products

Part No. 942565 DG MP YPV 1200 FM

GTIN 4013364495685, Customs tariff No. (EU): 85363030, Gross weight: 355.99 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

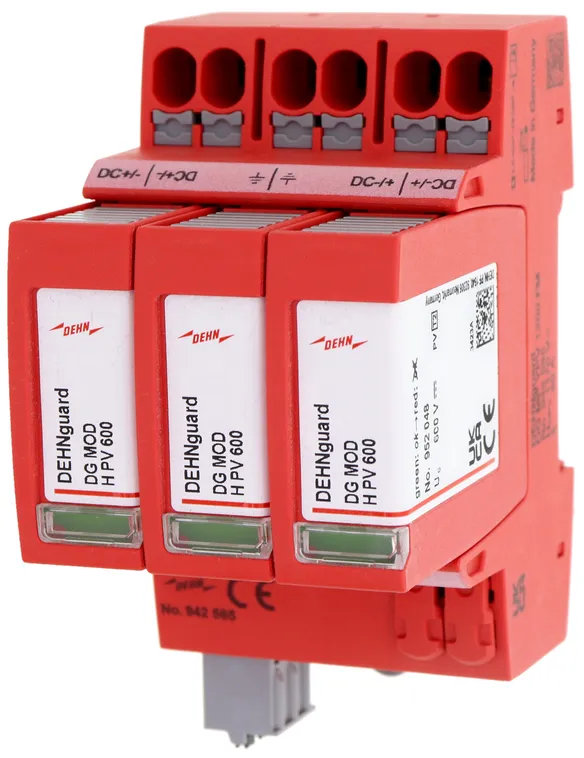

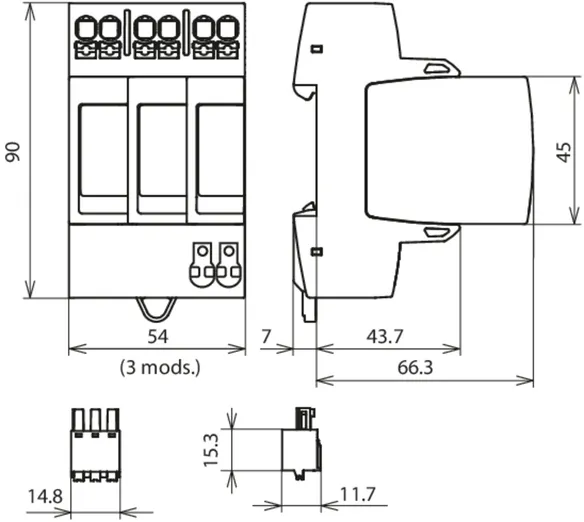

DEHNguard MP YPV 1200 FM surge arrester
Multipole, modular, pluggable arrester for use in photovoltaic systems
with double push-in connection clamp suitable for
stub wiring and feed-through wiring
up to 1,170 V DC, width of 3 DIN modules
Fault indication
With remote signalling contact
Type 2 arrester as per EN 61643-31
For use according to IEC 60364-7-712
Max. PV voltage: <= 1170 V dc
Total discharge current: 40 kA
Voltage protection level: <= 4 kV
Short-circuit strength Iscpv: 10 kA

Brand: DEHN
Type: DG MP YPV 1200 FM
Part No.: 942565
or equivalent.

Certificates

Technical data

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1170 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 4 kV
Type of remote signalling contact	changeover contact

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1170 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (8/20 µs) (I_total )	40 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 4 kV
Nominal load current (d.c.) (I_L )	40 A
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid
Cross-sectional area (min.)	6 mm²fine stranded
Cross-sectional area (max.)	10 mm²solid / fine stranded
Cross-sectional area (min.) with wire end ferrule	1.5 mm²
Cross-sectional area (max.) with wire end ferrule	6 mm²
Cross-sectional area (max.) with wire end ferrule without collar	10 mm²
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm2 solid / flexible

Product 942565 was added to Notepad.

Go to Notepad

Product 942565 was added to the cart.

Go to Web-Shop

Part No. 942567 DG MP YPV 1500 FM

GTIN 4013364495678, Customs tariff No. (EU): 85363030, Gross weight: 387.05 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

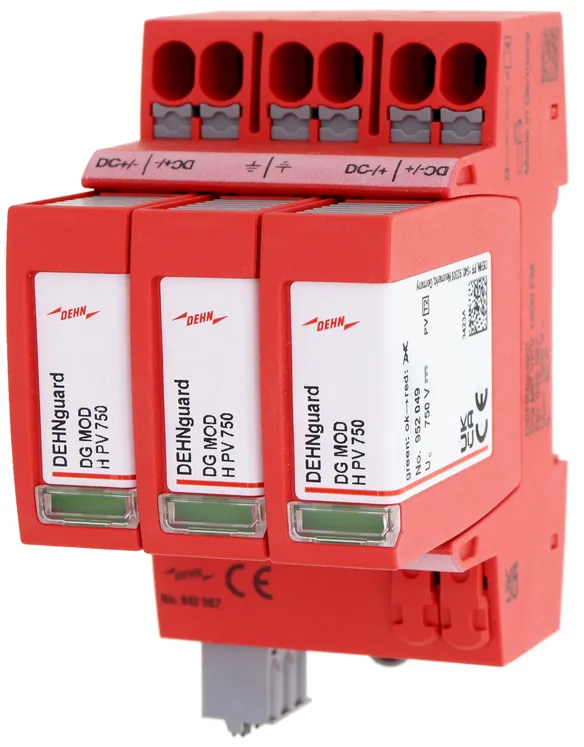

DEHNguard MP YPV 1500 FM surge arrester
Multipole, modular, pluggable arrester for use in photovoltaic systems
with double push-in connection clamp suitable for
stub wiring and feed-through wiring
up to 1,500 V DC, width of 3 DIN modules
Fault indication
With remote signalling contact
Type 2 arrester as per EN 61643-31
For use according to IEC 60364-7-712
Max. PV voltage: <= 1500 V dc
Total discharge current: 40 kA
Voltage protection level: <= 5 kV
Short-circuit strength Iscpv: 10 kA

Brand: DEHN
Type: DG MP YPV 1500 FM
Part No.: 942567
or equivalent.

Certificates

Technical data

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1500 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	15 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 5 kV
Type of remote signalling contact	changeover contact

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1500 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (8/20 µs) (I_total )	40 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	15 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 5 kV
Nominal load current (d.c.) (I_L )	40 A
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid
Cross-sectional area (min.)	6 mm²fine stranded
Cross-sectional area (max.)	10 mm²solid / fine stranded
Cross-sectional area (min.) with wire end ferrule	1.5 mm²
Cross-sectional area (max.) with wire end ferrule	6 mm²
Cross-sectional area (max.) with wire end ferrule without collar	10 mm²
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm2 solid / flexible

Product 942567 was added to Notepad.

Go to Notepad

Product 942567 was added to the cart.

Go to Web-Shop

DEHNguard M YPV ... FM

Modular multipole surge arrester for PV systems with remote signalling contact for monitoring device (floating changeover contact).

2 Products

Part No. 952565 DG M YPV 1200 FM

GTIN 4013364327719, Customs tariff No. (EU): 85354000, Gross weight: 382.00 g, PU: 1.00 pc(s)

Images

Additional information

- old

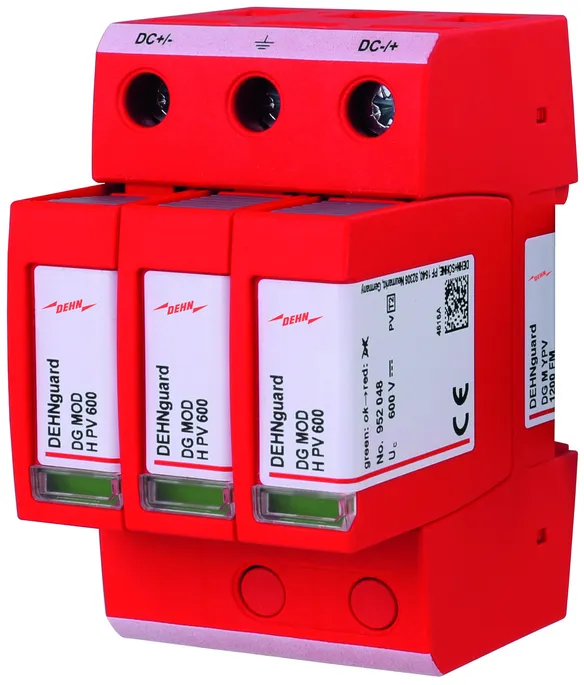

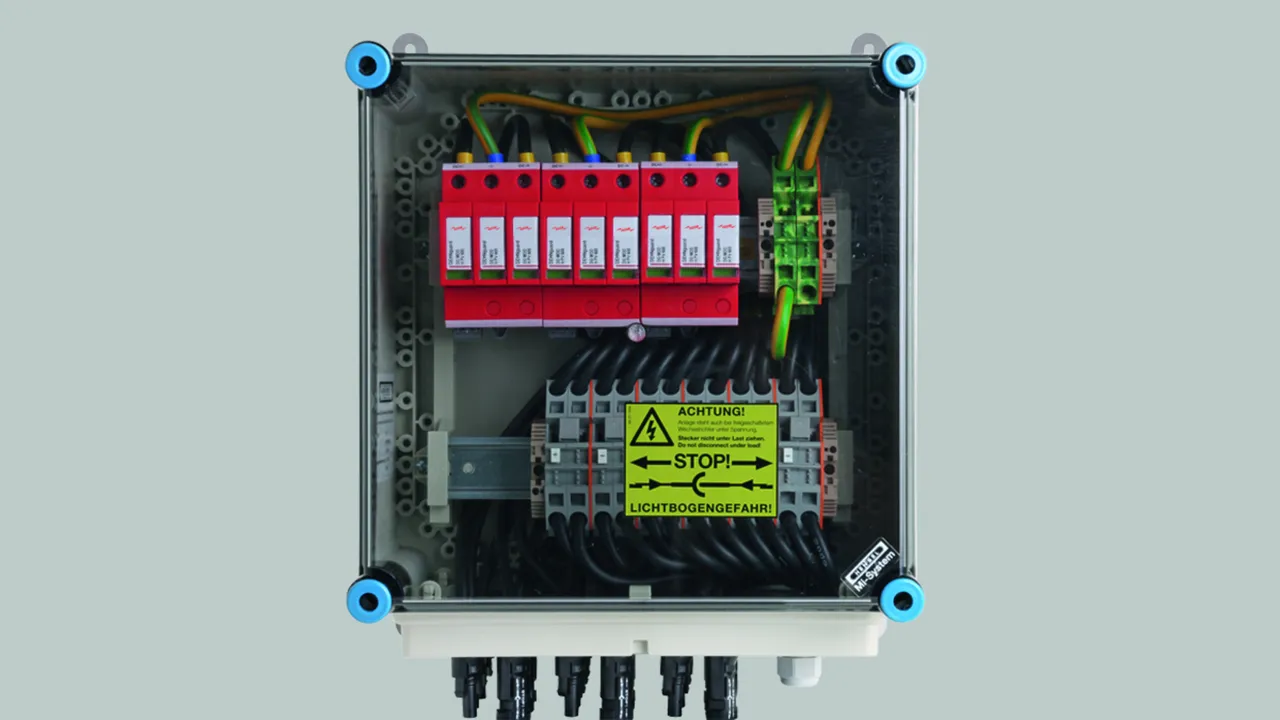

DEHNguard M YPV 1200 FM surge arrester
Multipole, modular, pluggable arrester for use in photovoltaic systems
up to 1,170 V DC, width of 3 DIN modules
Fault indication
Type 2 arrester as per EN 61643-31
For use according to IEC 60364-7-712
Maximum PV voltage: <= 1,170 V DC
Total discharge current: 40 kA
Voltage protection level: <= 4 kV
Short-circuit strength Iscpv: 10 kA

Brand: DEHN
Type: DG M YPV 1200 FM
Part No.: 952565
or equivalent.

Certificates

Technical data

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1170 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 4 kV
Approvals	UL, KEMA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1170 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (8/20 µs) (I_total )	40 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 4 kV
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Approvals	UL, KEMA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Extended technical data:	---------------------------------
– Use in DC battery storage systems up to I_SCCR	≤ 100 kA (t ≤ 5.83 ms)
– Backup fuse for DC battery storage systems up to I_SCCR	Bussman HLS 2000Vdc / 200 A 2+/A173 DST aR, manufacturer's Part. No.: 170M2040
– Backup fuse for DC battery storage systems up to I_SCCR	Mersen Protistor D122SD20C200QF 200A 2000V DC aR

Product 952565 was added to Notepad.

Go to Notepad

Product 952565 was added to the cart.

Go to Web-Shop

Part No. 952567 DG M YPV 1500 FM

GTIN 4013364327726, Customs tariff No. (EU): 85354000, Gross weight: 411.20 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

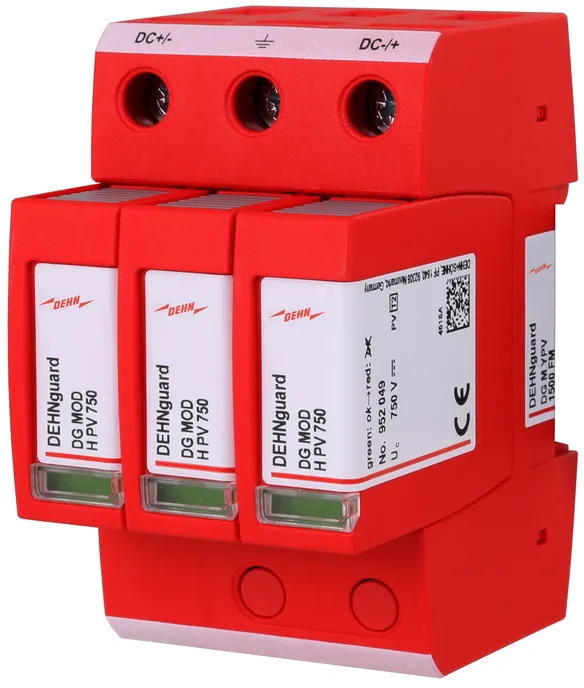

DEHNguard M YPV 1500 FM surge arrester
Multipole, modular, pluggable arrester for use in photovoltaic systems
up to 1,500 V DC, width of 3 DIN modules
Fault indication
With remote signalling contact
Type 2 arrester as per EN 61643-31
For use according to IEC 60364-7-712
Max. PV voltage: <= 1500 V dc
Total discharge current: 40 kA
Voltage protection level: <= 5 kV
Short-circuit strength Iscpv: 10 kA

Brand: DEHN
Type: DG M YPV 1500 FM
Part No.: 952567
or equivalent.

Certificates

Technical data

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1500 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	15 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 5 kV
Approvals	UL, KEMA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1500 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (8/20 µs) (I_total )	40 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	15 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 5 kV
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Approvals	UL, KEMA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm2 solid / flexible
Extended technical data:	---------------------------------
– Use in DC battery storage systems up to I_SCCR	≤ 100 kA (t ≤ 5.83 ms)
– Backup fuse for DC battery storage systems up to I_SCCR	Bussman HLS 2000Vdc / 200 A 2+/A173 DST aR, manufacturer's Part No.: 170M2040
– Backup fuse for DC battery storage systems up to I_SCCR	Mersen Protistor D122SD20C200QF 200A 2000V DC aR

Product 952567 was added to Notepad.

Go to Notepad

Product 952567 was added to the cart.

Go to Web-Shop

Results for products (0)

Results for content (0)

DEHNguard modular YPV ... FM

DEHNguard MP YPV ... FM

Part No. 942565 DG MP YPV 1200 FM

Product 942565 was added to Notepad.

Product 942565 was added to the cart.

Part No. 942567 DG MP YPV 1500 FM

Product 942567 was added to Notepad.

Product 942567 was added to the cart.

DEHNguard M YPV ... FM

Part No. 952565 DG M YPV 1200 FM

Product 952565 was added to Notepad.

Product 952565 was added to the cart.

Part No. 952567 DG M YPV 1500 FM

Product 952567 was added to Notepad.

Product 952567 was added to the cart.

DEHNguard modular YPV ... FM

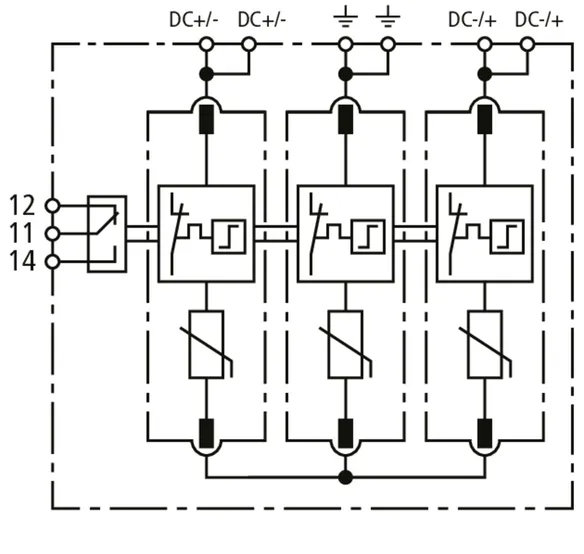

DEHNguard MP YPV ... FM

Part No. 942565 DG MP YPV 1200 FM

You are not authorized to download 942XXX_DG_MP_YPV_XXX_FM.stp

You are not authorized to download 942XXX_DG_MP_YPV_XXX_FM.igs

You are not authorized to download 942XXX_DG_MP_YPV_XXX_FM.jt

You are not authorized to download 942XXX_DG_MP_YPV_XXX_FM.dwg

You are not authorized to download 942565_942567m_E.dxf

Product 942565 was added to Notepad.

Product 942565 was added to the cart.

Part No. 942567 DG MP YPV 1500 FM

You are not authorized to download 942XXX_DG_MP_YPV_XXX_FM.stp

You are not authorized to download 942XXX_DG_MP_YPV_XXX_FM.igs

You are not authorized to download 942XXX_DG_MP_YPV_XXX_FM.jt

You are not authorized to download 942XXX_DG_MP_YPV_XXX_FM.dwg

You are not authorized to download 942565_942567m_E.dxf

Product 942567 was added to Notepad.

Product 942567 was added to the cart.

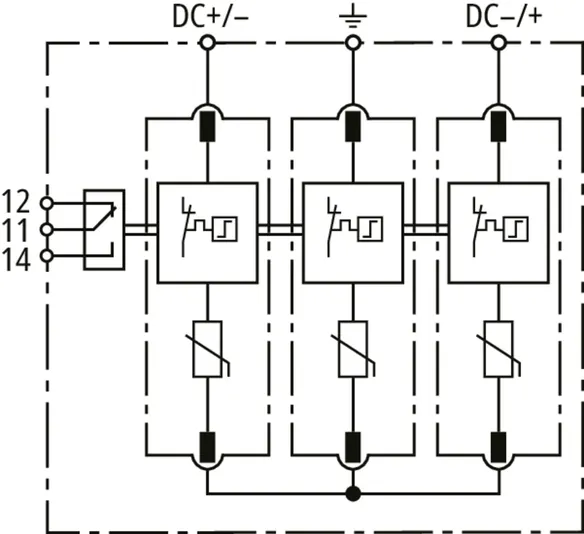

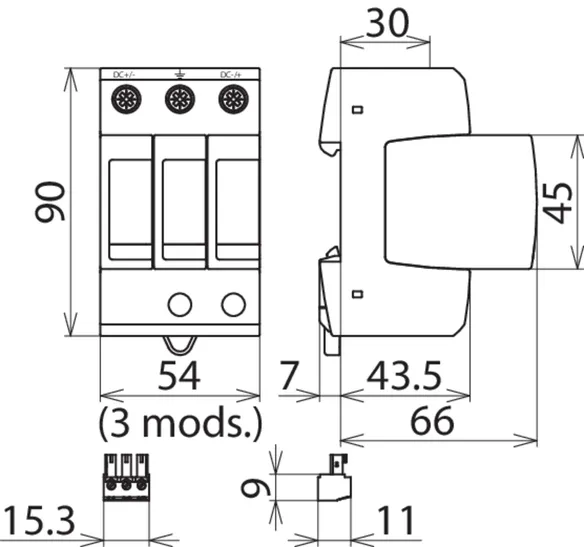

DEHNguard M YPV ... FM

Part No. 952565 DG M YPV 1200 FM

Product 952565 was added to Notepad.

Product 952565 was added to the cart.

Part No. 952567 DG M YPV 1500 FM

You are not authorized to download 952305.stp

You are not authorized to download 952305.igs

You are not authorized to download 952305.jt

You are not authorized to download 952305.dwg

You are not authorized to download 952305m_E.dxf

You are not authorized to download DEHN.952567.wspak

You are not authorized to download DEHN.952567.edz

Product 952567 was added to Notepad.

Product 952567 was added to the cart.
