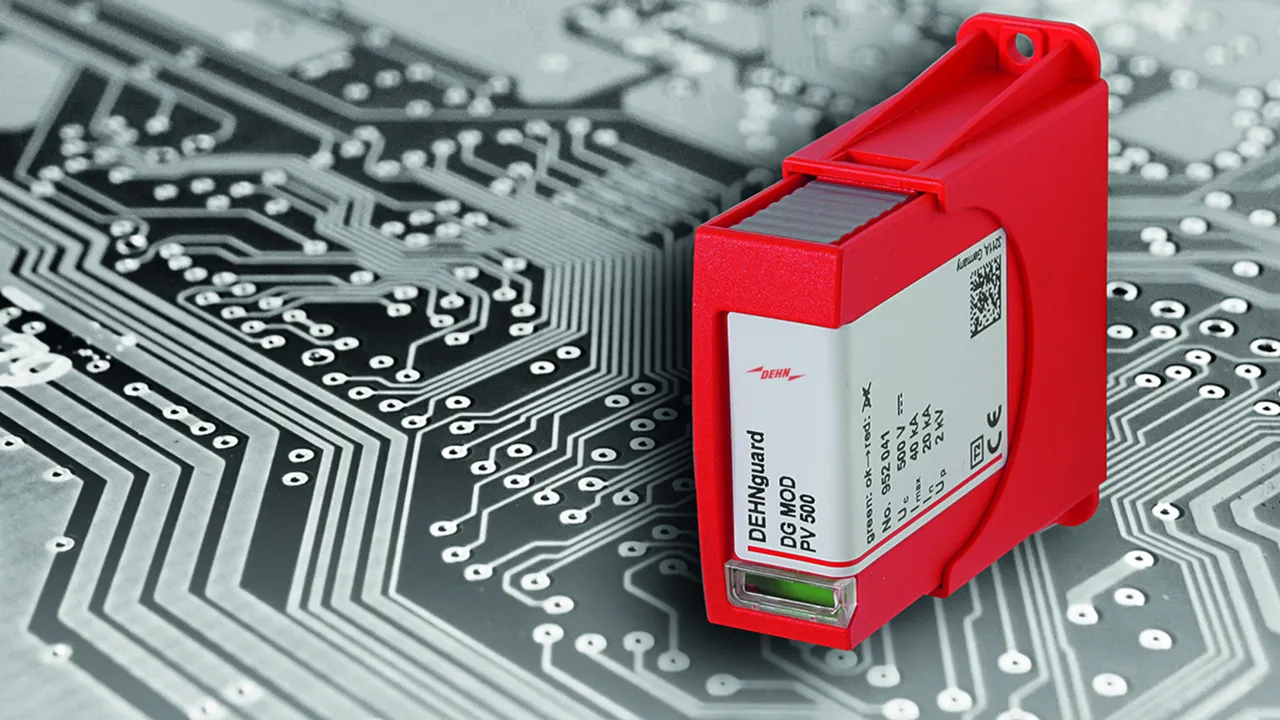

DEHNguard PCB

  • Base for DEHNguard protection modules to be mounted on and integrated in PCBs
  • Optimal integration of a type 2 arrester in devices
  • Easy and flexible use for all circuit configurations
  • Proven DEHNguard modules ensure high performance
  • Coded base and protection module guard against installing an incorrect module
  • Version with and without remote signalling contact for the monitoring device
  • Versions for maximum requirements on clearances and creepage distances
  • Versions for other DEHNguard protection modules available on request

DEHNguard PCB PV SCI ...

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices.

3 Products

Part No. 952653 DG PCB PV SCI 300

GTIN 4013364150713, Customs tariff No. (EU): 85366930, Gross weight: 19.89 g, PU: 72.00 pc(s)

Images

Additional information

DEHNguard PCB PV SCI 300 single-pole base
Single-pole base for DEHNguard protection modules
for integration on PCBs
Coded base part and protection module
Mounting via screw and soldered connection on PCBs
Associated protection module:
DG MOD PV SCI 300 (Part No. 952 053)
Max. continuous operating voltage (d.c.) (module): 500 V

Brand: DEHN
Type: DG PCB PV SCI 300
Part No.: 952653
or equivalent.

Certificates



Technical data

Associated protection module DG MOD PV SCI 300 (Part No. 952 053)
Max. continuous operating voltage (d.c.) (module) 300 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Product 952653 was added to Notepad.

Go to Notepad

Product 952653 was added to the cart.

Go to Web-Shop

Part No. 952651 DG PCB PV SCI 500

GTIN 4013364146310, Customs tariff No. (EU): 85366930, Gross weight: 19.89 g, PU: 72.00 pc(s)

Images

Additional information

DEHNguard PCB PV SCI 500 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV SCI 500
Part No.: 952651
or equivalent.

Certificates



Technical data

Associated protection module DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module) 500 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Product 952651 was added to Notepad.

Go to Notepad

Product 952651 was added to the cart.

Go to Web-Shop

Part No. 952654 DG PCB PV SCI 600

GTIN 4013364149878, Customs tariff No. (EU): 85366930, Gross weight: 19.79 g, PU: 72.00 pc(s)

Images

Additional information

DEHNguard PCB PV SCI 600 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 600 (Part No. 952 054)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV SCI 600
Part No.: 952654
or equivalent.

Certificates



Technical data

Associated protection module DG MOD PV SCI 600 (Part No. 952 054)
Max. continuous operating voltage (d.c.) (module) 600 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Product 952654 was added to Notepad.

Go to Notepad

Product 952654 was added to the cart.

Go to Web-Shop

DEHNguard PCB PV SCI ... FM

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices, with remote signalling contact for the monitoring system (floating changeover contact).

3 Products

Part No. 952753 DG PCB PV SCI 300 FM

GTIN 4013364150720, Customs tariff No. (EU): 85366930, Gross weight: 19.79 g, PU: 72.00 pc(s)

Images

Additional information

DEHNguard PCB PV SCI 300 FM single-pole base
Single-pole base for DEHNguard protection modules
is mounted and integrated on PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 300 (Part No. 952 053)
Max. continuous operating voltage (d.c.) (module): 300 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV SCI 300 FM
Part No.: 952753
or equivalent.

Certificates



Technical data

Associated protection module DG MOD PV SCI 300 (Part No. 952 053)
Max. continuous operating voltage (d.c.) (module) 300 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Product 952753 was added to Notepad.

Go to Notepad

Product 952753 was added to the cart.

Go to Web-Shop

Part No. 952751 DG PCB PV SCI 500 FM

GTIN 4013364146327, Customs tariff No. (EU): 85366930, Gross weight: 20.49 g, PU: 72.00 pc(s)

Images

Additional information

DEHNguard PCB PV SCI 500 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV SCI 500 FM
Part No.: 952751
or equivalent.

Certificates



Technical data

Associated protection module DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module) 500 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Product 952751 was added to Notepad.

Go to Notepad

Product 952751 was added to the cart.

Go to Web-Shop

Part No. 952754 DG PCB PV SCI 600 FM

GTIN 4013364149885, Customs tariff No. (EU): 85366930, Gross weight: 19.79 g, PU: 72.00 pc(s)

Images

Additional information

DEHNguard PCB PV SCI 600 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 600 (Part No. 952 054)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV SCI 600 FM
Part No.: 952754
or equivalent.

Certificates



Technical data

Associated protection module DG MOD PV SCI 600 (Part No. 952 054)
Max. continuous operating voltage (d.c.) (module) 600 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Product 952754 was added to Notepad.

Go to Notepad

Product 952754 was added to the cart.

Go to Web-Shop

DEHNguard PCB PV ...

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices.

3 Products

Part No. 952643 DG PCB PV 300

GTIN 4013364150737, Customs tariff No. (EU): 85366930, Gross weight: 19.89 g, PU: 72.00 pc(s)

Images

Additional information

DEHNguard PCB PV 300 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 300 (Part No. 952 043)
Max. continuous operating voltage (d.c.) (module): 300 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 300
Part No.: 952643
or equivalent.

Certificates



Technical data

Associated protection module DG MOD PV 300 (Part No. 952 043)
Max. continuous operating voltage (d.c.) (module) 300 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Product 952643 was added to Notepad.

Go to Notepad

Product 952643 was added to the cart.

Go to Web-Shop

Part No. 952641 DG PCB PV 500

GTIN 4013364146334, Customs tariff No. (EU): 85366930, Gross weight: 19.89 g, PU: 72.00 pc(s)

Images

Additional information

DEHNguard PCB PV 500 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 500
Part No.: 952641
or equivalent.

Certificates



Technical data

Associated protection module DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module) 500 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Product 952641 was added to Notepad.

Go to Notepad

Product 952641 was added to the cart.

Go to Web-Shop

Part No. 952644 DG PCB PV 600

GTIN 4013364149892, Customs tariff No. (EU): 85366930, Gross weight: 19.79 g, PU: 72.00 pc(s)

Images

Additional information

DEHNguard PCB PV 600 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 600 (Part No. 952 044)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 600
Part No.: 952644
or equivalent.

Certificates



Technical data

Associated protection module DG MOD PV 600 (Part No. 952 044)
Max. continuous operating voltage (d.c.) (module) 600 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Product 952644 was added to Notepad.

Go to Notepad

Product 952644 was added to the cart.

Go to Web-Shop

DEHNguard PCB PV ... FM

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices, with remote signalling contact for the monitoring system (floating changeover contact).

3 Products

Part No. 952743 DG PCB PV 300 FM

GTIN 4013364150744, Customs tariff No. (EU): 85366930, Gross weight: 19.79 g, PU: 72.00 pc(s)

Images

Additional information

DEHNguard PCB PV 300 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 300 (Part No. 952 043)
Max. continuous operating voltage (d.c.) (module): 300 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 300 FM
Part No.: 952743
or equivalent.

Certificates



Technical data

Associated protection module DG MOD PV 300 (Part No. 952 043)
Max. continuous operating voltage (d.c.) (module) 300 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Product 952743 was added to Notepad.

Go to Notepad

Product 952743 was added to the cart.

Go to Web-Shop

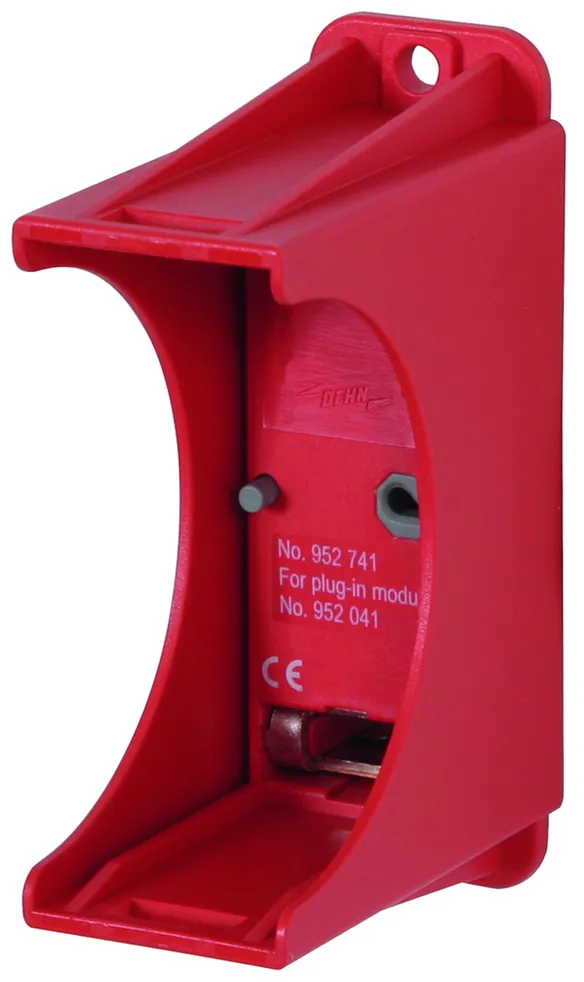

Part No. 952741 DG PCB PV 500 FM

GTIN 4013364146341, Customs tariff No. (EU): 85366930, Gross weight: 20.49 g, PU: 72.00 pc(s)

Images

Additional information

DEHNguard PCB PV 500 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 500 FM
Part No.: 952741
or equivalent.

Certificates



Technical data

Associated protection module DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module) 500 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Product 952741 was added to Notepad.

Go to Notepad

Product 952741 was added to the cart.

Go to Web-Shop

Part No. 952744 DG PCB PV 600 FM

GTIN 4013364149908, Customs tariff No. (EU): 85366930, Gross weight: 19.79 g, PU: 72.00 pc(s)

Images

Additional information

DEHNguard PCB PV 600 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 600 (Part No. 952 044)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 600 FM
Part No.: 952744
or equivalent.

Certificates



Technical data

Associated protection module DG MOD PV 600 (Part No. 952 044)
Max. continuous operating voltage (d.c.) (module) 600 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Product 952744 was added to Notepad.

Go to Notepad

Product 952744 was added to the cart.

Go to Web-Shop

DEHNguard PCB ...

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices.

2 Products

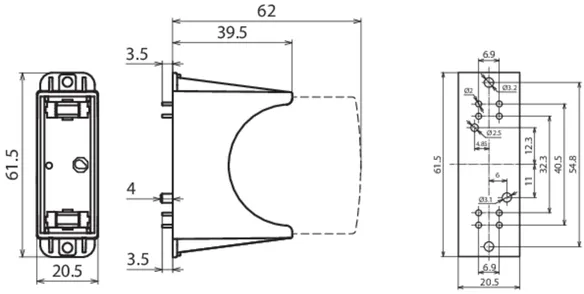

Part No. 952610 DG PCB 275

GTIN 4013364149816, Customs tariff No. (EU): 85366930, Gross weight: 19.79 g, PU: 72.00 pc(s)

Images

Additional information

DEHNguard PCB 275 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (d.c.) (module): 275 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 275
Part No.: 952610
or equivalent.

Certificates



Technical data

Associated protection module DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module) 275 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Product 952610 was added to Notepad.

Go to Notepad

Product 952610 was added to the cart.

Go to Web-Shop

Part No. 952614 DG PCB 385

GTIN 4013364149847, Customs tariff No. (EU): 85366930, Gross weight: 19.79 g, PU: 72.00 pc(s)

Images

Additional information

DEHNguard PCB 385 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 385 (Part No. 952 014)
Max. continuous operating voltage (d.c.) (module): 385 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 385
Part No.: 952614
or equivalent.

Certificates



Technical data

Associated protection module DG MOD 385 (Part No. 952 014)
Max. continuous operating voltage (a.c.) (module) 385 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Product 952614 was added to Notepad.

Go to Notepad

Product 952614 was added to the cart.

Go to Web-Shop

DEHNguard PCB ... FM

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices, with remote signalling contact for the monitoring system (floating changeover contact).

2 Products

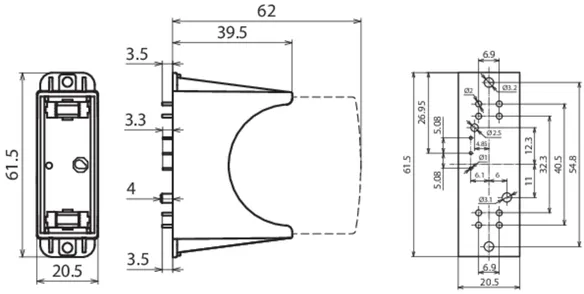

Part No. 952710 DG PCB 275 FM

GTIN 4013364149830, Customs tariff No. (EU): 85366930, Gross weight: 20.59 g, PU: 72.00 pc(s)

Images

Additional information

DEHNguard PCB 275 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module): 275 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 275 FM
Part No.: 952710
or equivalent.

Certificates



Technical data

Associated protection module DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module) 275 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Product 952710 was added to Notepad.

Go to Notepad

Product 952710 was added to the cart.

Go to Web-Shop

Part No. 952714 DG PCB 385 FM

GTIN 4013364149854, Customs tariff No. (EU): 85366930, Gross weight: 20.59 g, PU: 72.00 pc(s)

Images

Additional information

DEHNguard PCB 385 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 385 (Part No. 952 014)
Max. continuous operating voltage (a.c.) (module): 385 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 385 FM
Part No.: 952714
or equivalent.

Certificates



Technical data

Associated protection module DG MOD 385 (Part No. 952 014)
Max. continuous operating voltage (a.c.) (module) 385 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Product 952714 was added to Notepad.

Go to Notepad

Product 952714 was added to the cart.

Go to Web-Shop

DEHNguard PCB NPE (FM)

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices, with remote signalling contact for the monitoring system (floating changeover contact).

2 Products

Part No. 952650 DG PCB NPE

GTIN 4013364149823, Customs tariff No. (EU): 85366930, Gross weight: 19.79 g, PU: 72.00 pc(s)

Images

Additional information

DEHNguard PCB NPE single-pole base
Single-pole base for DEHNguard protection modules
to be integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD NPE (Part No. 952 050)
Max. continuous operating voltage (d.c.) (module): 255 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB NPE
Part No.: 952650
or equivalent.

Certificates



Technical data

Associated protection module DG MOD NPE (Part No. 952 050)
Max. continuous operating voltage (a.c.) (module) 255 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Product 952650 was added to Notepad.

Go to Notepad

Product 952650 was added to the cart.

Go to Web-Shop

Part No. 952750 DG PCB NPE FM

GTIN 4013364149861, Customs tariff No. (EU): 85366930, Gross weight: 19.79 g, PU: 72.00 pc(s)

Images

Additional information

DEHNguard PCB NPE FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD NPE (Part No. 952 050)
Max. continuous operating voltage (a.c.) (module): 255 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB NPE FM
Part No.: 952750
or equivalent.

Certificates



Technical data

Associated protection module DG MOD NPE (Part No. 952 050)
Max. continuous operating voltage (a.c.) (module) 255 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Product 952750 was added to Notepad.

Go to Notepad

Product 952750 was added to the cart.

Go to Web-Shop

DEHNguard PCB PV I ... FM

Single-pole base with increased clearance and creepage distance between the power contacts and the remote signalling contact. For installation on the PCBs of devices to accommodate DEHNguard modules, with remote signalling contact for the monitoring system (floating changeover contact).

3 Products

Part No. 952941 DG PCB PV I 500 FM

GTIN 4013364228177, Customs tariff No. (EU): 85366930, Gross weight: 19.79 g, PU: 72.00 pc(s)

Images

Additional information

DEHNguard PCB PV I 500 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV I 500 FM
Part No.: 952941
or equivalent.

Certificates



Technical data

Associated protection module DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module) 500 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Product 952941 was added to Notepad.

Go to Notepad

Product 952941 was added to the cart.

Go to Web-Shop

Part No. 952948 DG PCB PV I 600 FM

GTIN 4013364323919, Customs tariff No. (EU): 85366930, Gross weight: 19.79 g, PU: 72.00 pc(s)

Images

Additional information

DEHNguard PCB PV I 600 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure
against installing an incorrect module
Associated protection module:
DG MOD H PV 600 (Part No. 952 048)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV I 600 FM
Part No.: 952948
or equivalent.

Certificates



Technical data

Associated protection module DG MOD H PV 600 (Part No. 952 048)
Max. continuous operating voltage (d.c.) (module) 600 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Product 952948 was added to Notepad.

Go to Notepad

Product 952948 was added to the cart.

Go to Web-Shop

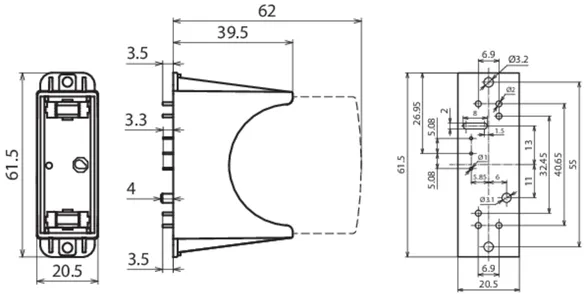

Part No. 952949 DG PCB PV I 750 FM

GTIN 4013364323926, Customs tariff No. (EU): 85366930, Gross weight: 19.79 g, PU: 72.00 pc(s)

Images

Additional information

DEHNguard PCB PV I 750 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure
against installing an incorrect module
Associated protection module:
DG MOD H PV 750 (Part No. 952 049)
Max. continuous operating voltage (d.c.) (module): 750 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV I 750 FM
Part No.: 952949
or equivalent.



Technical data

Associated protection module DG MOD H PV 750 (Part No. 952 049)
Max. continuous operating voltage (d.c.) (module) 750 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Product 952949 was added to Notepad.

Go to Notepad

Product 952949 was added to the cart.

Go to Web-Shop

DEHNguard PCB PVSCI I ...FM

Single-pole base with increased clearance and creepage distance between the power contacts and the remote signalling contact. For installation on the PCBs of devices to accommodate DEHNguard modules, with remote signalling contact for the monitoring system (floating changeover contact).

1 Product

Part No. 952951 DG PCB PVSCI I 500FM

GTIN 4013364228184, Customs tariff No. (EU): 85366930, Gross weight: 19.79 g, PU: 72.00 pc(s)

Images

Additional information

DEHNguard PCB PVSCI I 500FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PVSCI I 500FM
Part No.: 952951
or equivalent.

Certificates



Technical data

Associated protection module DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module) 500 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Product 952951 was added to Notepad.

Go to Notepad

Product 952951 was added to the cart.

Go to Web-Shop

DEHNguard PCB I ... FM

Single-pole base with increased clearance and creepage distance between the power contacts and the remote signalling contact. For installation on the PCBs of devices to accommodate DEHNguard modules, with remote signalling contact for the monitoring system (floating changeover contact).

1 Product

Part No. 952910 DG PCB I 275 FM

GTIN 4013364266865, Customs tariff No. (EU): 85366930, Gross weight: 19.79 g, PU: 72.00 pc(s)

Images

Additional information

DEHNguard PCB I 275 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module): 275 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB I 275 FM
Part No.: 952910
or equivalent.

Certificates



Technical data

Associated protection module DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module) 275 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Product 952910 was added to Notepad.

Go to Notepad

Product 952910 was added to the cart.

Go to Web-Shop

DG PCB ... UL

2 Products

Part No. 952615 DG PCB 385 UL FM

GTIN 4013364535794, Customs tariff No. (EU): 85366930, Gross weight: 20.49 g, PU: 72.00 pc(s)

Images

Additional information

Single-pole base DEHNguard DG PCB 385 UL FM
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
with remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG PLU 385 (Part No. 908 014)
Max. continuous AC operating voltage (module): 385 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 385 UL FM
Part No.: 952615
or equivalent.



Technical data

Associated protection module DG PLU 385 (Part No. 908 014)
Max. continuous operating voltage (a.c.) (module) 385 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Product 952615 was added to Notepad.

Go to Notepad

Product 952615 was added to the cart.

Go to Web-Shop

Part No. 952616 DG PCB 510 UL FM

GTIN 4013364535800, Customs tariff No. (EU): 85366930, Gross weight: 20.49 g, PU: 72.00 pc(s)

Images

Additional information

Single-pole base DEHNguard DG PCB 510 UL FM
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
with remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG PLU 510 (Part No. 908 013)
Max. continuous AC operating voltage (module): 510 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 510 UL FM
Part No.: 952616
or equivalent.



Technical data

Associated protection module DG PLU 510 (Part No. 908 013)
Max. continuous operating voltage (a.c.) (module) 510 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Product 952616 was added to Notepad.

Go to Notepad

Product 952616 was added to the cart.

Go to Web-Shop

Your dashboard services.
Register to access all tools.

Notepad
Request a risk assessment
back to top
