Roof Conductor Holders with Tension Spring for Ridge and Hip Tiles

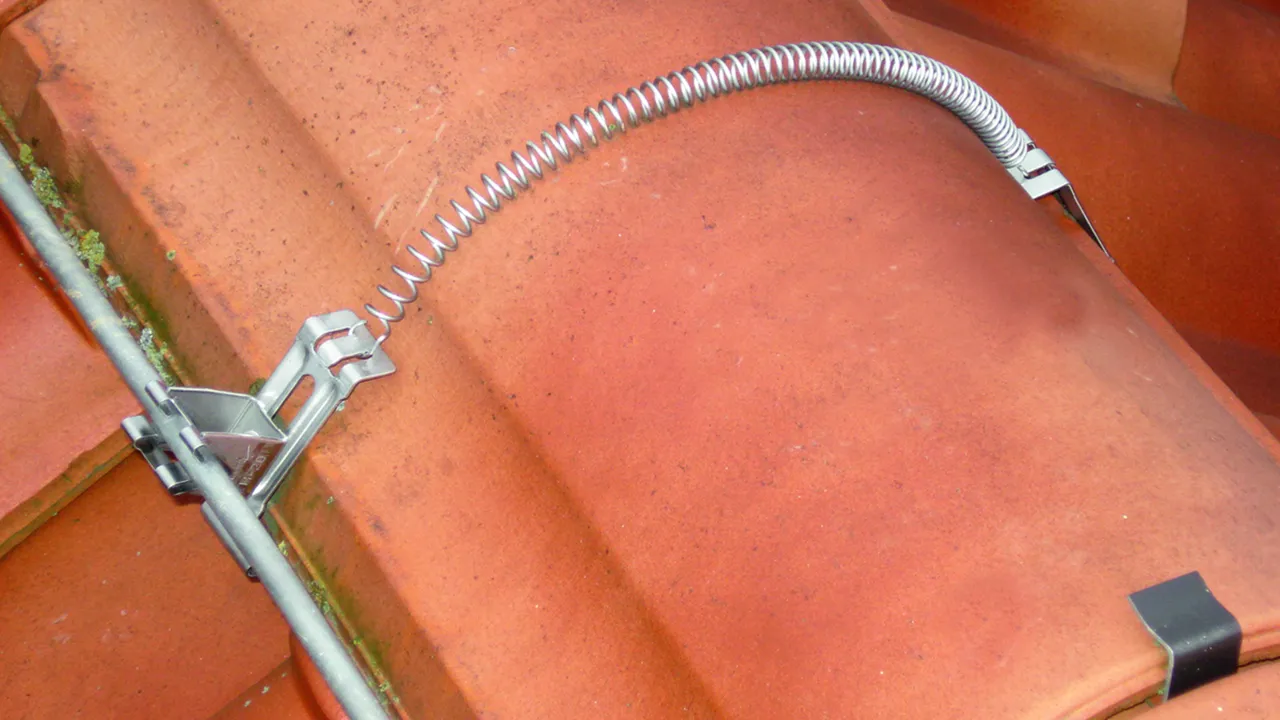

For fixing air-termination conductors on the ridge, e.g. of tile roofs.

SPANNsnap light

Fixed with a StSt tension spring, with conductor holder DEHNsnap, loose conductor routing, laterally adjustable.

2 Products

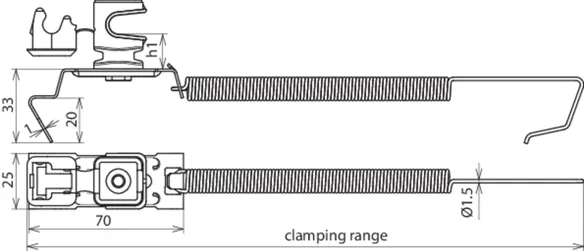

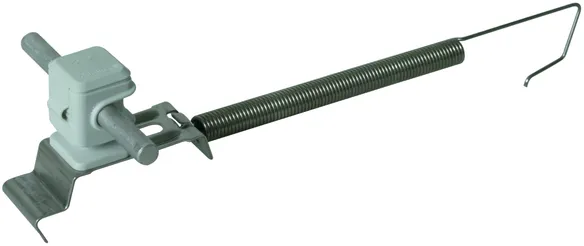

Part No. 204469 DLH SSL 8 H16 FG180.280 GR V2A

GTIN 4013364124851, Customs tariff No. (EU): 85389099, Gross weight: 67.20 g, PU: 25.00 pc(s)

Images

Additional information

Gable roofs - SPANNsnap light, StSt, height of conductor holder: 16 mm
Roof conductor holder with tension spring for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
SPANNsnap fixed with a stainless steel tension spring, with DEHNsnap conductor holder,
loose conductor routing, laterally adjustable
Material of roof conductor holder: StSt
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●

Brand: DEHN
Type: DLH SSL 8 H16 FG180.280 GR V2A
Part No.: 204469
or equivalent.

Certificates



Technical data

Material of roof conductor holder StSt
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 16 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm

Product 204469 was added to Notepad.

Go to Notepad

Product 204469 was added to the cart.

Go to Web-Shop

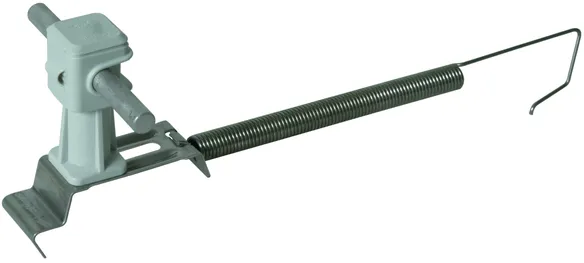

Part No. 204449 DLH SSL 8 H36 FG180.280 GR V2A

GTIN 4013364124837, Customs tariff No. (EU): 85389099, Gross weight: 70.30 g, PU: 25.00 pc(s)

Images

Additional information

Gable roofs - SPANNsnap light, StSt, height of conductor holder: 36 mm
Roof conductor holder with tension spring for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
SPANNsnap light fixed with a stainless steel tension spring, with DEHNsnap conductor holder,
loose conductor routing, laterally adjustable
Material of roof conductor holder: StSt
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●

Brand: DEHN
Type: DLH SSL 8 H36 FG180.280 GR V2A
Part No.: 204449
or equivalent.

Certificates



Technical data

Material of roof conductor holder StSt
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 36 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm

Product 204449 was added to Notepad.

Go to Notepad

Product 204449 was added to the cart.

Go to Web-Shop

SPANNsnap

Fixed with a StSt tension spring, with conductor holder DEHNsnap, loose conductor routing, laterally adjustable.

4 Products

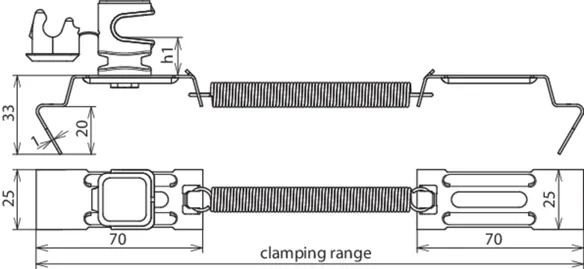

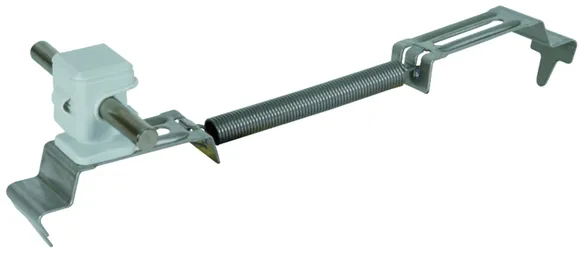

Part No. 204269 DLH SS 8 H16 FG180.280 GR V2A

GTIN 4013364035812, Customs tariff No. (EU): 85389099, Gross weight: 68.60 g, PU: 25.00 pc(s)

Images

Additional information

Gable roofs - SPANNsnap, StSt, height of conductor holder: 16 mm, grey
Roof conductor holder with tension spring for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
SPANNsnap light fixed with a stainless steel tension spring, with DEHNsnap conductor holder,
loose conductor routing, laterally adjustable
Material of roof conductor holder: StSt
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●

Brand: DEHN
Type: DLH SS 8 H16 FG180.280 GR V2A
Part No.: 204269
or equivalent.

Certificates



Technical data

Material of roof conductor holder StSt
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 16 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm

Product 204269 was added to Notepad.

Go to Notepad

Product 204269 was added to the cart.

Go to Web-Shop

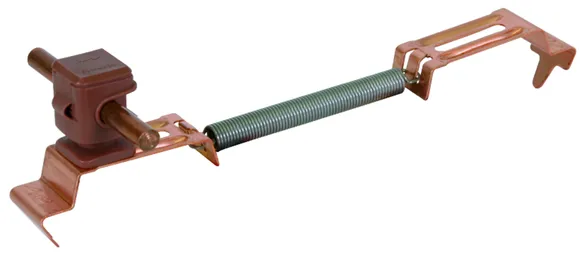

Part No. 204267 DLH SS 8 H16 FG180.280 BR CU

GTIN 4013364035805, Customs tariff No. (EU): 85389099, Gross weight: 74.60 g, PU: 25.00 pc(s)

Predecessor

Images

Additional information

Gable roofs - SPANNsnap, Cu, height of conductor holder: 16 mm, brown
Roof conductor holder with tension spring for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
SPANNsnap light fixed with a stainless steel tension spring, with DEHNsnap conductor holder,
loose conductor routing, laterally adjustable
Material of roof conductor holder: Cu
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●

Brand: DEHN
Type: DLH SS 8 H16 FG180.280 BR CU
Part No.: 204267
or equivalent.

Certificates



Technical data

Material of roof conductor holder Cu
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 16 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm

Product 204267 was added to Notepad.

Go to Notepad

Product 204267 was added to the cart.

Go to Web-Shop

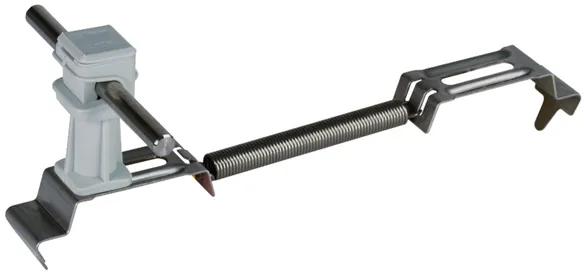

Part No. 204249 DLH SS 8 H36 FG180.280 GR V2A

GTIN 4013364041790, Customs tariff No. (EU): 85389099, Gross weight: 72.60 g, PU: 25.00 pc(s)

Images

Additional information

Gable roofs - SPANNsnap, StSt, height of conductor holder: 36 mm, grey
Roof conductor holder with tension spring for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
SPANNsnap fixed with a stainless steel tension spring, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable
Material of roof conductor holder: StSt
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●

Brand: DEHN
Type: DLH SS 8 H36 FG180.280 GR V2A
Part No.: 204249
or equivalent.

Certificates



Technical data

Material of roof conductor holder StSt
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 36 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm

Product 204249 was added to Notepad.

Go to Notepad

Product 204249 was added to the cart.

Go to Web-Shop

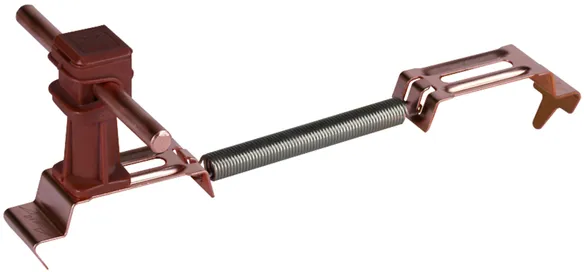

Part No. 204247 DLH SS 8 H36 FG180.280 BR CU

GTIN 4013364041806, Customs tariff No. (EU): 85389099, Gross weight: 76.60 g, PU: 25.00 pc(s)

Predecessor

Images

Additional information

Gable roofs - SPANNsnap, Cu, height of conductor holder: 36 mm, brown
Roof conductor holder with tension spring for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
SPANNsnap fixed with a stainless steel tension spring, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable
Material of roof conductor holder: Cu
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●

Brand: DEHN
Type: DLH SS 8 H36 FG180.280 BR CU
Part No.: 204247
or equivalent.

Certificates



Technical data

Material of roof conductor holder Cu
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 36 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm

Product 204247 was added to Notepad.

Go to Notepad

Product 204247 was added to the cart.

Go to Web-Shop

SPANNgrip light

Fixed with a StSt tension spring, with conductor holder DEHNgrip, loose conductor routing, laterally adjustable.

2 Products

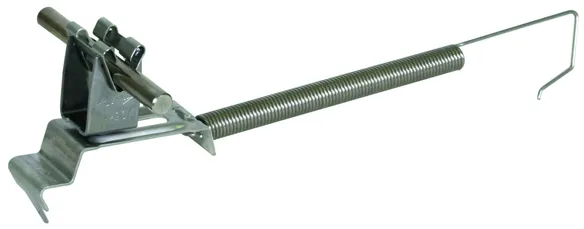

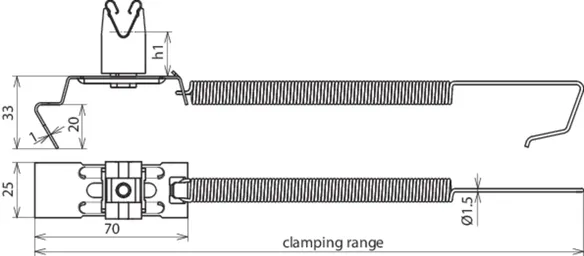

Part No. 206439 DLH SGL 8 H20 FG180.280 V2A

GTIN 4013364124875, Customs tariff No. (EU): 85389099, Gross weight: 76.40 g, PU: 25.00 pc(s)

Images

Additional information

Gable roofs - SPANNgrip light, StSt, height of conductor holder: 20 mm
Roof conductor holder with tension spring for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
SPANNgrip light fixed with a stainless steel tension spring, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable

Material of roof conductor holder: StSt
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 20 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH SGL 8 H20 FG180.280 V2A
Part No.: 206439
or equivalent.



Technical data

Material of roof conductor holder StSt
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Standard EN 62561-4

Product 206439 was added to Notepad.

Go to Notepad

Product 206439 was added to the cart.

Go to Web-Shop

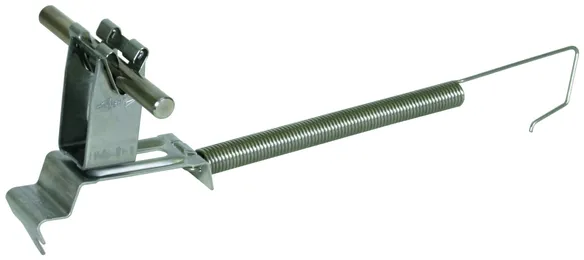

Part No. 206449 DLH SGL 8 H32 FG180.280 V2A

GTIN 4013364124899, Customs tariff No. (EU): 85389099, Gross weight: 82.10 g, PU: 25.00 pc(s)

Images

Additional information

Gable roofs - SPANNgrip light, StSt, height of conductor holder: 32 mm
Roof conductor holder with tension spring for ridge and hip tiles for fixing air-termination conductors on the ridge,e.g. for tile roofs
SPANNgrip light fixed with a StSt tension spring, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable
Material of roof conductor holder: StSt
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 32 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH SGL 8 H32 FG180.280 V2A
Part No.: 206449
or equivalent.



Technical data

Material of roof conductor holder StSt
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 32 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Standard EN 62561-4

Product 206449 was added to Notepad.

Go to Notepad

Product 206449 was added to the cart.

Go to Web-Shop

SPANNgrip

Fixed with a StSt tension spring, with conductor holder DEHNgrip, loose conductor routing, laterally adjustable.

4 Products

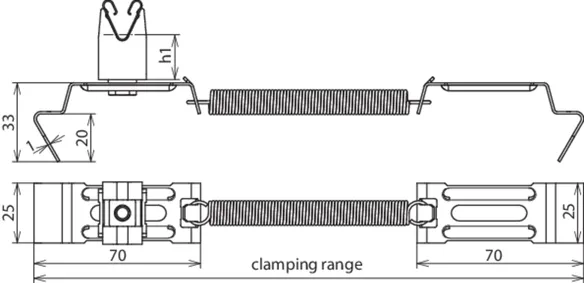

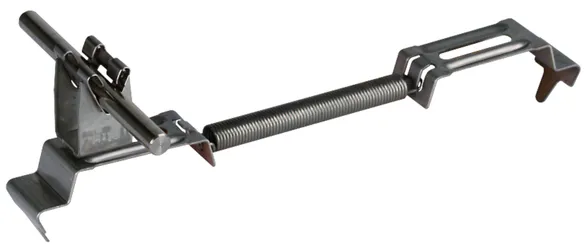

Part No. 206239 DLH SG 8 H20 FG180.280 V2A

GTIN 4013364042650, Customs tariff No. (EU): 85389099, Gross weight: 78.60 g, PU: 25.00 pc(s)

Images

Additional information

Gable roofs - SPANNgrip, StSt, height of conductor holder: 20 mm
Roof conductor holder with tension spring for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
SPANNgrip fixed with a stainless steel tension spring, with DEHNgrip conductor holder, loose conductor routing, laterally adjustable
Material of roof conductor holder: StSt
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 20 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH SG 8 H20 FG180.280 V2A
Part No.: 206239
or equivalent.



Technical data

Material of roof conductor holder StSt
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Standard EN 62561-4

Product 206239 was added to Notepad.

Go to Notepad

Product 206239 was added to the cart.

Go to Web-Shop

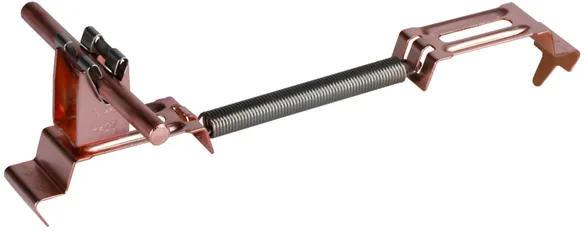

Part No. 206237 DLH SG 8 H20 FG180.280 CU

GTIN 4013364077300, Customs tariff No. (EU): 85389099, Gross weight: 85.60 g, PU: 25.00 pc(s)

Predecessor

Images

Additional information

Gable roofs - SPANNgrip, Cu, height of conductor holder: 20 mm
Roof conductor holder with tension spring for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
SPANNgrip fixed with a stainless steel tension spring, with DEHNgrip conductor holder, loose conductor routing, laterally adjustable
Material of roof conductor holder: Cu
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 20 mm
Material of conductor holder: Cu

Brand: DEHN
Type: DLH SG 8 H20 FG180.280 CU
Part No.: 206237
or equivalent.



Technical data

Material of roof conductor holder Cu
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 20 mm
Material of conductor holder Cu
Conductor support Rd 8 mm
Standard EN 62561-4

Product 206237 was added to Notepad.

Go to Notepad

Product 206237 was added to the cart.

Go to Web-Shop

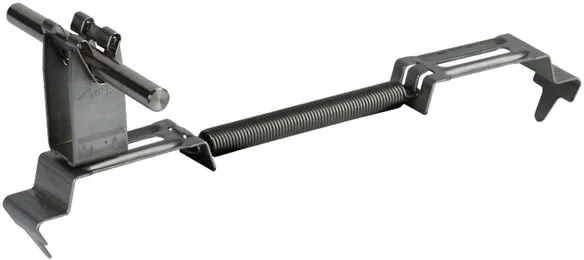

Part No. 206249 DLH SG 8 H32 FG180.280 V2A

GTIN 4013364042803, Customs tariff No. (EU): 85389099, Gross weight: 84.60 g, PU: 25.00 pc(s)

Images

Additional information

Gable roofs - SPANNgrip, StSt, height of conductor holder: 32 mm
Roof conductor holder with tension spring for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
SPANNgrip fixed with a stainless steel tension spring, with DEHNgrip conductor holder, loose conductor routing, laterally adjustable
Material of roof conductor holder: StSt
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 32 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH SG 8 H32 FG180.280 V2A
Part No.: 206249
or equivalent.



Technical data

Material of roof conductor holder StSt
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 32 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Standard EN 62561-4

Product 206249 was added to Notepad.

Go to Notepad

Product 206249 was added to the cart.

Go to Web-Shop

Part No. 206247 DLH SG 8 H32 FG180.280 CU

GTIN 4013364078574, Customs tariff No. (EU): 85389099, Gross weight: 96.60 g, PU: 25.00 pc(s)

Predecessor

Images

Additional information

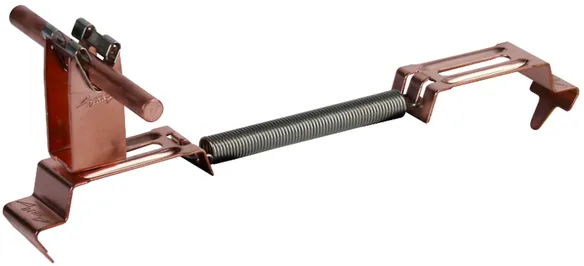

Gable roofs - SPANNgrip, Cu, height of conductor holder: 32 mm
Roof conductor holder with tension spring for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
SPANNgrip fixed with a stainless steel tension spring, with DEHNgrip conductor holder, loose conductor routing, laterally adjustable
Material of roof conductor holder: Cu
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 32 mm
Material of conductor holder: Cu

Brand: DEHN
Type: DLH SG 8 H32 FG180.280 CU
Part No.: 206247
or equivalent.



Technical data

Material of roof conductor holder Cu
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 32 mm
Material of conductor holder Cu
Conductor support Rd 8 mm
Standard EN 62561-4

Product 206247 was added to Notepad.

Go to Notepad

Product 206247 was added to the cart.

Go to Web-Shop

Your dashboard services.
Register to access all tools.

Notepad
Request a risk assessment
back to top
