Roof Conductor Holders Adjustable for Ridge and Hip Tiles

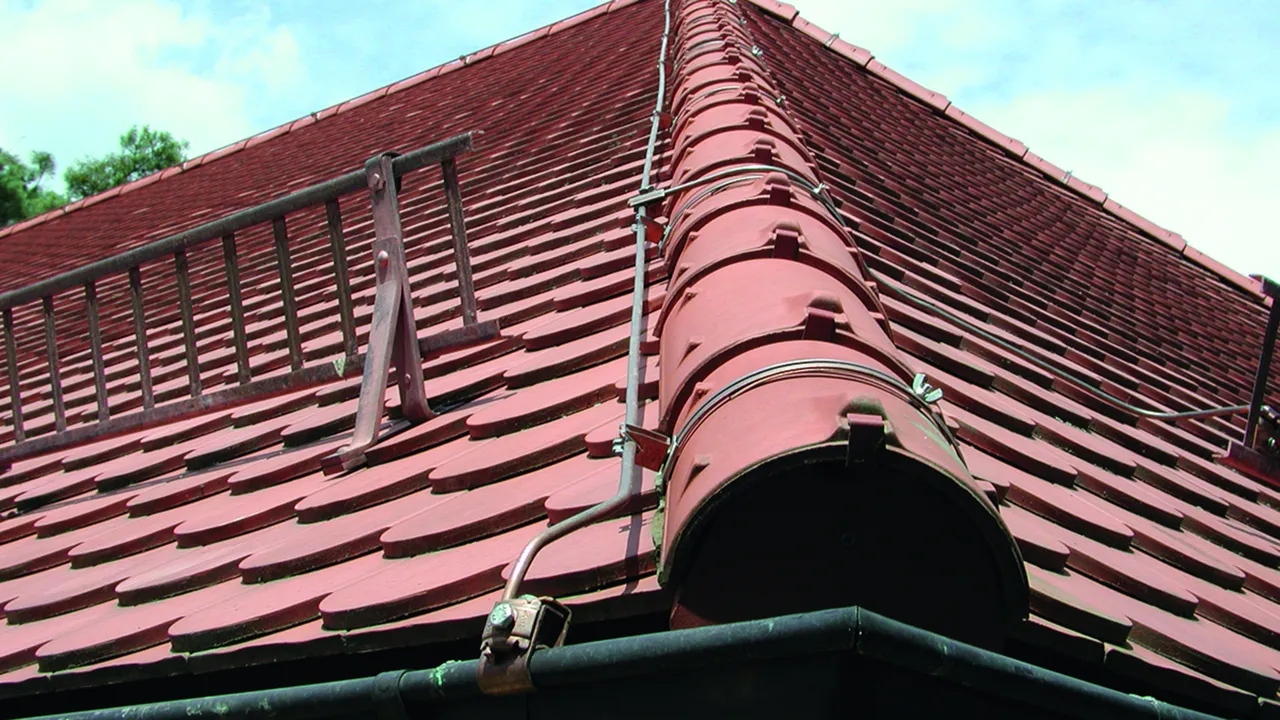

For fixing air-termination conductors on the ridge, e.g. of tile roofs.

Steplessly adjustable with conductor holder DEHNsnap

Loose conductor routing, laterally adjustable (top centre to the bottom).

6 Products

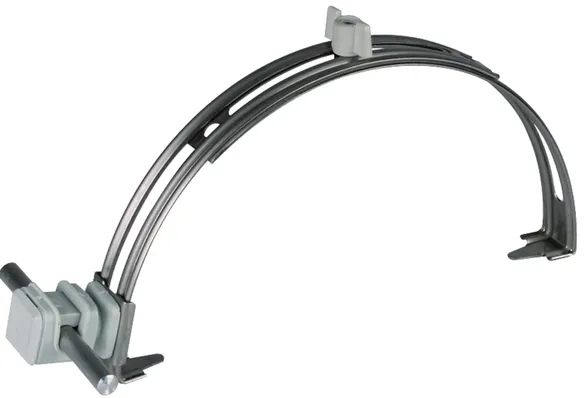

Part No. 204109 DLH DS 8 H16 FG180.280 GR V2A

GTIN 4013364028098, Customs tariff No. (EU): 85389099, Gross weight: 103.64 g, PU: 25.00 pc(s)

Images

Additional information

DEHNsnap conductor holder, grey, StSt, height of conductor holder: 16 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, adjustable on the side (top centre to the bottom)
Material of roof conductor holder: StSt
Clamping range: 180-280 mm
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●

Brand: DEHN
Type: DLH DS 8 H16 FG180.280 GR V2A
Part No.: 204109
or equivalent.

Certificates



Technical data

Material of roof conductor holder StSt
Clamping range 180-280 mm
Height of conductor holder (h1) 16 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm
Length of clamping claw 23 mm

Product 204109 was added to Notepad.

Go to Notepad

Product 204109 was added to the cart.

Go to Web-Shop

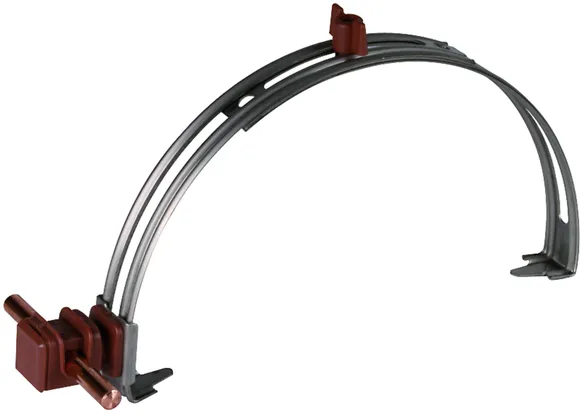

Part No. 204911 DLH DS 8 H16 FG180.280 BR V2A

GTIN 4013364030640, Customs tariff No. (EU): 85389099, Gross weight: 104.04 g, PU: 25.00 pc(s)

Images

Additional information

DEHNsnap conductor holder, brown, StSt, height of conductor holder: 16 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge e.g., for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: StSt
Clamping range: 180-280 mm
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●

Brand: DEHN
Type: DLH DS 8 H16 FG180.280 BR V2A
Part No.: 204911
or equivalent.

Certificates



Technical data

Material of roof conductor holder StSt
Clamping range 180-280 mm
Height of conductor holder (h1) 16 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm
Length of clamping claw 23 mm

Product 204911 was added to Notepad.

Go to Notepad

Product 204911 was added to the cart.

Go to Web-Shop

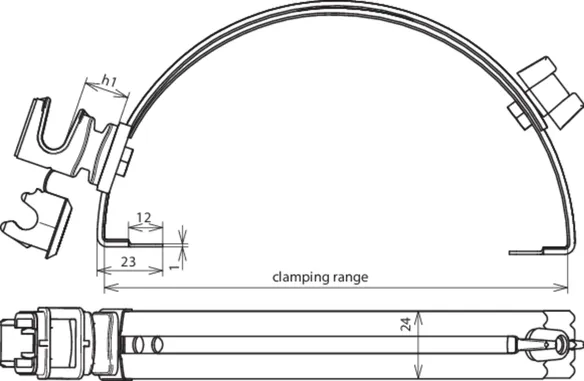

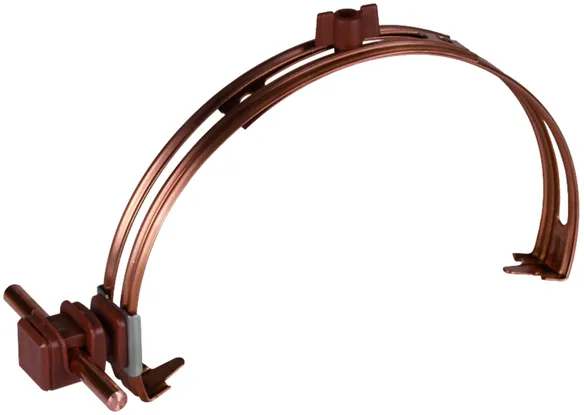

Part No. 204107 DLH DS 8 H16 FG180.280BR GALCU

GTIN 4013364028104, Customs tariff No. (EU): 85389099, Gross weight: 111.04 g, PU: 25.00 pc(s)

Images

Additional information

DEHNsnap conductor holder, brown, Cu, height of conductor holder: 16 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: Cu
Clamping range: 180-280 mm
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●

Brand: DEHN
Type: DLH DS 8 H16 FG180.280BR GALCU
Part No.: 204107
or equivalent.

Certificates



Technical data

Material of roof conductor holder Cu
Clamping range 180-280 mm
Height of conductor holder (h1) 16 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm
Length of clamping claw 23 mm

Product 204107 was added to Notepad.

Go to Notepad

Product 204107 was added to the cart.

Go to Web-Shop

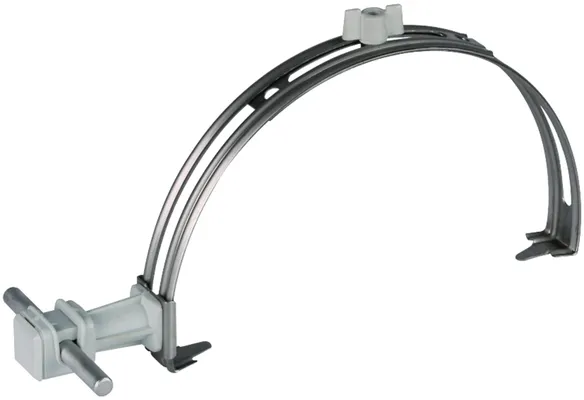

Part No. 204129 DLH DS 8 H36 FG180.280 GR V2A

GTIN 4013364021433, Customs tariff No. (EU): 85389099, Gross weight: 108.04 g, PU: 25.00 pc(s)

Images

Additional information

DEHNsnap conductor holder, grey, StSt, height of conductor holder: 36 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: StSt
Clamping range: 180-280 mm
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●

Brand: DEHN
Type: DLH DS 8 H36 FG180.280 GR V2A
Part No.: 204129
or equivalent.

Certificates



Technical data

Material of roof conductor holder StSt
Clamping range 180-280 mm
Height of conductor holder (h1) 36 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm
Length of clamping claw 23 mm

Product 204129 was added to Notepad.

Go to Notepad

Product 204129 was added to the cart.

Go to Web-Shop

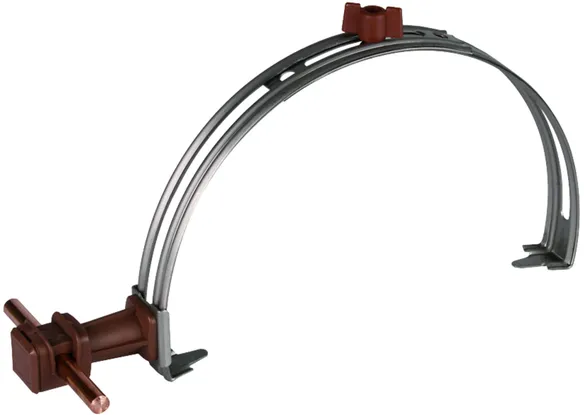

Part No. 204913 DLH DS 8 H36 FG180.280 BR V2A

GTIN 4013364030664, Customs tariff No. (EU): 85389099, Gross weight: 114.04 g, PU: 25.00 pc(s)

Images

Additional information

DEHNsnap conductor holder, brown, StSt, height of conductor holder: 36 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: StSt
Clamping range: 180-280 mm
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●

Brand: DEHN
Type: DLH DS 8 H36 FG180.280 BR V2A
Part No.: 204913
or equivalent.

Certificates



Technical data

Material of roof conductor holder StSt
Clamping range 180-280 mm
Height of conductor holder (h1) 36 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm
Length of clamping claw 23 mm

Product 204913 was added to Notepad.

Go to Notepad

Product 204913 was added to the cart.

Go to Web-Shop

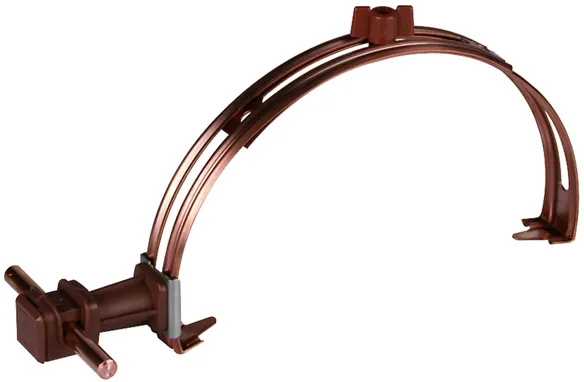

Part No. 204127 DLH DS 8 H36 FG180.280BR GALCU

GTIN 4013364028142, Customs tariff No. (EU): 85389099, Gross weight: 116.24 g, PU: 25.00 pc(s)

Images

Additional information

DEHNsnap conductor holder, Cu, height of conductor holder: 36 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: Cu
Clamping range: 180-280 mm
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●

Brand: DEHN
Type: DLH DS 8 H36 FG180.280BR GALCU
Part No.: 204127
or equivalent.

Certificates



Technical data

Material of roof conductor holder Cu
Clamping range 180-280 mm
Height of conductor holder (h1) 36 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm
Length of clamping claw 23 mm

Product 204127 was added to Notepad.

Go to Notepad

Product 204127 was added to the cart.

Go to Web-Shop

Steplessly adjustable with conductor holder DEHNgrip

Loose conductor routing, laterally adjustable (top centre to the bottom).

5 Products

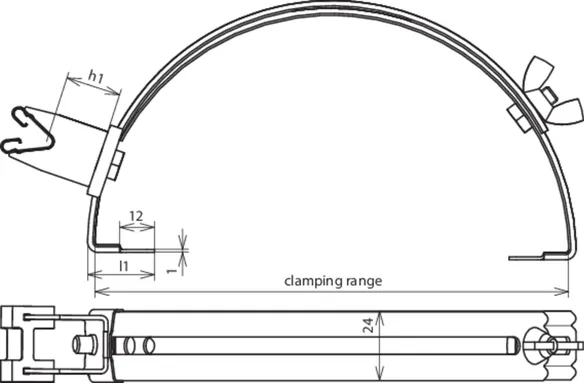

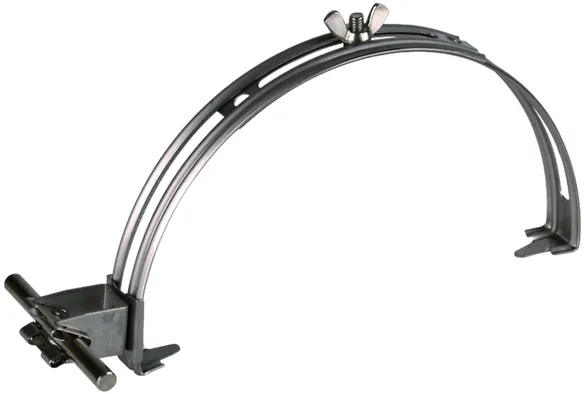

Part No. 206109 DLH DG 8 H20 FG180.280 V2A

GTIN 4013364042810, Customs tariff No. (EU): 85389099, Gross weight: 116.00 g, PU: 25.00 pc(s)

Images

Additional information

DEHNgrip conductor holder, StSt, height of conductor holder: 20 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: StSt
Clamping range: 180-280 mm
Height of conductor holder: 20 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH DG 8 H20 FG180.280 V2A
Part No.: 206109
or equivalent.



Technical data

Material of roof conductor holder StSt
Clamping range 180-280 mm
Height of conductor holder (h1) 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Length of clamping claw 23 mm
Standard EN 62561-4

Product 206109 was added to Notepad.

Go to Notepad

Product 206109 was added to the cart.

Go to Web-Shop

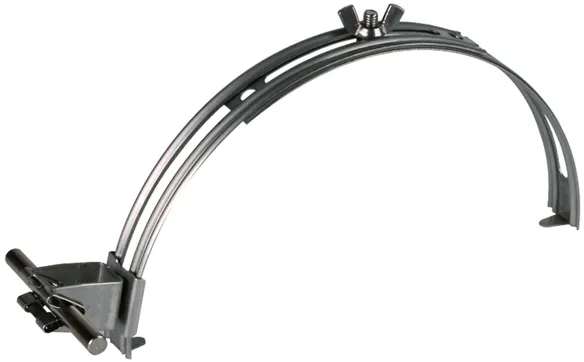

Part No. 206809 DLH DG 8 H20 FG180.280 KK V2A

GTIN 4013364077485, Customs tariff No. (EU): 85389099, Gross weight: 120.34 g, PU: 25.00 pc(s)

Images

Additional information

DEHNgrip conductor holder, StSt, height of conductor holder: 20 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: StSt
Clamping range: 180-280 mm
Height of conductor holder: 20 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH DG 8 H20 FG180.280 KK V2A
Part No.: 206809
or equivalent.



Technical data

Material of roof conductor holder StSt
Clamping range 180-280 mm
Height of conductor holder (h1) 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Length of clamping claw 15 mm
Standard EN 62561-4

Product 206809 was added to Notepad.

Go to Notepad

Product 206809 was added to the cart.

Go to Web-Shop

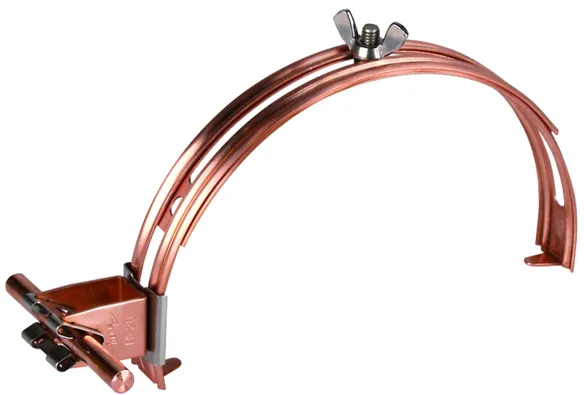

Part No. 206807 DLH DG 8 H20 FG180.280 KK GALCU

GTIN 4013364046306, Customs tariff No. (EU): 85389099, Gross weight: 113.04 g, PU: 25.00 pc(s)

Images

Additional information

DEHNgrip conductor holder, Cu, height of conductor holder: 20 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: Cu
Clamping range: 180-280 mm
Height of conductor holder: 20 mm
Material of conductor holder: Cu

Brand: DEHN
Type: DLH DG 8 H20 FG180.280 KK GALCU
Part No.: 206807
or equivalent.



Technical data

Material of roof conductor holder Cu
Clamping range 180-280 mm
Height of conductor holder (h1) 20 mm
Material of conductor holder Cu
Conductor support Rd 8 mm
Length of clamping claw 15 mm
Standard EN 62561-4

Product 206807 was added to Notepad.

Go to Notepad

Product 206807 was added to the cart.

Go to Web-Shop

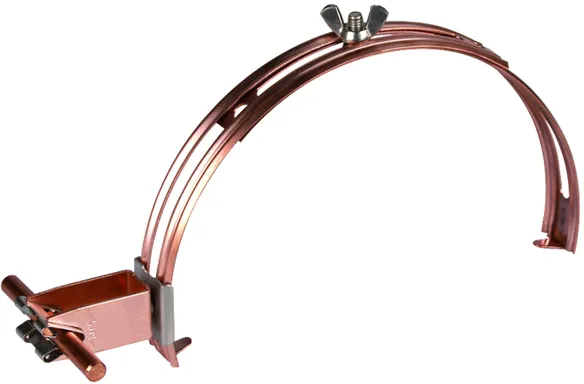

Part No. 206817 DLH DG 8 H32 FG180.280 KK GALCU

GTIN 4013364078581, Customs tariff No. (EU): 85389099, Gross weight: 128.04 g, PU: 25.00 pc(s)

Images

Additional information

DEHNgrip conductor holder, Cu, height of conductor holder: 32 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally on the side (top centre to the bottom)
Material of roof conductor holder: Cu
Clamping range: 180-280 mm
Height of conductor holder: 32 mm
Material of conductor holder: Cu

Brand: DEHN
Type: DLH DG 8 H32 FG180.280 KK GALCU
Part No.: 206817
or equivalent.



Technical data

Material of roof conductor holder Cu
Clamping range 180-280 mm
Height of conductor holder (h1) 32 mm
Material of conductor holder Cu
Conductor support Rd 8 mm
Length of clamping claw 15 mm
Standard EN 62561-4

Product 206817 was added to Notepad.

Go to Notepad

Product 206817 was added to the cart.

Go to Web-Shop

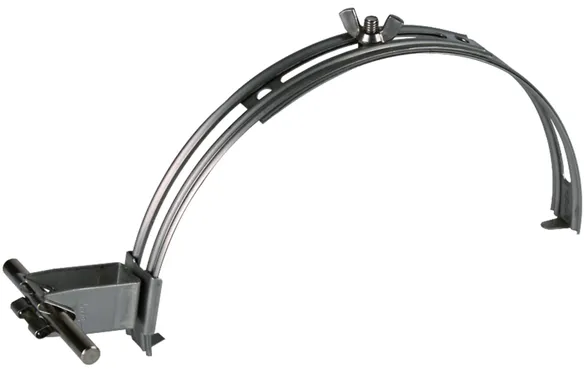

Part No. 206819 DLH DG 8 H32 FG180.280 KK V2A

GTIN 4013364077362, Customs tariff No. (EU): 85389099, Gross weight: 121.04 g, PU: 25.00 pc(s)

Images

Additional information

DEHNgrip conductor holder, StSt, height of conductor holder: 32 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: StSt
Clamping range: 180-280 mm
Height of conductor holder: 32 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH DG 8 H32 FG180.280 KK V2A
Part No.: 206819
or equivalent.



Technical data

Material of roof conductor holder StSt
Clamping range 180-280 mm
Height of conductor holder (h1) 32 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Length of clamping claw 15 mm
Standard EN 62561-4

Product 206819 was added to Notepad.

Go to Notepad

Product 206819 was added to the cart.

Go to Web-Shop

Adjustable in steps with conductor holder DEHNquick

Fixed conductor routing.

5 Products

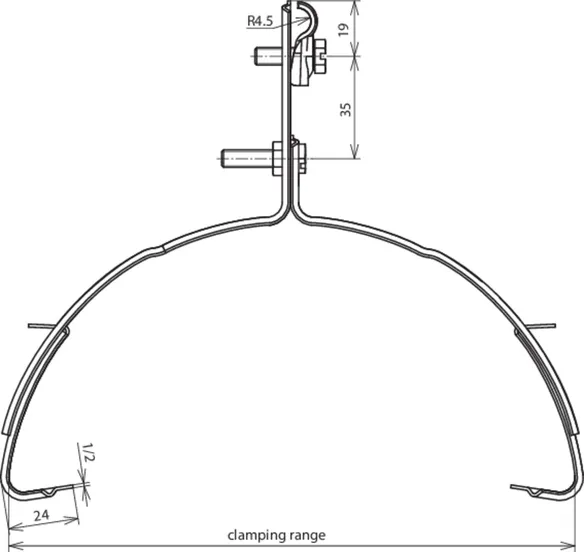

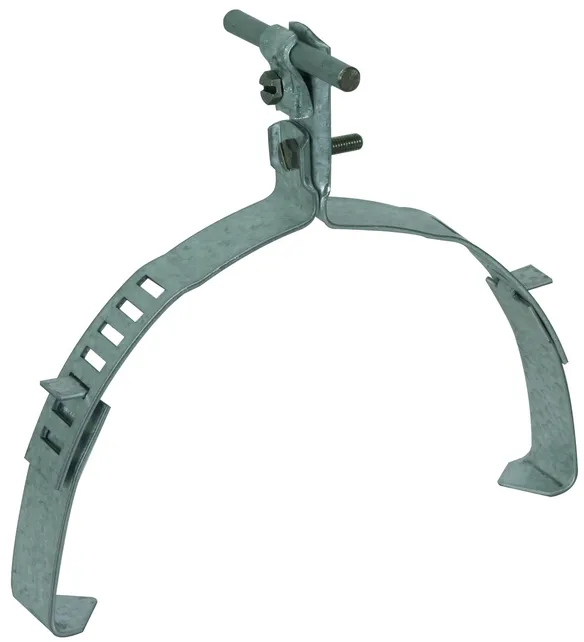

Part No. 202020 DLH DQ 6.10 FG120.240 STTZN

GTIN 4013364020764, Customs tariff No. (EU): 85389099, Gross weight: 259.92 g, PU: 25.00 pc(s)

Images

Additional information

DEHNQUICK conductor holder, St/tZn, clamping range: 120-240 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Adjustable in steps, with DEHNQUICK conductor holder, fixed conductor routing
Material of roof conductor holder: St/tZn
Clamping range: 120-240 mm
Material of conductor holder: St/tZn

Brand: DEHN
Type: DLH DQ 6.10 FG120.240 STTZN
Part No.: 202020
or equivalent.

Certificates



Technical data

Material of roof conductor holder St/tZn
Clamping range 120-240 mm
Material of conductor holder St/tZn
Conductor support Rd 6-10 mm
Length of clamping claw 24 mm

Product 202020 was added to Notepad.

Go to Notepad

Product 202020 was added to the cart.

Go to Web-Shop

Part No. 202021 DLH DQ 6.10 FG200.280 STTZN

GTIN 4013364020788, Customs tariff No. (EU): 85389099, Gross weight: 273.92 g, PU: 1.00 pc(s)

Images

Additional information

DEHNQUICK conductor holder, St/tZn, clamping range: 200-280 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Adjustable in steps, with DEHNQUICK conductor holder, fixed conductor routing
Material of roof conductor holder: St/tZn
Clamping range: 200-280 mm
Material of conductor holder: St/tZn

Brand: DEHN
Type: DLH DQ 6.10 FG200.280 STTZN
Part No.: 202021
or equivalent.

Certificates



Technical data

Material of roof conductor holder St/tZn
Clamping range 200-280 mm
Material of conductor holder St/tZn
Conductor support Rd 6-10 mm
Length of clamping claw 24 mm

Product 202021 was added to Notepad.

Go to Notepad

Product 202021 was added to the cart.

Go to Web-Shop

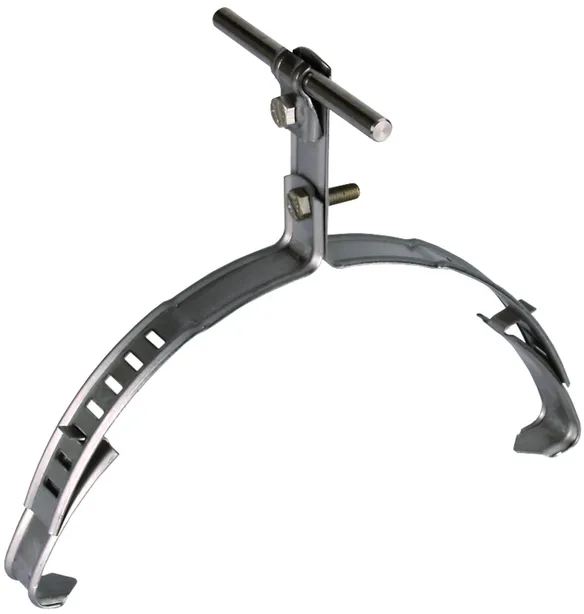

Part No. 202900 DLH DQ 6.10 FG120.240 V2A

GTIN 4013364020801, Customs tariff No. (EU): 85389099, Gross weight: 133.24 g, PU: 1.00 pc(s)

Images

Additional information

DEHNQUICK conductor holder, StSt, clamping range: 120-240 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Adjustable in steps, with DEHNQUICK conductor holder, fixed conductor routing
Material of roof conductor holder: StSt
Clamping range: 120-240 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH DQ 6.10 FG120.240 V2A
Part No.: 202900
or equivalent.

Certificates



Technical data

Material of roof conductor holder StSt
Clamping range 120-240 mm
Material of conductor holder StSt
Conductor support Rd 6-10 mm
Length of clamping claw 24 mm

Product 202900 was added to Notepad.

Go to Notepad

Product 202900 was added to the cart.

Go to Web-Shop

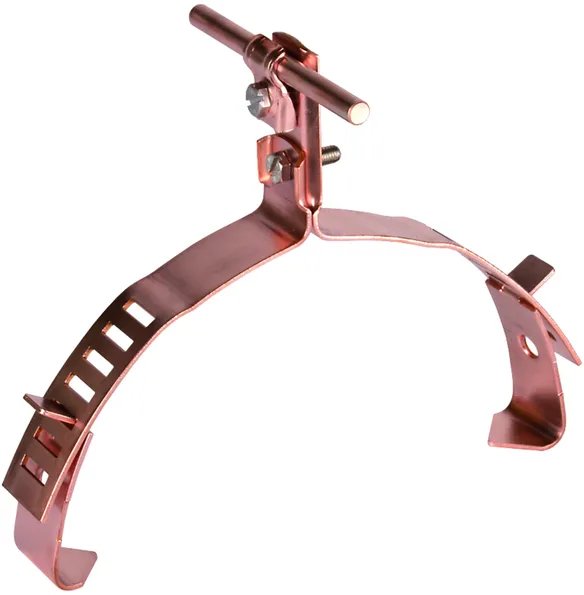

Part No. 202027 DLH DQ 6.10 FG120.240 CU

GTIN 4013364020771, Customs tariff No. (EU): 85389099, Gross weight: 299.92 g, PU: 1.00 pc(s)

Images

Additional information

DEHNQUICK conductor holder, Cu, clamping range: 120-240 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Adjustable in steps, with DEHNQUICK conductor holder, fixed conductor routing
Material of roof conductor holder: Cu
Clamping range: 120-240 mm
Material of conductor holder: Cu

Brand: DEHN
Type: DLH DQ 6.10 FG120.240 CU
Part No.: 202027
or equivalent.

Certificates



Technical data

Material of roof conductor holder Cu
Clamping range 120-240 mm
Material of conductor holder Cu
Conductor support Rd 6-10 mm
Length of clamping claw 24 mm

Product 202027 was added to Notepad.

Go to Notepad

Product 202027 was added to the cart.

Go to Web-Shop

Part No. 202227 DLH DQ 6.10 FG200.280 CU

GTIN 4013364020795, Customs tariff No. (EU): 85389099, Gross weight: 299.92 g, PU: 25.00 pc(s)

Images

Additional information

DEHNQUICK conductor holder, Cu, clamping range: 200-280 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Adjustable in steps, with DEHNQUICK conductor holder, fixed conductor routing
Material of roof conductor holder: Cu
Clamping range: 200-280 mm
Material of conductor holder: Cu

Brand: DEHN
Type: DLH DQ 6.10 FG200.280 CU
Part No.: 202227
or equivalent.

Certificates



Technical data

Material of roof conductor holder Cu
Clamping range 200-280 mm
Material of conductor holder Cu
Conductor support Rd 6-10 mm
Length of clamping claw 24 mm

Product 202227 was added to Notepad.

Go to Notepad

Product 202227 was added to the cart.

Go to Web-Shop

Your dashboard services.
Register to access all tools.

Notepad
Request a risk assessment
back to top
