Protection module for DEHNsecure modular

  • Spark gap technology particularly suited for use in d.c. circuits
  • Operating state / fault indication by green / red indicator flag in the inspection window

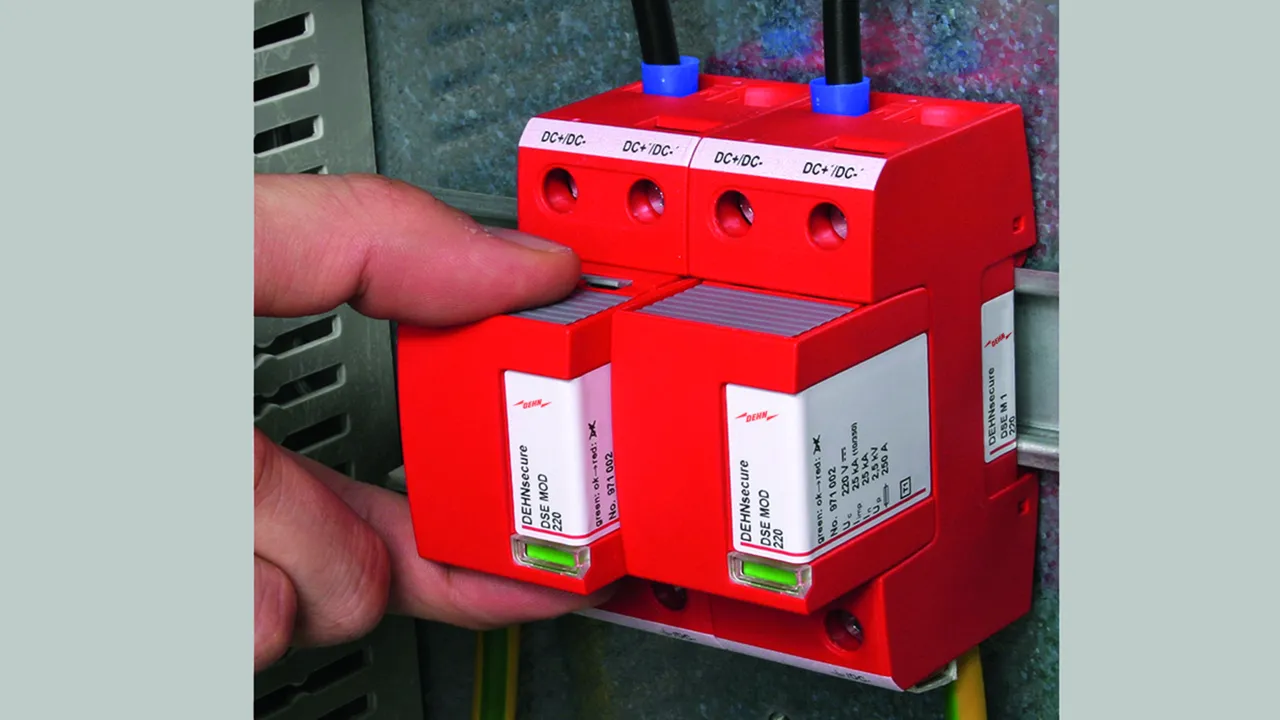

  • Easy replacement of protection modules without tools due to module locking system with module release button

DSE M Spark-Gap-Based Protection Module

Spark-gap-based protection module

3 Products

Part No. 971001 DSE MOD 60

GTIN 4013364138605, Customs tariff No. (EU): 85363090, Gross weight: 151.00 g, PU: 1.00 pc(s)

Images

Additional information

DSE MOD 60 spark-gap-based protection module
Spark-gap-based protection module for
coordinated single-pole type 1 arresters of
the Red/Line series according to EN 61643-11
Spark gap technology particularly suitable for use
in d.c. circuits
Fault indication
Max. continuous operating voltage: 60 V d.c.
Lightning impulse current: 25 kA
Short-circuit strength in case of
max. mains-side overcurrent protection (d.c.): 25 kA

Brand: DEHN
Type: DSE MOD 60
Part No.: 971001
or equivalent.

Certificates



Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

Max. continuous operating voltage (d.c.) (UC ) 60 V
Lightning impulse current (10/350 µs) (Iimp ) 25 kA

Product 971001 was added to Notepad.

Go to Notepad

Product 971001 was added to the cart.

Go to Web-Shop

Part No. 971002 DSE MOD 220

GTIN 4013364133655, Customs tariff No. (EU): 85363090, Gross weight: 118.20 g, PU: 1.00 pc(s)

Images

Additional information

DSE MOD 220 spark-gap-based protection module
Spark-gap-based protection module for
coordinated single-pole type 1 arresters of
the Red/Line series according to EN 61643-11
Spark gap technology particularly suitable for use
in d.c. circuits
Fault indication
Max. continuous operating voltage: 220 V d.c.
Lightning impulse current: 25 kA
Short-circuit strength in case of
max. mains-side overcurrent protection (d.c.): 25 kA

Brand: DEHN
Type: DSE MOD 220
Part No.: 971002
or equivalent.

Certificates



Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

Max. continuous operating voltage (d.c.) (UC ) 220 V
Lightning impulse current (10/350 µs) (Iimp ) 25 kA

Product 971002 was added to Notepad.

Go to Notepad

Product 971002 was added to the cart.

Go to Web-Shop

Part No. 971003 DSE MOD 242

GTIN 4013364144491, Customs tariff No. (EU): 85363090, Gross weight: 120.50 g, PU: 1.00 pc(s)

Images

Additional information

DSE MOD 242 spark-gap-based protection module
Spark-gap-based protection module for
coordinated single-pole type 1 arresters of
the Red/Line series according to EN 61643-11
Spark gap technology particularly suitable for use
in d.c. circuits
Fault indication
Max. continuous operating voltage: 242 V d.c.
Lightning impulse current: 25 kA
Short-circuit strength in case of
max. mains-side overcurrent protection (d.c.): 25 kA

Brand: DEHN
Type: DSE MOD 242
Part No.: 971003
or equivalent.

Certificates



Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

Max. continuous operating voltage (d.c.) (UC ) 242 V
Lightning impulse current (10/350 µs) (Iimp ) 25 kA

Product 971003 was added to Notepad.

Go to Notepad

Product 971003 was added to the cart.

Go to Web-Shop

DSE PE Spark-Gap-Based Protection Module

Spark-gap-based protection module

1 Product

Part No. 971010 DSE MOD PE 60

GTIN 4013364138636, Customs tariff No. (EU): 85363090, Gross weight: 183.00 g, PU: 1.00 pc(s)

Images

Additional information

DSE MOD PE 60 spark-gap-based protection module
PE spark-gap-based protection module for
coordinated single-pole type 1 arresters of
the Red/Line series according to EN 61643-11
Spark gap technology particularly suitable for use
in d.c. circuits
Fault indication
Max. continuous operating voltage: 60 V d.c.
Lightning impulse current: 50 kA
Short-circuit strength in case of
max. mains-side overcurrent protection (d.c.): 25 kA

Brand: DEHN
Type: DSE MOD PE 60
Part No.: 971010
or equivalent.

Certificates



Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

Max. continuous operating voltage (d.c.) (UC ) 60 V
Lightning impulse current (10/350 µs) (Iimp ) 50 kA

Product 971010 was added to Notepad.

Go to Notepad

Product 971010 was added to the cart.

Go to Web-Shop

DSE MOD 60

Spark-gap-based protection module

1 Product

Part No. 971004 DSE MOD NG 2P 60

GTIN 4013364489530, Customs tariff No. (EU): 85363090, Gross weight: 252.00 g, PU: 1.00 pc(s)

Images

Additional information

Spark-gap-based protection module DSE MOD NG 2P 60
for the single-pole, coordinated
Type 1 arrester DSE NG 2P 60 FM
of the Red/Line product series
as per EN 61643-11
Spark gap technology ideally suited for use in DC
circuits
Fault indication
Max. continuous operating voltage: 60 V DC
Lightning impulse current: 50 kA
Short-circuit withstand capability for max. mains-side
DC overcurrent protection: 10 kA

Brand: DEHN
Type: DSE MOD NG 2P 60
Part No.: 971004
or equivalent.

Certificates



Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

Max. continuous operating voltage (d.c.) (UC ) 60 V
Lightning impulse current (10/350 µs) (Iimp ) 25 kA
