Part No. 961101 DGP M 255

GTIN 4013364118676, Customs tariff No. (EU): 85363030, Gross weight: 331.00 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

CAD files

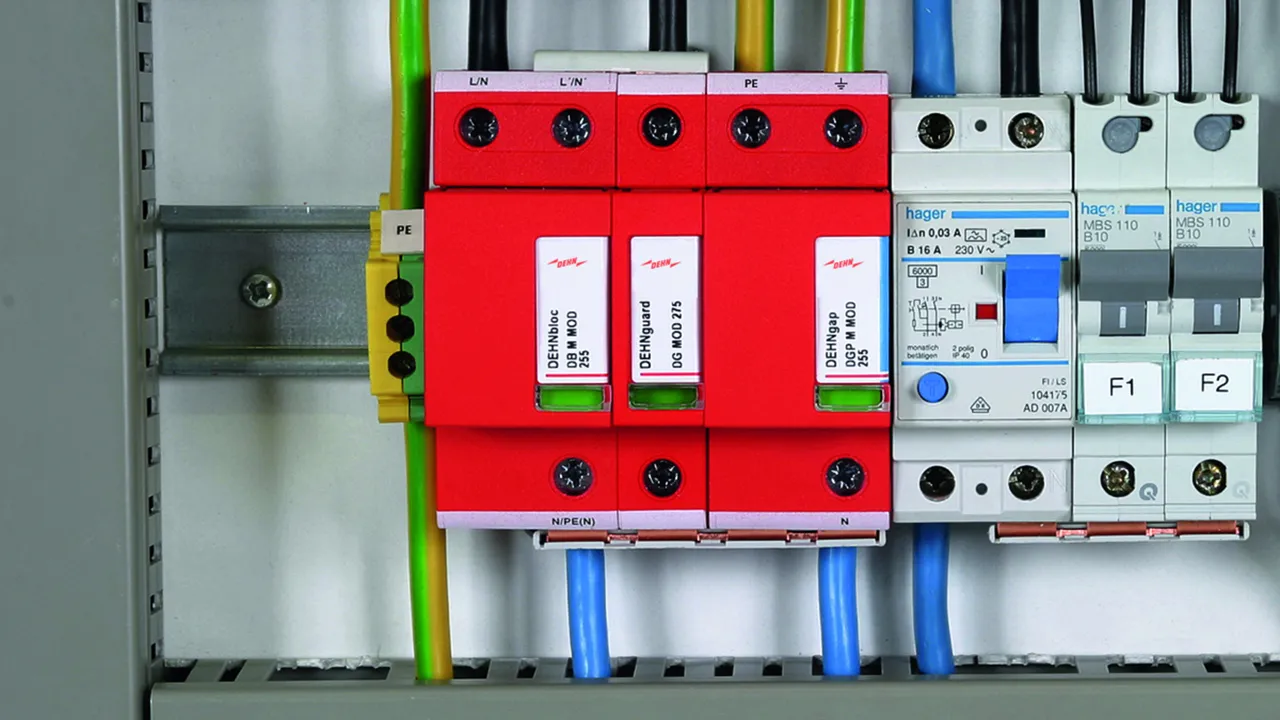

Coordinated DEHNgap M 255 N-PE lightning current arrester
Modular, pluggable and coordinated single-pole N-PE lightning
current arrester, width: 2 modules
Type 1 SPD according to EN 61643-11
Pressurised encapsulated creepage discharge spark gap
Fault indication
Lightning impulse current (10/350): 100 kA
Voltage protection level: <= 1.5 kV
Follow current extinguishing capability: 100 kArms at 255 V a.c.
TOV resistance: 1200 V/200 ms
Energy-coordinated according to IEC 62305-4
with DEHNgap C S N-PE arresters of the Red/Line series

Brand: DEHN
Type: DGP M 255
Part No.: 961101
or equivalent.

Certificates

Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	100 kA
Voltage protection level (U_P )	≤ 1.5 kV
Approvals	VDE, KEMA, UL

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	100 kA
Specific energy (W/R)	2.50 MJ/ohms
Voltage protection level (U_P )	≤ 1.5 kV
Follow current extinguishing capability (a.c.) (I_fi )	100 A_rms
Response time (t_A )	≤ 100 ns
Temporary overvoltage (TOV) (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (parallel connection) (T_UP )	-40 °C ... +80 °C
Operating temperature range (series connection) (T_US )	-40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (N, PE, 9) (min.)	10 mm²solid / flexible
Cross-sectional area (N, PE) (max.)	50 mm²stranded / 35 mm²flexible
Cross-sectional area (9) (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	VDE, KEMA, UL

Product 961101 was added to Notepad.

Go to Notepad

Product 961101 was added to the cart.

Go to Web-Shop

Part No. 961105 DGP M 255 FM

GTIN 4013364118683, Customs tariff No. (EU): 85363030, Gross weight: 336.00 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

CAD files

Coordinated DEHNgap M 255 FM N-PE lightning current arrester
Modular, pluggable and coordinated single-pole N-PE lightning
current arrester, width: 2 modules
With remote signalling contact
Type 1 SPD according to EN 61643-11
Pressurised encapsulated creepage discharge spark gap
Fault indication
Indicator flag in the inspection window
Lightning impulse current (10/350): 100 kA
Voltage protection level: <= 1.5 kV
Follow current extinguishing capability: 100 Arms at 255 V a.c.
TOV resistance: 1200 V/200 ms
Energy-coordinated according to IEC 62305-4
with DEHNgap C S N-PE arresters of the Red/Line series

Brand: DEHN
Type: DGP M 255 FM
Part No.: 961105
or equivalent.

Certificates

Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	100 kA
Voltage protection level (U_P )	≤ 1.5 kV
Approvals	VDE, KEMA, UL
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	100 kA
Specific energy (W/R)	2.50 MJ/ohms
Voltage protection level (U_P )	≤ 1.5 kV
Follow current extinguishing capability (a.c.) (I_fi )	100 A_rms
Response time (t_A )	≤ 100 ns
Temporary overvoltage (TOV) (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (parallel connection) (T_UP )	-40 °C ... +80 °C
Operating temperature range (series connection) (T_US )	-40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (N, PE, 9) (min.)	10 mm²solid / flexible
Cross-sectional area (N, PE) (max.)	50 mm²stranded / 35 mm²flexible
Cross-sectional area (9) (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	VDE, KEMA, UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Product 961105 was added to Notepad.

Go to Notepad

Product 961105 was added to the cart.

Go to Web-Shop

Part No. 900050 DGPM 1 255 S

GTIN 4013364107496, Customs tariff No. (EU): 85363030, Gross weight: 539.00 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

DEHNgap Maxi 1 255 S N-PE lightning current arrester
Coordinated single-pole N-PE lightning current arrester
for industrial busbar systems
Type 1 SPD according to EN 61643-11
Pressurised encapsulated creeping discharge spark gap
Max. continuous operating voltage: 255 V a.c.
Voltage protection level: <= 2.5 kV
(including 80 cm connecting cable)
Lightning impulse current (10/350): 100 kA
Follow current extinguishing capability: 100 kArms
TOV resistance: 1200 V/200 ms
Energy-coordinated with arresters of the Red/Line series
according to IEC 62305-4
Installation on N busbars min. 35 mm2
Dimensions (W x H x D): (72 x 89 x 100) mm

Brand: DEHN
Type: DGPM 1 255 S
Part No.: 900050
or equivalent.

Certificates

Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	100 kA
Voltage protection level (U_P )	≤ 2.5 kV (including 80 cm connecting cable)
Operating state monitoring	via DEHNsignal DSI E 3

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	100 kA
Specific energy (W/R)	2.50 MJ/ohms
Voltage protection level (U_P )	≤ 2.5 kV (including 80 cm connecting cable)
Follow current extinguishing capability (a.c.) (I_fi )	100 A_rms
Response time (t_A )	≤ 100 ns
Temporary overvoltage (TOV) (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Number of ports	1
For mounting on	N busbars, min. 35 mm²
Connection	via cable lug, min. 35 mm² / max. 50 mm²
Operating state monitoring	via DEHNsignal DSI E 3
Connection for DSI E 3 (S) (min.)	1 mm²solid / flexible
Connection for DSI E 3 (S) (max.)	2.5 mm²solid / flexible
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Dimensions (W x H x D)	72 x 89 x 100 mm

Product 900050 was added to Notepad.

Go to Notepad

Product 900050 was added to the cart.

Go to Web-Shop

Part No. 961180 DGPM 1 255

GTIN 4013364157323, Customs tariff No. (EU): 85363090, Gross weight: 460.00 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

DEHNgap Maxi 1 255 N-PE lightning current arrester
Coordinated N-PE lightning current arrester
Width: 2 modules
Type 1 SPD according to EN 61643-11
Pressurised encapsulated creeping discharge spark gap
Fault indication
Lightning impulse current (10/350): 100 kA
Voltage protection level: <= 1.5 kV
Follow current extinguishing capability: 100 kArms at 255 V a.c.
TOV resistance: 1200 V/200 ms

Brand: DEHN
Type: DGPM 1 255
Part No.: 961180
or equivalent.

Certificates

Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	100 kA
Voltage protection level (U_P )	≤ 1.5 kV
Approvals	KEMA

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	100 kA
Specific energy (W/R)	2.50 MJ/ohms
Voltage protection level (U_P )	≤ 1.5 kV
Follow current extinguishing capability (a.c.) (I_fi )	100 A_rms
Response time (t_A )	≤ 100 ns
Temporary overvoltage (TOV) (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (parallel connection) (T_UP )	-40 °C ... +80 °C
Operating temperature range (series connection) (T_US )	-40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (N, PE, 9) (min.)	10 mm² solid / flexible
Cross-sectional area (N, PE) (max.)	50 mm² stranded / 35 mm² flexible
Cross-sectional area (9) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	KEMA

Product 961180 was added to Notepad.

Go to Notepad

Product 961180 was added to the cart.

Go to Web-Shop

Part No. 961185 DGPM 1 255 FM

GTIN 4013364157330, Customs tariff No. (EU): 85363090, Gross weight: 460.00 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

DEHNgap Maxi 1 255 FM N-PE lightning current arrester
Coordinated N-PE lightning current arrester, width: 2 modules
with remote signalling contact
Type 1 SPD according to EN 61643-11
Pressurised encapsulated creeping discharge spark gap
Fault indication
Lightning impulse current (10/350): 100 kA
Voltage protection level: <= 1.5 kV
Follow current extinguishing capability: 100 Arms at 255 V a.c.
TOV resistance: 1200 V/200 ms

Brand: DEHN
Type: DGPM 1 255 FM
Part No.: 961185
or equivalent.

Certificates

Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	100 kA
Voltage protection level (U_P )	≤ 1.5 kV
Approvals	KEMA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	100 kA
Specific energy (W/R)	2.50 MJ/ohms
Voltage protection level (U_P )	≤ 1.5 kV
Follow current extinguishing capability (a.c.) (I_fi )	100 A_rms
Response time (t_A )	≤ 100 ns
Temporary overvoltage (TOV) (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (parallel connection) (T_UP )	-40 °C ... +80 °C
Operating temperature range (series connection) (T_US )	-40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (N, PE, 9) (min.)	10 mm² solid / flexible
Cross-sectional area (N, PE) (max.)	50 mm² stranded / 35 mm² flexible
Cross-sectional area (9) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	KEMA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible

Product 961185 was added to Notepad.

Go to Notepad

Product 961185 was added to the cart.

Go to Web-Shop

Part No. 961160 DGPM 440

GTIN 4013364116290, Customs tariff No. (EU): 85363030, Gross weight: 415.00 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

DEHNgap Maxi 440 N-PE lightning current arrester
Coordinated N-PE lightning current arrester, width: 2 modules
Type 1 SPD according to EN 61643-11
Pressurised encapsulated creeping discharge spark gap
Fault indication
Lightning impulse current (10/350): 100 kA
Voltage protection level: <= 2.5 kV
Follow current extinguishing capability: 100 Arms at 440 V a.c.
TOV resistance: 1200 V/200 ms

Brand: DEHN
Type: DGPM 440
Part No.: 961160
or equivalent.

Certificates

Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (a.c.) (U_C )	440 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	100 kA
Voltage protection level (U_P )	≤ 2.5 kV
Approvals	UL

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (a.c.) (U_C )	440 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	100 kA
Specific energy (W/R)	2.50 MJ/ohms
Voltage protection level (U_P )	≤ 2.5 kV
Follow current extinguishing capability (a.c.) (I_fi )	100 A_rms
Response time (t_A )	≤ 100 ns
Temporary overvoltage (TOV) (U_T) – Characteristic	1200 V / 200 ms. – withstand
Operating temperature range (parallel connection) (T_UP )	-40 °C ... +80 °C
Operating temperature range (series connection) (T_US )	-40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (N, PE, 9) (min.)	10 mm²solid / flexible
Cross-sectional area (N, PE) (max.)	50 mm²stranded / 35 mm²flexible
Cross-sectional area (9) (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	UL

Product 961160 was added to Notepad.

Go to Notepad

Product 961160 was added to the cart.

Go to Web-Shop

Part No. 961165 DGPM 440 FM

GTIN 4013364116306, Customs tariff No. (EU): 85363030, Gross weight: 418.00 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

DEHNgap Maxi 440 FM N-PE lightning current arrester
Coordinated N-PE lightning current arrester, width: 2 modules
with remote signalling contact
Type 1 SPD according to EN 61643-11
Pressurised encapsulated creeping discharge spark gap
Fault indication
Lightning impulse current (10/350): 100 kA
Voltage protection level: <= 2.5 kV
Follow current extinguishing capability: 100 Arms at 440 V a.c.
TOV resistance: 1200 V/200 ms

Brand: DEHN
Type: DGPM 440 FM
Part No.: 961165
or equivalent.

Certificates

Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (a.c.) (U_C )	440 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	100 kA
Voltage protection level (U_P )	≤ 2.5 kV
Approvals	UL
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (a.c.) (U_C )	440 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	100 kA
Specific energy (W/R)	2.50 MJ/ohms
Voltage protection level (U_P )	≤ 2.5 kV
Follow current extinguishing capability (a.c.) (I_fi )	100 A_rms
Response time (t_A )	≤ 100 ns
Temporary overvoltage (TOV) (U_T) – Characteristic	1200 V / 200 ms. – withstand
Operating temperature range (parallel connection) (T_UP )	-40 °C ... +80 °C
Operating temperature range (series connection) (T_US )	-40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (N, PE, 9) (min.)	10 mm²solid / flexible
Cross-sectional area (N, PE) (max.)	50 mm²stranded / 35 mm²flexible
Cross-sectional area (9) (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Product 961165 was added to Notepad.

Go to Notepad

Product 961165 was added to the cart.

Go to Web-Shop

Part No. 961102 DGPH M 255

GTIN 4013364118690, Customs tariff No. (EU): 85363030, Gross weight: 300.00 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

CAD files

DEHNgap H M 255 N-PE lightning current arrester
Modular, pluggable and coordinated single-pole N-PE
lightning current arrester, width: 2 modules
Type 1 SPD according to EN 61643-11
Pressurised encapsulated creeping discharge spark gap
Lightning impulse current (10/350): 100 kA
Voltage protection level: <= 4 kV
Follow current extinguishing capability: 100 Arms at 255 V a.c.
TOV resistance: 1200 V/200 ms
Energy-coordinated according to IEC 62305-4
with DEHNgap C S N-PE arresters of the Red/Line series

Brand: DEHN
Type: DGPH M 255
Part No.: 961102
or equivalent.

Certificates

Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	100 kA
Voltage protection level (U_P )	≤ 4 kV

SPD according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	100 kA
Specific energy (W/R)	2.50 MJ/ohms
Voltage protection level (U_P )	≤ 4 kV
Follow current extinguishing capability (a.c.) (I_fi )	100 A_rms
Response time (t_A )	≤ 100 ns
Temporary overvoltage (TOV) (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (parallel connection) (T_UP )	-40 °C ... +80 °C
Operating temperature range (series connection) (T_US )	-40 °C ... +60 °C
Number of ports	1
Cross-sectional area (min.)	10 mm²solid / flexible
Cross-sectional area (max.)	50 mm²stranded / 35 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880

Product 961102 was added to Notepad.

Go to Notepad

Product 961102 was added to the cart.

Go to Web-Shop

DEHNgap

Details

DEHNgap M 255 (FM)

Part No. 961101 DGP M 255

You are not authorized to download 961110.stp

You are not authorized to download 961110.igs

You are not authorized to download 961110.jt

You are not authorized to download 961110.dwg

You are not authorized to download 961101_102m_E.dxf

You are not authorized to download DEHN.961101.edz

You are not authorized to download DEHN.961101.wspak

Wave breaker function

Product 961101 was added to Notepad.

Product 961101 was added to the cart.

Part No. 961105 DGP M 255 FM

You are not authorized to download 961115.stp

You are not authorized to download 961115.igs

You are not authorized to download 961115.jt

You are not authorized to download 961115.dwg

You are not authorized to download 961105m_E.dxf

You are not authorized to download DEHN.961105.edz

You are not authorized to download DEHN.961105.wspak

Wave breaker function

Product 961105 was added to Notepad.

Product 961105 was added to the cart.

DEHNgap Maxi 1 255 S

Part No. 900050 DGPM 1 255 S

You are not authorized to download 900050.stp

You are not authorized to download 900050.igs

You are not authorized to download 900050.jt

You are not authorized to download 900050.dwg

You are not authorized to download 900050m_D.dxf

You are not authorized to download 900050_eplan.zip

You are not authorized to download DEHN.900050.wspak

Wave breaker function

Product 900050 was added to Notepad.

Product 900050 was added to the cart.

DEHNgap Maxi 1 255 (FM)

Part No. 961180 DGPM 1 255

You are not authorized to download 961140.stp

You are not authorized to download 961140.igs

You are not authorized to download 961140.jt

You are not authorized to download 961140.dwg

You are not authorized to download 961160m_E.dxf

You are not authorized to download DEHN.961180.edz

You are not authorized to download DEHN.961180.wspak

Wave breaker function

Product 961180 was added to Notepad.

Product 961180 was added to the cart.

Part No. 961185 DGPM 1 255 FM

You are not authorized to download 961145.stp

You are not authorized to download 961145.igs

You are not authorized to download 961145.jt

You are not authorized to download 961145.dwg

You are not authorized to download 961165m_E.dxf

You are not authorized to download DEHN.961185.edz

You are not authorized to download DEHN.961185.wspak

Wave breaker function

Product 961185 was added to Notepad.

Product 961185 was added to the cart.

DEHNgap Maxi 440 (FM)

Part No. 961160 DGPM 440

You are not authorized to download 961140.stp

You are not authorized to download 961140.igs

You are not authorized to download 961140.jt

You are not authorized to download 961140.dwg

You are not authorized to download 961160m_E.dxf

You are not authorized to download DEHN.961160.edz

You are not authorized to download DEHN.961160.wspak

Wave breaker function

Product 961160 was added to Notepad.

Product 961160 was added to the cart.

Part No. 961165 DGPM 440 FM

You are not authorized to download 961145.stp

You are not authorized to download 961145.igs

You are not authorized to download 961145.jt

You are not authorized to download 961145.dwg

You are not authorized to download 961165m_E.dxf

You are not authorized to download DEHN.961165.edz

You are not authorized to download DEHN.961165.wspak
