DEHNgap C S

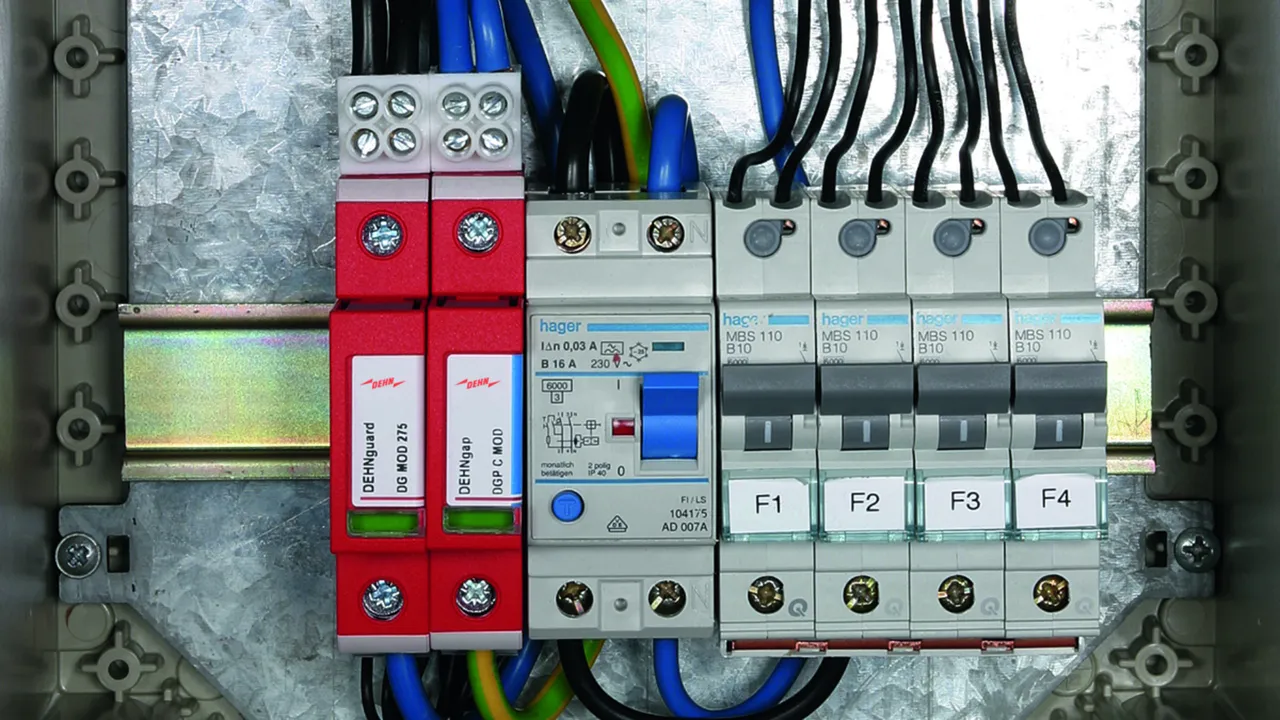

Specifically designed for use in 3+1 and 1+1 configurations of TT systems acc. to IEC 60364-5-53 between neutral conductor N and protective conductor PE
High discharge capacity
Two-part surge arrester consisting of a base part and a pluggable spark-gap-based protection module
Energy coordination with other arresters of the Red/Line product family
Operating state / fault indication by green / red indicator flag in the inspection window
With remote signalling contact for monitoring device
Easy replacement of protection modules without tools due to module locking system with module release button
Vibration and shock-tested according to EN 60068-2

DEHNgap C S (FM)

N-PE surge arrester; FM version with floating remote signalling contact.

2 Products

Part No. 952030 DGP C S

GTIN 4013364108530, Customs tariff No. (EU): 85363030, Gross weight: 121.00 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

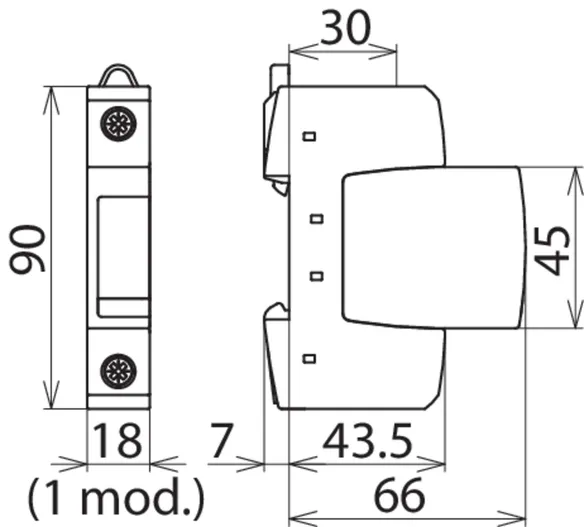

CAD files

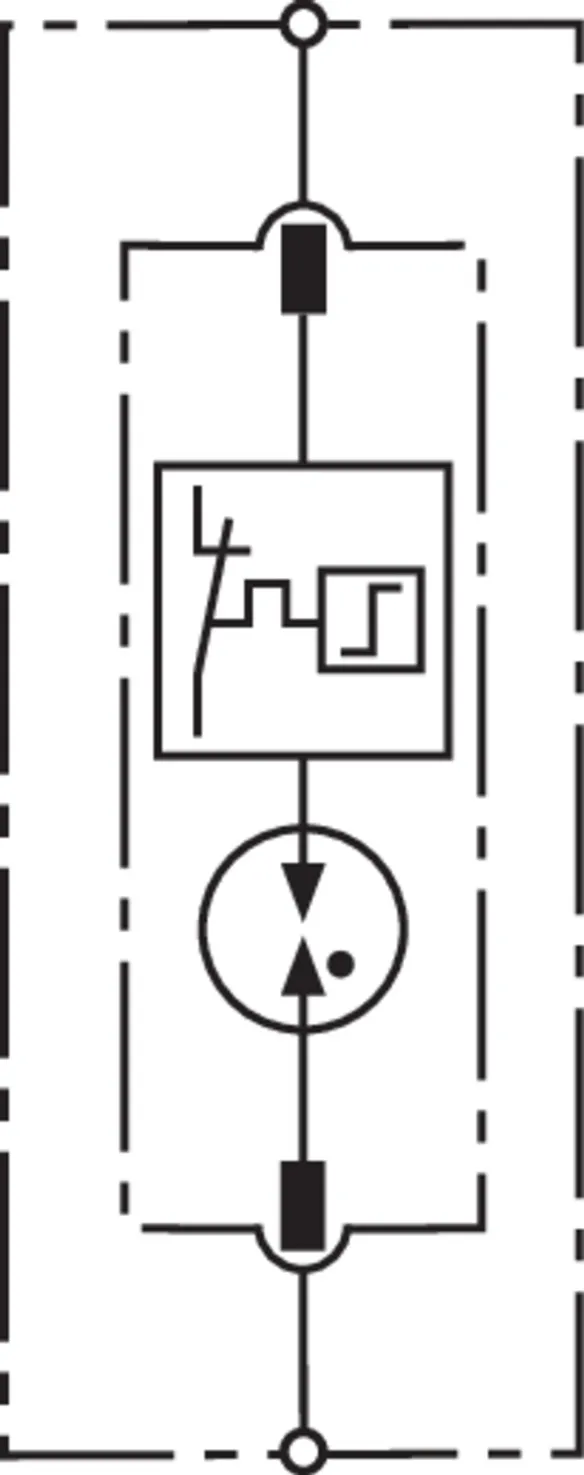

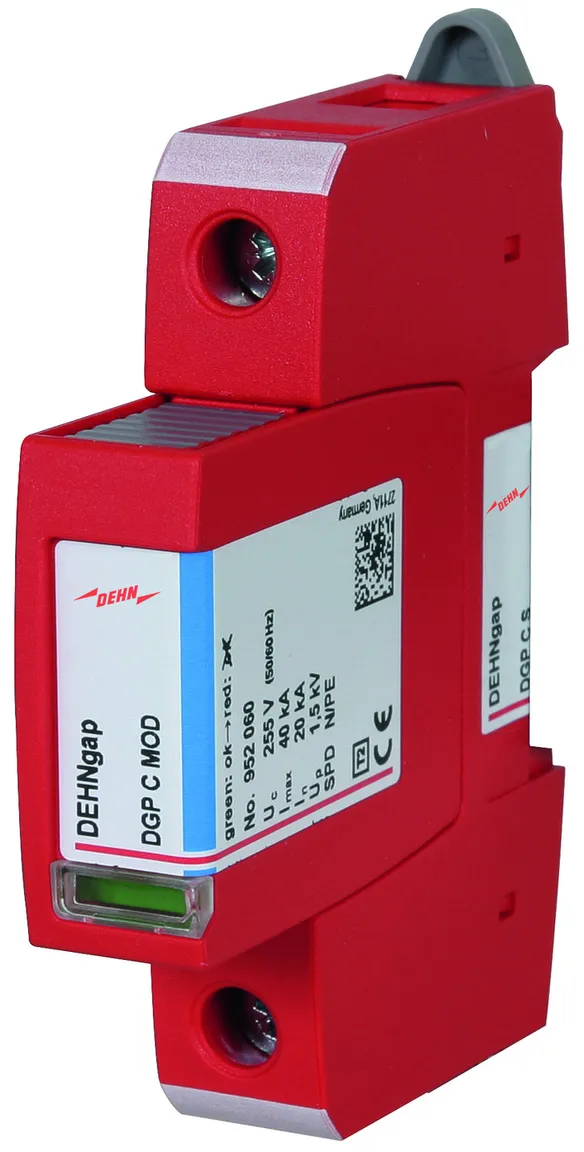

DEHNgap C S N-PE surge arrester
N-PE surge arrester, width: 1 module
Fault indication
Type 2 SPD according to EN 61643-11
Base part with plugged-in spark-gap-base protection module
Nominal discharge current (8/20): 20 kA
Lightning impulse current (10/350): 12 kA
Voltage protection level: <= 1.5 kV
Follow current extinguishing capability: 100 Arms at 255 V a.c.
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DGP C S
Part No.: 952030
or equivalent.

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Approvals	KEMA, VDE, UL


SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Follow current extinguishing capability (I_fi )	100 A_rms
Lightning impulse current (10/350 µs) (I_imp )	12 kA
Voltage protection level (U_P )	≤ 1.5 kV
Response time (t_A )	≤ 100 ns
Temporary overvoltage (TOV) (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL
Arrester use at 16.7 Hz – traction power supply systems
– Test voltage AC (U_C )	255 V
– Nominal frequency AC (f_N )	16.7 Hz

Product 952030 was added to Notepad.

Go to Notepad

Product 952030 was added to the cart.

Go to Web-Shop

Part No. 952035 DGP C S FM

GTIN 4013364108547, Customs tariff No. (EU): 85363030, Gross weight: 125.00 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

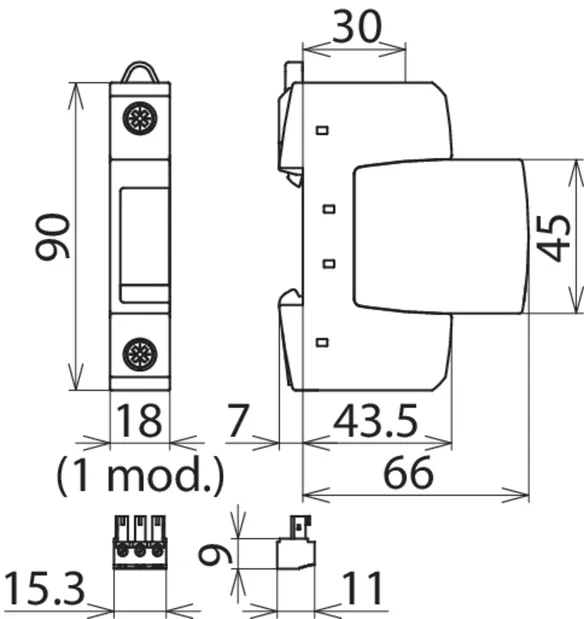

CAD files

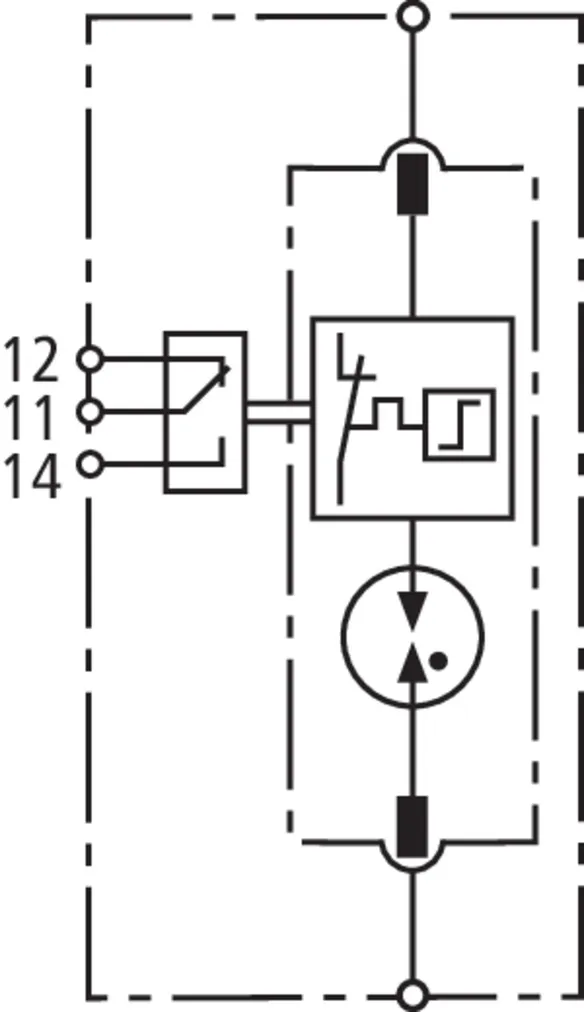

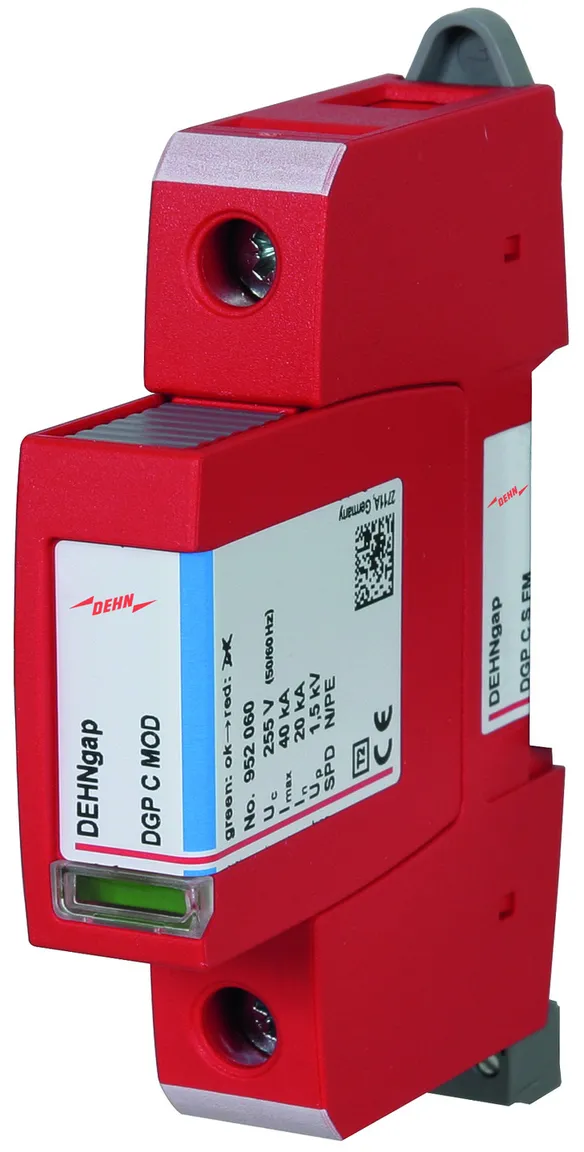

DEHNgap C S FM N-PE surge arrester
N-PE surge arrester
with remote signalling contact, width: 1 module
Fault indication
Type 2 SPD according to EN 61643-11
Base part with plugged-in spark-gap-based protection module
Nominal discharge current (8/20): 20 kA
Lightning impulse current (10/350): 12 kA
Voltage protection level: <= 1.25 kV
Follow current extinguishing capability: 100 Arms at 255 V a.c.
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DGP C S FM
Part No.: 952035
or equivalent.

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Approvals	KEMA, VDE, UL
Type of remote signalling contact	changeover contact


SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Follow current extinguishing capability (I_fi )	100 A_rms
Lightning impulse current (10/350 µs) (I_imp )	12 kA
Voltage protection level (U_P )	≤ 1.5 kV
Response time (t_A )	≤ 100 ns
Temporary overvoltage (TOV) (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Arrester use at 16.7 Hz – traction power supply systems
– Test voltage AC (U_C )	255 V
– Nominal frequency AC (f_N )	16.7 Hz
