Feed-Through Terminal DK 25

Feed-through terminal for busbar wiring.

1 Product

Part No. 952699 DK 25

GTIN 4013364127906, Customs tariff No. (EU): 85369095, Gross weight: 113.70 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

CAD files

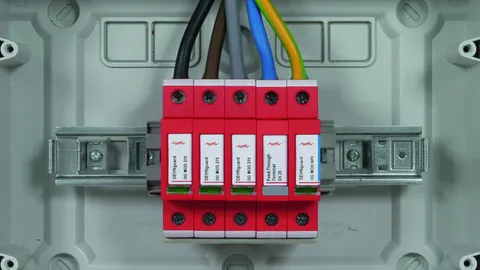

DK 25 feed-through terminal for busbar wiring
Feed-through terminal for changing the wiring level
DIN rail mounted device
Multifunctional terminals for simultaneously connecting wires and busbars
Lightning-impulse-current-tested
Lightning impulse current: 100 kA (10/350)
Nominal voltage: 500 V a.c.
Clamping range: max. 25 mm2
Installation width: 1 module, DIN 43880

Brand: DEHN
Type: DK 25
Part No.: 952699
or equivalent.

Certificates

Technical data

Nominal voltage (a.c. / d.c.) (U_N )	500 V
Nominal load current (a.c.) (I_L )	100 A
Lightning impulse current (10/350 µs)	100 kA
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	25 mm² stranded / 16 mm² flexible

Nominal voltage (a.c. / d.c.) (U_N )	500 V
Nominal load current (a.c.) (I_L )	100 A
Test current according to EN 60947-7-1	100 A
Lightning impulse current (10/350 µs)	100 kA
Rated insulation voltage (U_i )	630 V
Rated impulse withstand voltage (U_imp )	6 kV
Operating temperature range (T_U )	-40 °C ... +80 °C
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	25 mm² stranded / 16 mm² flexible
For mounting on	35 mm DIN rails according to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Capacity	1 module, DIN 43880
