UGKF

Plug-in surge protective adapter for easy retrofitting
Plugs directly into coaxial terminal equipment
Integrated indirect shield earthing avoids ground loops

Details

UGKF BNC can be directly plugged into the interfaces of terminal equipment.

lorem ipsum — UGKF BNC can be directly plugged into the interfaces of terminal equipment.

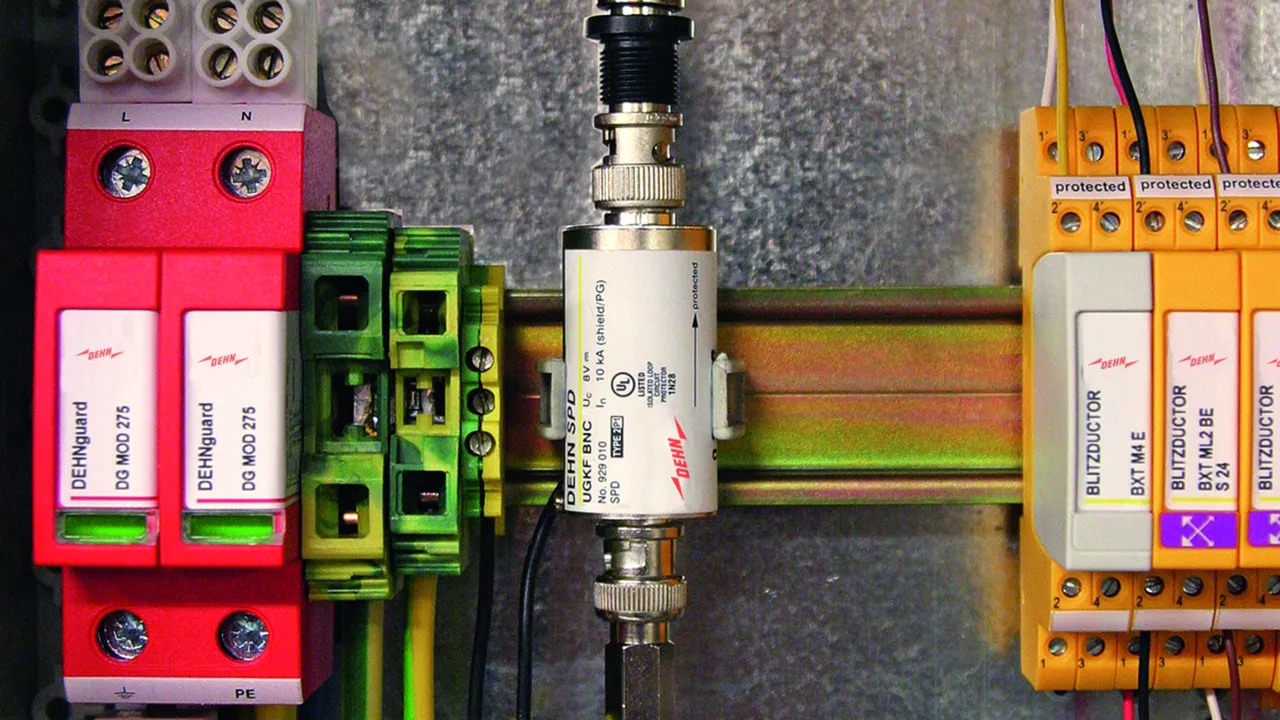

DGA BNC VC... can be easily mounted on DIN rails or walls.

DGA BNC VC ... can be easily adapted due to BNC connection.

UGKF BNC

Two-stage surge arrester with indirect shield earthing for protecting video cameras and Arcnet with BNC connection to avoid ground loops.

1 Product

Part No. 929010 UGKF BNC

GTIN 4013364039940, Customs tariff No. (EU): 85363010, Gross weight: 67.70 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

Two-stage surge arrester UGKF BNC
Surge arrester UGKF, SPD class TYPE 2/P1,
tested acc. to EN 61643-21 for the protection of
video cameras and Arcnet systems, with coaxial
BNC connection
Max. continuous operating voltage (d.c.): 8 V
C2 Nominal discharge current (8/20 µs) line-shield: 2.5 kA

Brand: DEHN
Type: UGKF BNC
Part No.: 929010
or equivalent.

Certificates

Technical data

SPD class	T
Max. continuous operating voltage (d.c.) (U_C )	8 V
Nominal current (I_L )	0.1 A
C2 Nominal discharge current (8/20 µs) line-shield (I_n )	2.5 kA
Insertion loss at 300 MHz (50 ohms)	≤ 3 dB
Return loss at 40 MHz (50 ohms)	≥ 20 dB
Insertion loss at 265 MHz (75 ohms)	≤ 3 dB
Return loss at 40 MHz (75 ohms)	≥ 20 dB
Approvals	CSA, UL

SPD class	T
Nominal voltage (U_N )	5 V
Max. continuous operating voltage (d.c.) (U_C )	8 V
Nominal current (I_L )	0.1 A
C2 Nominal discharge current (8/20 µs) line-shield (I_n )	2.5 kA
C2 Nominal discharge current (8/20 µs) shield-PG (I_n )	10 kA
Voltage protection level line-shield for I_nC2 (U_P )	≤ 25 V
Voltage protection level line-shield at 1 kV/µs C3 (U_P )	≤ 15 V
Voltage protection level shield-PG at 1 kV/µs C3 (U_P )	≤ 600 V
Insertion loss at 300 MHz (50 ohms)	≤ 3 dB
Return loss at 40 MHz (50 ohms)	≥ 20 dB
Insertion loss at 265 MHz (75 ohms)	≤ 3 dB
Return loss at 40 MHz (75 ohms)	≥ 20 dB
Characteristic impedance (Z)	50 ohms / 75 ohms
Series resistance per line	10 ohms
Capacitance line-shield (C)	≤ 50 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Connection (input / output)	BNC socket / BNC plug
Earthing via	outgoing earthing cable (0.75 mm²)
Shield earthing	indirectly via an integrated spark gap
Test standards	IEC 61643-21 / EN 61643-21
Approvals	CSA, UL
