Bridging Cables

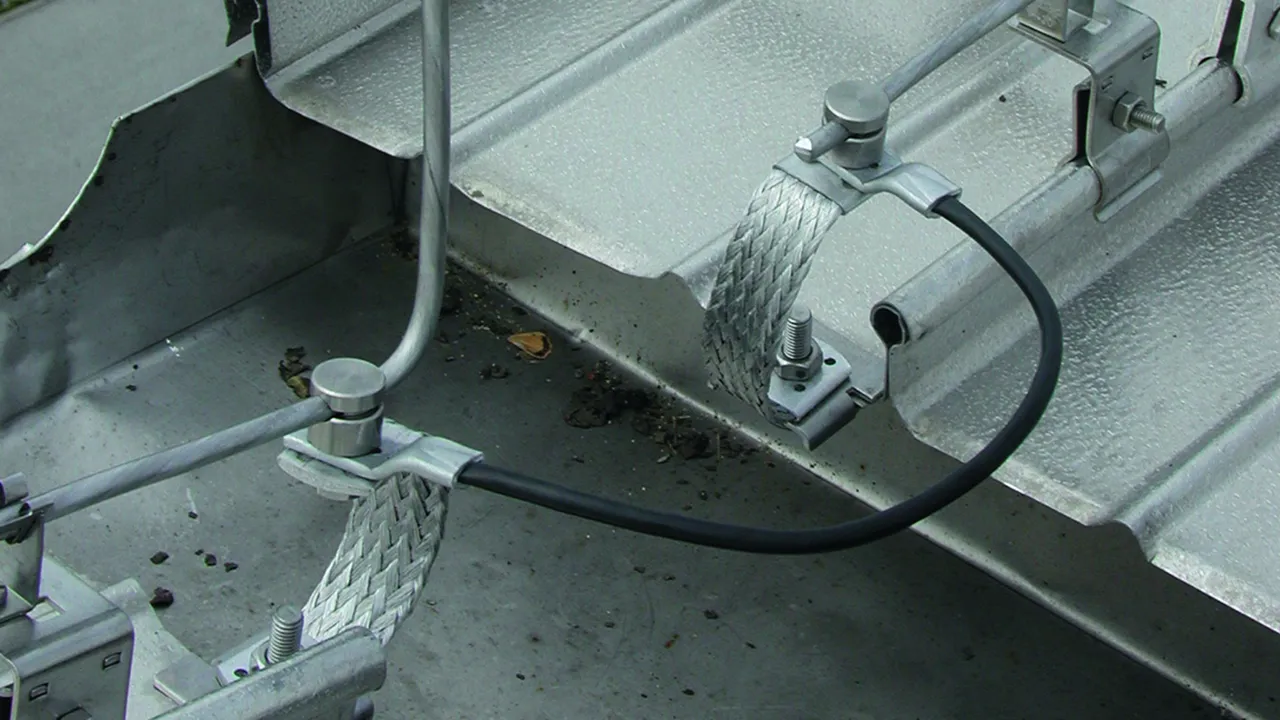

Suitable for connecting / bridging metal claddings, or as compensation for certain temperature-related changes in length for round wires; connection e.g. with KS connector part no. 301 019.
For connecting/bridging fixed earthing terminals. Suitable for protective and functional equipotential bonding.

Configurable lengths Outdoor

For use in outdoor areas with UV-stabilised conductor (H01N2-D)
Specify cable length when ordering (50 mm steps)

5 Products

Part No. 377316 UEBS 16 L... B10.5 CU SW OD

GTIN 4013364522459, Customs tariff No. (EU): 85359000, Gross weight: 411.90 g, PU: 1.00 pc(s)

Images

Additional information

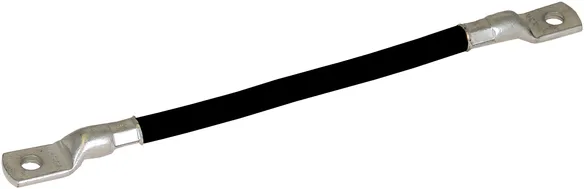

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use in outdoor areas.
Length: 200 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H01N2-D
Cross-section: 16 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC black

Brand: DEHN
Type: UEBS 16 L... B10.5 CU SW OD
Part No.: 377316
or equivalent.

Certificates



Technical data

Length (l1) 200 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H01N2-D
Cross-section 16 mm2
Fixing [2x] Ø10.5 mm
Application note For use in outdoor areas
Insulation PVC black
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Product 377316 was added to Notepad.

Go to Notepad

Product 377316 was added to the cart.

Go to Web-Shop

Part No. 377325 UEBS 25 L... B10.5 CU SW OD

GTIN 4013364522466, Customs tariff No. (EU): 85359000, Gross weight: 558.80 g, PU: 1.00 pc(s)

Images

Additional information

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use in outdoor areas.
Length: 200 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H01N2-D
Cross-section: 25 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC black

Brand: DEHN
Type: UEBS 25 L... B10.5 CU SW OD
Part No.: 377325
or equivalent.

Certificates



Technical data

Length (l1) 200 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H01N2-D
Cross-section 25 mm2
Fixing [2x] Ø10.5 mm
Application note For use in outdoor areas
Insulation PVC black
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Product 377325 was added to Notepad.

Go to Notepad

Product 377325 was added to the cart.

Go to Web-Shop

Part No. 377335 UEBS 35 L... B10.5 CU SW OD

GTIN 4013364522473, Customs tariff No. (EU): 85359000, Gross weight: 937.30 kg, PU: 1.00 pc(s)

Images

Additional information

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use in outdoor areas.
Length: 200 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H01N2-D
Cross-section: 35 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC black

Brand: DEHN
Type: UEBS 35 L... B10.5 CU SW OD
Part No.: 377335
or equivalent.

Certificates



Technical data

Length (l1) 200 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H01N2-D
Cross-section 35 mm2
Fixing [2x] Ø10.5 mm
Application note For use in outdoor areas
Insulation PVC black
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Product 377335 was added to Notepad.

Go to Notepad

Product 377335 was added to the cart.

Go to Web-Shop

Part No. 377350 UEBS 50 L... B10.5 CU SW OD

GTIN 4013364522480, Customs tariff No. (EU): 85359000, Gross weight: 1.02 kg, PU: 1.00 pc(s)

Images

Additional information

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use in outdoor areas.
Length: 350 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H01N2-D
Cross-section: 50 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC black

Brand: DEHN
Type: UEBS 50 L... B10.5 CU SW OD
Part No.: 377350
or equivalent.

Certificates



Technical data

Length (l1) 350 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H01N2-D
Cross-section 50 mm2
Fixing [2x] Ø10.5 mm
Application note For use in outdoor areas
Insulation PVC black
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Product 377350 was added to Notepad.

Go to Notepad

Product 377350 was added to the cart.

Go to Web-Shop

Part No. 377370 UEBS 70 L... B10.5 CU SW OD

GTIN 4013364522497, Customs tariff No. (EU): 85359000, Gross weight: 1.40 kg, PU: 1.00 pc(s)

Images

Additional information

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use in outdoor areas.
Length: 350 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H01N2-D
Cross-section: 70 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC black

Brand: DEHN
Type: UEBS 70 L... B10.5 CU SW OD
Part No.: 377370
or equivalent.

Certificates



Technical data

Length (l1) 350 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H01N2-D
Cross-section 70 mm2
Fixing [2x] Ø10.5 mm
Application note For use in outdoor areas
Insulation PVC black
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Product 377370 was added to Notepad.

Go to Notepad

Product 377370 was added to the cart.

Go to Web-Shop

Configurable lengths Indoor

For use indoors (H07V-K)
Specify cable length when ordering (50 mm steps)

10 Products

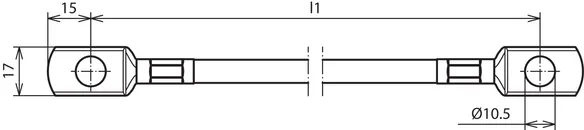

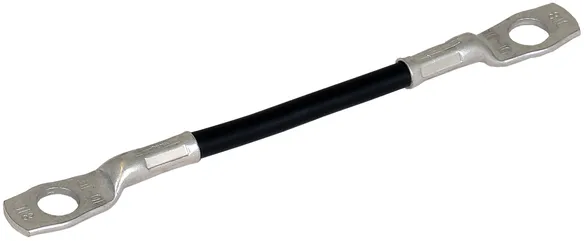

Part No. 377216 UEBS 16 L... B10.5 CU SW ID

GTIN 4013364494565, Customs tariff No. (EU): 85359000, Gross weight: 411.90 g, PU: 1.00 pc(s)

Images

Additional information

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use indoors.
Length: 200 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H07V-K
Cross-section: 16 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC black

Brand: DEHN
Type: UEBS 16 L... B10.5 CU SW ID
Part No.: 377216
or equivalent.

Certificates



Technical data

Length (l1) 200 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H07V-K
Cross-section 16 mm2
Fixing [2x] Ø10.5 mm
Application note For use indoors
Insulation PVC black
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Product 377216 was added to Notepad.

Go to Notepad

Product 377216 was added to the cart.

Go to Web-Shop

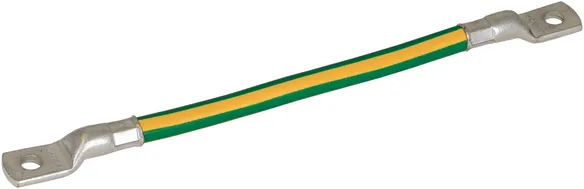

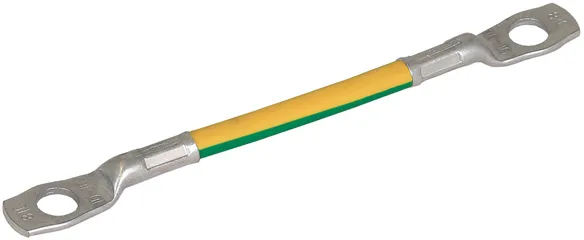

Part No. 377217 UEBS 16 L... B10.5 CU GNGE ID

GTIN 4013364494572, Customs tariff No. (EU): 85359000, Gross weight: 411.90 g, PU: 1.00 pc(s)

Images

Additional information

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use indoors.
Length: 200 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H07V-K
Cross-section: 16 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC green / yellow

Brand: DEHN
Type: UEBS 16 L... B10.5 CU GNGE ID
Part No.: 377217
or equivalent.

Certificates



Technical data

Length (l1) 200 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H07V-K
Cross-section 16 mm2
Fixing [2x] Ø10.5 mm
Application note For use indoors
Insulation PVC green / yellow
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Product 377217 was added to Notepad.

Go to Notepad

Product 377217 was added to the cart.

Go to Web-Shop

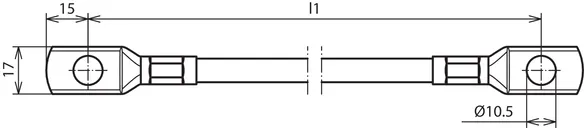

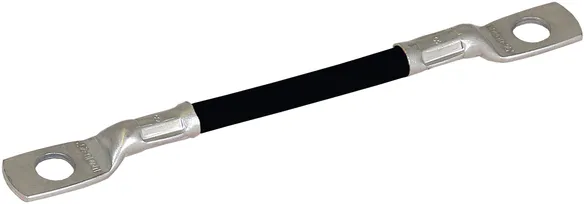

Part No. 377225 UEBS 25 L... B10.5 CU SW ID

GTIN 4013364494589, Customs tariff No. (EU): 85359000, Gross weight: 558.80 g, PU: 1.00 pc(s)

Images

Additional information

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use indoors.
Length: 200 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H07V-K
Cross-section: 25 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC black

Brand: DEHN
Type: UEBS 25 L... B10.5 CU SW ID
Part No.: 377225
or equivalent.

Certificates



Technical data

Length (l1) 200 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H07V-K
Cross-section 25 mm2
Fixing [2x] Ø10.5 mm
Application note For use indoors
Insulation PVC black
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Product 377225 was added to Notepad.

Go to Notepad

Product 377225 was added to the cart.

Go to Web-Shop

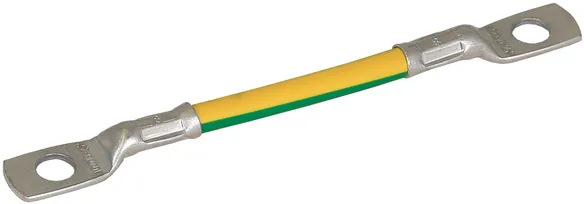

Part No. 377226 UEBS 25 L... B10.5 CU GNGE ID

GTIN 4013364494596, Customs tariff No. (EU): 85359000, Gross weight: 558.80 g, PU: 1.00 pc(s)

Images

Additional information

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use indoors.
Length: 200 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H07V-K
Cross-section: 25 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC green / yellow

Brand: DEHN
Type: UEBS 25 L... B10.5 CU GNGE ID
Part No.: 377226
or equivalent.

Certificates



Technical data

Length (l1) 200 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H07V-K
Cross-section 25 mm2
Fixing [2x] Ø10.5 mm
Application note For use indoors
Insulation PVC green / yellow
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Product 377226 was added to Notepad.

Go to Notepad

Product 377226 was added to the cart.

Go to Web-Shop

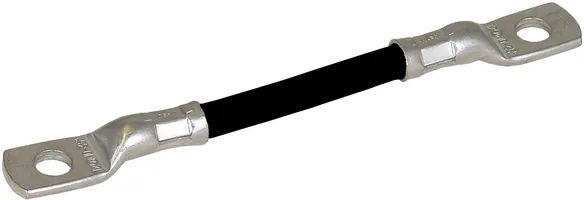

Part No. 377235 UEBS 35 L... B10.5 CU SW ID

GTIN 4013364494602, Customs tariff No. (EU): 85359000, Gross weight: 937.30 g, PU: 1.00 pc(s)

Images

Additional information

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use indoors.
Length: 200 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H07V-K
Cross-section: 35 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC black

Brand: DEHN
Type: UEBS 35 L... B10.5 CU SW ID
Part No.: 377235
or equivalent.

Certificates



Technical data

Length (l1) 200 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H07V-K
Cross-section 35 mm2
Fixing [2x] Ø10.5 mm
Application note For use indoors
Insulation PVC black
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Product 377235 was added to Notepad.

Go to Notepad

Product 377235 was added to the cart.

Go to Web-Shop

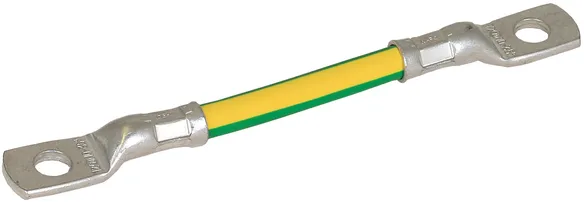

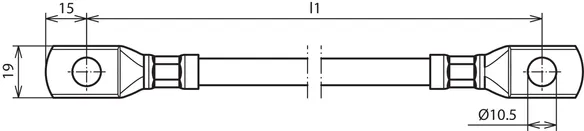

Part No. 377236 UEBS 35 L... B10.5 CU GNGE ID

GTIN 4013364494619, Customs tariff No. (EU): 85359000, Gross weight: 937.30 g, PU: 1.00 pc(s)

Images

Additional information

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use indoors.
Length: 200 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H07V-K
Cross-section: 35 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC green / yellow

Brand: DEHN
Type: UEBS 35 L... B10.5 CU GNGE ID
Part No.: 377236
or equivalent.

Certificates



Technical data

Length (l1) 200 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H07V-K
Cross-section 35 mm2
Fixing [2x] Ø10.5 mm
Application note For use indoors
Insulation PVC green / yellow
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Product 377236 was added to Notepad.

Go to Notepad

Product 377236 was added to the cart.

Go to Web-Shop

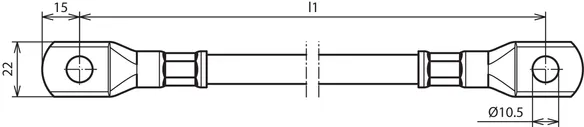

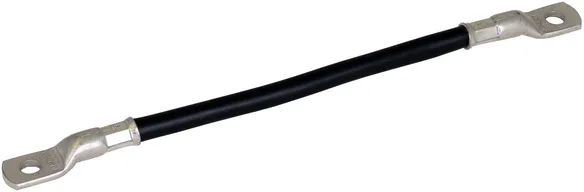

Part No. 377250 UEBS 50 L... B10.5 CU SW ID

GTIN 4013364494725, Customs tariff No. (EU): 85359000, Gross weight: 1.02 kg, PU: 1.00 pc(s)

Images

Additional information

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use indoors.
Length: 350 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H07V-K
Cross-section: 50 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC black

Brand: DEHN
Type: UEBS 50 L... B10.5 CU SW ID
Part No.: 377250
or equivalent.

Certificates



Technical data

Length (l1) 350 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H07V-K
Cross-section 50 mm2
Fixing [2x] Ø10.5 mm
Application note For use indoors
Insulation PVC black
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Product 377250 was added to Notepad.

Go to Notepad

Product 377250 was added to the cart.

Go to Web-Shop

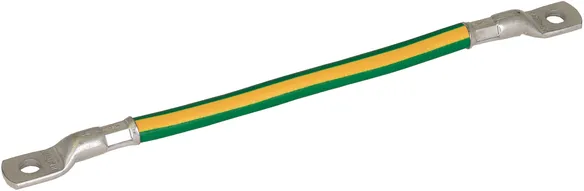

Part No. 377251 UEBS 50 L... B10.5 CU GNGE ID

GTIN 4013364494732, Customs tariff No. (EU): 85359000, Gross weight: 1.02 kg, PU: 1.00 pc(s)

Images

Additional information

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use indoors.
Length: 350 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H07V-K
Cross-section: 50 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC green / yellow

Brand: DEHN
Type: UEBS 50 L... B10.5 CU GNGE ID
Part No.: 377251
or equivalent.

Certificates



Technical data

Length (l1) 350 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H07V-K
Cross-section 50 mm2
Fixing [2x] Ø10.5 mm
Application note For use indoors
Insulation PVC green / yellow
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Product 377251 was added to Notepad.

Go to Notepad

Product 377251 was added to the cart.

Go to Web-Shop

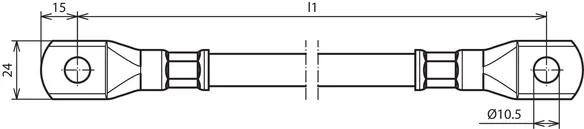

Part No. 377270 UEBS 70 L... B10.5 CU SW ID

GTIN 4013364494749, Customs tariff No. (EU): 85359000, Gross weight: 1.40 kg, PU: 1.00 pc(s)

Images

Additional information

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use indoors.
Length: 350 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H07V-K
Cross-section: 70 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC black

Brand: DEHN
Type: UEBS 70 L... B10.5 CU SW ID
Part No.: 377270
or equivalent.

Certificates



Technical data

Length (l1) 350 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H07V-K
Cross-section 70 mm2
Fixing [2x] Ø10.5 mm
Application note For use indoors
Insulation PVC black
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Product 377270 was added to Notepad.

Go to Notepad

Product 377270 was added to the cart.

Go to Web-Shop

Part No. 377271 UEBS 70 L... B10.5 CU GNGE ID

GTIN 4013364494756, Customs tariff No. (EU): 85359000, Gross weight: 1.40 kg, PU: 1.00 pc(s)

Images

Additional information

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use indoors.
Length: 350 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H07V-K
Cross-section: 70 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC green / yellow

Brand: DEHN
Type: UEBS 70 L... B10.5 CU GNGE ID
Part No.: 377271
or equivalent.

Certificates



Technical data

Length (l1) 350 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H07V-K
Cross-section 70 mm2
Fixing [2x] Ø10.5 mm
Application note For use indoors
Insulation PVC green / yellow
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Product 377271 was added to Notepad.

Go to Notepad

Product 377271 was added to the cart.

Go to Web-Shop

Standard lengths

Suitable for use outdoors

4 Products

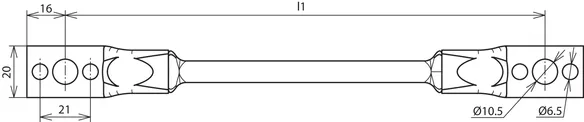

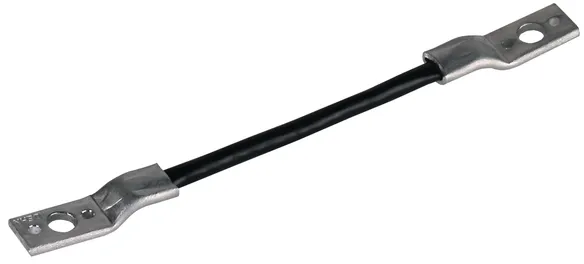

Part No. 377210 UEBS 16 L200 B10.5 B6.5 AL CU

GTIN 4013364083028, Customs tariff No. (EU): 85359000, Gross weight: 53.01 g, PU: 10.00 pc(s)

Predecessor

Images

Additional information

Bridging cable, 200 mm long
Bridging cable for connecting
or bridging
metal cladding.
Suitable for use
outdoors.
Length: 200 mm
Material of cable lug: Al
Material of cable: Cu
Cross-section: 16 mm2
Fixing : [4x] Ø6.5 / [2x] Ø10.5 mm
Insulation: rubber EM5 black

Brand: DEHN
Type: UEBS 16 L200 B10.5 B6.5 AL CU
Part No.: 377210
or equivalent.

Certificates



Technical data

Length (l1) 200 mm
Material of cable lug Al
Material of cable Cu
Cross-section 16 mm2
Fixing [4x] Ø6.5 / [2x] Ø10.5 mm
Application note Suitable for use outdoors. According to DIN EN 62305-3 Supplement 1, materials ≥ 0.5mm thick shall be connected by 2 rivets Ø6mm, or materials ≥ 2mm thick by 2 self-tapping screws Ø6.3mm StSt (on both sides)
Insulation rubber EM5 black
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 377210 was added to Notepad.

Go to Notepad

Product 377210 was added to the cart.

Go to Web-Shop

Part No. 377310 UEBS 16 L300 B10.5 B6.5 AL CU

GTIN 4013364033382, Customs tariff No. (EU): 85359000, Gross weight: 88.50 g, PU: 100.00 pc(s)

Predecessor

Images

Additional information

Bridging cable, 300 mm long
Bridging cable for connecting
or bridging
metal cladding.
Suitable for use
outdoors.
Length: 300 mm
Material of cable lug: Al
Material of cable: Cu
Cross-section: 16 mm2
Fixing : [4x] Ø6.5 / [2x] Ø10.5 mm
Insulation: rubber EM5 black

Brand: DEHN
Type: UEBS 16 L300 B10.5 B6.5 AL CU
Part No.: 377310
or equivalent.

Certificates



Technical data

Length (l1) 300 mm
Material of cable lug Al
Material of cable Cu
Cross-section 16 mm2
Fixing [4x] Ø6.5 / [2x] Ø10.5 mm
Application note Suitable for use outdoors. According to DIN EN 62305-3 Supplement 1, materials ≥ 0.5mm thick shall be connected by 2 rivets Ø6mm, or materials ≥ 2mm thick by 2 self-tapping screws Ø6.3mm StSt (on both sides)
Insulation rubber EM5 black
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 377310 was added to Notepad.

Go to Notepad

Product 377310 was added to the cart.

Go to Web-Shop

Part No. 377410 UEBS 16 L400 B10.5 B6.5 AL CU

GTIN 4013364083035, Customs tariff No. (EU): 85359000, Gross weight: 90.40 g, PU: 10.00 pc(s)

Predecessor

Images

Additional information

Bridging cable, 400 mm long
Bridging cable for connecting
or bridging
metal cladding.
Suitable for use
outdoors.
Length: 400 mm
Material of cable lug: Al
Material of cable: Cu
Cross-section: 16 mm2
Fixing : [4x] Ø6.5 / [2x] Ø10.5 mm
Insulation: rubber EM5 black

Brand: DEHN
Type: UEBS 16 L400 B10.5 B6.5 AL CU
Part No.: 377410
or equivalent.

Certificates



Technical data

Length (l1) 400 mm
Material of cable lug Al
Material of cable Cu
Cross-section 16 mm2
Fixing [4x] Ø6.5 / [2x] Ø10.5 mm
Application note Suitable for use outdoors. According to DIN EN 62305-3 Supplement 1, materials ≥ 0.5mm thick shall be connected by 2 rivets Ø6mm, or materials ≥ 2mm thick by 2 self-tapping screws Ø6.3mm StSt (on both sides)
Insulation rubber EM5 black
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 377410 was added to Notepad.

Go to Notepad

Product 377410 was added to the cart.

Go to Web-Shop

Part No. 377510 UEBS 16 L500 B10.5 B6.5 AL CU

GTIN 4013364033399, Customs tariff No. (EU): 85359000, Gross weight: 110.00 g, PU: 10.00 pc(s)

Predecessor

Images

Additional information

Bridging cable, 500 mm long
Bridging cable for connecting
or bridging
metal cladding.
Suitable for use
outdoors.
Length: 500 mm
Material of cable lug: Al
Material of cable: Cu
Cross-section: 16 mm2
Fixing : [4x] Ø6.5 / [2x] Ø10.5 mm
Insulation: rubber EM5 black

Brand: DEHN
Type: UEBS 16 L500 B10.5 B6.5 AL CU
Part No.: 377510
or equivalent.

Certificates



Technical data

Length (l1) 500 mm
Material of cable lug Al
Material of cable Cu
Cross-section 16 mm2
Fixing [4x] Ø6.5 / [2x] Ø10.5 mm
Application note Suitable for use outdoors. According to DIN EN 62305-3 Supplement 1, materials ≥ 0.5mm thick shall be connected by 2 rivets Ø6mm, or materials ≥ 2mm thick by 2 self-tapping screws Ø6.3mm StSt (on both sides)
Insulation rubber EM5 black
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 377510 was added to Notepad.

Go to Notepad

Product 377510 was added to the cart.

Go to Web-Shop

Your dashboard services.
Register to access all tools.

Notepad
Request a risk assessment
back to top
