Earthing Tongs

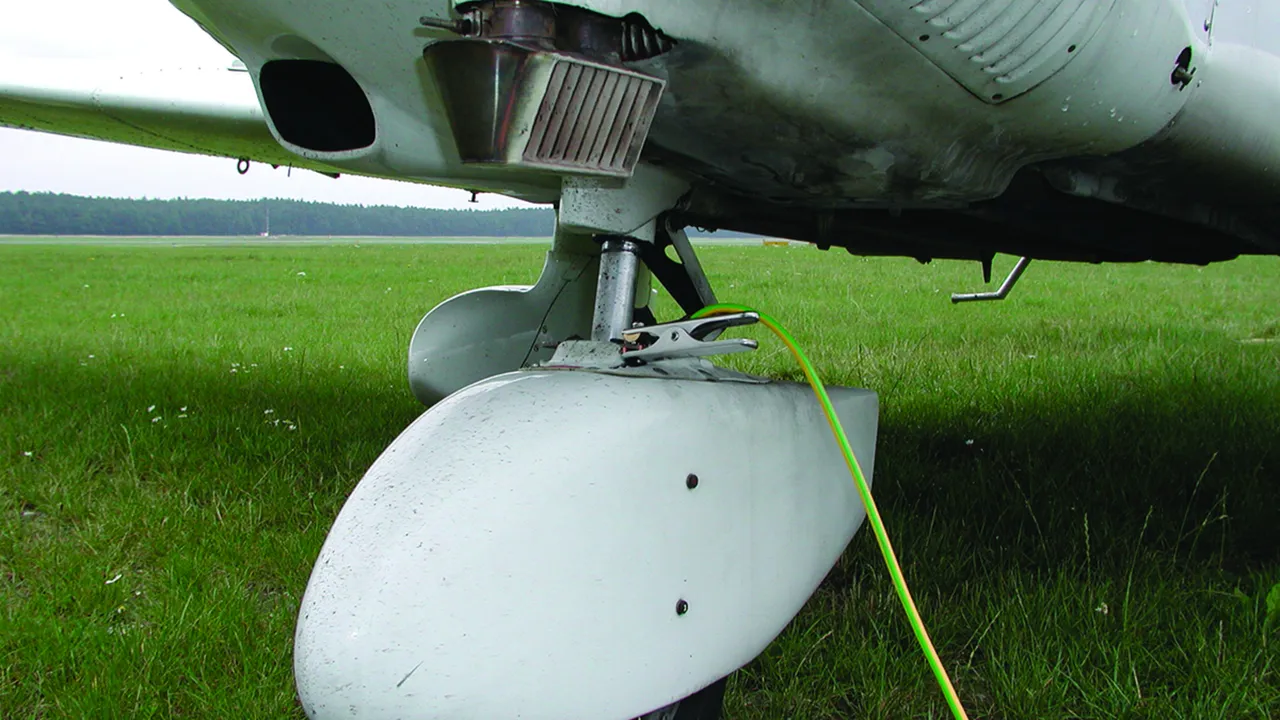

Earthing tongs for controlled earthing and discharging of static charge of tank vehicles, aircrafts, containers, tanks, etc.
Also for use in hazardous areas.

Small design

Brass jaw with steel tips (Material No. 1.4104) and copper contact clip.
Connection: Flat head screw with slot or with enclosed crimped cable lug 25 mm²– M6 (Cu/gal Sn).

Part No. 546 002 may also be combined with earthing conductor. See Safety Equipment catalogue Part No. 758 216.

2 Products

Part No. 546025 EZ 16 FL13 ASM6 STGALZN

GTIN 4013364004023, Customs tariff No. (EU): 85359000, Gross weight: 177.60 g, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Earthing tongs, small, St/gal Zn, 140 mm long
Earthing tongs for connection to tankers, aircraft
For discharging static charge
Suitable for use in potentially explosive atmospheres
Material of tongs: St/gal Zn
Clamping range Rd / Fl: up to Ø16 / up to 13 mm
Length: 140 mm
Terminal screw: M6 x 12 mm

Brand: DEHN
Type: EZ 16 FL13 ASM6 STGALZN
Part No.: 546025
or equivalent.

Certificates

Technical data

Material of tongs	St/gal Zn
Clamping range Rd / Fl	up to Ø16 / up to 13 mm
Length	140 mm
Terminal screw	M6 x 12 mm

Product 546025 was added to Notepad.

Go to Notepad

Product 546025 was added to the cart.

Go to Web-Shop

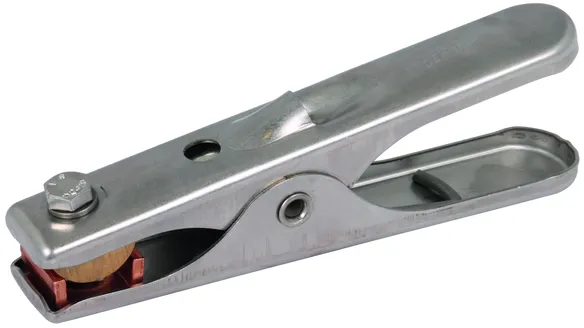

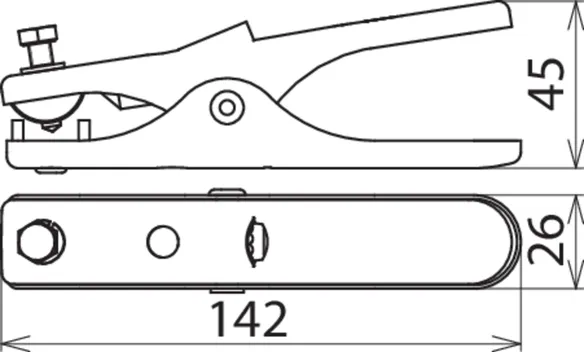

Part No. 546002 EZ 16 FL13 ASM6 V2A

GTIN 4013364004016, Customs tariff No. (EU): 85359000, Gross weight: 177.00 g, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Earthing tongs, small, StSt, 140 mm long
Earthing tongs for connection to tankers, aircraft
For discharging static charge
Suitable for use in potentially explosive
atmospheres
Brass jaw with steel tips (material no. 1.4104)
and copper contact clip
Material of tongs: StSt
Clamping range Rd / Fl: up to Ø16 / up to 13 mm
Length: 140 mm
Terminal screw: M6 x 16 mm

Brand: DEHN
Type: EZ 16 FL13 ASM6 V2A
Part No.: 546002
or equivalent.

Certificates

Technical data

Material of tongs	StSt
Clamping range Rd / Fl	up to Ø16 / up to 13 mm
Length	140 mm
Terminal screw	M6 x 16 mm

Product 546002 was added to Notepad.

Go to Notepad

Product 546002 was added to the cart.

Go to Web-Shop

Large version with brass jaw without steel tips and copper contact clip.

Connection: Threaded pin with nut.

2 Products

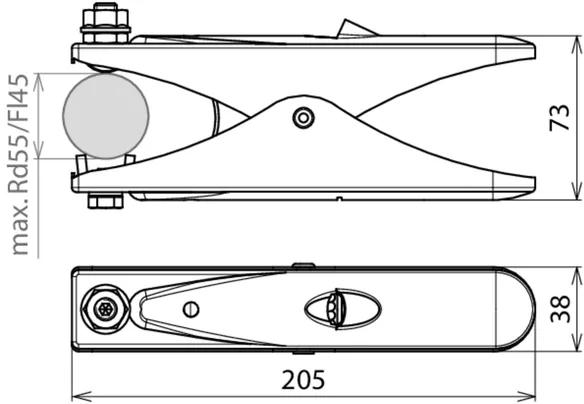

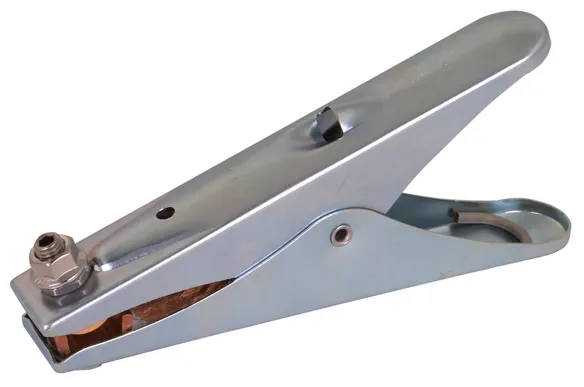

Part No. 546000 EZ 55 FL45 ASM10 STGALZN

GTIN 4013364019959, Customs tariff No. (EU): 85359000, Gross weight: 544.31 g, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Earthing tongs, large, St/gal Zn, 205 mm long
Earthing tongs for connection to tankers, aircraft
For discharging static charge
Suitable for use in potentially explosive
atmospheres
Brass jaw without steel tips
and copper contact clip
Material of tongs: St/gal Zn
Clamping range Rd / Fl: up to Ø55 / up to 45 mm
Length: 205 mm
Connection nut: M10

Brand: DEHN
Type: EZ 55 FL45 ASM10 STGALZN
Part No.: 546000
or equivalent.

Certificates

Technical data

Material of tongs	St/gal Zn
Clamping range Rd / Fl	up to Ø55 / up to 45 mm
Length	205 mm
Connection nut	M10

Product 546000 was added to Notepad.

Go to Notepad

Product 546000 was added to the cart.

Go to Web-Shop

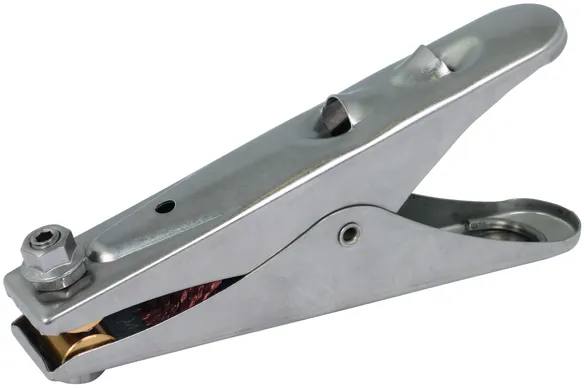

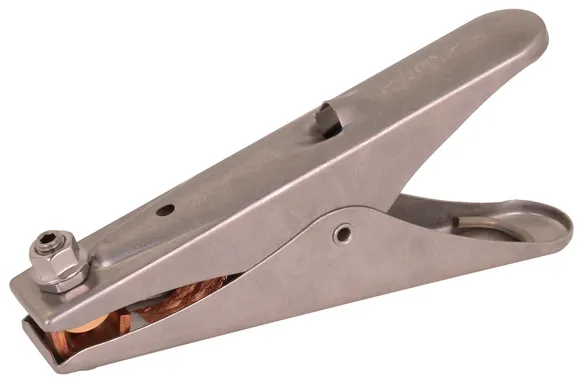

Part No. 546001 EZ 55 FL45 ASM10 V2A

GTIN 4013364019973, Customs tariff No. (EU): 85359000, Gross weight: 542.70 g, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Earthing tongs, large, StSt, 205 mm long
Earthing tongs for connection to tankers, aircraft
For discharging static charge
Suitable for use in potentially explosive atmospheres
Material of tongs: StSt
Clamping range Rd / Fl: up to Ø55 / up to 45 mm
Length: 205 mm
Connection nut: M10

Brand: DEHN
Type: EZ 55 FL45 ASM10 V2A
Part No.: 546001
or equivalent.

Certificates

Technical data

Material of tongs	StSt
Clamping range Rd / Fl	up to Ø55 / up to 45 mm
Length	205 mm
Connection nut	M10

Product 546001 was added to Notepad.

Go to Notepad

Product 546001 was added to the cart.

Go to Web-Shop

Large version with two brass jaws with steel tips

Connection: Threaded pin with nut.

1 Product

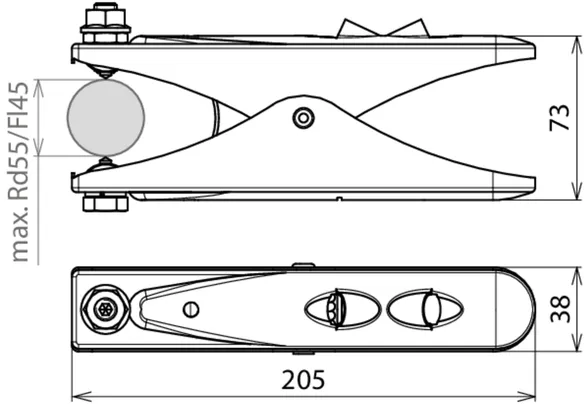

Part No. 546211 EZ 55 FL45 ASM10 4KSP V2A

GTIN 4013364294493, Customs tariff No. (EU): 85359000, Gross weight: 632.00 g, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Earthing tongs, large, StSt, 205 mm long
Earthing tongs for connection to tankers, aircraft
For discharging static charge
Suitable for use in potentially explosive atmospheres
Two brass jaws with steel tips (Material no. 1.4104)
Material of tongs: StSt
Clamping range Rd / Fl: up to Ø55 / up to 45 mm
Length: 205 mm
Connection nut: M10

Brand: DEHN
Type: EZ 55 FL45 ASM10 4KSP V2A
Part No.: 546211
or equivalent.

Certificates

Technical data

Material of tongs	StSt
Clamping range Rd / Fl	up to Ø55 / up to 45 mm
Length	205 mm
Connection nut	M10

Product 546211 was added to Notepad.

Go to Notepad

Product 546211 was added to the cart.

Go to Web-Shop
