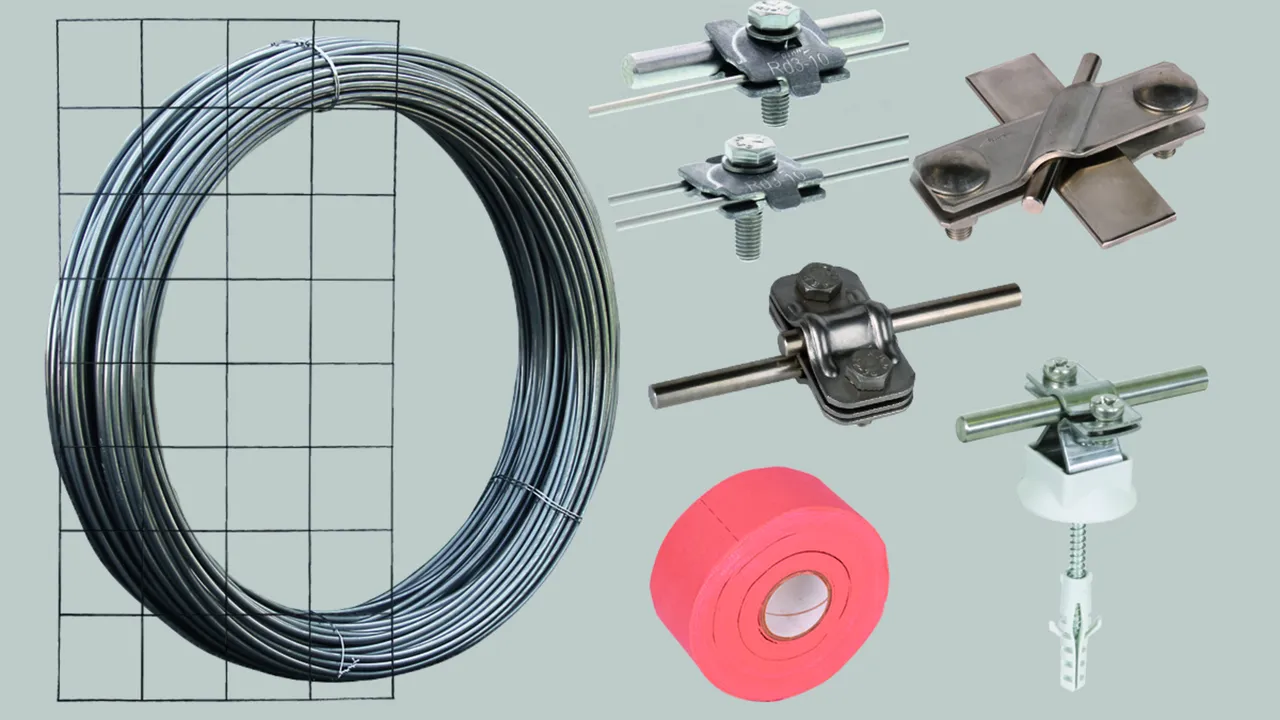

Potential Control

Mesh mat for protection against step voltage

As per VDE/ABB leaflet "Blitzschutz von Schutzhütten" ("Lightning Protection of Shelters")

If the mesh mats are laid so they overlap, around 6x connecting clamps (with anti-corrosion tape part. no. 556 125) are required per mesh mat.
Please refer to the related installation instructions for more precise data.

Note:
The mesh mats are pickled and passivated in accordance with the normative requirements of DIN VDE 0151.

1 Product

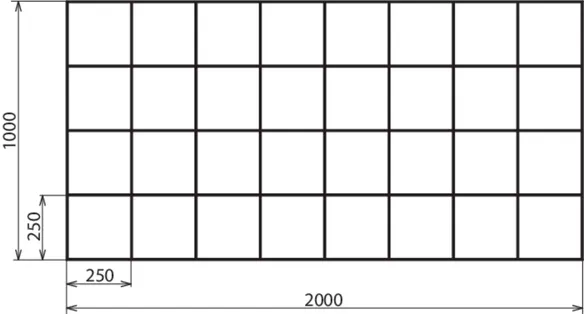

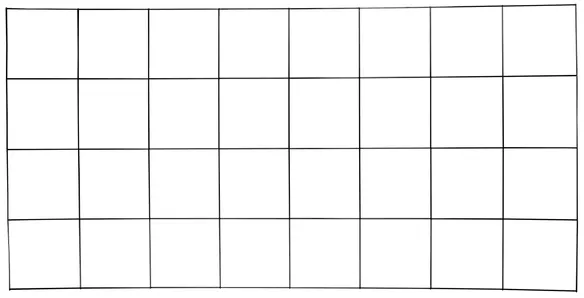

Part No. 618214 GMA 250 2000X1000X4 V4A

GTIN 4013364322950, Customs tariff No. (EU): 73141400, Gross weight: 2.00 kg, PU: 1.00 pc(s)

Images

Additional information

Mesh mat for protection against step voltage
based on VDE/ABB Merkblatt "Blitzschutz von Schutzhütten"
(VDE/ABB leaflet "Lightning protection of shelters"),
pickled and passivated in accordance with
standard requirement DIN VDE 0151.
Material: StSt (V4A)
Dimensions: 2000 x 1000 x 4 mm
Mesh size: 250 mm

Brand: DEHN
Type: GMA 250 2000X1000X4 V4A
Part No.: 618214
or equivalent.



Technical data

Material StSt (V4A)
Material No. 1.4571 / 1.4404 / 1.4401
ASTM / AISI: 316Ti / 316L / 316
Dimensions (l x w x d) 2000 x 1000 x 4 mm
Mesh size 250 mm

Product 618214 was added to Notepad.

Go to Notepad

Product 618214 was added to the cart.

Go to Web-Shop

Connecting clamp for mesh mats

Clamp for interconnecting mesh mats or for connecting mesh mats with earth-termination systems.

2 Products

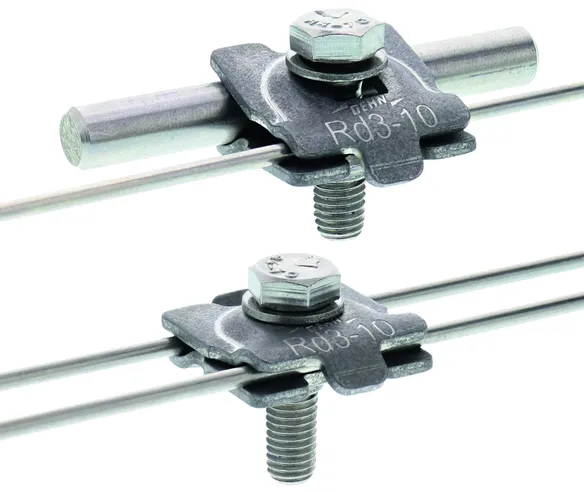

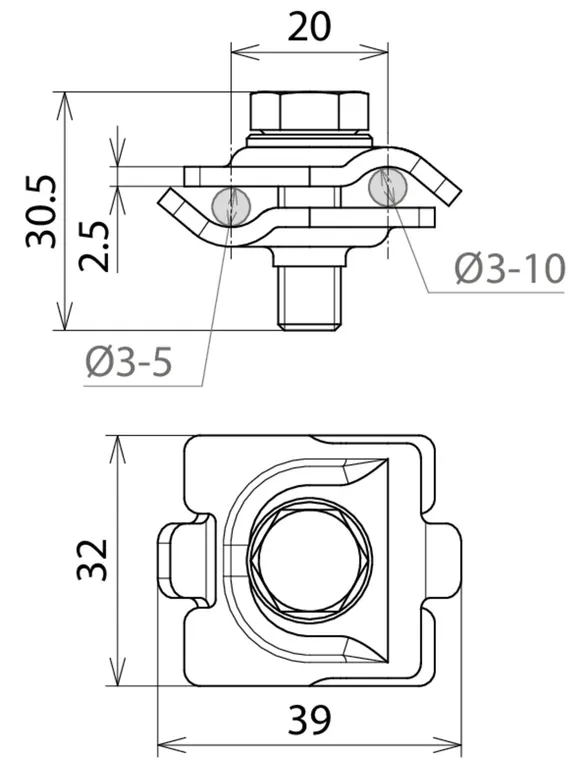

Part No. 540271 MMVK 3.5 8.10 SKM8X30 V4A

GTIN 4013364385306, Customs tariff No. (EU): 85359000, Gross weight: 52.08 g, PU: 50.00 pc(s)

Images

Additional information

Clamp for interconnecting mesh mats or for connecting
mesh mats with earth termination systems with screw M8.
Material: StSt (V4A)
Clamping range Rd: 3-10 mm
Connection (single-wire / multi-wire): 16 mm2
Lightning impulse current carrying capability (10/350 µs): 25 kA
Standard: based on EN 62561-1

Brand: DEHN
Type: MMVK 3.5 8.10 SKM8X30 V4A
Part No.: 540271
or equivalent.

Certificates



Technical data

Material StSt (V4A)
Material No. 1.4571 / 1.4404 / 1.4401
ASTM / AISI: 316Ti / 316L / 316
Clamping range Rd 3-10 mm
Connection (single-wire / multi-wire) 16 mm2
Lightning impulse current carrying capability (10/350 µs) 25 kA
Standard based on EN 62561-1

Product 540271 was added to Notepad.

Go to Notepad

Product 540271 was added to the cart.

Go to Web-Shop

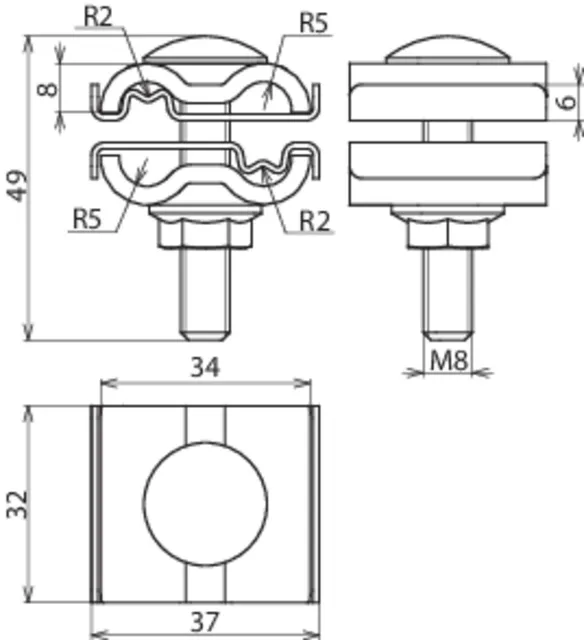

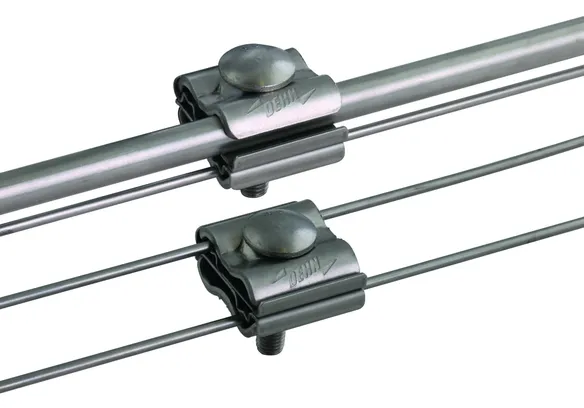

Part No. 540270 UEK 8.10 AQ3/4 M8 V4A

GTIN 4013364320536, Customs tariff No. (EU): 85359000, Gross weight: 99.56 g, PU: 50.00 pc(s)

Images

Additional information

Clamp for connecting mesh mats or for connecting
mesh mats with earth-termination systems
with M8 screw and lock nut.
Material: StSt (V4A)
Clamping range Rd / Rd: 8-10 / 3-4 mm
Clamping range Rd / Rd: 3-4 / 3-4 mm
Connection (single-wire / multi-wire): 4-50 mm2
Lightning impulse current carrying capability (10/350 µs): 25 kA
Standard: based on EN 62561-1

Brand: DEHN
Type: UEK 8.10 AQ3/4 M8 V4A
Part No.: 540270
or equivalent.



Technical data

Material StSt (V4A)
Material No. 1.4571 / 1.4404 / 1.4401
ASTM / AISI: 316Ti / 316L / 316
Clamping range Rd / Rd 8-10 / 3-4 mm
Clamping range Rd / Rd 3-4 / 3-4 mm
Connection (single-wire / multi-wire) 4-50 mm2
Lightning impulse current carrying capability (10/350 µs) 25 kA
Standard based on EN 62561-1

Product 540270 was added to Notepad.

Go to Notepad

Product 540270 was added to the cart.

Go to Web-Shop
