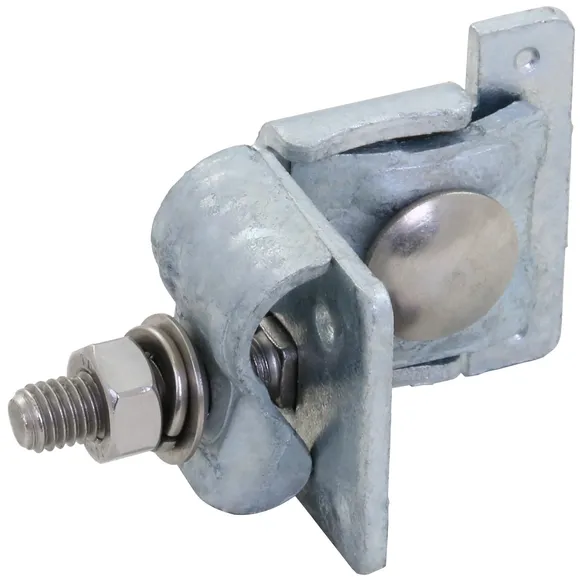

Angle bracket for short-circuit wire on gabions

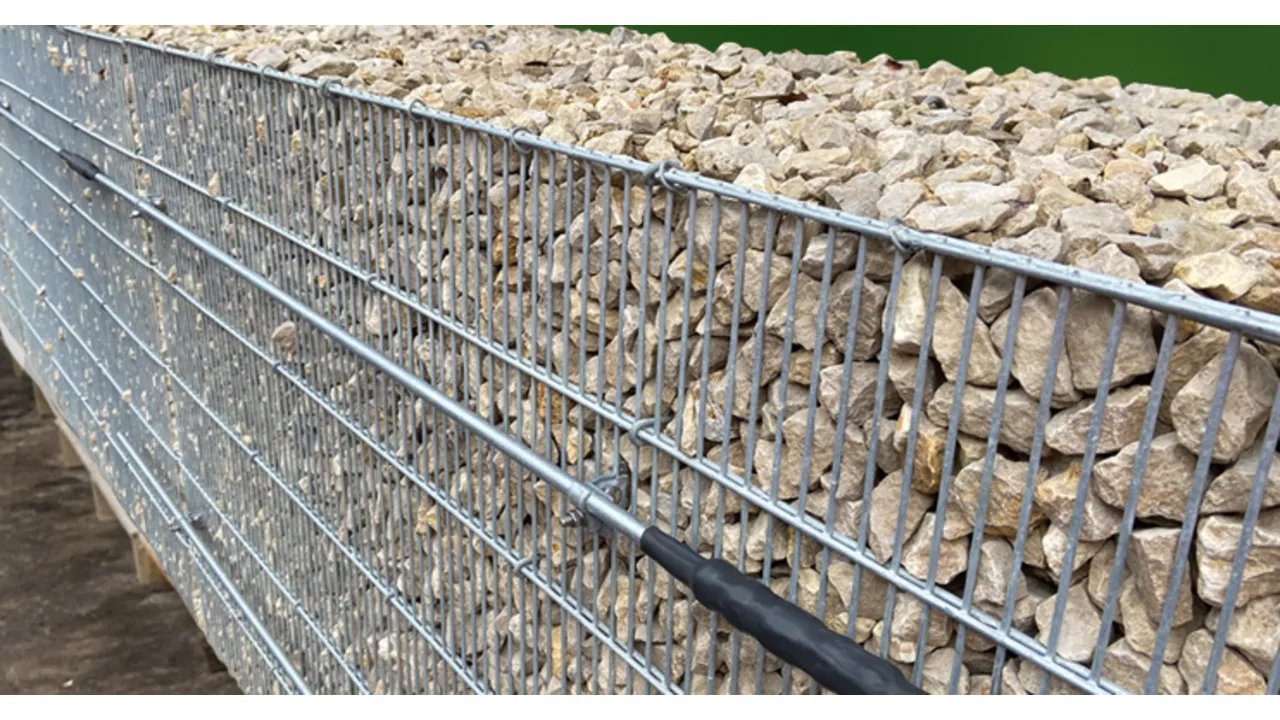

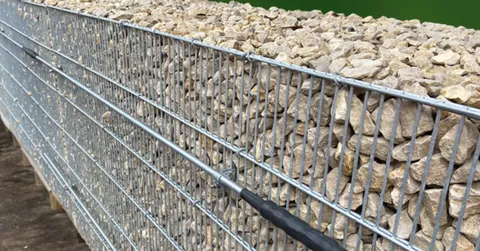

Bracket for short-circuit wire on stone gabions

1 Product

GTIN 4013364486898, Customs tariff No. (EU): 85389099, Gross weight: 164.40 g, PU: 50.00 pc(s)

Images

Additional information

Brand: DEHN
Type: LH DQ 16 KBG 4.8 W STTZN/3 EBS 15.03.47
Part No.: 419750
or equivalent.

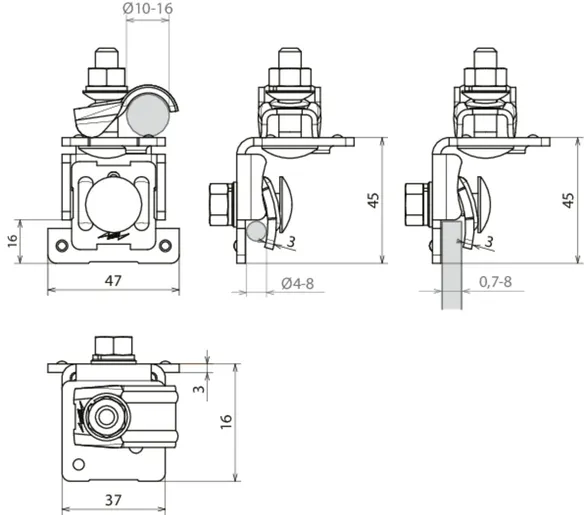

Technical data

Bar clamping range	4-8 mm
Clamp material	St/tZn
Clamping range Rd	10-16 mm
Screw	e M8 x 25 mm, e M8 x 35 mm
Material of screw / nut	StSt
Design with	Spring washer and spherical washer
