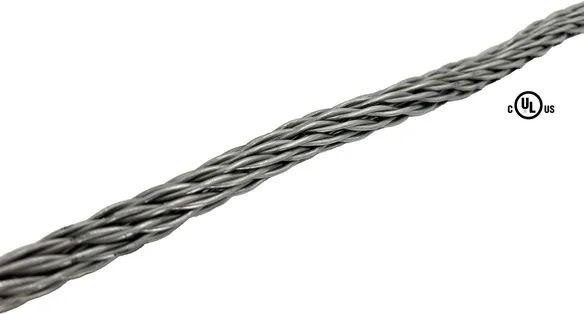

Part No. 228300 CABLE 24x14 AL 50QMM

GTIN 4013364518322, Customs tariff No. (EU): 76149000, Gross weight: 0.10 LB/FT, PU: 500.00 FT

Images

Additional information

Aluminum 24 x 14 Cable UL ECLE

Brand: DEHN
Type: CABLE 24x14 AL 50QMM
Part No.: 228300
or equivalent.

Technical data

Cross-section	98.640 circular mils (50 mm²)
Cable structure qty x Ø wire	24 x 14 gauge (1.63 mm)
Material	Electrical grade aluminum (minimum 99%)
Outside diameter Ø	3/8 in. (9.525 mm)
Conductor material	Alumium, Galvanized Steel, Stainless steel, Steel
Classification	Class 1
Conductor length	500 ft. (152.4 m)
Coil weight	102 lb / 1000 ft (152 g / m)

Cross-section	98.640 circular mils (50 mm²)
Cable structure qty x Ø wire	24 x 14 gauge (1.63 mm)
Material	Electrical grade aluminum (minimum 99%)
Outside diameter Ø	3/8 in. (9.525 mm)
Conductor material	Alumium, Galvanized Steel, Stainless steel, Steel
Classification	Class 1
Conductor length	500 ft. (152.4 m)
Coil weight	102 lb / 1000 ft (152 g / m)

Product 228300 was added to Notepad.

Go to Notepad

Product 228300 was added to the cart.

Go to Web-Shop

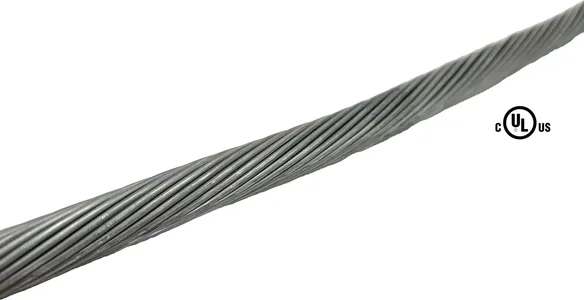

Part No. 228301 CABLE 37x12.5 AL 107QMM

GTIN 4013364518339, Customs tariff No. (EU): 76149000, Gross weight: 0.20 LB/FT, PU: 500.00 FT

Images

Additional information

Aluminum 4/0-37 Cable UL ECLE

Brand: DEHN
Type: CABLE 37x12.5 AL 107QMM
Part No.: 228301
or equivalent.

Technical data

Cross-section	211.475 circular mils (107 mm²)
Cable structure qty x Ø wire	37 x 12-1/2 gauge (1.92 mm)
Material	Electrical grade aluminum (minimum 99%)
Outside diameter Ø	19/32 in. (15.081 mm)
Conductor material	Alumium, Galvanized Steel, Stainless steel, Steel
Classification	Class 2
Conductor length	500 ft. (152.4 m)
Coil weight	200 lb / 1000 ft (298 g / m)

Cross-section	211.475 circular mils (107 mm²)
Cable structure qty x Ø wire	37 x 12-1/2 gauge (1.92 mm)
Material	Electrical grade aluminum (minimum 99%)
Outside diameter Ø	19/32 in. (15.081 mm)
Conductor material	Alumium, Galvanized Steel, Stainless steel, Steel
Classification	Class 2
Conductor length	500 ft. (152.4 m)
Coil weight	200 lb / 1000 ft (298 g / m)

Product 228301 was added to Notepad.

Go to Notepad

Product 228301 was added to the cart.

Go to Web-Shop

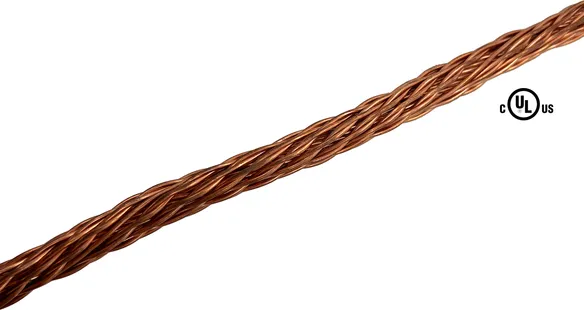

Part No. 228310 CABLE 29x17 CU 30QMM

GTIN 4013364518346, Customs tariff No. (EU): 74130000, Gross weight: 0.19 LB/FT, PU: 500.00 FT

Images

Additional information

Copper 29 x 17 Cable UL ECLE

Brand: DEHN
Type: CABLE 29x17 CU 30QMM
Part No.: 228310
or equivalent.

Technical data

Cross-section	59.450 circular mils (30 mm²)
Cable structure qty x Ø wire	29 x 17 gauge (1.15 mm)
Material	Electrical grade copper (minimum 95%)
Outside diameter Ø	3/8 in. (9.525 mm)
Conductor material	Copper, Stainless Steel, Steel
Classification	Class 1
Conductor length	502 ft. (152.4 m)
Coil weight	192 lb / 1000 ft (286 g / m)

Cross-section	59.450 circular mils (30 mm²)
Cable structure qty x Ø wire	29 x 17 gauge (1.15 mm)
Material	Electrical grade copper (minimum 95%)
Outside diameter Ø	3/8 in. (9.525 mm)
Conductor material	Copper, Stainless Steel, Steel
Classification	Class 1
Conductor length	502 ft. (152.4 m)
Coil weight	192 lb / 1000 ft (286 g / m)

Product 228310 was added to Notepad.

Go to Notepad

Product 228310 was added to the cart.

Go to Web-Shop

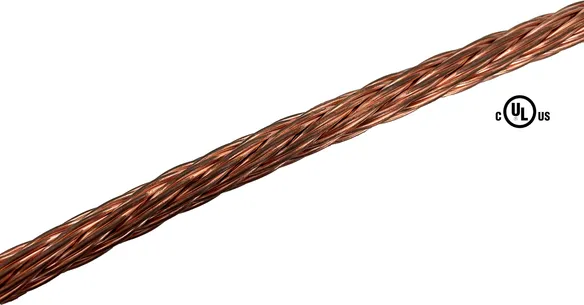

Part No. 228311 CABLE 28x0.066 CU 61.5QMM

GTIN 4013364518353, Customs tariff No. (EU): 74130000, Gross weight: 0.39 LB/FT, PU: 500.00 FT

Images

Additional information

Copper 28 x .066 Cable UL ECLE

Brand: DEHN
Type: CABLE 28x0.066 CU 61.5QMM
Part No.: 228311
or equivalent.

Technical data

Cross-section	121.968 circular mils (61.5 mm²)
Cable structure qty x Ø wire	28 x 0.066 gauge (1.68 mm)
Material	Electrical grade copper (minimum 95%)
Outside diameter Ø	1/2 in. (12.7 mm)
Conductor material	Copper, Stainless Steel, Steel
Classification	Class 2
Conductor length	502 ft. (152.4 m)
Coil weight	385 lb / 1000 ft (573 g / m)

Cross-section	121.968 circular mils (61.5 mm²)
Cable structure qty x Ø wire	28 x 0.066 gauge (1.68 mm)
Material	Electrical grade copper (minimum 95%)
Outside diameter Ø	1/2 in. (12.7 mm)
Conductor material	Copper, Stainless Steel, Steel
Classification	Class 2
Conductor length	502 ft. (152.4 m)
Coil weight	385 lb / 1000 ft (573 g / m)

Product 228311 was added to Notepad.

Go to Notepad

Product 228311 was added to the cart.

Go to Web-Shop

Results for products (0)

Results for content (0)

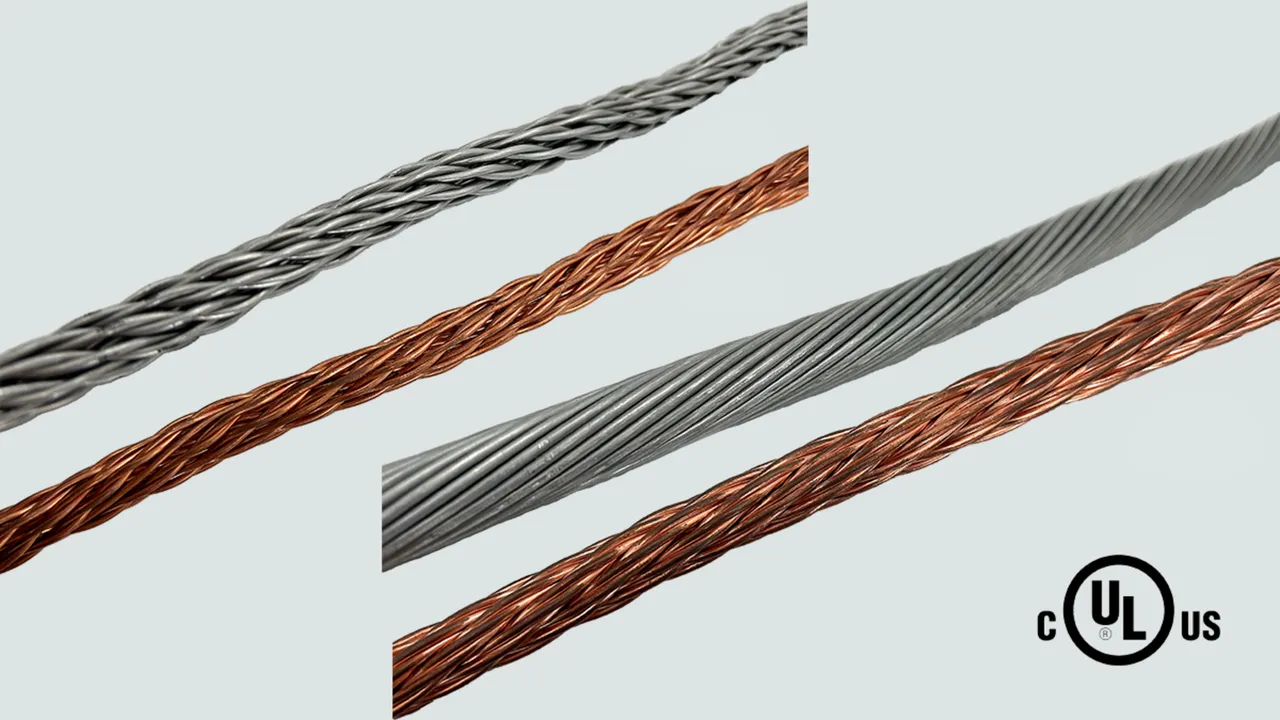

DEHNconduct - Conductors

Aluminium cable
