HSA 205 High-Voltage Indicator

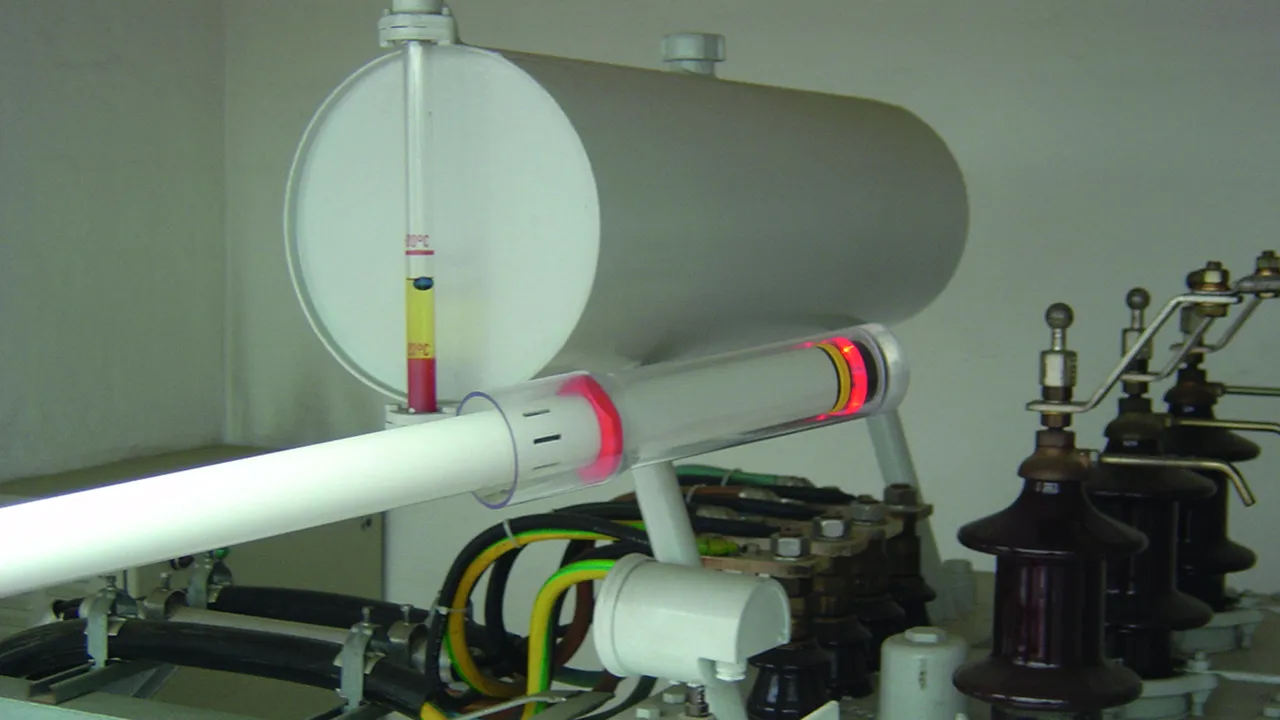

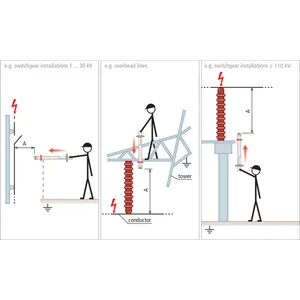

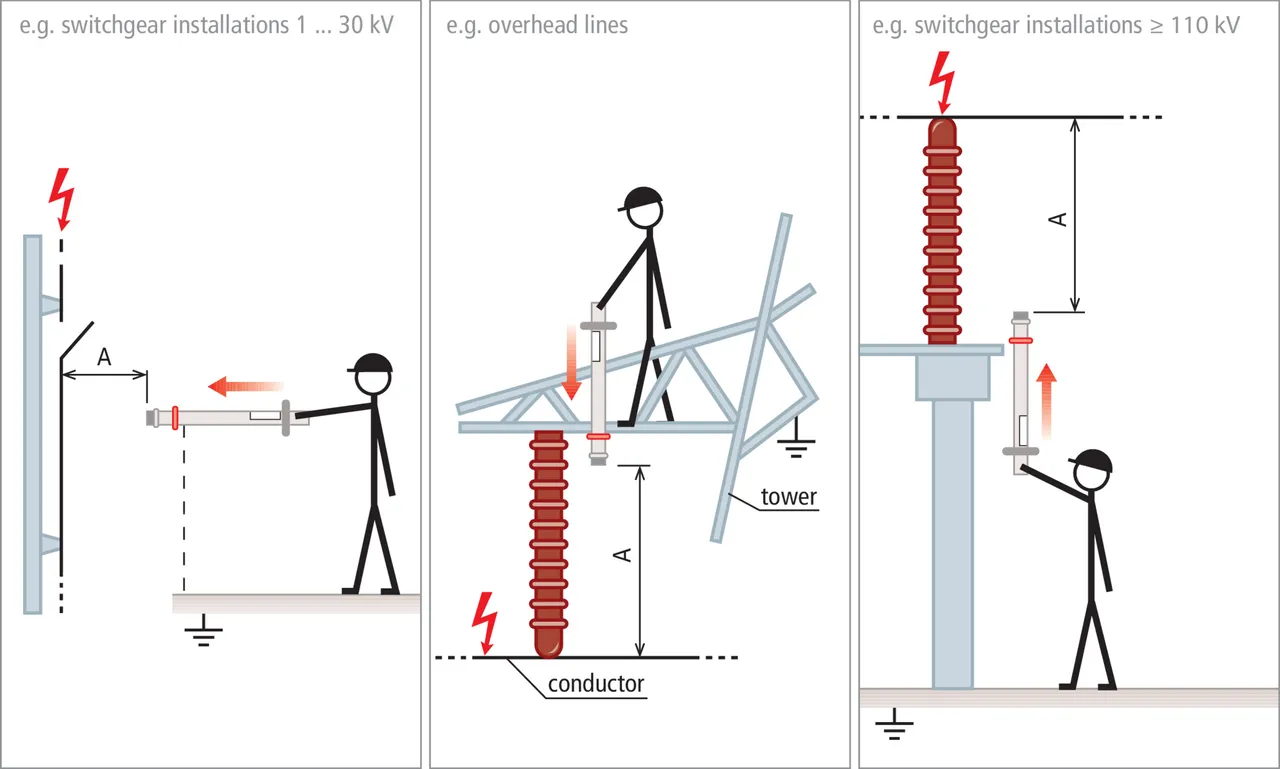

For contactlessly verifying that switchgear installations and high-voltage overhead lines are dead
Wide nominal voltage range

Details

With insulating cap and plug-in coupling as end fitting for extending the handle.

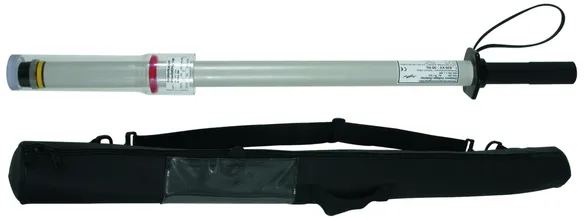

Storage bag included in delivery.

2 Products

GTIN 4013364115736, Customs tariff No. (EU): 90303370, Gross weight: 2.50 kg, PU: 1.00 pc(s)

Images

Additional information

Certificates

Technical data

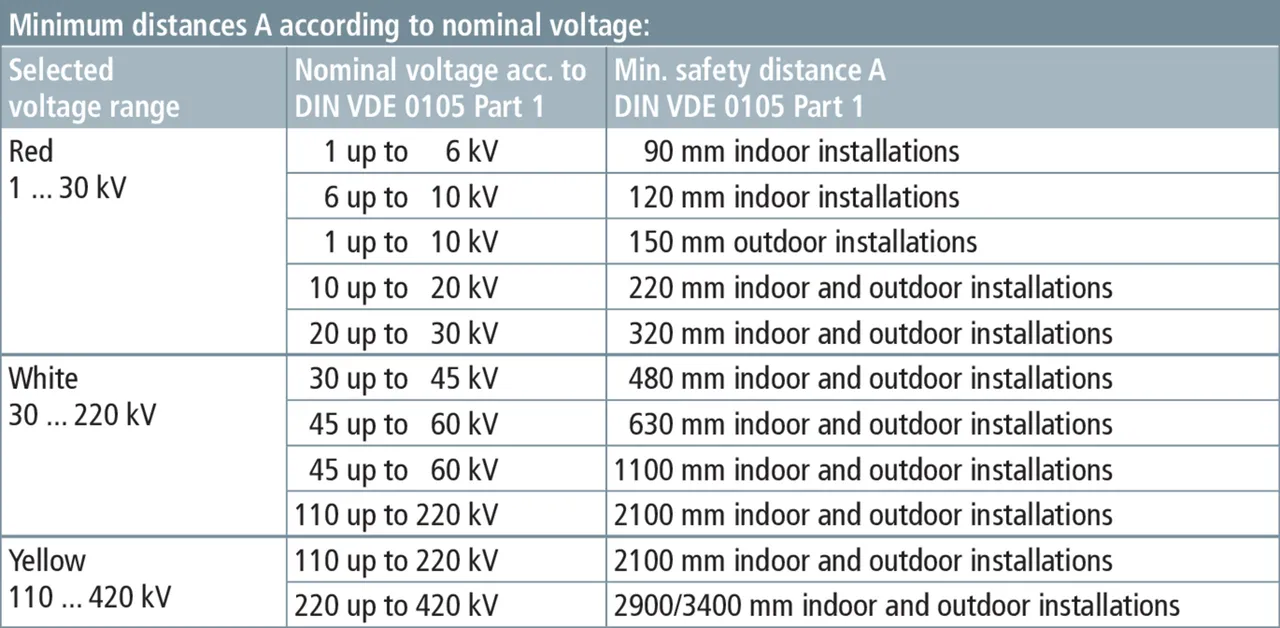

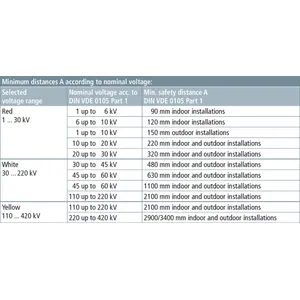

Nominal voltage range (U_N )	1 ... 30 / 30 ... 220 / 110 ... 420 kV
Frequency	50 Hz

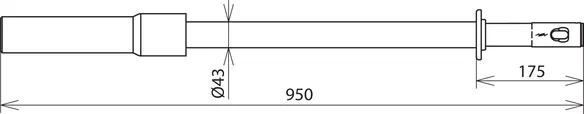

Total length (l_G )	950 mm
Insulating clearance (l_I )	540 mm
Temperature range	–25 °C ... +55 °C, climatic category N
For use at	_
Indication	Visual and acoustic
Self-testing element	Yes
Material (insulating stick)	Glass-fibre reinforced polyester tube

Go to Notepad

Go to Web-Shop

GTIN 4013364158276, Customs tariff No. (EU): 90303370, Gross weight: 2.00 kg, PU: 1.00 pc(s)

Images

Additional information

Technical data

Nominal voltage range (U_N )	1 ... 30 / 30 ... 220 / 110 ... 420 kV
Frequency	60 Hz
Total length (l_G )	950 mm
Insulating clearance (l_I )	540 mm
Temperature range	–25 °C ... +55 °C, climatic category N
For use at	_
Indication	Visual and acoustic
Self-testing element	Yes
Material (insulating stick)	Glass-fibre reinforced polyester tube
