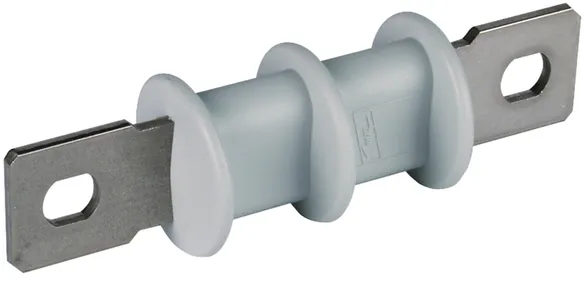

Protective Spark Gap
:quality(98)/dehn.us/store/f/50188555/HDVORSCHAU/920000a2_16-9.jpg)
:quality(98)/dehn.us/store/f/50188555/HDVORSCHAU/920000a2_16-9.jpg)

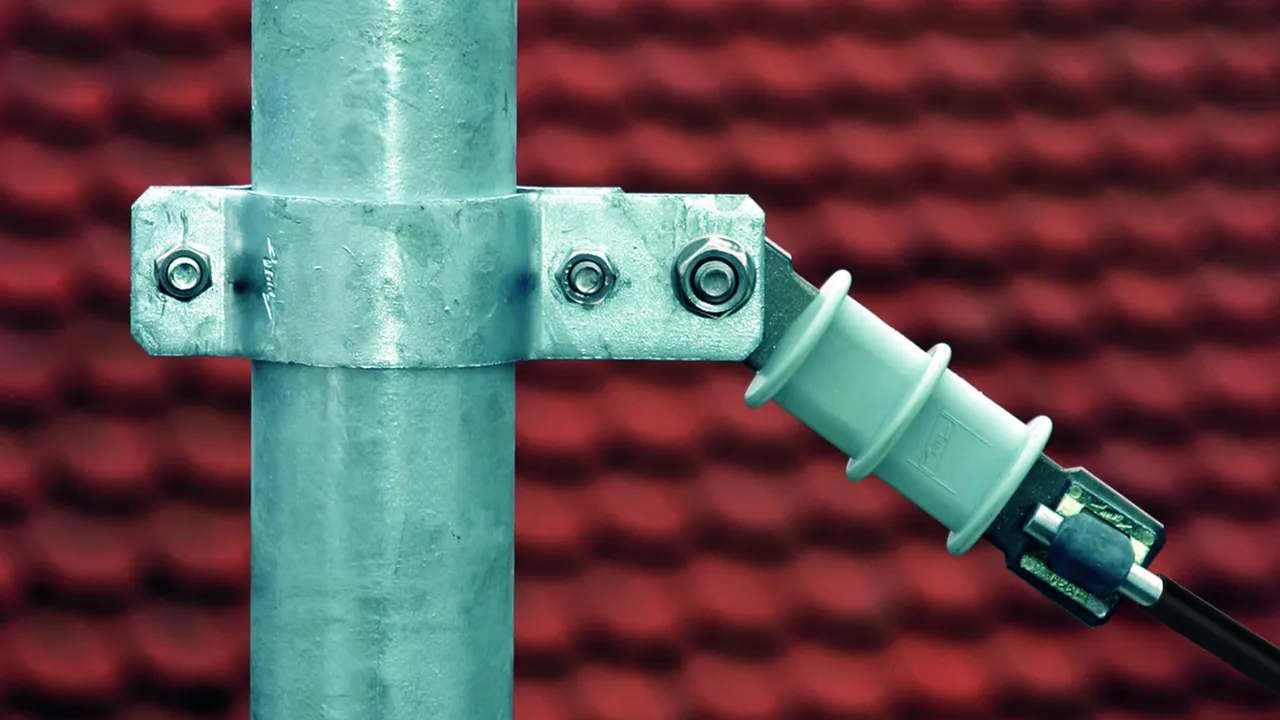

- For indirect connection of an overhead line roof pole to the external lightning protection system
- Corrosion-resistant stainless steel connections
Part No. 920000 DSFS
GTIN 4013364057494, Customs tariff No. (EU): 85369095, Gross weight: 127.00 g, PU: 1.00 pc(s)
Images
:quality(98)/dehn.us/store/f/50188565/HDVORSCHAU/920000.jpg)
:quality(98)/dehn.us/store/f/50188565/HDVORSCHAU/920000.jpg)
:quality(98)/dehn.us/store/f/50188566/HDVORSCHAU/920000p_D.jpg)
:quality(98)/dehn.us/store/f/50188566/HDVORSCHAU/920000p_D.jpg)
:quality(98)/dehn.us/store/f/50188567/HDVORSCHAU/920000m_D.jpg)
:quality(98)/dehn.us/store/f/50188567/HDVORSCHAU/920000m_D.jpg)
Technical data
| 100% lightning impulse sparkover voltage (1.2/50 µs) (Urimp ) | ~ 25 kV |
| Nominal discharge current (8/20 µs) (In ) | 25 kA |
| Power frequency sparkover voltage (50 Hz) (Uaw ) | ~ 10 kV |
