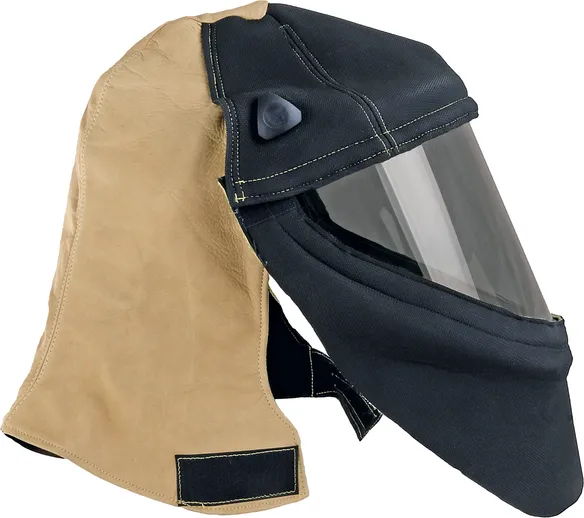

DEHNcare APHO AS

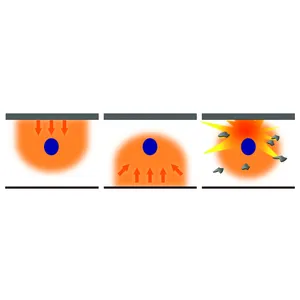

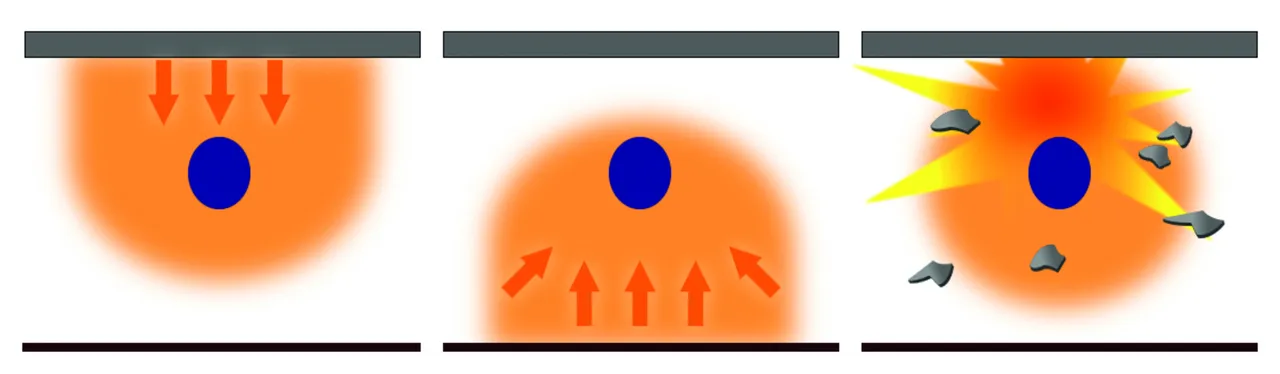

Frontal protection in case of direct incident energy from switchgear (zone 1 = heat shield)
Secondary protection in case of indirect incident energy, e.g. in case of energy reflection from the side and from the back (zone 2 = all-round protection)
Protection against parts flying around or falling down (zone 3)
Certified according to PPE regulation (EU) 2016/425

Details

Note: Safety helmet for electricians ESH U S is not included in delivery!

1 Product

GTIN 4013364529694, Customs tariff No. (EU): 65061080, Gross weight: 1.34 kg, PU: 1.00 pc(s)

Predecessor

Images

Additional information

Technical data

Material	plastic, neoprene, leather
Arc fault protection class (box test 7 kA / 0.5 s – single-pole)	APC 2
Arc energy (W_arc or W_LBP )	320 kJ
Arc Rating – ATPV (Open Arc Test)	37.2 cal / cm²
PPE category (NFPA 70E)	PPE 3
Visible light transmittance (VLT)	29.1 ... 43.2 %
Standard	GS-ET-29; IEC 61482-1-2; IEC 61482-1-1, EN 166, EN 170
