DEHNsignal

  • Operating state indication of the surge protective device connected
  • Indication of phase failures
  • Floating changeover contact
  • Selective operating state indication
  • Centralised fault indication

Details

lorem ipsum
lorem ipsum

DEHNsignal E 3

Receiver module for optical transmission for selective operating state indication / centralised fault indication of three coordinated DEHNbloc Maxi S and, where appropriate, DEHNgap Maxi S lightning current arresters in five-wire systems.

1 Product

Part No. 910631 DSI E 3

GTIN 4013364108196, Customs tariff No. (EU): 85389091, Gross weight: 126.00 g, PU: 1.00 pc(s)

Images

Additional information

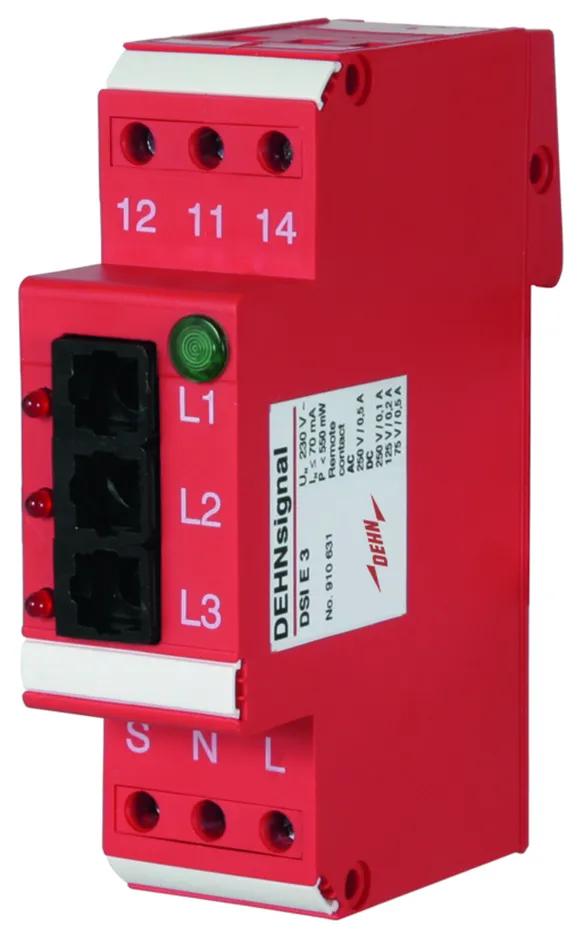

DEHNsignal E3 DSI E3 receiver module for optical transmission
Receiver module for optical transmission for selective
operating state indication / centralised fault indication
of three coordinated DEHNbloc Maxi S and, where appropriate,
DEHNgap Maxi S lightning current arresters in five-wire systems
With remote signalling contact, width: 1.5 modules
Supply voltage: 230 V a.c.
Power input: < 550 mW
Backup fuse: 16 A gL/gG or C 16 A
Signal input: 3x via optical fibre plug-in system
(LWL ST DSI)
Operating state indication: green LED
Selective status indication: 3 x red LED (L1, L2, L3)

Brand: DEHN
Type: DSI E 3
Part No.: 910631
or equivalent.



Technical data

Supply voltage (a.c.) (UN ) 230 V
Power input (P) < 550 mW
Backup fuse for supply voltage 16 A gG or C 16 A
Signal input 3x via optical fibre plug-in system (LWL ST DSI)
Type of remote signalling contact floating changeover contact
Test standards EN 61010-1:1993 and EN 61010-1/A2:1995
