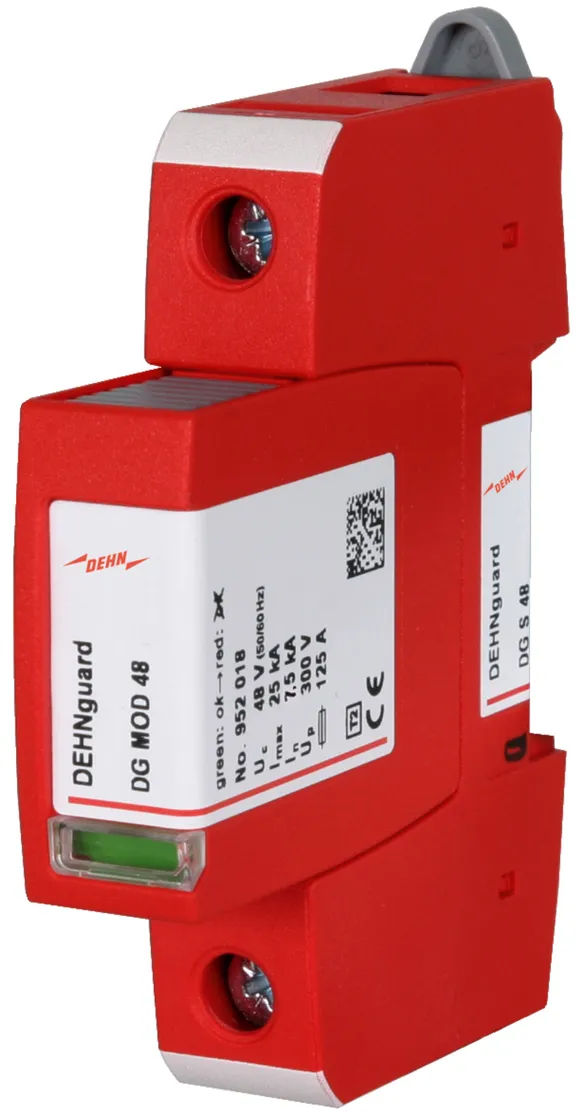

Part No. 952078 DG S 48

GTIN 4013364119468, Customs tariff No. (EU): 85363030, Gross weight: 120.10 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

CAD files

DEHNguard S 48 surge arrester
Modular and pluggable single-pole surge arrester,
Width: 1 module, fault indication
Type 2 SPD according to EN 61643-11
Max. continuous operating voltage: 48 V a.c./60 V d.c.
Voltage protection level: <= 0.33 kV
Nominal discharge current: 7.5 kA
Short circuit strength: 50 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 48
Part No.: 952078
or equivalent.

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	48 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	7.5 kA
Max. discharge current (8/20 µs) (I_max )	25 kA
Voltage protection level (U_P )	≤ 0.33 kV
Max. mains-side overcurrent protection	125 A gG

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	42 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	48 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	60 V
Nominal discharge current (8/20 µs) (I_n )	7.5 kA
Max. discharge current (8/20 µs) (I_max )	25 kA
Voltage protection level (U_P )	≤ 0.33 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	70 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	90 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880

Product 952078 was added to Notepad.

Go to Notepad

Product 952078 was added to the cart.

Go to Web-Shop

Part No. 952071 DG S 75

GTIN 4013364109834, Customs tariff No. (EU): 85363030, Gross weight: 117.60 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

CAD files

DEHNguard S 75 surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
Type 2 SPD according to EN 61643-11
Max. continuous operating voltage: 75 V a.c./100 V d.c.
Voltage protection level: <= 0.4 kV
Nominal discharge current: 10 kA
Short circuit strength: 50 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 75
Part No.: 952071
or equivalent.

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	75 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 0.4 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, VDE, UL, CSA

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	60 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	75 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	100 V
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 0.4 kV
Voltage protection level at 5 kA (U_P )	≤ 0.35 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	90 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	115 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA
Extended technical data:	--------------------
– Nominal discharge current (8/20 µs) (I_n )	20 kA
– Voltage protection level (U_P )	≤ 0.5 kV

Product 952071 was added to Notepad.

Go to Notepad

Product 952071 was added to the cart.

Go to Web-Shop

Part No. 952072 DG S 150

GTIN 4013364109858, Customs tariff No. (EU): 85363030, Gross weight: 119.60 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

CAD files

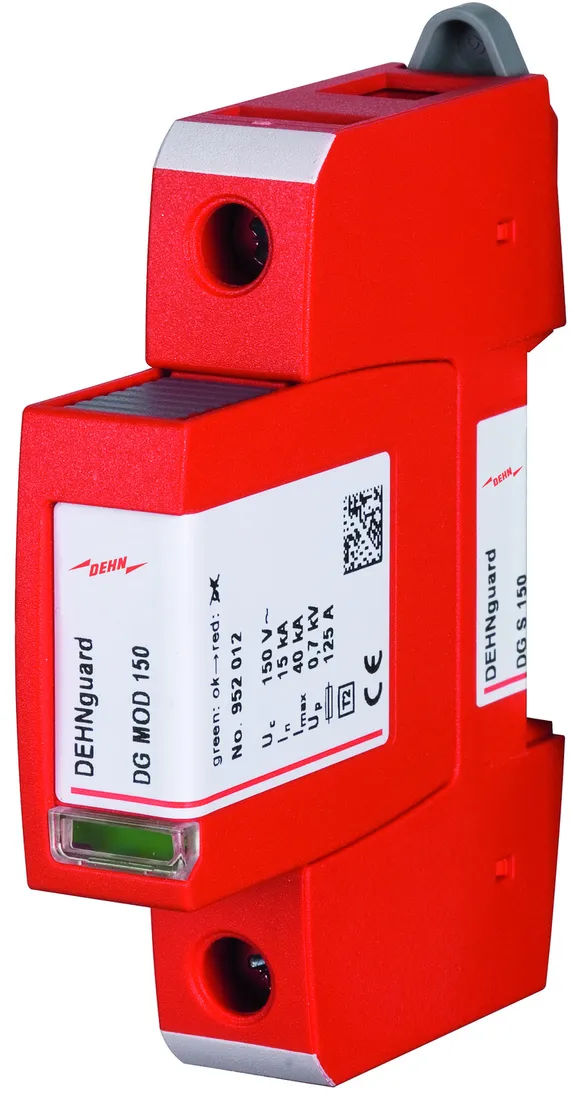

DEHNguard S 150 surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
Type 2 SPD according to EN 61643-11
Max. continuous operating voltage: 150 V a.c./200 V d.c.
Voltage protection level: <= 0.7 kV
Nominal discharge current: 15 kA
Short circuit strength: 50 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 150
Part No.: 952072
or equivalent.

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	150 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 0.7 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, VDE, UL, CSA

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	120 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	150 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	200 V
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 0.7 kV
Voltage protection level at 5 kA (U_P )	≤ 0.55 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	175 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	230 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA

Product 952072 was added to Notepad.

Go to Notepad

Product 952072 was added to the cart.

Go to Web-Shop

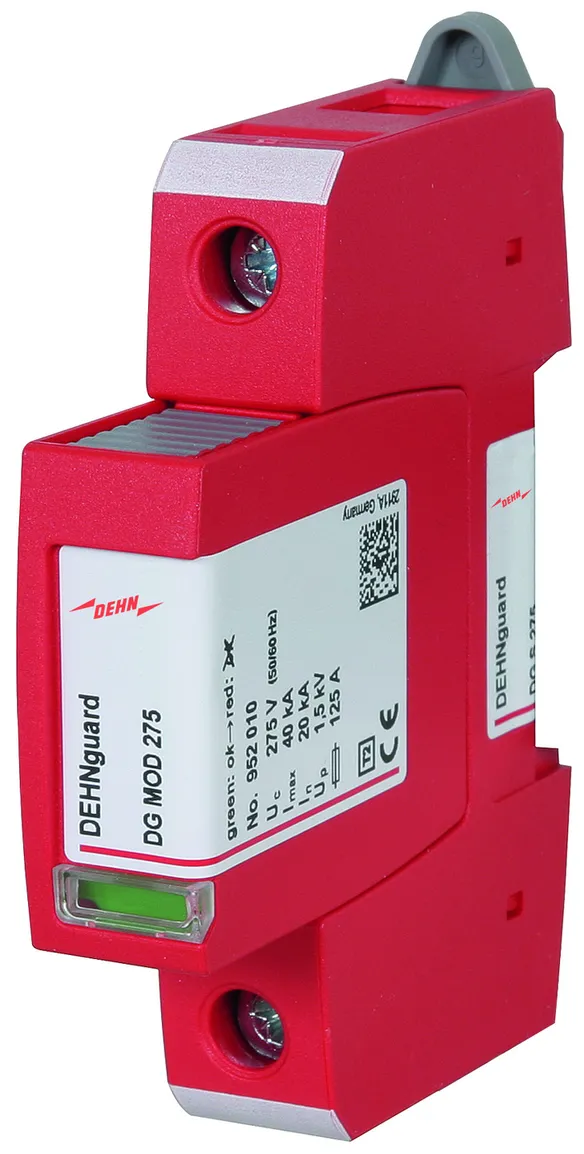

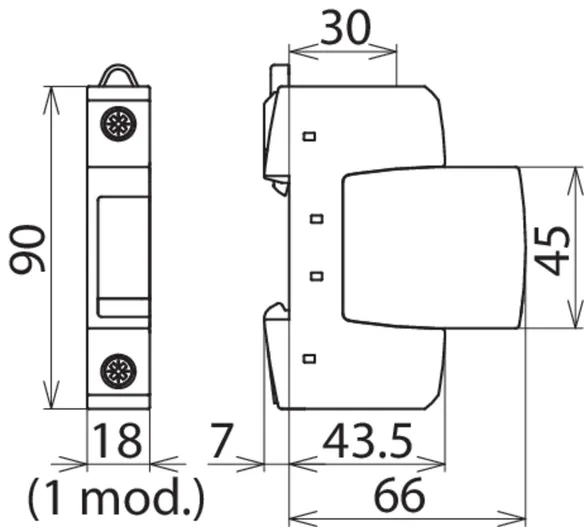

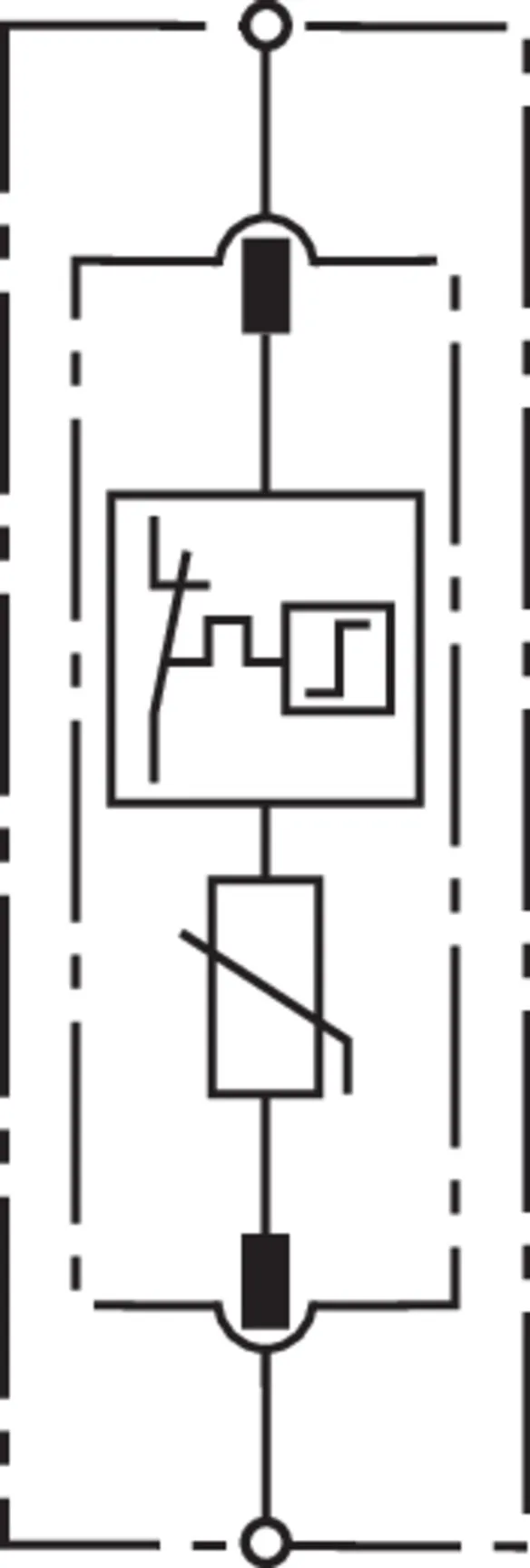

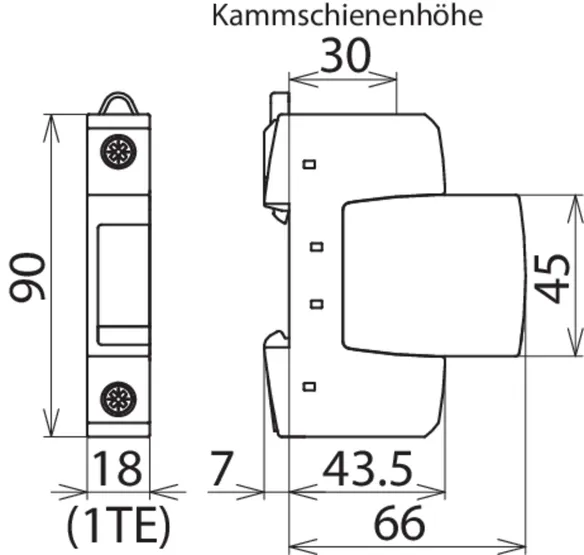

Part No. 952070 DG S 275

GTIN 4013364108493, Customs tariff No. (EU): 85363030, Gross weight: 140.40 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

CAD files

DEHNguard S 275 surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
Type 2 SPD according to EN 61643-11
Max. continuous operating voltage: 275 V a.c./350 V d.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 20 kA
Short circuit strength: 50 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 275
Part No.: 952070
or equivalent.

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, VDE, UL,CSA


SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	350 V
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Voltage protection level at 5 kA (U_P )	≤ 1 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL,CSA
Arrester use at 16.7 Hz – traction power supply systems
– Test voltage AC (U_C )	275 V
– Nominal AC voltage (U_N )	230 V
– Nominal frequency AC (f_N )	16.7 Hz

Product 952070 was added to Notepad.

Go to Notepad

Product 952070 was added to the cart.

Go to Web-Shop

Part No. 952073 DG S 320

GTIN 4013364109872, Customs tariff No. (EU): 85363030, Gross weight: 129.90 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

CAD files

DEHNguard S 320 surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
Type 2 SPD according to EN 61643-11
Max. continuous operating voltage: 320 V a.c./420 V d.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 20 kA
Short circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 320
Part No.: 952073
or equivalent.

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	320 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, VDE, UL, CSA

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	320 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	420 V
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Voltage protection level at 5 kA (U_P )	≤ 1.2 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA

Product 952073 was added to Notepad.

Go to Notepad

Product 952073 was added to the cart.

Go to Web-Shop

Part No. 952074 DG S 385

GTIN 4013364108516, Customs tariff No. (EU): 85363030, Gross weight: 133.50 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

CAD files

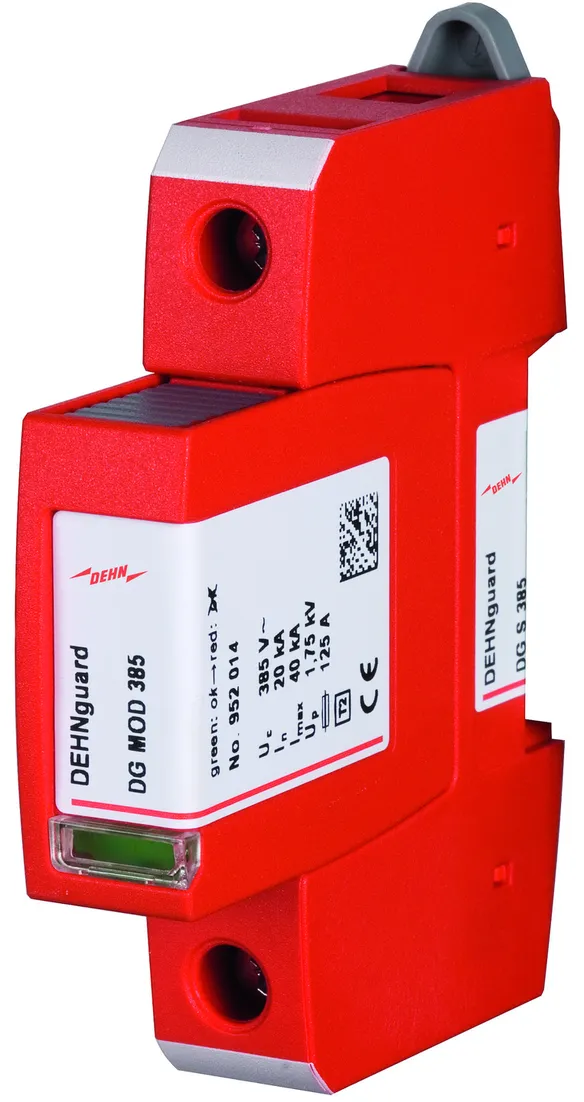

DEHNguard S 385 surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
Type 2 SPD according to EN 61643-11
Max. continuous operating voltage: 385 V a.c./500 V d.c.
Voltage protection level: <= 1.75 kV
Nominal discharge current: 20 kA
Short circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 385
Part No.: 952074
or equivalent.

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	385 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.75 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, VDE, UL, CSA

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	385 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	500 V
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.75 kV
Voltage protection level at 5 kA (U_P )	≤ 1.35 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	385 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA

Product 952074 was added to Notepad.

Go to Notepad

Product 952074 was added to the cart.

Go to Web-Shop

Part No. 952075 DG S 440

GTIN 4013364109896, Customs tariff No. (EU): 85363030, Gross weight: 152.70 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

CAD files

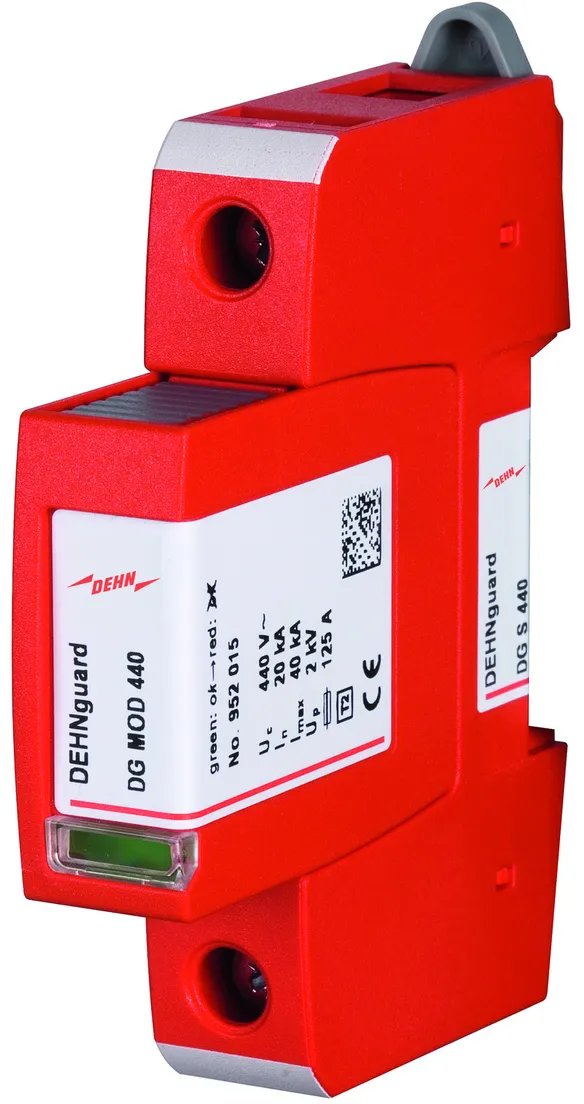

DEHNguard S 440 surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
Type 2 SPD according to EN 61643-11
Max. continuous operating voltage: 440 V a.c./585 V d.c.
Voltage protection level: <= 2 kV
Nominal discharge current: 20 kA
Short circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 440
Part No.: 952075
or equivalent.

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	440 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 2 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, VDE, UL, CSA

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	440 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	585 V
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 2 kV
Voltage protection level at 5 kA (U_P )	≤ 1.7 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	580 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	765 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA

Product 952075 was added to Notepad.

Go to Notepad

Product 952075 was added to the cart.

Go to Web-Shop

Part No. 952076 DG S 600

GTIN 4013364109919, Customs tariff No. (EU): 85363030, Gross weight: 146.90 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

CAD files

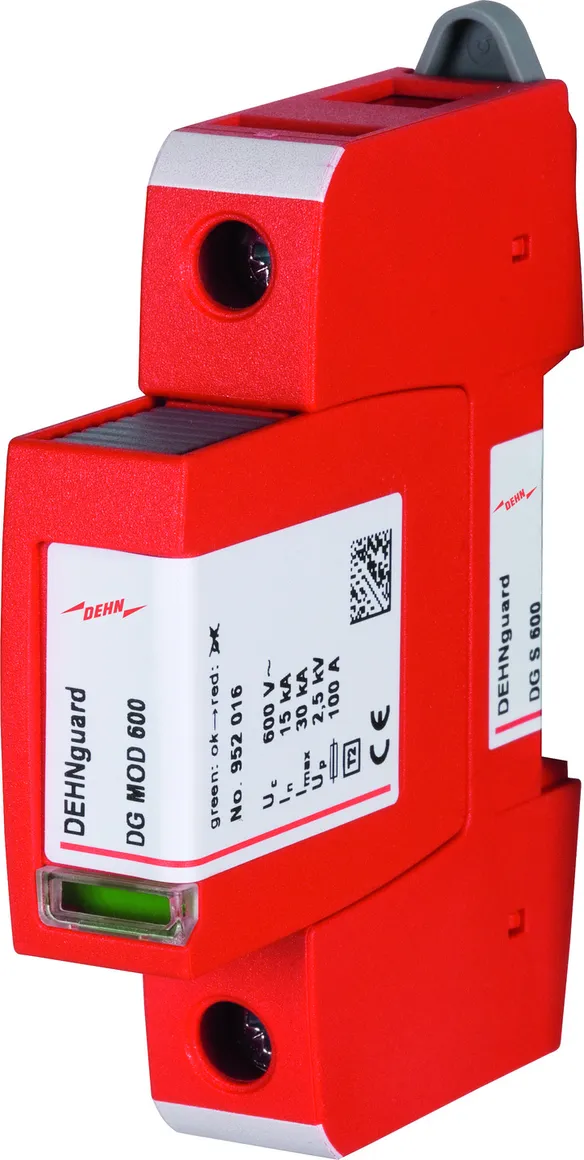

DEHNguard S 600 surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
Type 2 SPD according to EN 61643-11
Max. continuous operating voltage: 600 V a.c./600 V d.c.
Voltage protection level: <= 2.5 kV
Nominal discharge current: 15 kA
Short circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 600
Part No.: 952076
or equivalent.

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	600 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	30 kA
Voltage protection level (U_P )	≤ 2.5 kV
Max. mains-side overcurrent protection	100 A gG
Approvals	KEMA, VDE, UL, CSA


SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	480 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	600 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	600 V
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	30 kA
Voltage protection level (U_P )	≤ 2.5 kV
Voltage protection level at 5 kA (U_P )	≤ 2 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	100 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	700 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	915 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installations
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA
Arrester use at 16.7 Hz – traction power supply systems
– Test voltage AC (U_C )	600 V
– Nominal AC voltage (U_N )	480 V
– Nominal frequency AC (f_N )	16.7 Hz

Product 952076 was added to Notepad.

Go to Notepad

Product 952076 was added to the cart.

Go to Web-Shop

Part No. 952098 DG S 48 FM

GTIN 4013364119475, Customs tariff No. (EU): 85363030, Gross weight: 133.86 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

CAD files

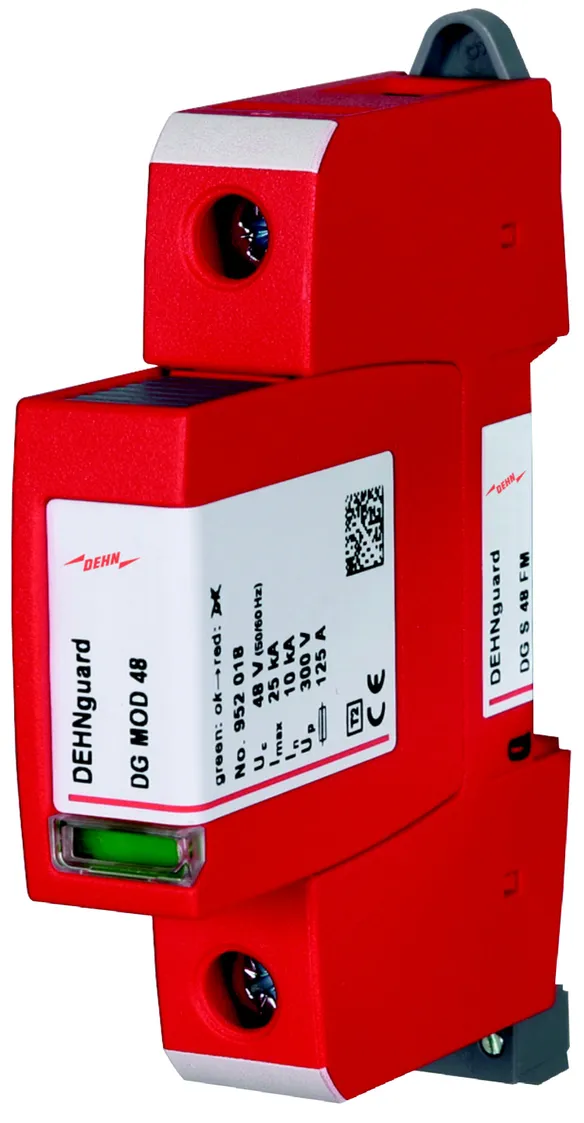

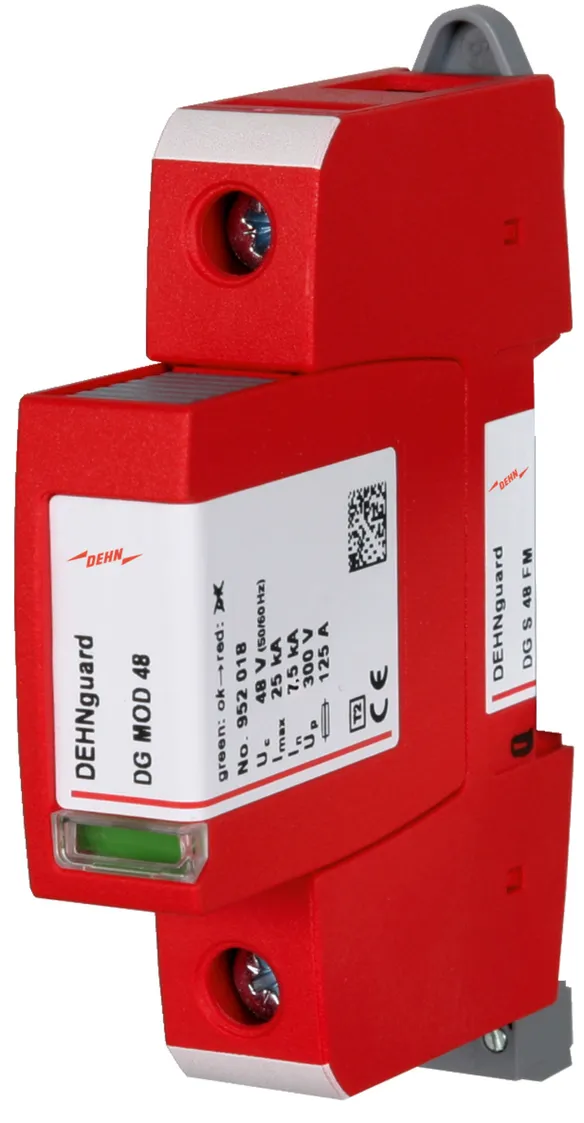

DEHNguard S 48 FM surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication

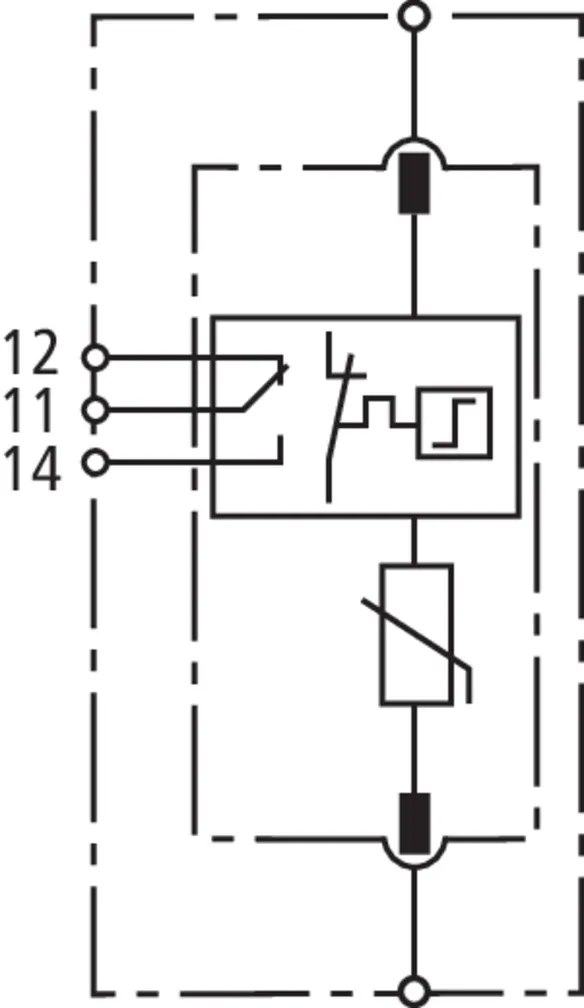

With remote signalling contact
Type 2 SPD according to EN 61643-11
Max. continuous operating voltage: 48 V a.c./60 V d.c.
Voltage protection level: <= 0.33 kV
Nominal discharge current: 7.5 kA
Short circuit strength: 50 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 48 FM
Part No.: 952098
or equivalent.

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	48 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	7.5 kA
Max. discharge current (8/20 µs) (I_max )	25 kA
Voltage protection level (U_P )	≤ 0.33 kV
Max. mains-side overcurrent protection	125 A gG
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	42 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	48 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	60 V
Nominal discharge current (8/20 µs) (I_n )	7.5 kA
Max. discharge current (8/20 µs) (I_max )	25 kA
Voltage protection level (U_P )	≤ 0.33 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	70 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	90 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Product 952098 was added to Notepad.

Go to Notepad

Product 952098 was added to the cart.

Go to Web-Shop

Part No. 952091 DG S 75 FM

GTIN 4013364109841, Customs tariff No. (EU): 85363030, Gross weight: 120.40 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

CAD files

DEHNguard S 75 FM surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
With remote signalling contact
Type 2 SPD according to EN 61643-11
Max. continuous operating voltage: 75 V a.c./100 V d.c.
Voltage protection level: <= 0.4 kV
Nominal discharge current: 10 kA
Short circuit strength: 50 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 75 FM
Part No.: 952091
or equivalent.

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	75 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 0.4 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, VDE, UL, CSA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	60 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	75 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	100 V
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 0.4 kV
Voltage protection level at 5 kA (U_P )	≤ 0.35 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	90 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	115 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Extended technical data:	--------------------
– Nominal discharge current (8/20 µs) (I_n )	20 kA
– Voltage protection level (U_P )	≤ 0.5 kV

Product 952091 was added to Notepad.

Go to Notepad

Product 952091 was added to the cart.

Go to Web-Shop

Part No. 952092 DG S 150 FM

GTIN 4013364109865, Customs tariff No. (EU): 85363030, Gross weight: 123.50 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

CAD files

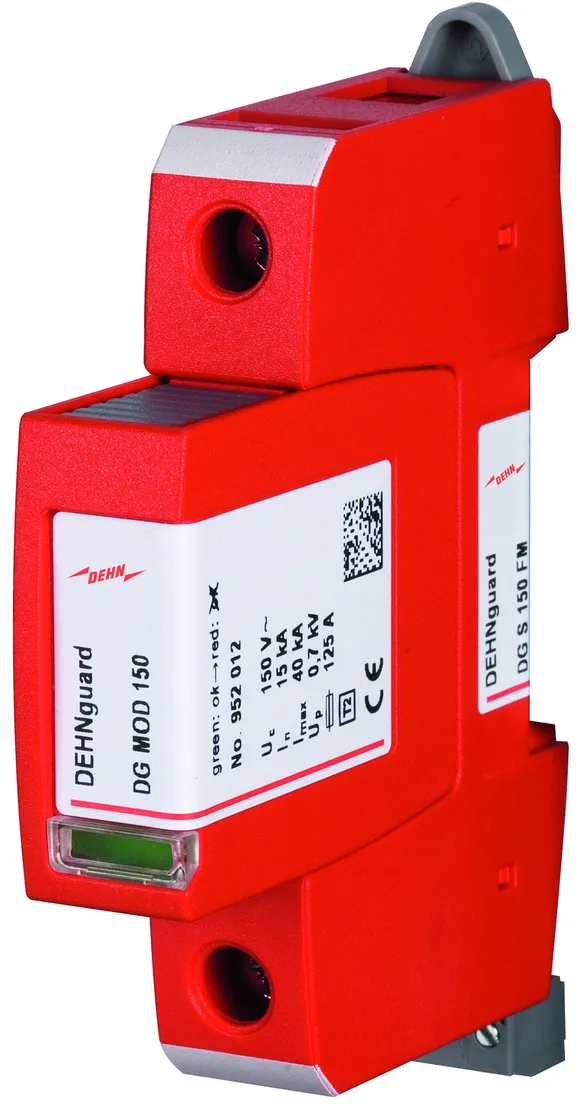

DEHNguard S 150 FM surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
With remote signalling contact
Type 2 SPD according to EN 61643-11
Max. continuous operating voltage: 150 V a.c./200 V d.c.
Voltage protection level: <= 0.7 kV
Nominal discharge current: 15 kA
Short circuit strength: 50 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 150 FM
Part No.: 952092
or equivalent.

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	150 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 0.7 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, VDE, UL, CSA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	120 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	150 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	200 V
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 0.7 kV
Voltage protection level at 5 kA (U_P )	≤ 0.55 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	175 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	230 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Product 952092 was added to Notepad.

Go to Notepad

Product 952092 was added to the cart.

Go to Web-Shop

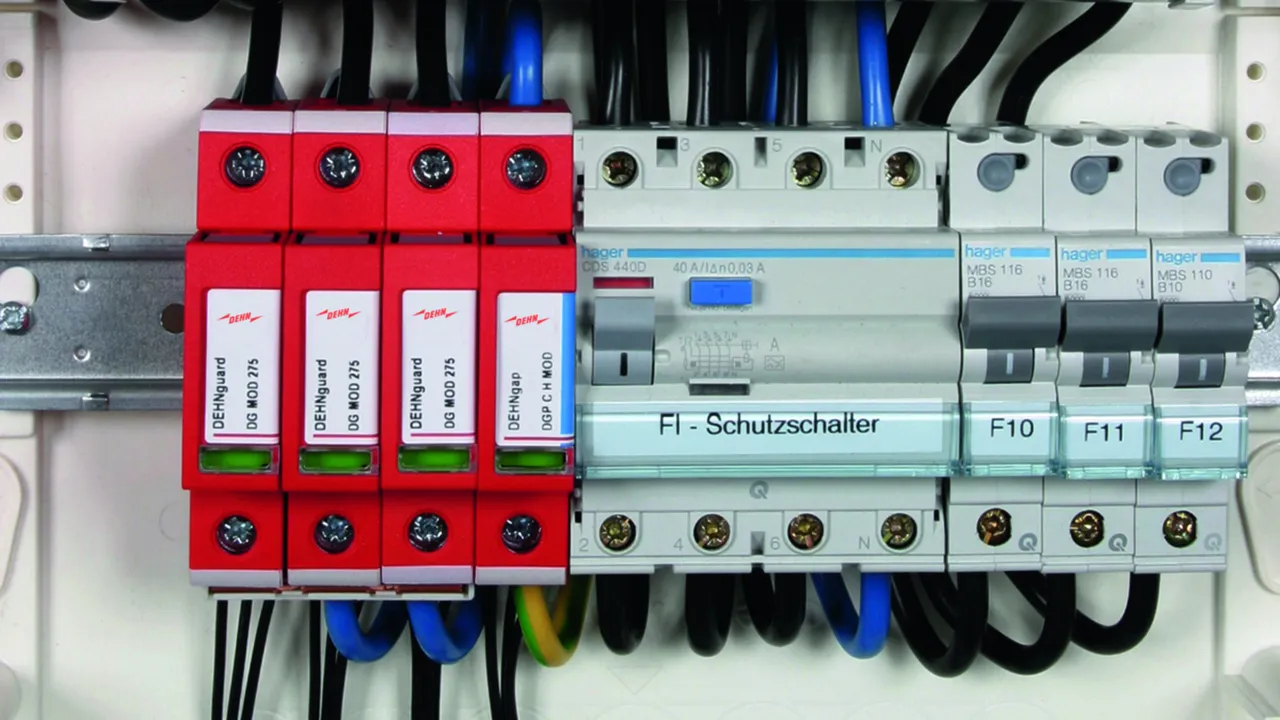

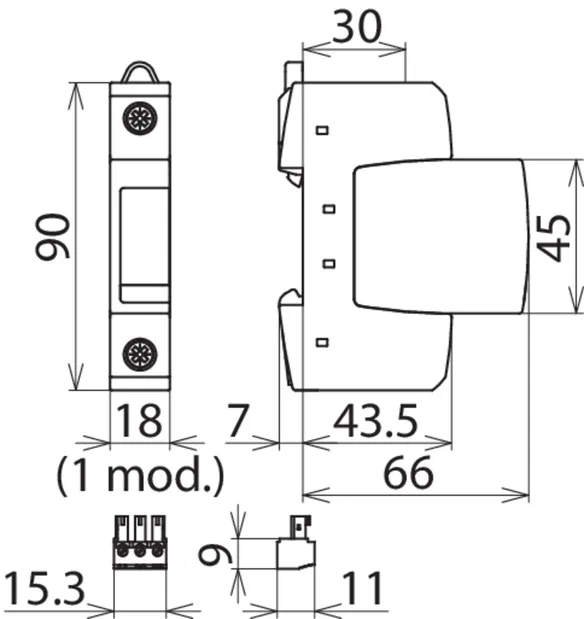

Part No. 952090 DG S 275 FM

GTIN 4013364108509, Customs tariff No. (EU): 85363030, Gross weight: 133.00 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

CAD files

DEHNguard S 275 FM surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
With remote signalling contact
Type 2 SPD according to EN 61643-11
Max. continuous operating voltage: 275 V a.c./350 V d.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 20 kA
Short circuit strength: 50 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 275 FM
Part No.: 952090
or equivalent.

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, VDE, UL, CSA
Type of remote signalling contact	changeover contact

Arrester use at 16.7 Hz – traction power supply systems
– Test voltage AC (U_C )	275 V
– Nominal AC voltage (U_N )	230 V
– Nominal frequency AC (f_N )	16.7 Hz

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	350 V
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Voltage protection level at 5 kA (U_P )	≤ 1 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Product 952090 was added to Notepad.

Go to Notepad

Product 952090 was added to the cart.

Go to Web-Shop

Part No. 952093 DG S 320 FM

GTIN 4013364109889, Customs tariff No. (EU): 85363030, Gross weight: 147.70 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

CAD files

DEHNguard S 320 FM surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
With remote signalling contact
Type 2 SPD according to EN 61643-11
Max. continuous operating voltage: 320 V a.c./420 V d.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 20 kA
Short circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 320 FM
Part No.: 952093
or equivalent.

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	320 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, VDE, UL, CSA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	320 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	420 V
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Voltage protection level at 5 kA (U_P )	≤ 1.2 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Product 952093 was added to Notepad.

Go to Notepad

Product 952093 was added to the cart.

Go to Web-Shop

Part No. 952094 DG S 385 FM

GTIN 4013364108523, Customs tariff No. (EU): 85363030, Gross weight: 150.40 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

CAD files

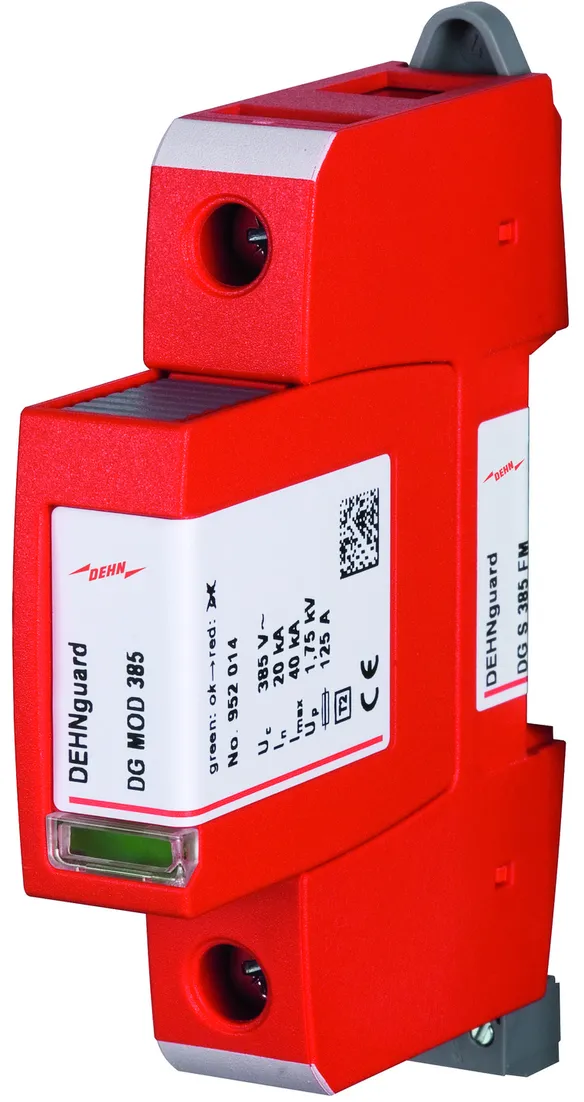

DEHNguard S 385 FM surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
With remote signalling contact
Type 2 SPD according to EN 61643-11
Max. continuous operating voltage: 385 V a.c./500 V d.c.
Voltage protection level: <= 1.75 kV
Nominal discharge current: 20 kA
Short circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 385 FM
Part No.: 952094
or equivalent.

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	385 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.75 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, VDE, UL, CSA
Type of remote signalling contact	changeover contact

Test values according to UL 1449
Rated Voltage (AC, 50/60 Hz)	385 V
MCOV (AC, 50/60 Hz)	385 V
MLV (AC, 50/60 Hz)	2160 V
Nominal discharge current (8/20µs) ( I_n )	20 kA
Maximum ambient temperature	+80 °C
AWG (conductors)	2-14 Cu solid/stranded
Torque (conductors)	35-45 Lbs-in
AWG (remote indicator)	14-22 Cu
Torque (remote indicator)	3 Lbs-in
UL 1449 edition	5^th edition
Type (SPD classification)	Type 4 component assembly
2-14 Cu solid/stranded

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	385 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	500 V
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.75 kV
Voltage protection level at 5 kA (U_P )	≤ 1.35 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	385 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Product 952094 was added to Notepad.

Go to Notepad

Product 952094 was added to the cart.

Go to Web-Shop

Part No. 952095 DG S 440 FM

GTIN 4013364109902, Customs tariff No. (EU): 85363030, Gross weight: 150.70 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

CAD files

DEHNguard S 440 FM surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
With remote signalling contact
Type 2 SPD according to EN 61643-11
Max. continuous operating voltage: 440 V a.c./585 V d.c.
Voltage protection level: <= 2 kV
Nominal discharge current: 20 kA
Short circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 440 FM
Part No.: 952095
or equivalent.

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	440 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 2 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, VDE, UL, CSA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	440 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	585 V
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 2 kV
Voltage protection level at 5 kA (U_P )	≤ 1.7 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	580 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	765 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Product 952095 was added to Notepad.

Go to Notepad

Product 952095 was added to the cart.

Go to Web-Shop

Part No. 952096 DG S 600 FM

GTIN 4013364109926, Customs tariff No. (EU): 85363030, Gross weight: 170.70 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

CAD files

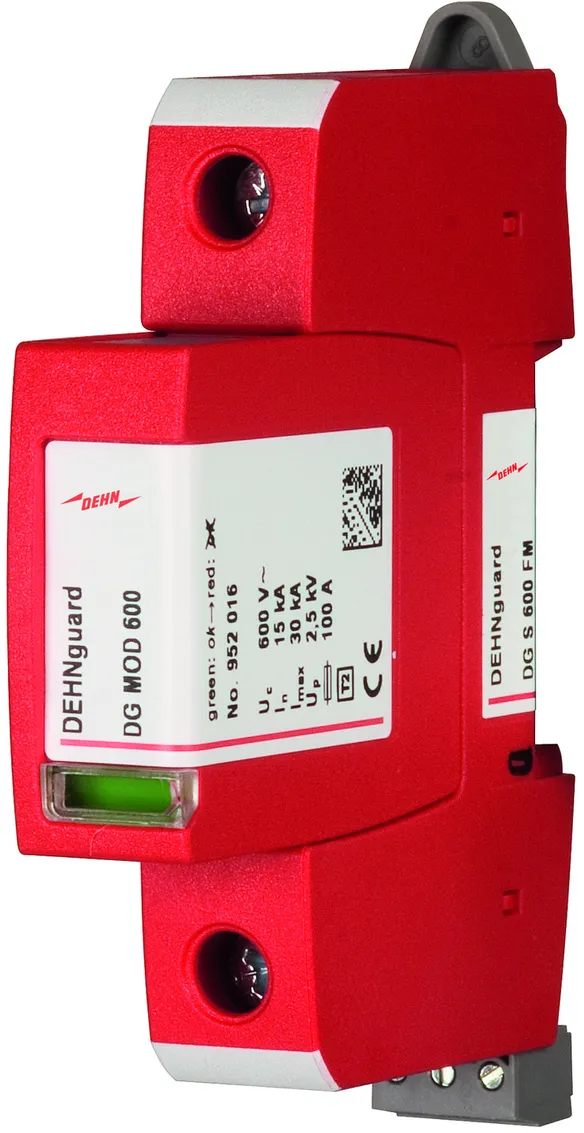

DEHNguard S 600 FM surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
With remote signalling contact
Type 2 SPD according to EN 61643-11
Max. continuous operating voltage: 600 V a.c./600 V d.c.
Voltage protection level: <= 2.5 kV
Nominal discharge current: 15 kA
Short circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S 600 FM
Part No.: 952096
or equivalent.

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	600 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	30 kA
Voltage protection level (U_P )	≤ 2.5 kV
Max. mains-side overcurrent protection	100 A gG
Approvals	KEMA, VDE, UL, CSA
Type of remote signalling contact	changeover contact

Arrester use at 16.7 Hz – traction power supply systems
– Test voltage AC (U_C )	600 V
– Nominal AC voltage (U_N )	480 V
– Nominal frequency AC (f_N )	16.7 Hz
Test values according to UL 1449
Rated Voltage (AC, 50/60 Hz)	600 V
MCOV (AC, 50/60 Hz)	600 V
MLV (AC, 50/60 Hz)	2820 V
Nominal discharge current (8/20µs) ( I_n )	20 kA
Maximum ambient temperature	+80 °C
AWG (conductors)	2-14 Cu solid/stranded
Torque (conductors)	35-45 Lbs-in
AWG (remote indicator)	14-22 Cu
Torque (remote indicator)	3 Lbs-in
UL 1449 edition	5^th edition
Type (SPD classification)	Type 4 component assembly
2-14 Cu solid/stranded

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	480 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	600 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	600 V
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	30 kA
Voltage protection level (U_P )	≤ 2.5 kV
Voltage protection level at 5 kA (U_P )	≤ 2 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	100 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	700 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	915 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Product 952096 was added to Notepad.

Go to Notepad

Product 952096 was added to the cart.

Go to Web-Shop

Part No. 952077 DG S WE 600

GTIN 4013364119680, Customs tariff No. (EU): 85363030, Gross weight: 147.40 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

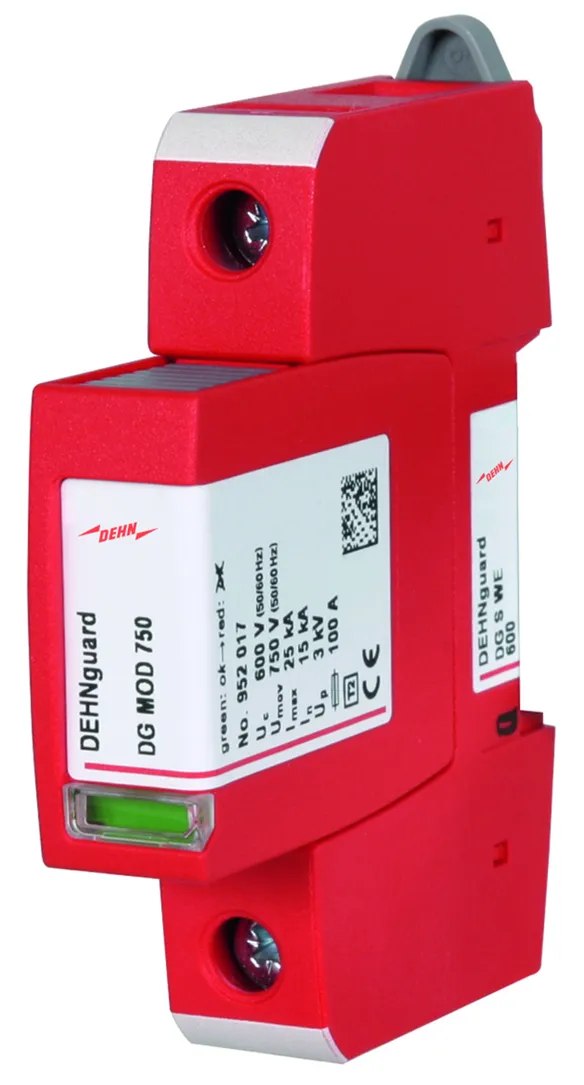

DEHNguard S WE 600 surge arrester
Pluggable single-pole surge arrester
Width: 1 module, fault indication
Type 2 SPD according to EN 61643-11
Max. continuous operating voltage: 600 V a.c./600 V d.c.
Rated varistor voltage: 750 V a.c.
Voltage protection level: <= 3 kV
Nominal discharge current: 15 kA
Short circuit strength: 50 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S WE 600
Part No.: 952077
or equivalent.

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	600 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	25 kA
Voltage protection level (U_P )	≤ 3 kV
Max. mains-side overcurrent protection	100 A gG
Approvals	KEMA, UL, CSA

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	480 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	600 V (50 / 60 Hz)
Rated varistor voltage (a.c.) (U_mov )	750 V
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	25 kA
Voltage protection level (U_P )	≤ 3 kV
Voltage protection level at 5 kA (U_P )	≤ 2.5 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	100 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	900 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	915 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, UL, CSA

Product 952077 was added to Notepad.

Go to Notepad

Product 952077 was added to the cart.

Go to Web-Shop

Part No. 952097 DG S WE 600 FM

GTIN 4013364119697, Customs tariff No. (EU): 85363030, Gross weight: 150.50 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

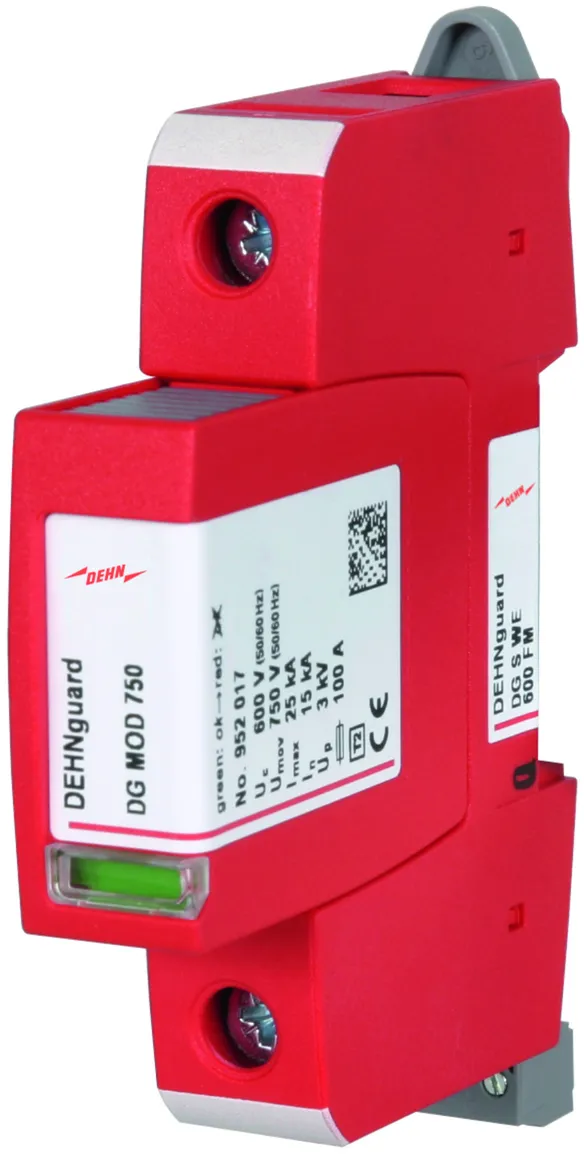

DEHNguard S WE 600 FM surge arrester
Modular and pluggable single-pole surge arrester
Width: 1 module, fault indication
With remote signalling contact
Type 2 SPD according to EN 61643-11
Max. continuous operating voltage: 600 V a.c./600 V d.c.
Rated varistor voltage: 750 V a.c.
Voltage protection level: <= 3 kV
Nominal discharge current: 15 kA
Short circuit strength: 50 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG S WE 600 FM
Part No.: 952097
or equivalent.

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	600 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	25 kA
Voltage protection level (U_P )	≤ 3 kV
Max. mains-side overcurrent protection	100 A gG
Approvals	KEMA, UL, CSA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	480 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	600 V (50 / 60 Hz)
Rated varistor voltage (a.c.) (U_mov )	750 V
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	25 kA
Voltage protection level (U_P )	≤ 3 kV
Voltage protection level at 5 kA (U_P )	≤ 2.5 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	100 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	900 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	915 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, UL, CSA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Product 952097 was added to Notepad.

Go to Notepad

Product 952097 was added to the cart.

Go to Web-Shop

DEHNguard S

DEHNguard S ...

Part No. 952078 DG S 48

You are not authorized to download 952070.stp

You are not authorized to download 952070.igs

You are not authorized to download 952070.jt

You are not authorized to download 952070.dwg

You are not authorized to download 952070m_E.dxf

You are not authorized to download DEHN.952078.wspak

You are not authorized to download DEHN.952078.edz

Product 952078 was added to Notepad.

Product 952078 was added to the cart.

Part No. 952071 DG S 75

You are not authorized to download 952070.stp

You are not authorized to download 952070.igs

You are not authorized to download 952070.jt

You are not authorized to download 952070.dwg

You are not authorized to download 952070m_E.dxf

You are not authorized to download DEHN.952071.wspak

You are not authorized to download DEHN.952071.edz

Product 952071 was added to Notepad.

Product 952071 was added to the cart.

Part No. 952072 DG S 150

You are not authorized to download 952070.stp

You are not authorized to download 952070.igs

You are not authorized to download 952070.jt

You are not authorized to download 952070.dwg

You are not authorized to download 952070m_E.dxf

You are not authorized to download DEHN.952072.wspak

You are not authorized to download DEHN.952072.edz

Product 952072 was added to Notepad.

Product 952072 was added to the cart.

Part No. 952070 DG S 275

You are not authorized to download 952070.stp

You are not authorized to download 952070.igs

You are not authorized to download 952070.jt

You are not authorized to download 952070.dwg

You are not authorized to download 952070m_E.dxf

You are not authorized to download DEHN.952070.wspak

You are not authorized to download 952070_eplan.zip

Product 952070 was added to Notepad.

Product 952070 was added to the cart.

Part No. 952073 DG S 320

You are not authorized to download 952070.stp

You are not authorized to download 952070.igs

You are not authorized to download 952070.jt

You are not authorized to download 952070.dwg

You are not authorized to download 952070m_E.dxf

You are not authorized to download DEHN.952073.wspak

You are not authorized to download DEHN.952073.edz

Product 952073 was added to Notepad.

Product 952073 was added to the cart.

Part No. 952074 DG S 385

You are not authorized to download 952070.stp

You are not authorized to download 952070.igs

You are not authorized to download 952070.jt

You are not authorized to download 952070.dwg

You are not authorized to download 952070m_E.dxf

You are not authorized to download DEHN.952074.wspak

You are not authorized to download DEHN.952074.edz

Product 952074 was added to Notepad.

Product 952074 was added to the cart.

Part No. 952075 DG S 440

You are not authorized to download 952070.stp

You are not authorized to download 952070.igs

You are not authorized to download 952070.jt

You are not authorized to download 952070.dwg

You are not authorized to download 952070m_E.dxf

You are not authorized to download DEHN.952075.wspak

You are not authorized to download DEHN.952075.edz

Product 952075 was added to Notepad.

Product 952075 was added to the cart.

Part No. 952076 DG S 600

You are not authorized to download 952070.stp

You are not authorized to download 952070.igs

You are not authorized to download 952070.jt

You are not authorized to download 952070.dwg

You are not authorized to download 952070m_E.dxf

You are not authorized to download DEHN.952076.wspak

You are not authorized to download DEHN.952076.edz
