DEHN Enclosure for Equipotential Bonding

Premounted enclosure system for wiring and protection components
Tested lightning impulse current carrying capacity
Optimised for equipotential bonding (surge arresters and shield connection)
Lockable metal enclosure to prevent unauthorised access

Details

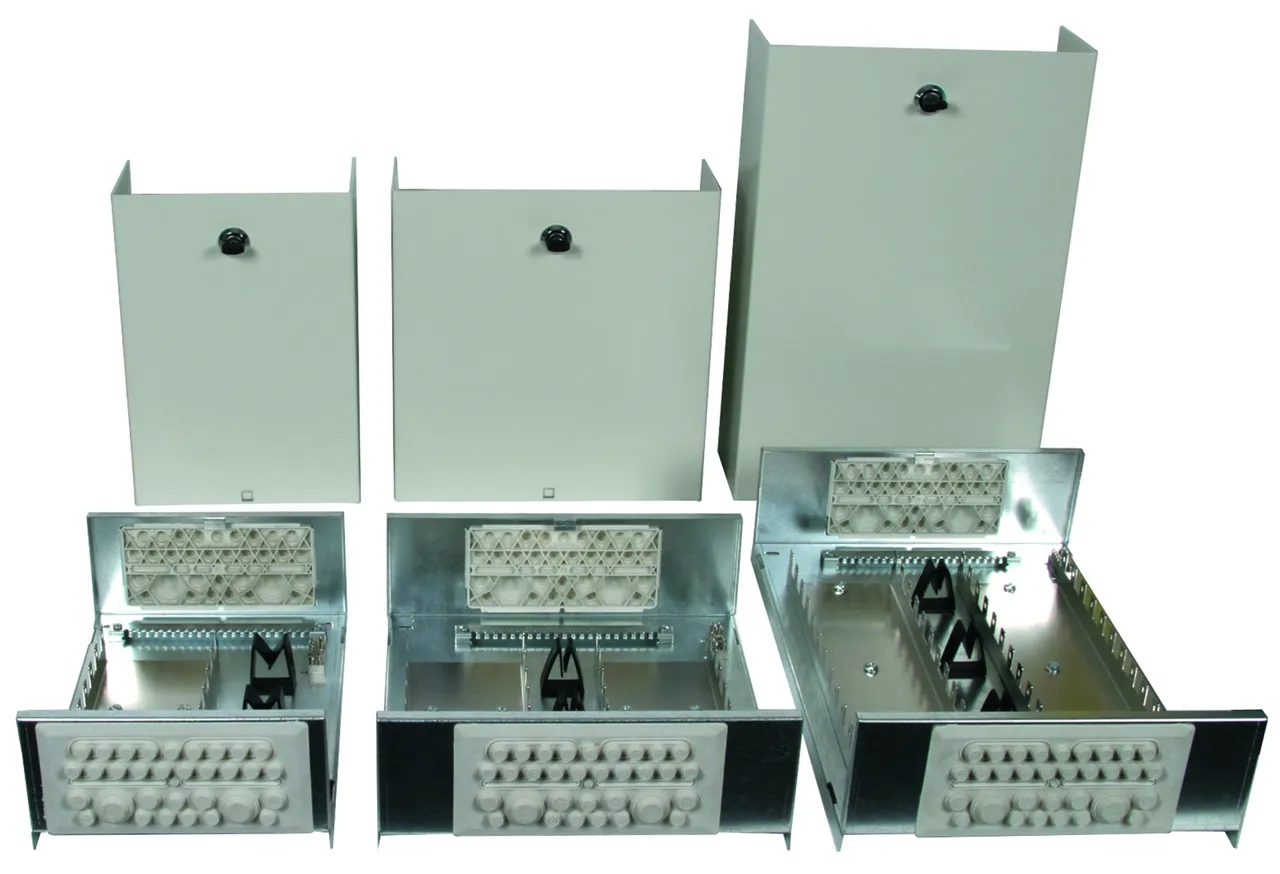

DEHN enclosures for equipotential bonding (DPG) come in different sizes for fitting with 3/6/12/22 LSA blocks. This means that when 20/50/100/200 pairs are connected, there is still enough space left for the earthing plug for connecting the shield wires.

lorem ipsum — DEHN enclosures for equipotential bonding (DPG) come in different sizes for fitting with 3/6/12/22 LSA blocks. This means that when 20/50/100/200 pairs are connected, there is still enough space left for the earthing plug for connecting the shield wires.

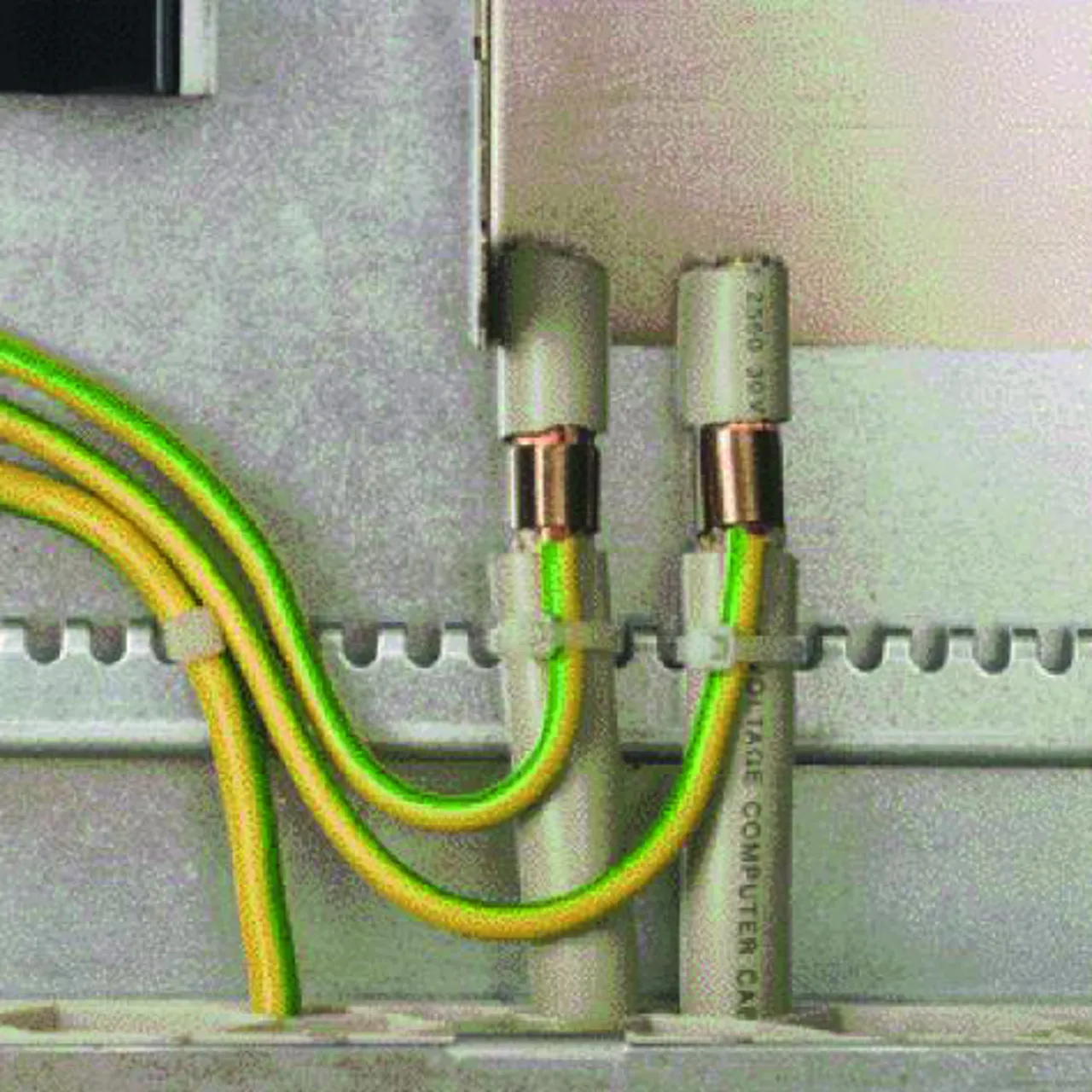

The shields of incoming lines can be contacted with SA KRF constant force springs in a space-saving and lightning-current-carrying way.

The enclosure for equipotential bonding can be locked (key supplied with the enclosure).

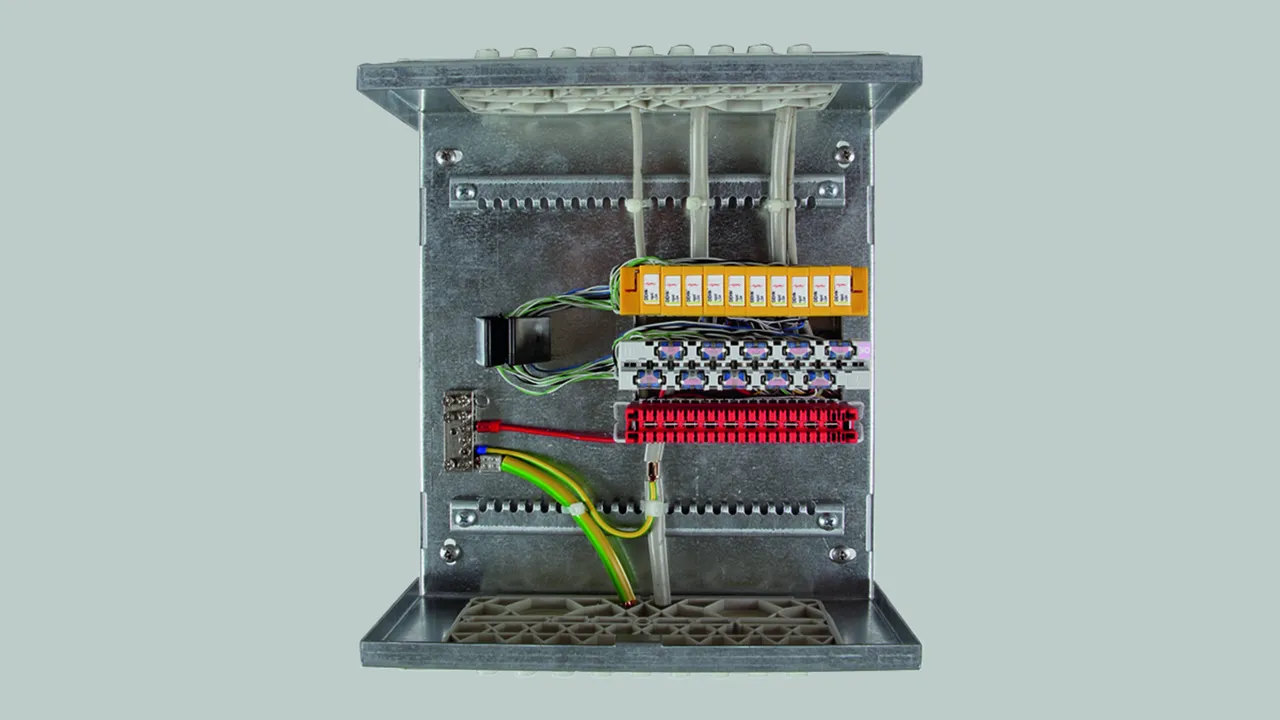

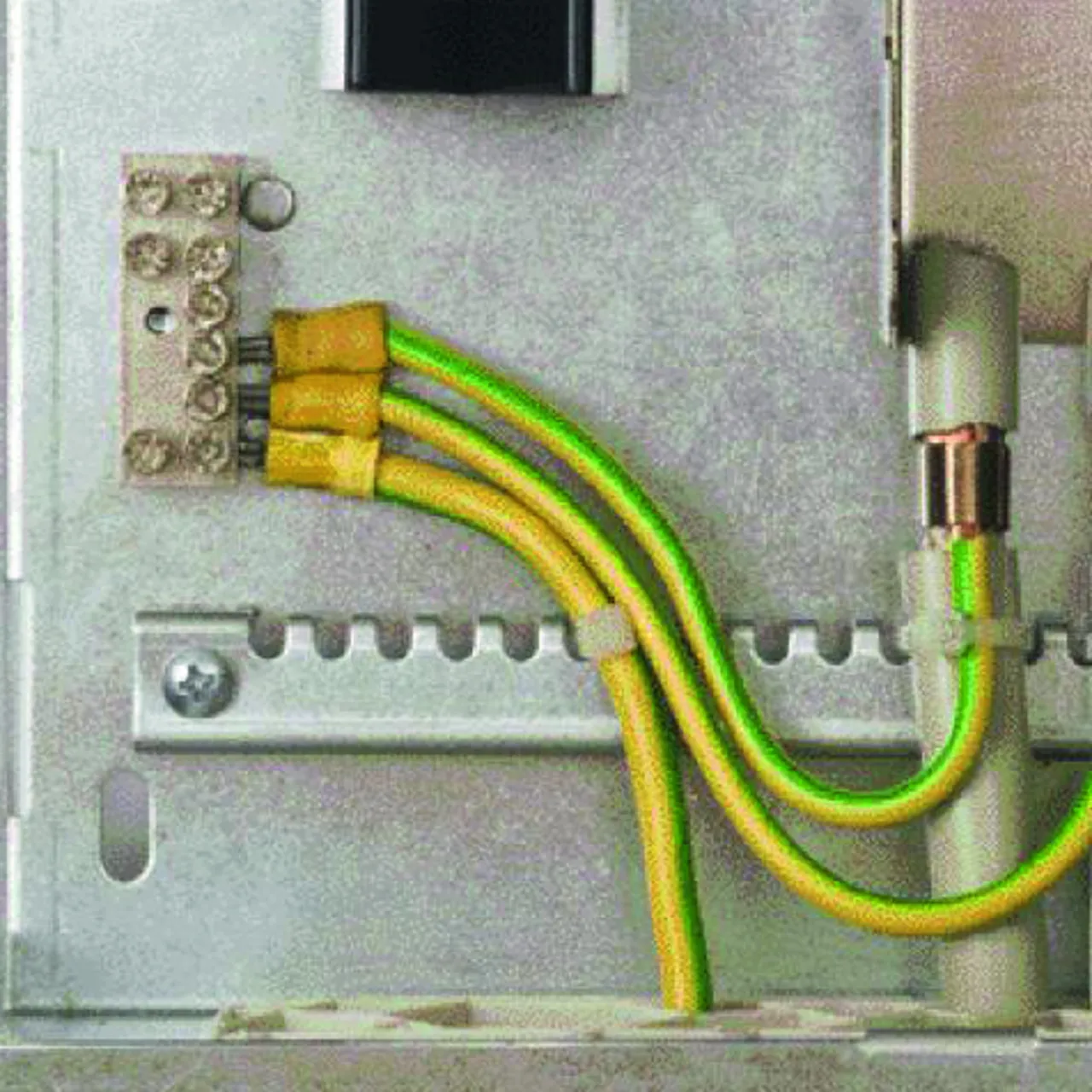

All equipotential bonding conductors are brought together in the central earthing block.

DPG LSA

DPG LSA is a completely premounted enclosure system with LSA mounting frame and allows optimised use of arresters and shield connection systems (constant force spring).

4 Products

Part No. 906100 DPG LSA 30 P

GTIN 4013364106598, Customs tariff No. (EU): 85381000, Gross weight: 3.40 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

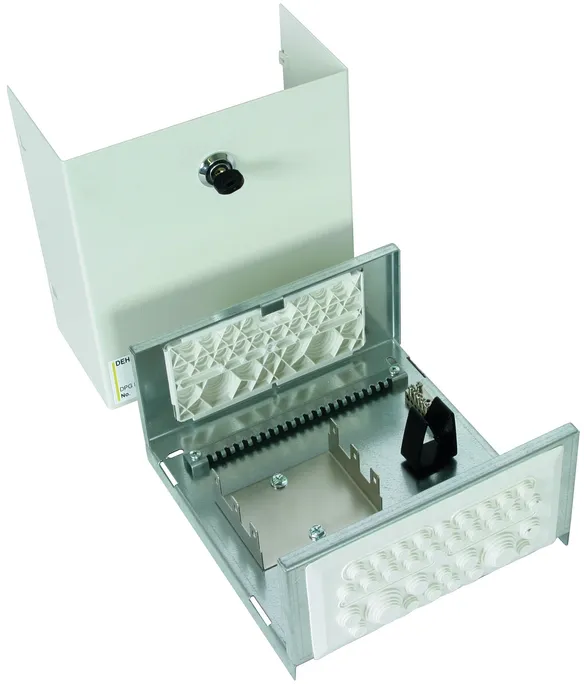

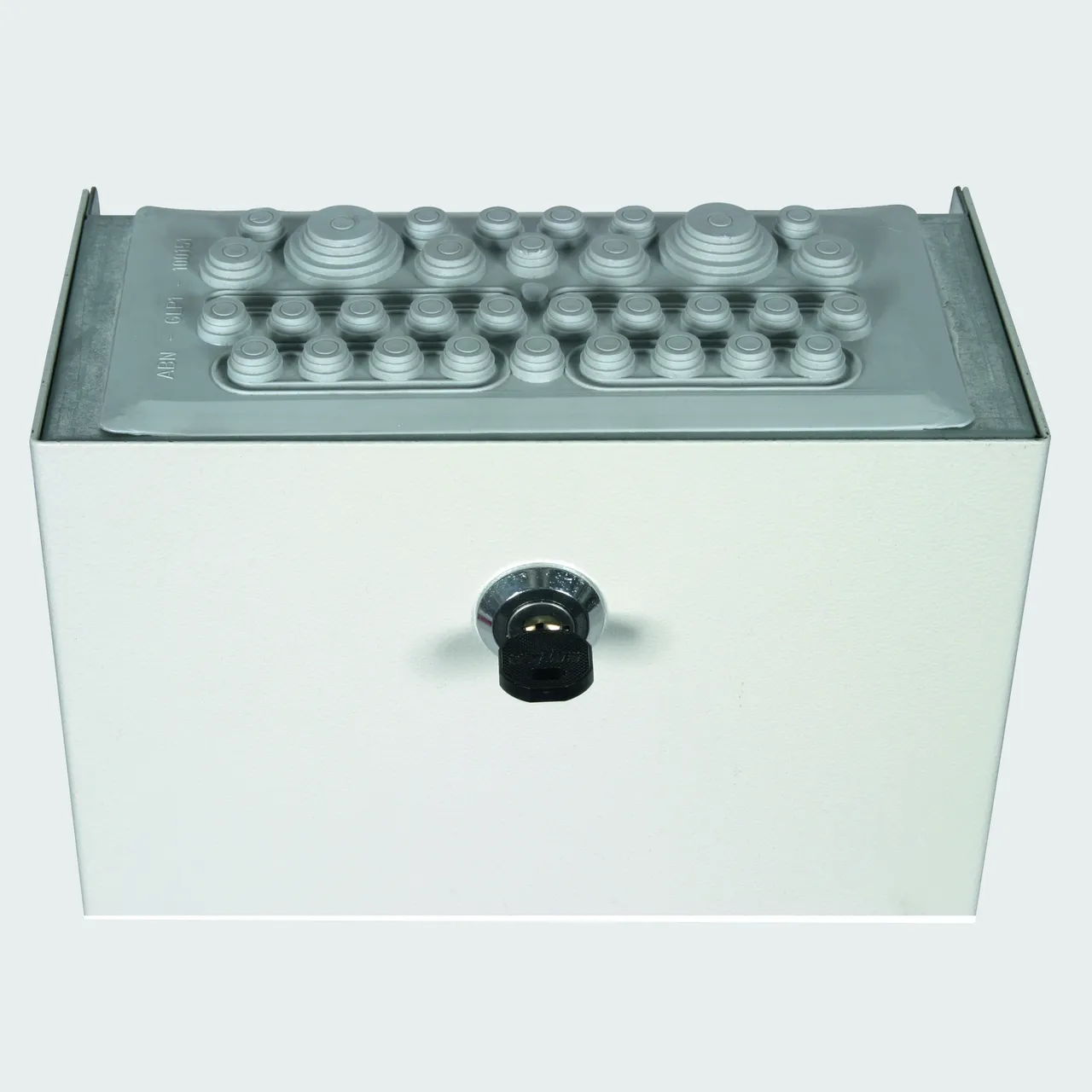

DPG LSA 30 P enclosure system with LSA mounting frame
Surface-mounted DPG LSA 30 P enclosure system
for three LSA blocks of the 2/10 series
IP 40 degree of protection
D1 Total lightning impulse current (10/350): 15 kA
Carrying capability tested according to the parameters
EN 61643-11, EN 61643-21

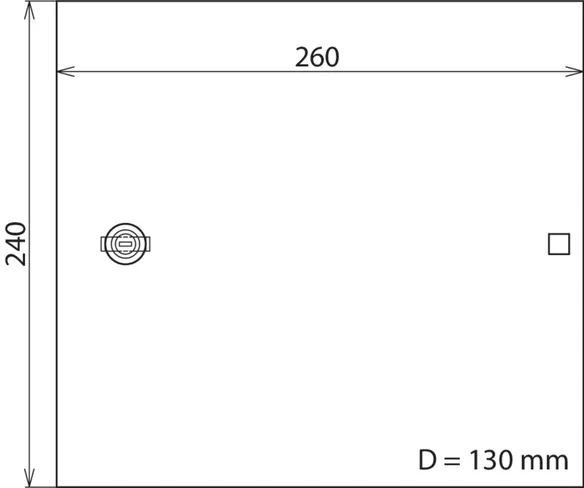

Dimensions W x H x D: 245 x 260 x 130 mm

Brand: DEHN
Type: DPG LSA 30 P
Part No.: 906100
or equivalent.

Certificates

Technical data

Carrying capacity of connection elements D1 Total lightning impulse current (10/350 µs) (I_imp )	15 kA
LSA mounting frame for	1x 3 blocks 2/10
Wire guides	1 pc(s).
Degree of protection	IP 40
Dimensions (W x H x D)	240 x 260 x 130 mm

Carrying capacity of connection elements D1 Total lightning impulse current (10/350 µs) (I_imp )	15 kA
LSA mounting frame for	1x 3 blocks 2/10
Terminal spacing of mounting frame	30 mm
Wire guides	1 pc(s).
Cable entries	top / bottom
Cable rail	top / bottom
Lock	yes
For mounting on	walls
Degree of protection	IP 40
Earthing via	earthing block
Dimensions (W x H x D)	240 x 260 x 130 mm
Enclosure material	sheet steel
Colour	RAL 9016

Product 906100 was added to Notepad.

Go to Notepad

Product 906100 was added to the cart.

Go to Web-Shop

Part No. 906101 DPG LSA 60 P

GTIN 4013364106604, Customs tariff No. (EU): 85381000, Gross weight: 4.97 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

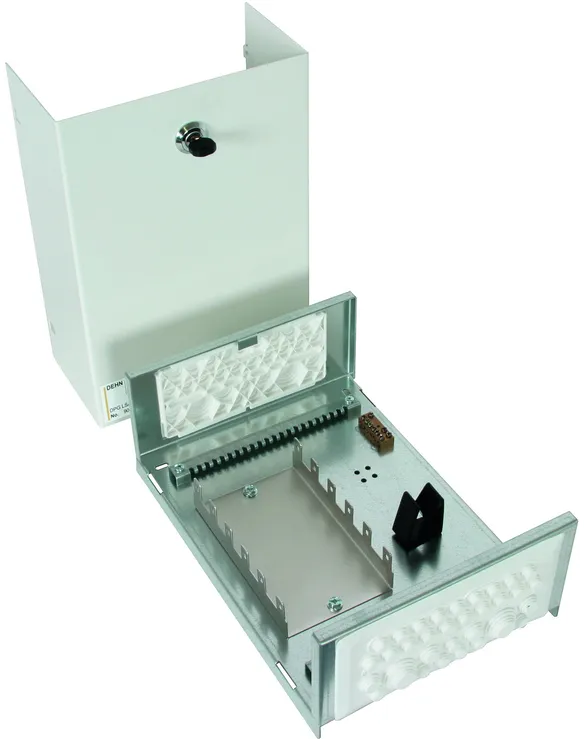

DPG LSA 60 P enclosure system with LSA mounting frame
Surface-mounted DPG LSA 60 P enclosure system
for six LSA blocks of the 2/10 series
IP 40 degree of protection
D1 Total lightning impulse current (10/350): 30 kA
Carrying capability tested according to the parameters
EN 61643-11, EN 61643-21

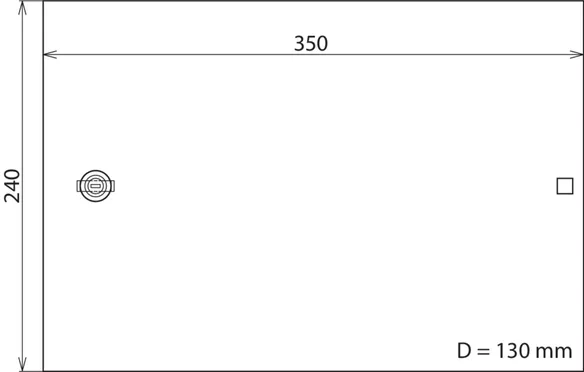

Dimensions W x H x D: 245 x 350 x 130 mm

Brand: DEHN
Type: DPG LSA 60 P
Part No.: 906101
or equivalent.

Certificates

Technical data

Carrying capacity of connection elements D1 Total lightning impulse current (10/350 µs) (I_imp )	30 kA
LSA mounting frame for	1x 6 blocks 2/10
Wire guides	2 pc(s).
Degree of protection	IP 40
Dimensions (W x H x D)	240 x 350 x 130 mm

Carrying capacity of connection elements D1 Total lightning impulse current (10/350 µs) (I_imp )	30 kA
LSA mounting frame for	1x 6 blocks 2/10
Terminal spacing of mounting frame	30 mm
Wire guides	2 pc(s).
Cable entries	top / bottom
Cable rail	top / bottom
Lock	yes
For mounting on	walls
Degree of protection	IP 40
Earthing via	earthing block
Dimensions (W x H x D)	240 x 350 x 130 mm
Enclosure material	sheet steel
Colour	RAL 9016

Product 906101 was added to Notepad.

Go to Notepad

Product 906101 was added to the cart.

Go to Web-Shop

Part No. 906102 DPG LSA 120 P

GTIN 4013364106611, Customs tariff No. (EU): 85381000, Gross weight: 5.70 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

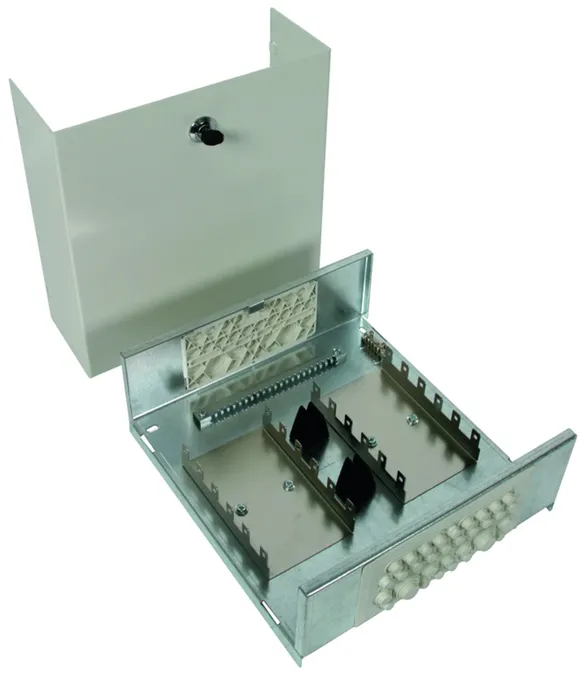

DPG LSA 120 P enclosure system with LSA mounting frame
Surface-mounted DPG LSA 120 P enclosure system
for 2 x 6 LSA blocks of the 2/10 series
IP 40 degree of protection
D1 Total lightning impulse current (10/350): 50 kA
Carrying capability tested according to the parameters
EN 61643-11, EN 61643-21

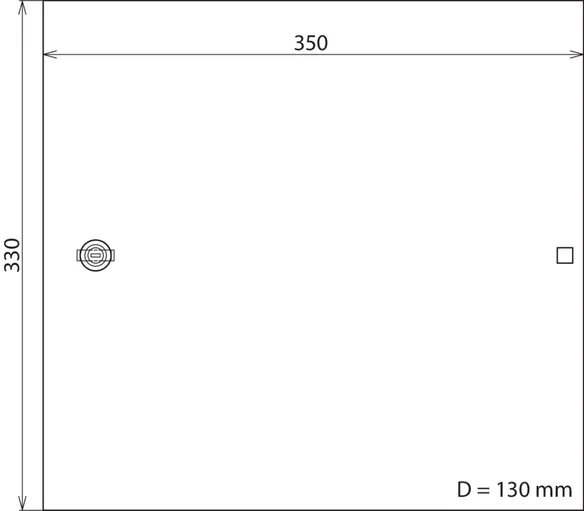

Dimensions W x H x D: 330 x 350 x 130 mm

Brand: DEHN
Type: DPG LSA 120 P
Part No.: 906102
or equivalent.

Certificates

Technical data

Carrying capacity of connection elements D1 Total lightning impulse current (10/350 µs) (I_imp )	50 kA
LSA mounting frame for	2x 6 blocks 2/10
Wire guides	2 pc(s).
Degree of protection	IP 40
Dimensions (W x H x D)	330 x 350 x 130 mm

Carrying capacity of connection elements D1 Total lightning impulse current (10/350 µs) (I_imp )	50 kA
LSA mounting frame for	2x 6 blocks 2/10
Terminal spacing of mounting frame	30 mm
Wire guides	2 pc(s).
Cable entries	top / bottom
Cable rail	top / bottom
Lock	yes
For mounting on	walls
Degree of protection	IP 40
Earthing via	earthing block
Dimensions (W x H x D)	330 x 350 x 130 mm
Enclosure material	sheet steel
Colour	RAL 9016

Product 906102 was added to Notepad.

Go to Notepad

Product 906102 was added to the cart.

Go to Web-Shop

Part No. 906103 DPG LSA 220 P

GTIN 4013364106628, Customs tariff No. (EU): 85381000, Gross weight: 7.65 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

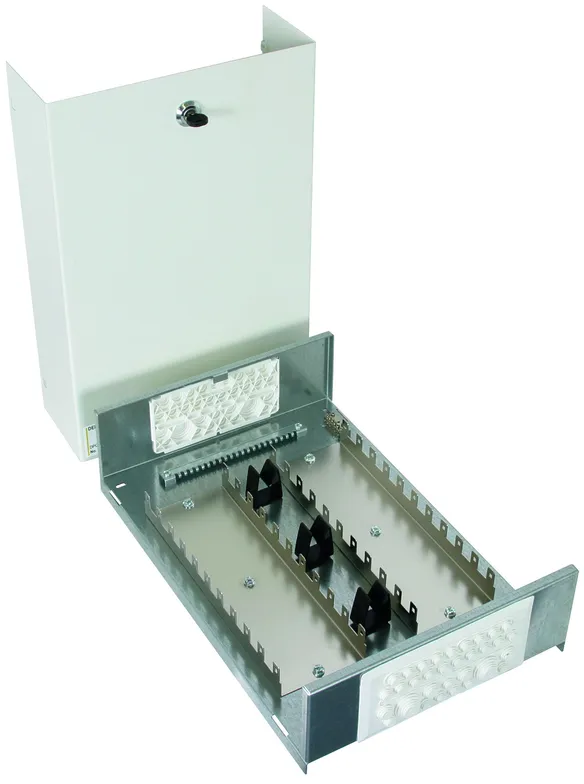

DPG LSA 220 P enclosure system with LSA mounting frame
Surface-mounted DPG LSA 220 P enclosure system
for 2x 11 LSA blocks of the 2/10 series
IP 40 degree of protection
D1 Total lightning impulse current (10/350): 50 kA
Carrying capability tested according to the parameters
EN 61643-11, EN 61643-21

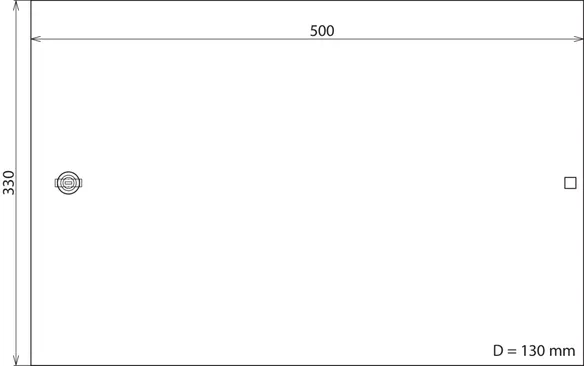

Dimensions W x H x D: 330 x 500 x 130 mm

Brand: DEHN
Type: DPG LSA 220 P
Part No.: 906103
or equivalent.

Certificates

Technical data

Carrying capacity of connection elements D1 Total lightning impulse current (10/350 µs) (I_imp )	50 kA
LSA mounting frame for	2x 11 blocks 2/10
Wire guides	3 pc(s).
Degree of protection	IP 40
Dimensions (W x H x D)	330 x 500 x 130 mm

Carrying capacity of connection elements D1 Total lightning impulse current (10/350 µs) (I_imp )	50 kA
LSA mounting frame for	2x 11 blocks 2/10
Terminal spacing of mounting frame	30 mm
Wire guides	3 pc(s).
Cable entries	top / bottom
Cable rail	top / bottom
Lock	yes
For mounting on	walls
Degree of protection	IP 40
Earthing via	earthing block
Dimensions (W x H x D)	330 x 500 x 130 mm
Enclosure material	sheet steel
Colour	RAL 9016

Product 906103 was added to Notepad.

Go to Notepad

Product 906103 was added to the cart.

Go to Web-Shop
