UGKF

Plug-in surge protective adapter for easy retrofitting
Plugs directly into coaxial terminal equipment
Integrated indirect shield earthing avoids ground loops

Details

lorem ipsum — UL listing for country-specific use.

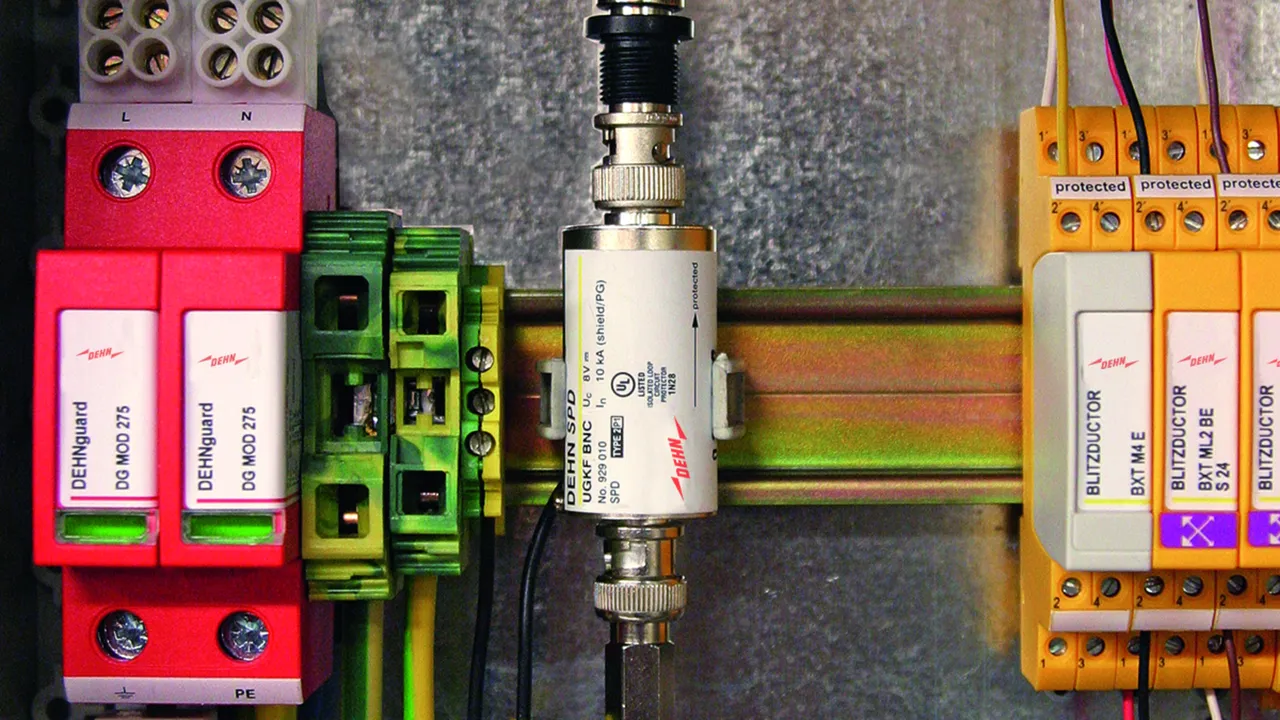

DGA BNC VC... can be easily mounted on DIN rails or walls.

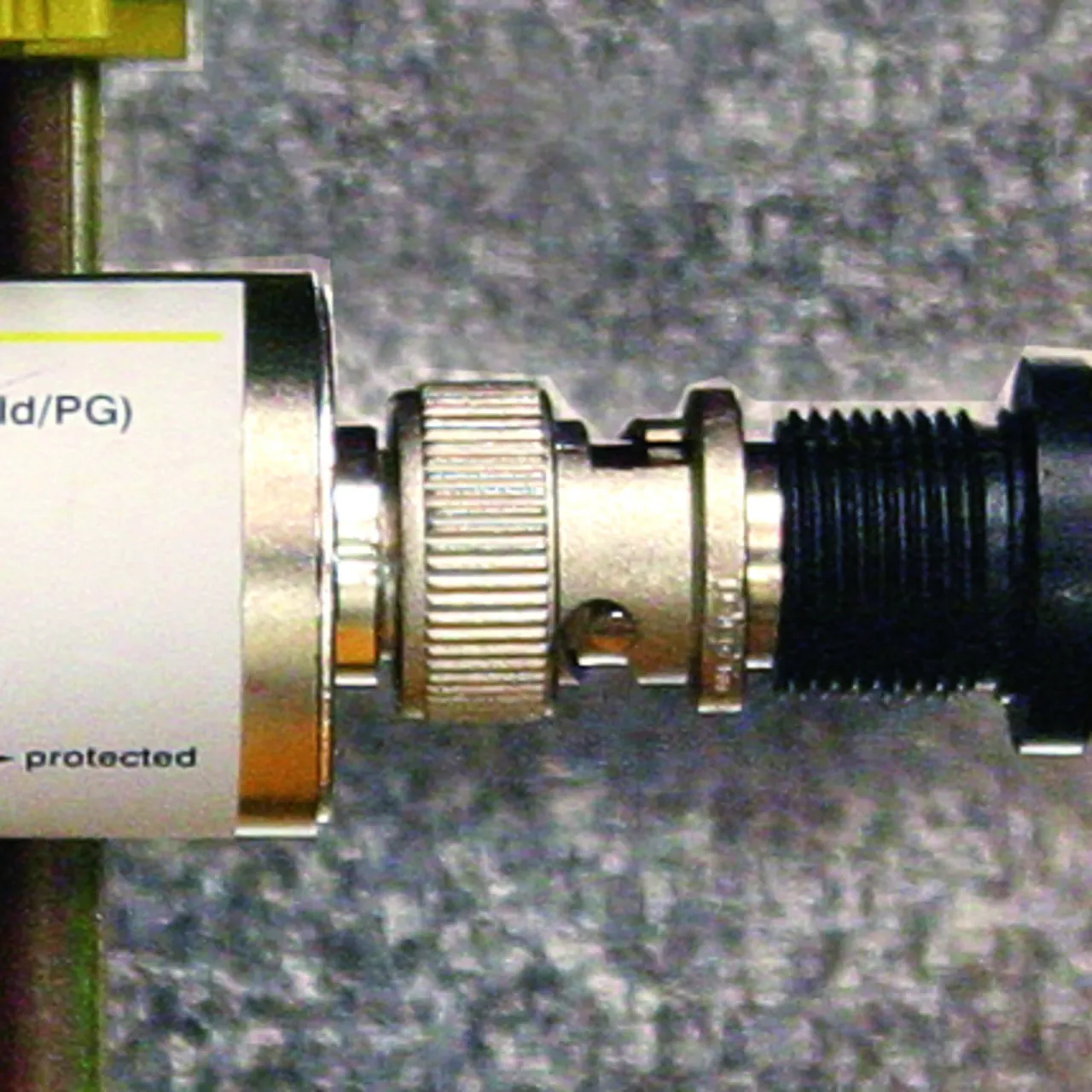

DGA BNC VC ... can be easily adapted due to BNC connection.

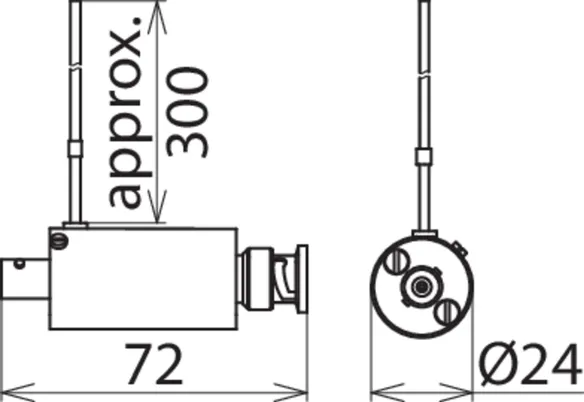

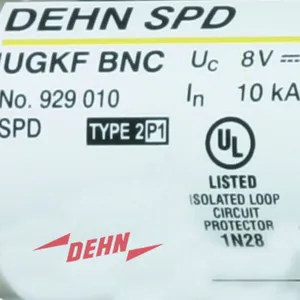

UGKF BNC

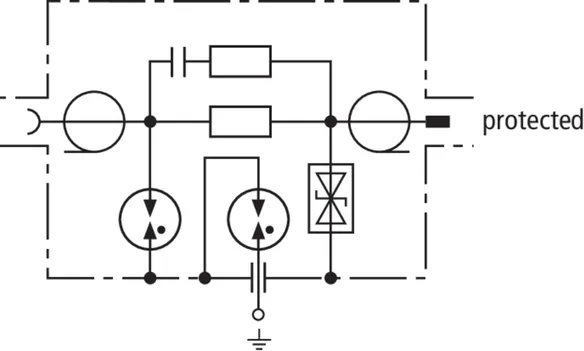

Two-stage surge arrester with indirect shield earthing for protecting video cameras and Arcnet with BNC connection to avoid ground loops.

1 Product

Part No. 929010 UGKF BNC

GTIN 4013364039940, Customs tariff No. (EU): 85363010, Gross weight: 67.70 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

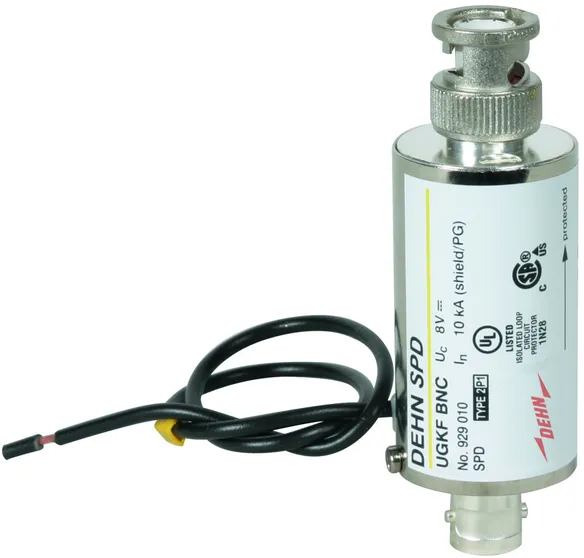

Two-stage surge arrester UGKF BNC
Surge arrester UGKF, SPD class TYPE 2/P1,
tested acc. to EN 61643-21 for the protection of
video cameras and Arcnet systems, with coaxial
BNC connection
Max. continuous operating voltage (d.c.): 8 V
C2 Nominal discharge current (8/20 µs) line-shield: 2.5 kA

Brand: DEHN
Type: UGKF BNC
Part No.: 929010
or equivalent.

Certificates

Technical data

SPD class	T
Max. continuous operating voltage (d.c.) (U_C )	8 V
Nominal current (I_L )	0.1 A
C2 Nominal discharge current (8/20 µs) line-shield (I_n )	2.5 kA
Insertion loss at 300 MHz (50 ohms)	≤ 3 dB
Return loss at 40 MHz (50 ohms)	≥ 20 dB
Insertion loss at 265 MHz (75 ohms)	≤ 3 dB
Return loss at 40 MHz (75 ohms)	≥ 20 dB
Approvals	CSA, UL

SPD class	T
Nominal voltage (U_N )	5 V
Max. continuous operating voltage (d.c.) (U_C )	8 V
Nominal current (I_L )	0.1 A
C2 Nominal discharge current (8/20 µs) line-shield (I_n )	2.5 kA
C2 Nominal discharge current (8/20 µs) shield-PG (I_n )	10 kA
Voltage protection level line-shield for I_nC2 (U_P )	≤ 25 V
Voltage protection level line-shield at 1 kV/µs C3 (U_P )	≤ 15 V
Voltage protection level shield-PG at 1 kV/µs C3 (U_P )	≤ 600 V
Insertion loss at 300 MHz (50 ohms)	≤ 3 dB
Return loss at 40 MHz (50 ohms)	≥ 20 dB
Insertion loss at 265 MHz (75 ohms)	≤ 3 dB
Return loss at 40 MHz (75 ohms)	≥ 20 dB
Characteristic impedance (Z)	50 ohms / 75 ohms
Series resistance per line	10 ohms
Capacitance line-shield (C)	≤ 50 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Connection (input / output)	BNC socket / BNC plug
Earthing via	outgoing earthing cable (0.75 mm²)
Shield earthing	indirectly via an integrated spark gap
Test standards	IEC 61643-21 / EN 61643-21
Approvals	CSA, UL
