Rod Holders DEHNhold

For fixing of air-termination rods and earth entry rods, with slotted cleat, fixed conductor leading.
For use with different materials e.g. Al, StSt, St/tZn and Cu.

With female thread

1 Product

Part No. 274116 LH ZS 16 M8 V2A

GTIN 4013364123410, Customs tariff No. (EU): 85389099, Gross weight: 38.60 g, PU: 50.00 pc(s)

Predecessor

Images

Additional information

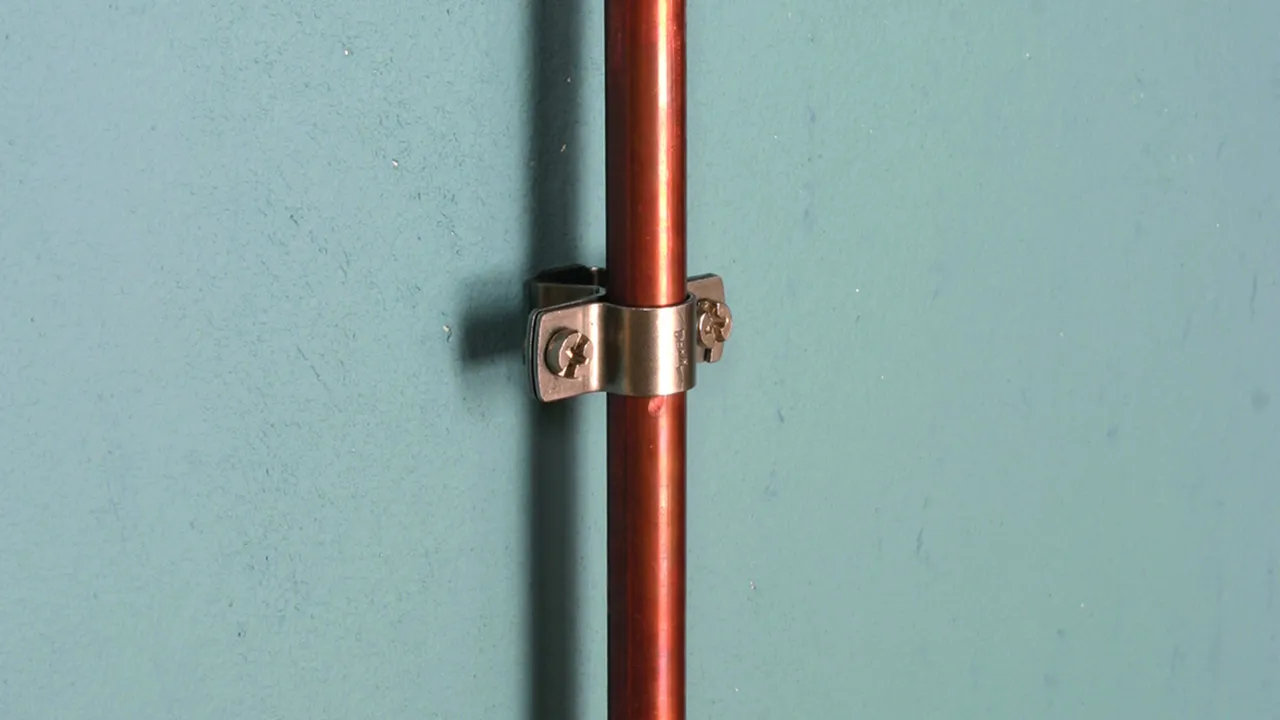

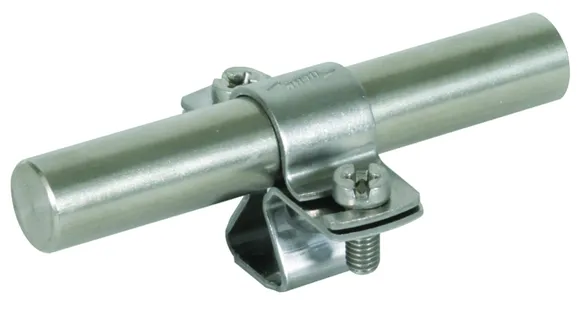

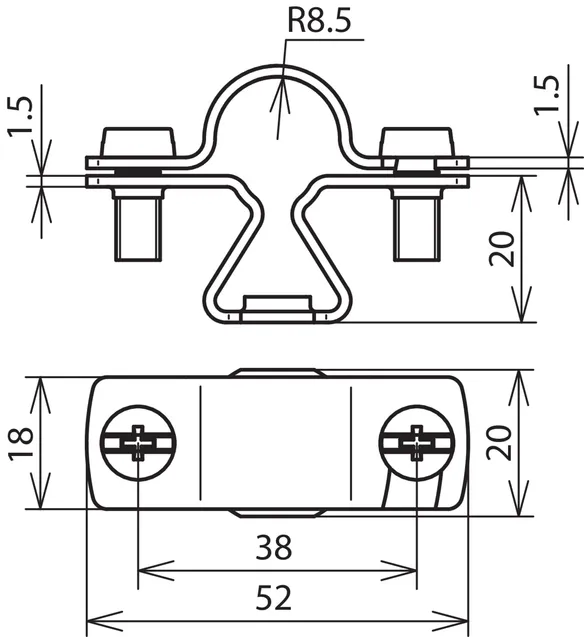

DEHNhold rod holder with female thread, StSt
DEHNhold rod holder
For fixing of air-termination rods and earth entry rods
with slotted cleat, fixed conductor leading.
Material of conductor holder: StSt
Conductor holder support Rd: 16 mm
Height of conductor holder: 20 mm
Thread of conductor holder: M8

Brand: DEHN
Type: LH ZS 16 M8 V2A
Part No.: 274116
or equivalent.

Certificates



Technical data

Material of conductor holder StSt
Conductor holder support Rd 16 mm
Height of conductor holder 20 mm
Thread of conductor holder M8

Product 274116 was added to Notepad.

Go to Notepad

Product 274116 was added to the cart.

Go to Web-Shop

Pre-assembled with screw, plastic base and dowel

With female thread.

1 Product

Part No. 274260 SH ZS 16 KS KD8X40 V2A

GTIN 4013364123489, Customs tariff No. (EU): 85389099, Gross weight: 49.50 g, PU: 50.00 pc(s)

Predecessor

Images

Additional information

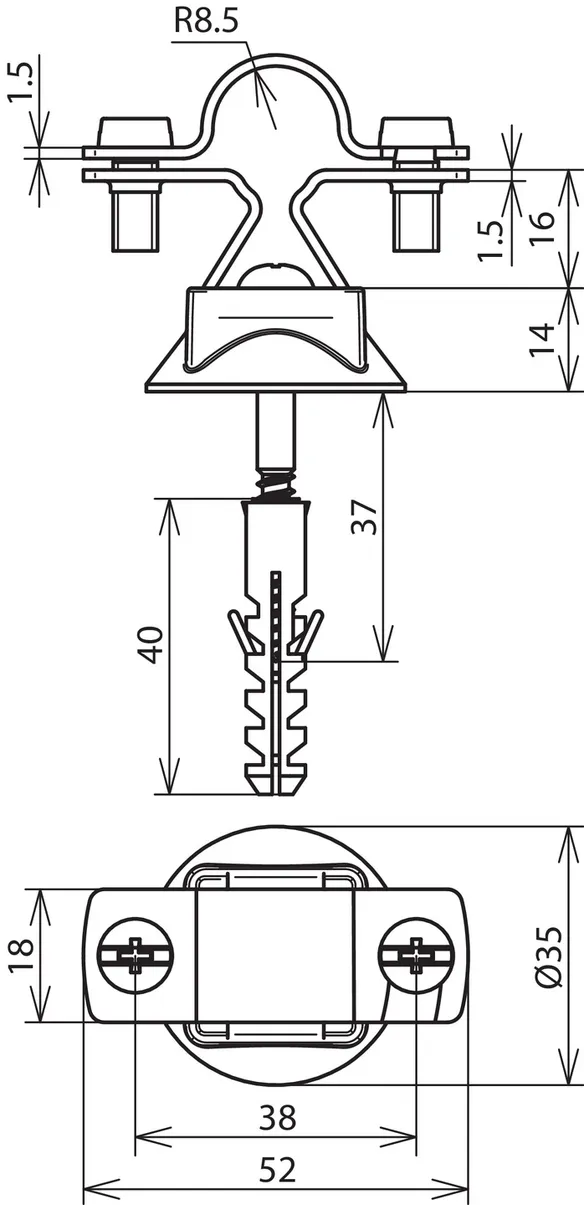

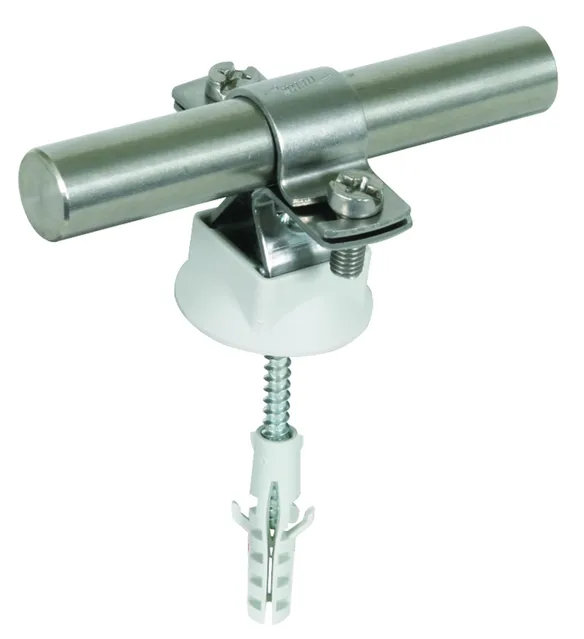

DEHNhold rod holder with female thread, premounted, StSt
DEHNhold rod holder
For fixing of air-termination and earth entry rods
with slotted cleat, fixed conductor leading.
Premounted with screw, plastic base and dowel
Material of conductor holder: StSt
Conductor holder support Rd: 16 mm
Height of conductor holder: 20 mm
Thread of conductor holder: M8
Screw: 5 x 50 mm
Plastic dowel: Ø8 x 40 mm

Brand: DEHN
Type: SH ZS 16 KS KD8X40 V2A
Part No.: 274260
or equivalent.

Certificates



Technical data

Material of conductor holder StSt
Conductor holder support Rd 16 mm
Height of conductor holder 20 mm
Thread of conductor holder M8
Screw ak 5 x 50 mm
Plastic dowel Ø8 x 40 mm
