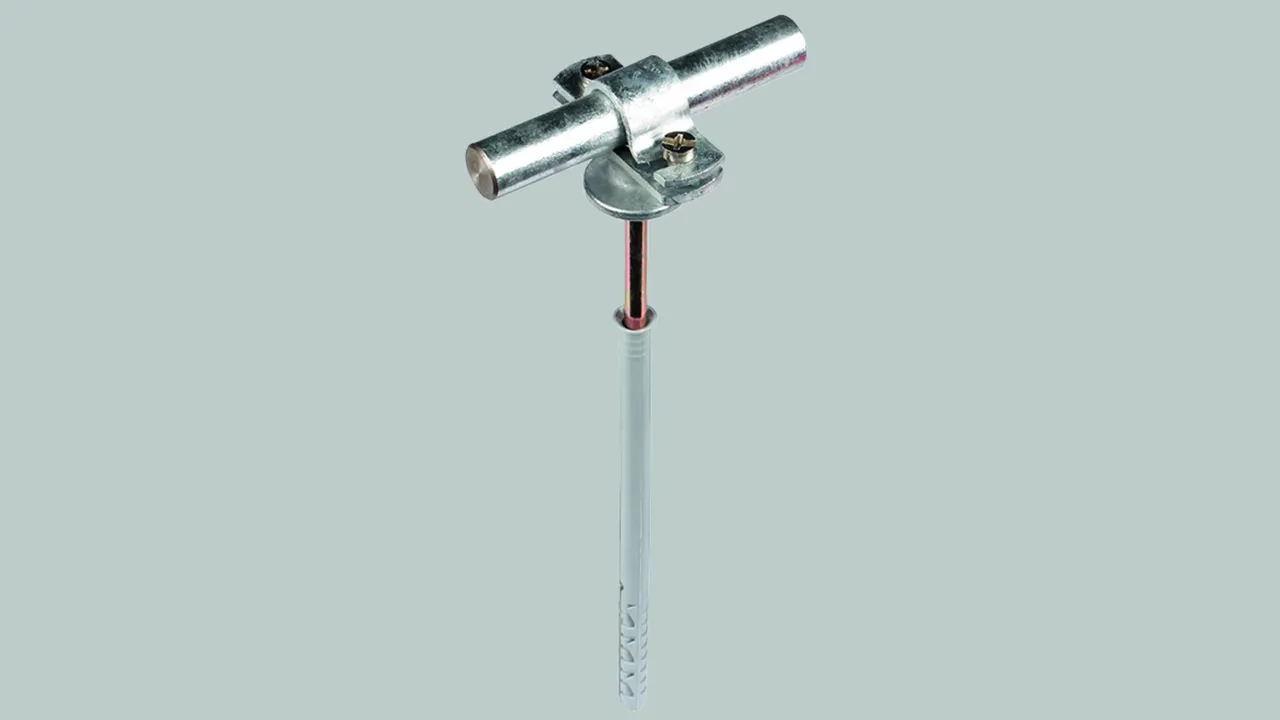

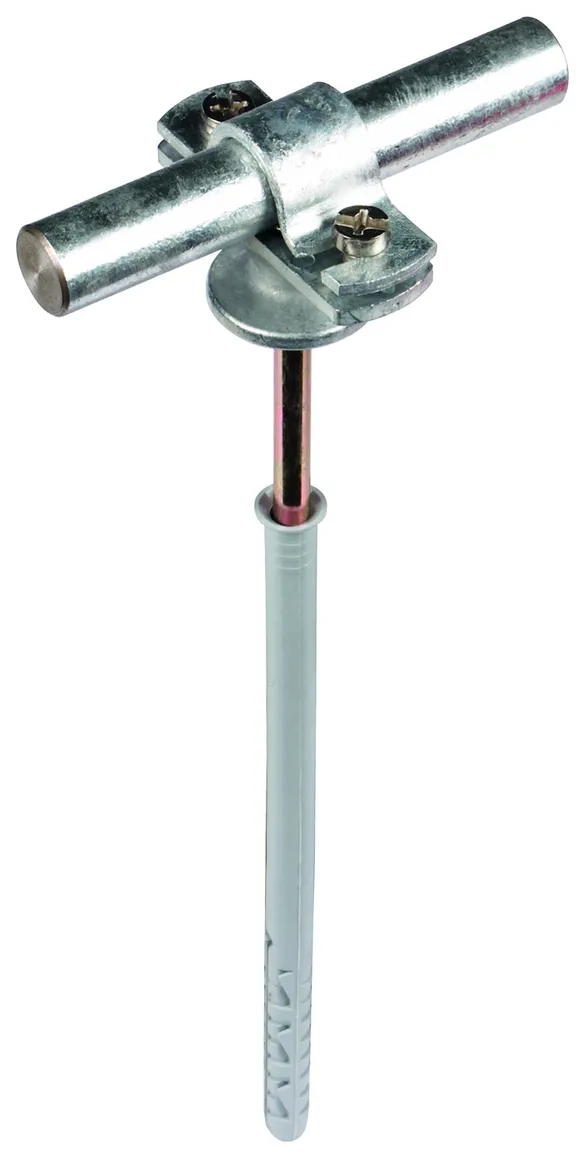

Rod Holders for External Thermal Insulation Composite Systems

Two-screw cleat with screws M6, with flange (ZDC) and plastic dowel Ø10 mm.

1 Product

Part No. 273731 SH ZS 16 AB D10X180 STTZN ZG

GTIN 4013364096691, Customs tariff No. (EU): 85389099, Gross weight: 149.12 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

Rod holder for external thermal insulation composite systems
Rod holder for external thermal insulation composite systems
Twin screw cleat with M6 screws, for Rd conductors
16mm, fixed conductor leading
Thickness of insulating material : approx. 110 mm
Material of cleat: St/tZn
Material of base part: ZDC
Screw / dowel: (TX40) 7 x 180 mm

Brand: DEHN
Type: SH ZS 16 AB D10X180 STTZN ZG
Part No.: 273731
or equivalent.

Certificates

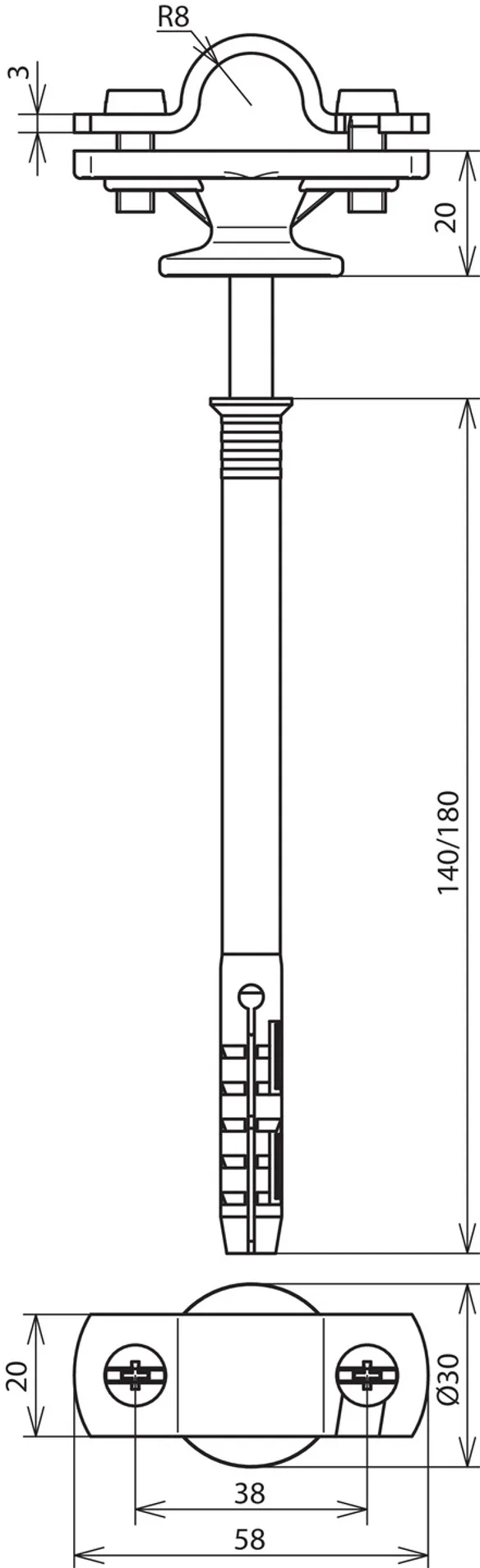

Technical data

Thickness of insulating material approx. 110 mm
Depth of bore approx. 190 mm
Material of cleat St/tZn
Material of base part ZDC
Height of conductor holder 20 mm
Conductor holder support Rd 16 mm
Screw / dowel bl (TX40) 7 x 180 mm
