Flat Strip Holders with Cleat and Flange

Complete unit with flange for flat strip installation.

With female thread

1 Product

Part No. 275030 FBH ZS 30 IGM8 STTZN ZG

GTIN 4013364095847, Customs tariff No. (EU): 85389099, Gross weight: 89.00 g, PU: 50.00 pc(s)

Images

Open PDF

Additional information

CAD files

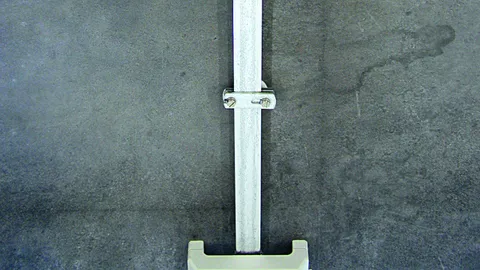

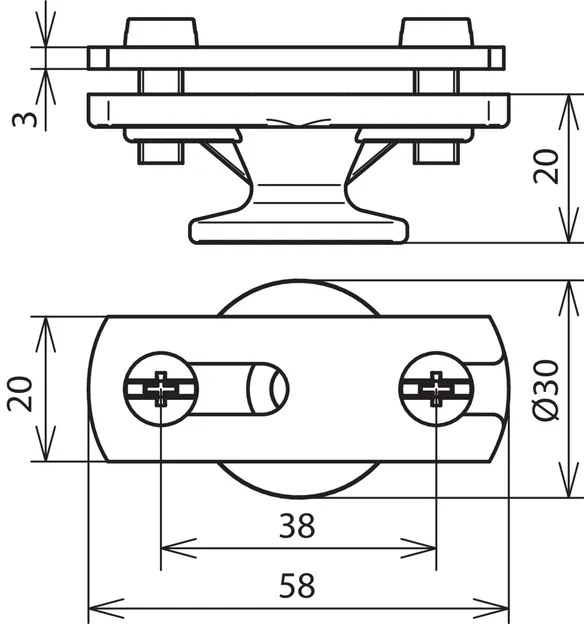

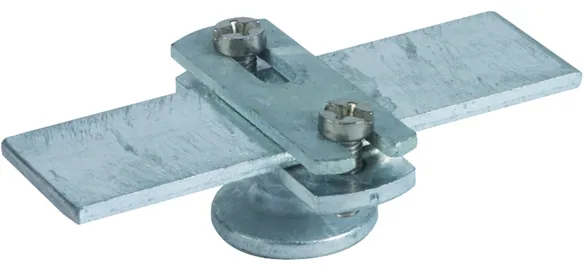

Flat strip holder with cleat, flange and female thread, St/tZn
Strip holder with cleat and flange
Complete unit with flange for installation of strip conductors
Conductor holder support Fl: 30 x 3.5 mm
Thread of conductor holder: M8
Material of cleat: St/tZn
Material of base part: ZDC

Brand: DEHN
Type: FBH ZS 30 IGM8 STTZN ZG
Part No.: 275030
or equivalent.

Certificates

Technical data

Conductor holder support Fl	30 x 3.5 mm
Thread of conductor holder	M8
Height of conductor holder	20 mm
Material of cleat	St/tZn
Material of base part	ZDC
Standard	EN 62561-4

Product 275030 was added to Notepad.

Go to Notepad

Product 275030 was added to the cart.

Go to Web-Shop

With female thread, pre-assembled with screw and dowel

1 Product

Part No. 275230 FBH ZS 30 IGM8 KD8X40STTZN ZG

GTIN 4013364095854, Customs tariff No. (EU): 85389099, Gross weight: 95.60 g, PU: 50.00 pc(s)

Images

Open PDF

Additional information

CAD files

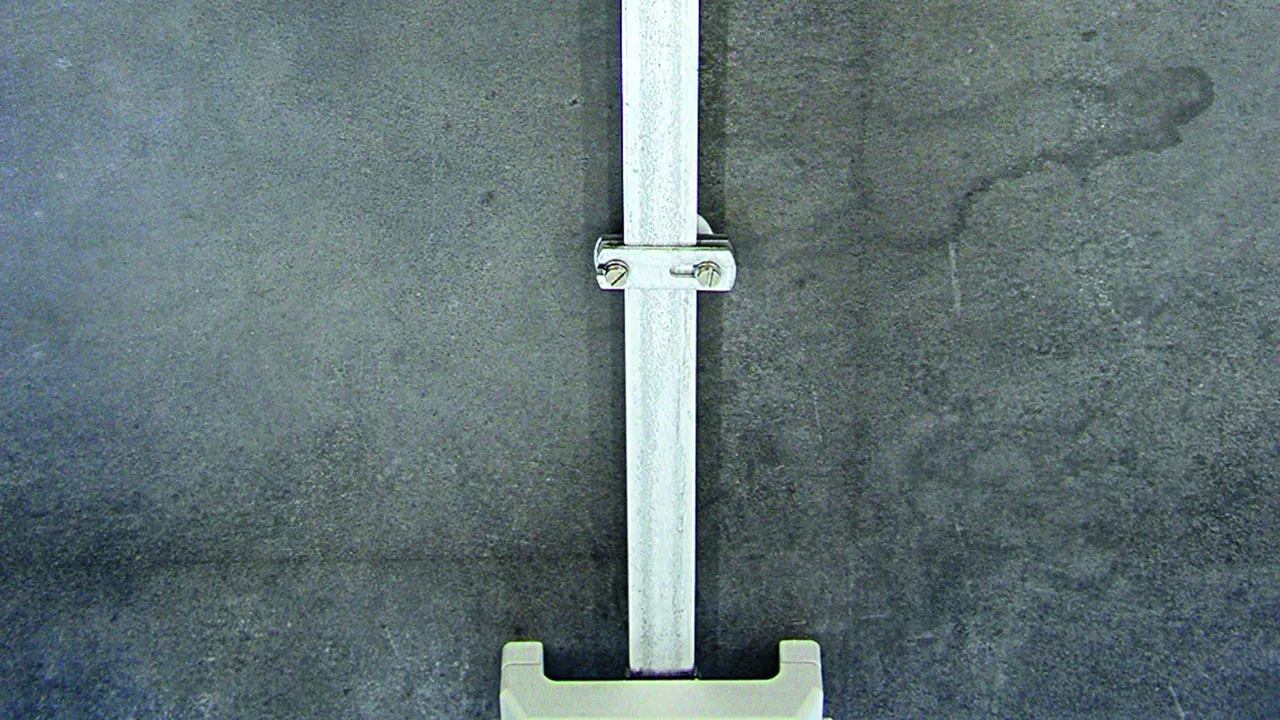

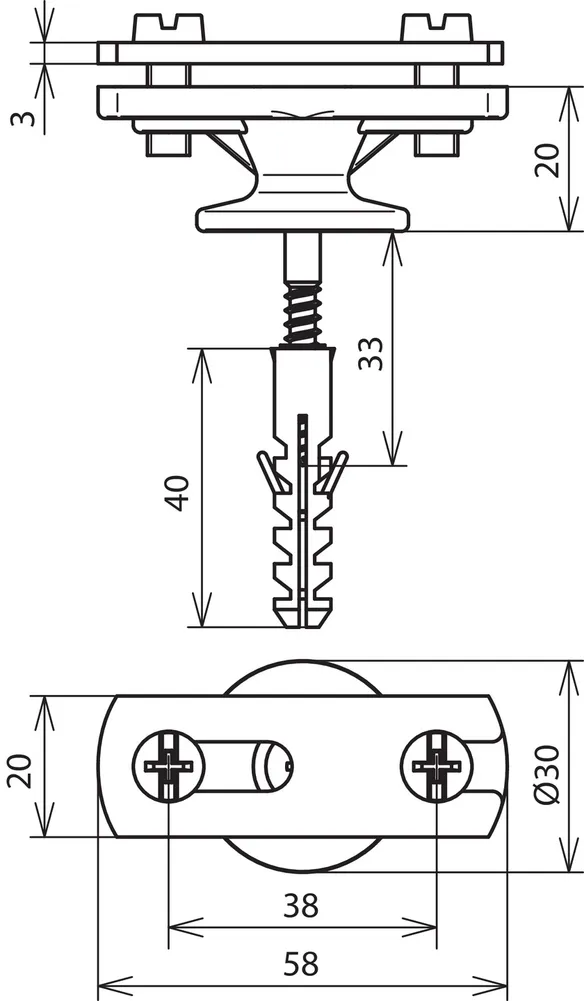

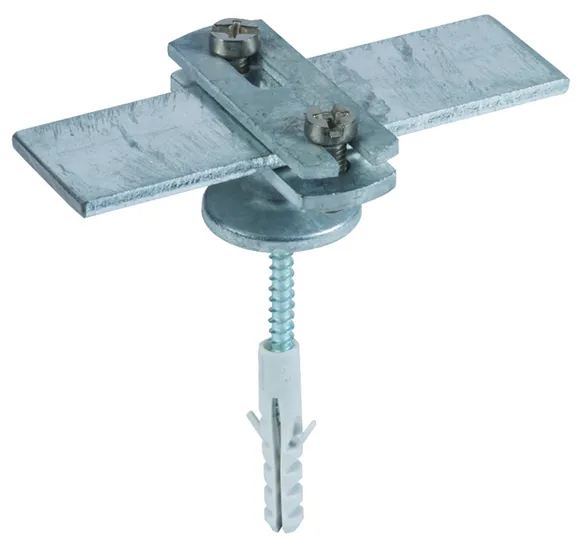

Flat strip holder with cleat, flange and female thread, St/tZn
Strip holder with cleat and flange
Complete unit with flange for installation of strip conductors
Premounted with screw and dowel
Conductor holder support Fl: 30 x 3.5 mm
Thread of conductor holder: M8
Material of cleat: St/tZn
Material of base part: ZDC
Screw: 5 x 50 mm

Brand: DEHN
Type: FBH ZS 30 IGM8 KD8X40STTZN ZG
Part No.: 275230
or equivalent.

Certificates

Technical data

Conductor holder support Fl	30 x 3.5 mm
Thread of conductor holder	M8
Height of conductor holder	20 mm
Material of cleat	St/tZn
Material of base part	ZDC
Screw	ak 5 x 50 mm
Plastic dowel	Ø8 x 40 mm
Standard	EN 62561-4

Conductor holder support Fl	30 x 3.5 mm
Conductor leading	fixed
Thread of conductor holder	M8
Height of conductor holder	20 mm
Material of cleat	St/tZn
Material of base part	ZDC
Screw	ak 5 x 50 mm
Plastic dowel	Ø8 x 40 mm
Standard	EN 62561-4

Product 275230 was added to Notepad.

Go to Notepad

Product 275230 was added to the cart.

Go to Web-Shop
