PHE III ZK Indicator with Test Prod

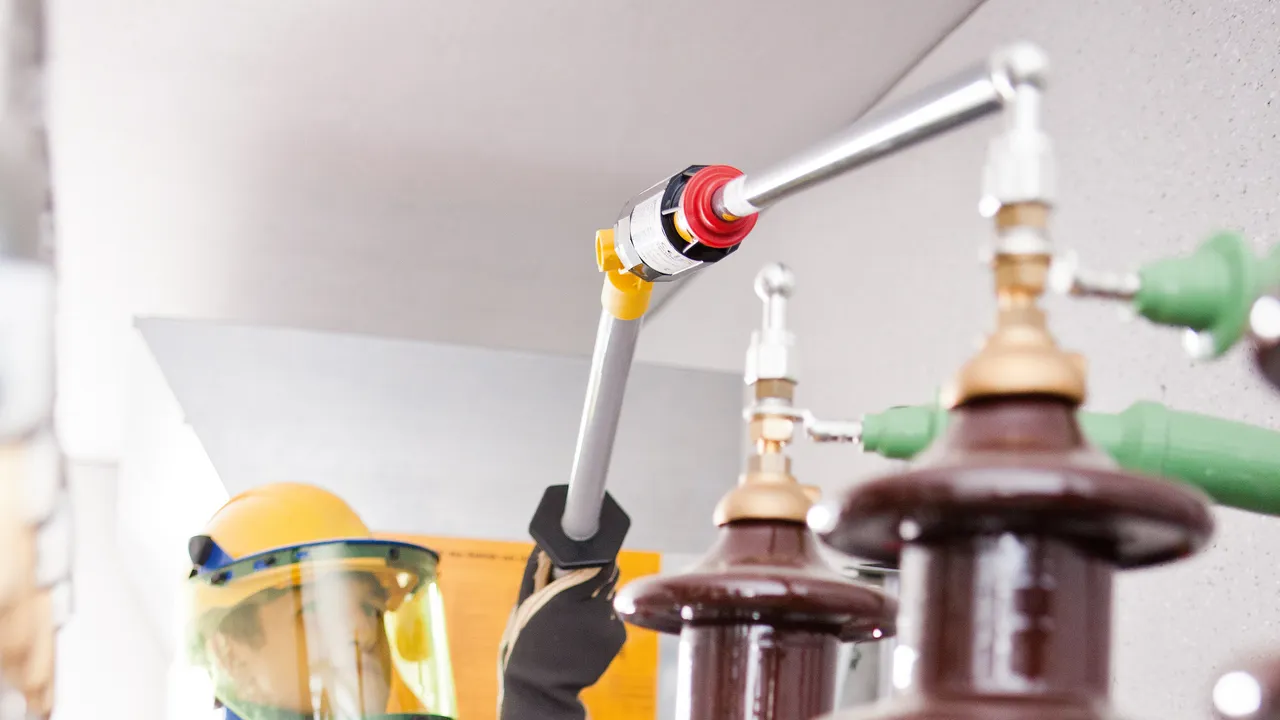

Safe verification of isolation from supply voltage

Reliable indication with standby function
Easy to use
Cost-effective / space-saving transport

Details

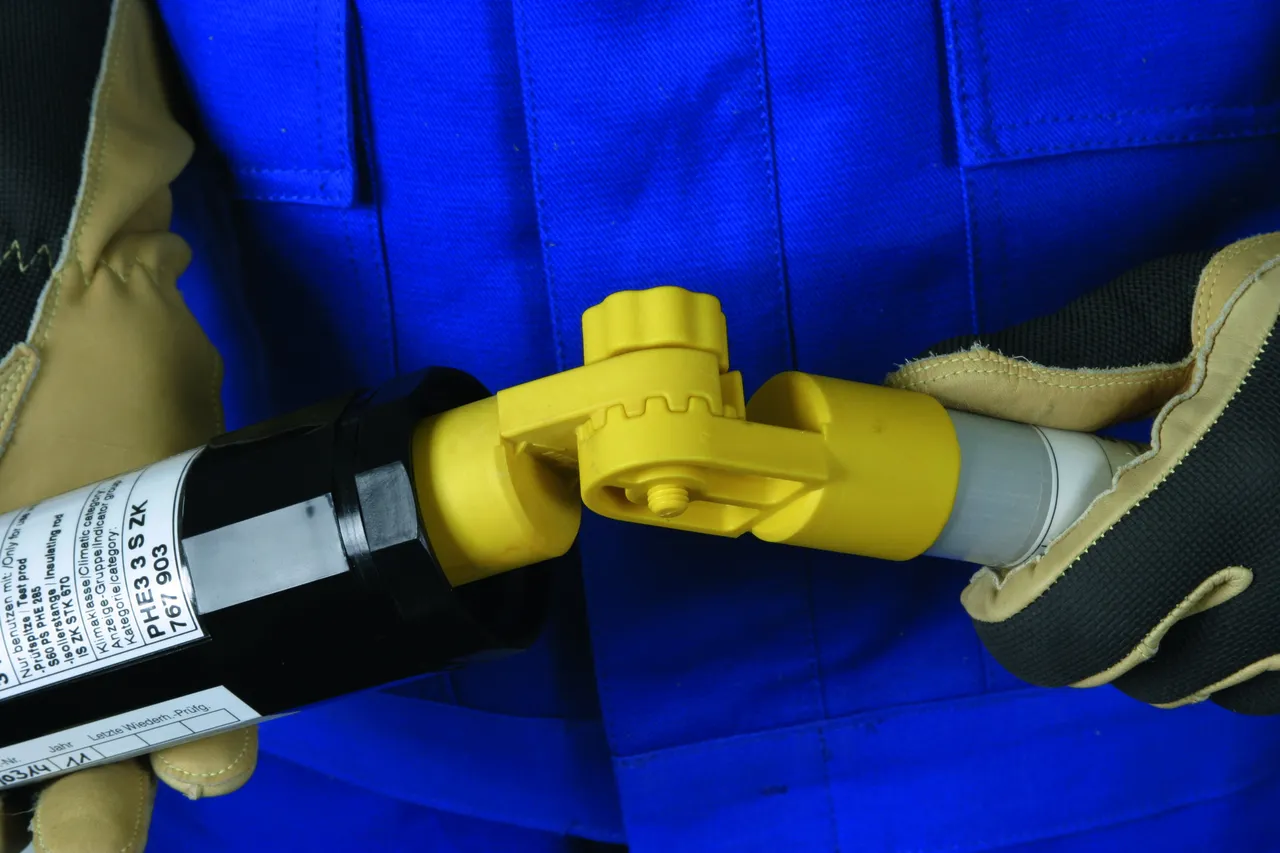

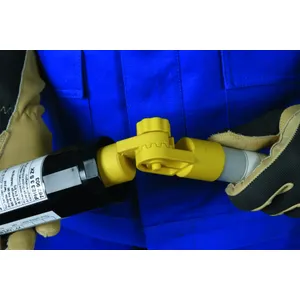

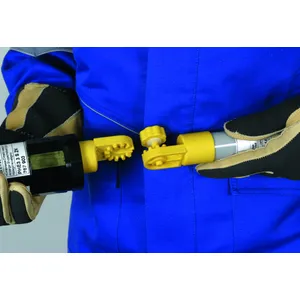

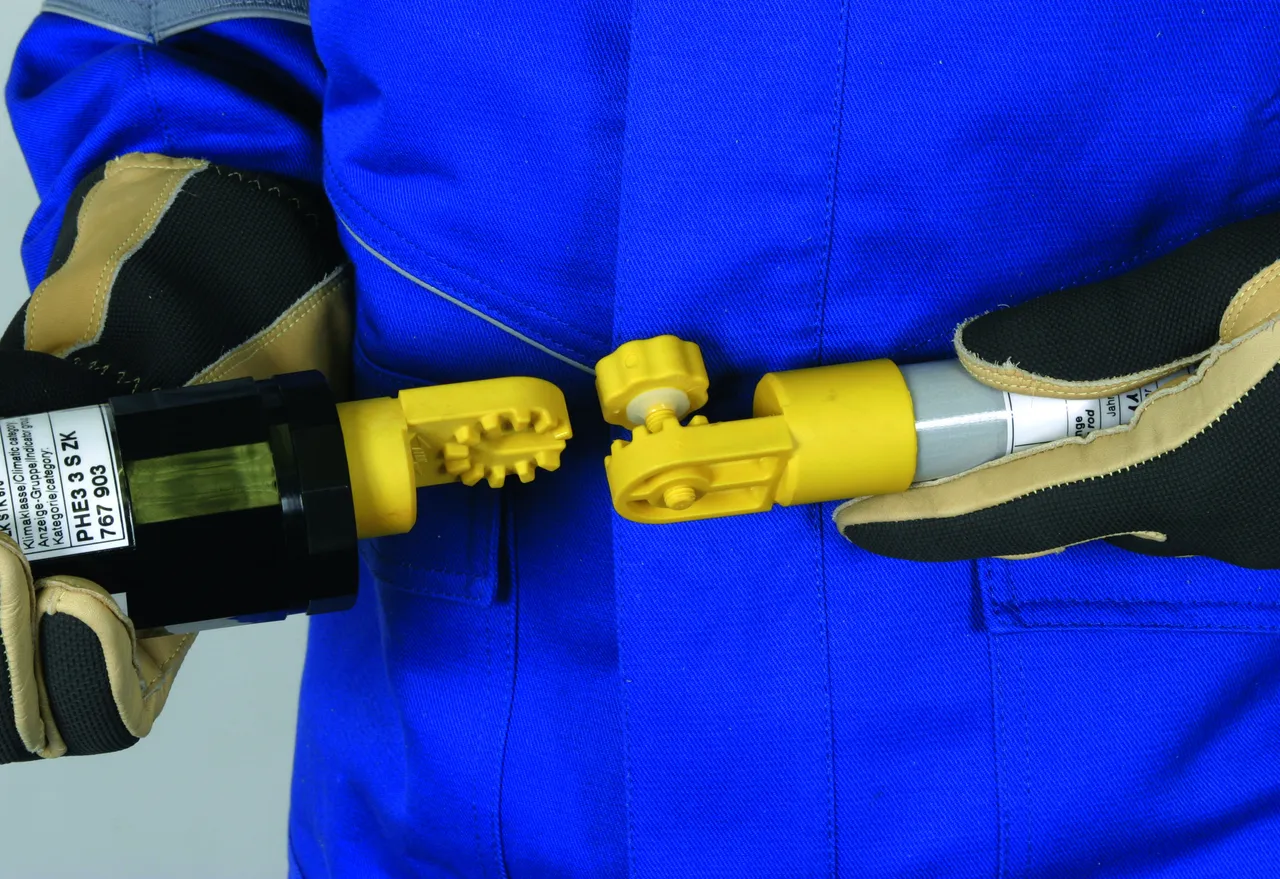

Universal gear coupling allows to adjust the angle of the voltage detector

lorem ipsum — Universal gear coupling allows to adjust the angle of the voltage detector

Nominal Voltage Ranges up to 30 kV / 50 Hz, Category "S"

Category "S" for switchgear installations and overhead lines.

2 Products

Part No. 767921 PHE3 PK6 20 S SB ZK

GTIN 4013364097360, Customs tariff No. (EU): 90303370, Gross weight: 2.15 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	6 ... 20 kV

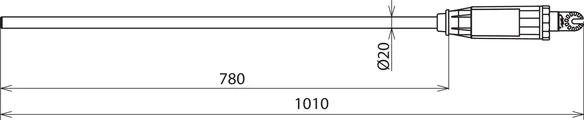

Total length (l_G )	1010 mm
Insertion depth (I_O )	780 mm

Nominal voltage (U_N )	6 ... 20 kV
Category	S
Total length (l_G )	1010 mm
Insertion depth (I_O )	780 mm
Standard (indicator with test prod)	EN/IEC 61243-1 (DIN VDE 0682-411)
Standard (universal gear coupling)	EN/IEC 60832 (DIN VDE 0682-211)
Temperature range	–25 °C ... +55 °C, climatic category N
Design	Separate
For use at	_
For	Indoor and outdoor installations
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated

Product 767921 was added to Notepad.

Go to Notepad

Product 767921 was added to the cart.

Go to Web-Shop

Part No. 767931 PHE3 PK10 30 S SB ZK

GTIN 4013364097377, Customs tariff No. (EU): 90303370, Gross weight: 1.68 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	10 ... 30 kV

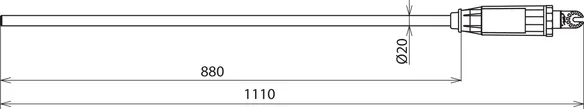

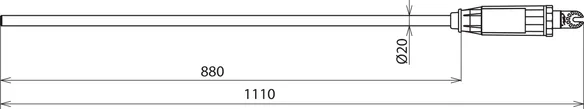

Total length (l_G )	1110 mm
Insertion depth (I_O )	880 mm

Nominal voltage (U_N )	10 ... 30 kV
Category	S
Total length (l_G )	1110 mm
Insertion depth (I_O )	880 mm
Standard (indicator with test prod)	EN/IEC 61243-1 (DIN VDE 0682-411)
Standard (universal gear coupling)	EN/IEC 60832 (DIN VDE 0682-211)
Temperature range	–25 °C ... +55 °C, climatic category N
Design	Separate
For use at	_
For	Indoor and outdoor installations
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated

Product 767931 was added to Notepad.

Go to Notepad

Product 767931 was added to the cart.

Go to Web-Shop

Nominal Voltage Ranges up to 30 kV / 50 Hz, Category "L"

Category "L" for overhead lines.

2 Products

Part No. 767922 PHE3 PK6 20 L SB ZK

GTIN 4013364097384, Customs tariff No. (EU): 90303370, Gross weight: 1.45 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	6 ... 20 kV

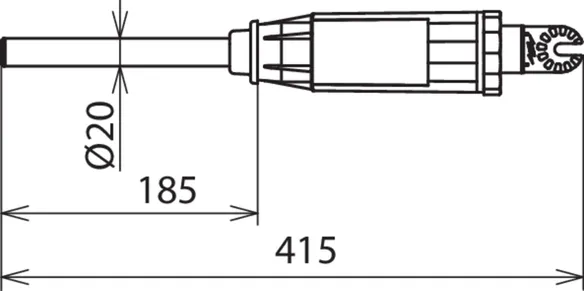

Total length (l_G )	415 mm
Insertion depth (I_O )	185 mm

Nominal voltage (U_N )	6 ... 20 kV
Category	L
Total length (l_G )	415 mm
Insertion depth (I_O )	185 mm
Standard (indicator with test prod)	EN/IEC 61243-1 (DIN VDE 0682-411)
Standard (universal gear coupling)	EN/IEC 60832 (DIN VDE 0682-211)
Temperature range	–25 °C ... +55 °C, climatic category N
Design	Separate
For use at	_
For	Indoor and outdoor installations
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated

Product 767922 was added to Notepad.

Go to Notepad

Product 767922 was added to the cart.

Go to Web-Shop

Part No. 767932 PHE3 PK10 30 L SB ZK

GTIN 4013364097391, Customs tariff No. (EU): 90303370, Gross weight: 1.45 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	10 ... 30 kV
Total length (l_G )	415 mm
Insertion depth (I_O )	185 mm

Nominal voltage (U_N )	10 ... 30 kV
Category	L
Total length (l_G )	415 mm
Insertion depth (I_O )	185 mm
Standard (indicator with test prod)	EN/IEC 61243-1 (DIN VDE 0682-411)
Standard (universal gear coupling)	EN/IEC 60832 (DIN VDE 0682-211)
Temperature range	–25 °C ... +55 °C, climatic category N
Design	Separate
For use at	_
For	Indoor and outdoor installations
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated

Product 767932 was added to Notepad.

Go to Notepad

Product 767932 was added to the cart.

Go to Web-Shop
