Part No. 339100 DRK KB 8.10 W16.22 EST STTZN

GTIN 4013364092068, Customs tariff No. (EU): 85359000, Gross weight: 184.80 g, PU: 25.00 pc(s)

Images

Open PDF

Additional information

CAD files

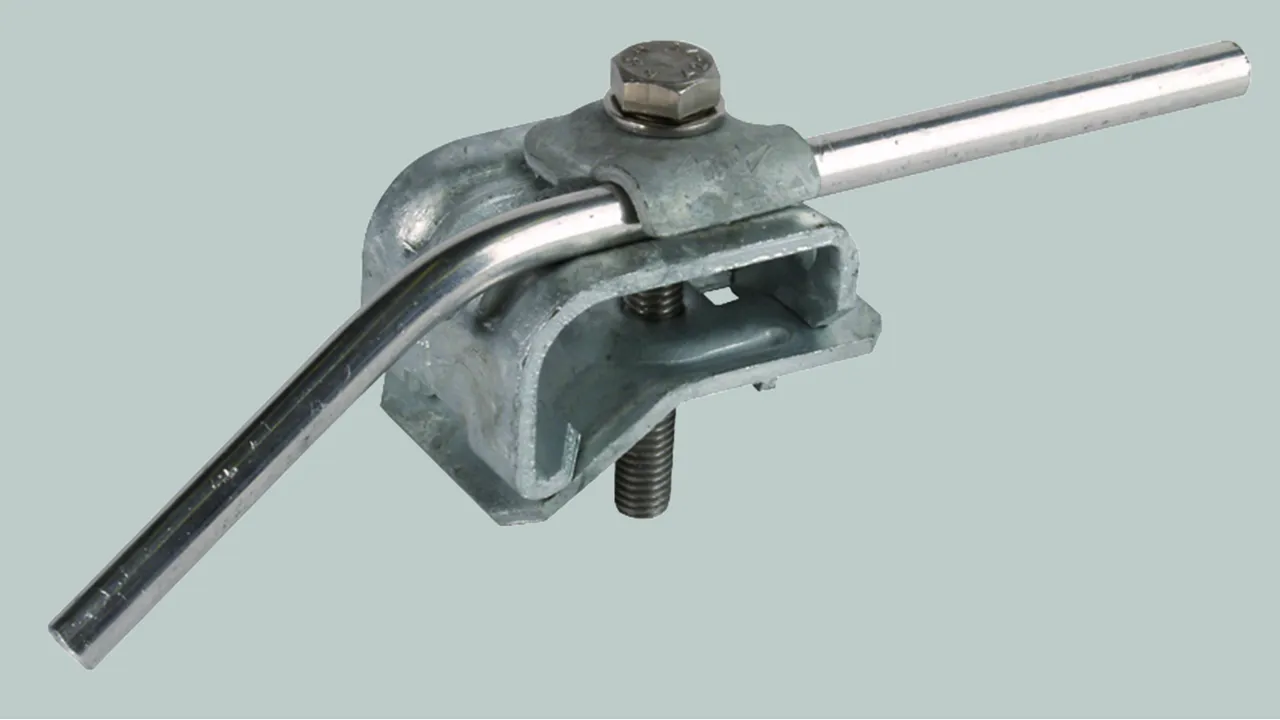

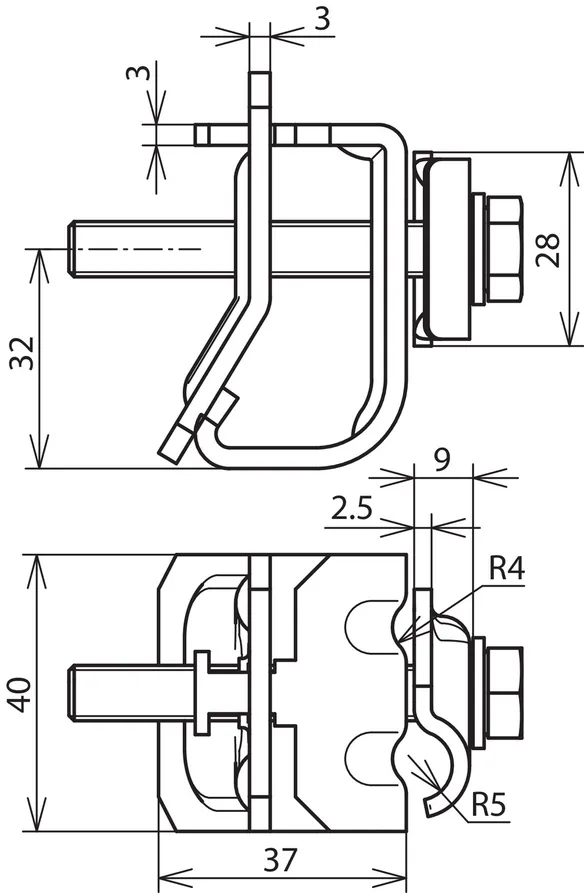

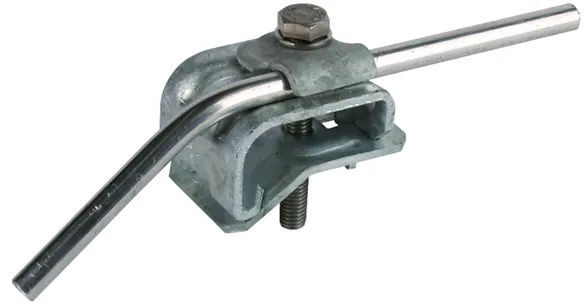

Gutter clamp with single-screw technique (clamping piece), St/tZn
Gutter clamp with single-screw technique
For connecting conductors to gutters
Clamping range bead : 16-22 mm
Material of clamp: St/tZn
Clamping range Rd: 8-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: DRK KB 8.10 W16.22 EST STTZN
Part No.: 339100
or equivalent.

Certificates

Technical data

Clamping range bead	16-22 mm
Material of clamp	St/tZn
Clamping range Rd	8-10 mm
Width	40 mm
Standard	EN 62561-1
*⁾ See test certificate for exact classification.

Clamping range bead	16-22 mm
Material of clamp	St/tZn
Clamping range Rd	8-10 mm
Material of cleat	St/tZn
Width	40 mm
Screw	di M8 x 60 mm
Material of screw	StSt
Lightning current carrying capability (10/350 µs)	= / & *⁾
Standard	EN 62561-1
*⁾ See test certificate for exact classification.

Product 339100 was added to Notepad.

Go to Notepad

Product 339100 was added to the cart.

Go to Web-Shop

Part No. 339101 DRK KB 8.10 W16.22 EST AL

GTIN 4013364092082, Customs tariff No. (EU): 85359000, Gross weight: 88.80 g, PU: 1.00 pc(s)

Images

Open PDF

Additional information

CAD files

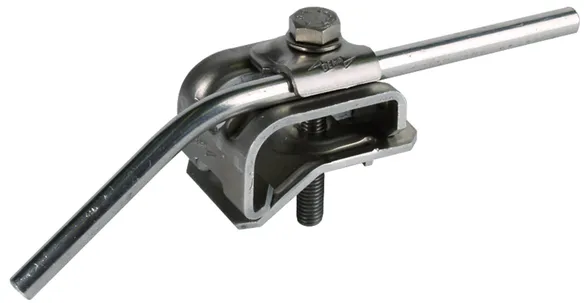

Gutter clamp with single-screw technique (clamping piece), Al
Gutter clamp with single-screw technique
For connecting conductors to gutters
Clamping range bead : 16-22 mm
Material of clamp: Al
Clamping range Rd: 8-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: DRK KB 8.10 W16.22 EST AL
Part No.: 339101
or equivalent.

Certificates

Technical data

Clamping range bead	16-22 mm
Material of clamp	Al
Clamping range Rd	8-10 mm
Width	40 mm
Standard	EN 62561-1
*⁾ See test certificate for exact classification.

Clamping range bead	16-22 mm
Material of clamp	Al
Clamping range Rd	8-10 mm
Material of cleat	StSt
Width	40 mm
Screw	di M8 x 60 mm
Material of screw	StSt
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾ See test certificate for exact classification.

Product 339101 was added to Notepad.

Go to Notepad

Product 339101 was added to the cart.

Go to Web-Shop

Part No. 339110 DRK DUL 8.10 W16.22 EST STTZN

GTIN 4013364092105, Customs tariff No. (EU): 85359000, Gross weight: 180.80 g, PU: 25.00 pc(s)

Images

Open PDF

Additional information

CAD files

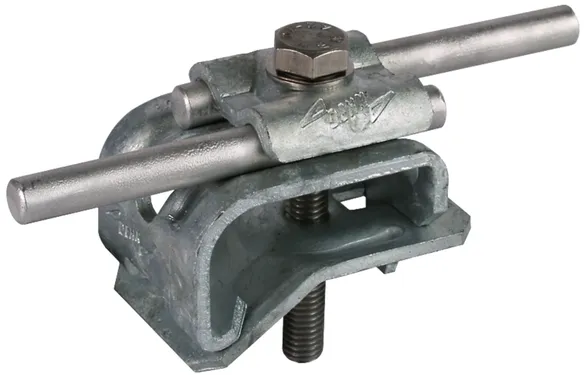

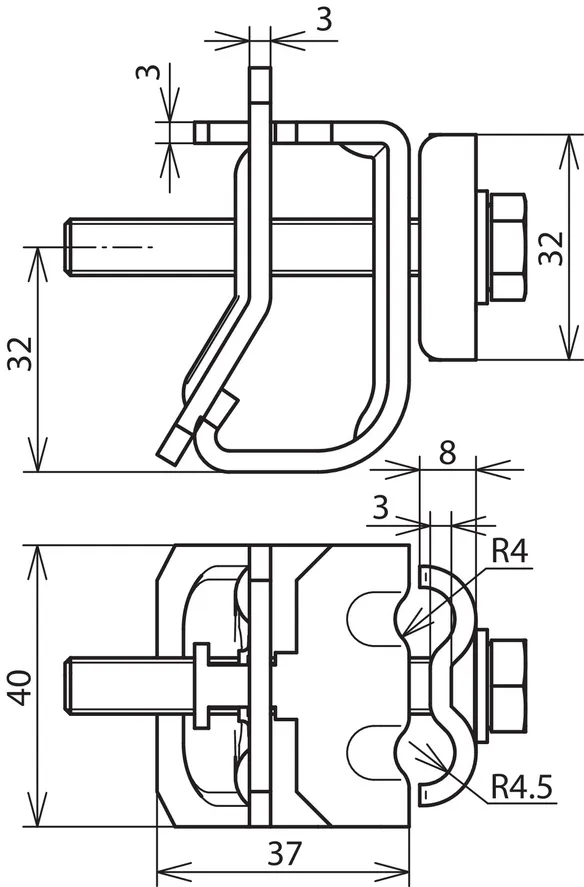

Gutter clamp with one screw (double cleat), St/tZn
Gutter clamp in single-screw technique
For connecting conductors to gutters
Clamping range bead : 16-22 mm
Material of clamp: St/tZn
Clamping range Rd: 8-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: DRK DUL 8.10 W16.22 EST STTZN
Part No.: 339110
or equivalent.

Certificates

Technical data

Clamping range bead	16-22 mm
Material of clamp	St/tZn
Clamping range Rd	8-10 mm
Width	40 mm
Standard	EN 62561-1
*⁾ See test certificate for exact classification.

Clamping range bead	16-22 mm
Material of clamp	St/tZn
Clamping range Rd	8-10 mm
Material of cleat	St/tZn
Width	40 mm
Screw	di M8 x 60 mm
Material of screw	StSt
Lightning current carrying capability (10/350 µs)	= / & *⁾
Standard	EN 62561-1
*⁾ See test certificate for exact classification.

Product 339110 was added to Notepad.

Go to Notepad

Product 339110 was added to the cart.

Go to Web-Shop

Part No. 339111 DRK DUL 8.10 W16.22 EST AL

GTIN 4013364092129, Customs tariff No. (EU): 85359000, Gross weight: 96.80 g, PU: 25.00 pc(s)

Images

Open PDF

Additional information

CAD files

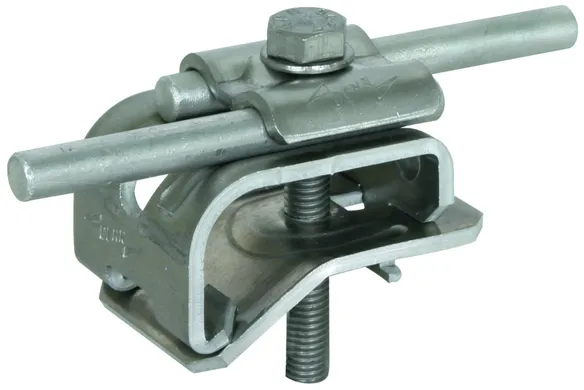

Gutter clamp with one screw (double cleat), Al
Gutter clamp in single-screw technique
For connecting conductors to gutters
Clamping range bead : 16-22 mm
Material of clamp: Al
Clamping range Rd: 8-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: DRK DUL 8.10 W16.22 EST AL
Part No.: 339111
or equivalent.

Certificates

Technical data

Clamping range bead	16-22 mm
Material of clamp	Al
Clamping range Rd	8-10 mm
Width	40 mm
Standard	EN 62561-1
*⁾ See test certificate for exact classification.

Clamping range bead	16-22 mm
Material of clamp	Al
Clamping range Rd	8-10 mm
Material of cleat	StSt
Width	40 mm
Screw	di M8 x 60 mm
Material of screw	StSt
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾ See test certificate for exact classification.

Product 339111 was added to Notepad.

Go to Notepad

Product 339111 was added to the cart.

Go to Web-Shop

Results for products (0)

Results for content (0)

Gutter Clamps with Single-screw Technique

With clamping piece

Part No. 339100 DRK KB 8.10 W16.22 EST STTZN

Product 339100 was added to Notepad.

Product 339100 was added to the cart.

Part No. 339101 DRK KB 8.10 W16.22 EST AL

Product 339101 was added to Notepad.

Product 339101 was added to the cart.

With double clamping piece

Part No. 339110 DRK DUL 8.10 W16.22 EST STTZN

Product 339110 was added to Notepad.

Product 339110 was added to the cart.

Part No. 339111 DRK DUL 8.10 W16.22 EST AL

Product 339111 was added to Notepad.

Product 339111 was added to the cart.

Gutter Clamps with Single-screw Technique

With clamping piece

Part No. 339100 DRK KB 8.10 W16.22 EST STTZN

You are not authorized to download 339100.stp

You are not authorized to download 339100.igs

You are not authorized to download 339100.jt

You are not authorized to download 339100.dwg

You are not authorized to download 339100m_D.dxf

Product 339100 was added to Notepad.

Product 339100 was added to the cart.

Part No. 339101 DRK KB 8.10 W16.22 EST AL

You are not authorized to download 339100.stp

You are not authorized to download 339100.igs

You are not authorized to download 339100.jt

You are not authorized to download 339100.dwg

You are not authorized to download 339100m_D.dxf

Product 339101 was added to Notepad.

Product 339101 was added to the cart.

With double clamping piece

Part No. 339110 DRK DUL 8.10 W16.22 EST STTZN

You are not authorized to download 339110.stp

You are not authorized to download 339110.igs

You are not authorized to download 339110.jt

You are not authorized to download 339110.dwg

You are not authorized to download 339110m_D.dxf

Product 339110 was added to Notepad.

Product 339110 was added to the cart.

Part No. 339111 DRK DUL 8.10 W16.22 EST AL

You are not authorized to download 339110.stp

You are not authorized to download 339110.igs

You are not authorized to download 339110.jt

You are not authorized to download 339110.dwg

You are not authorized to download 339110m_D.dxf
