SVP Clamps for Aboveground and Underground Connections

Diagonal and parallel connecting clamps (Schräg-Verbinder-Parallel-Klemmen) for cross and parallel connections, with slotted upper part (no need to detach the screws).

Without intermediate plate

2 Products

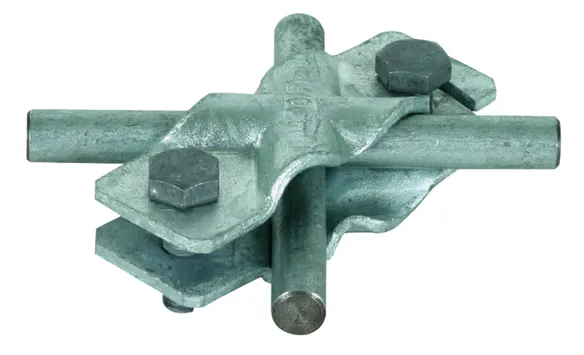

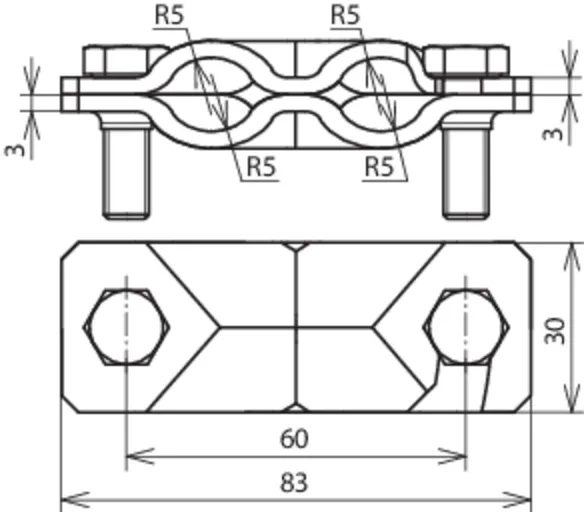

Part No. 308060 SVPK 8.10 8.10 FL30 STTZN

GTIN 4013364066281, Customs tariff No. (EU): 85359000, Gross weight: 139.80 g, PU: 50.00 pc(s)

Images

Additional information

SVP clamp without intermediate plate, St/tZn
SVP clamp for aboveground and underground connections
For cross and parallel connection, with slotted top
part (no need to remove the screws)
Material of clamp: St/tZn
Clamping range Rd / Rd: 8-10 / 8-10 mm
Clamping range Rd / Fl: 8-10 / 30 mm
Clamping range Fl / Fl: 30 / 30 mm
Standard: EN 62561-1

Brand: DEHN
Type: SVPK 8.10 8.10 FL30 STTZN
Part No.: 308060
or equivalent.

Certificates



Technical data

Material of clamp St/tZn
Clamping range Rd / Rd 8-10 / 8-10 mm
Clamping range Rd / Fl 8-10 / 30 mm
Clamping range Fl / Fl 30 / 30 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 308060 was added to Notepad.

Go to Notepad

Product 308060 was added to the cart.

Go to Web-Shop

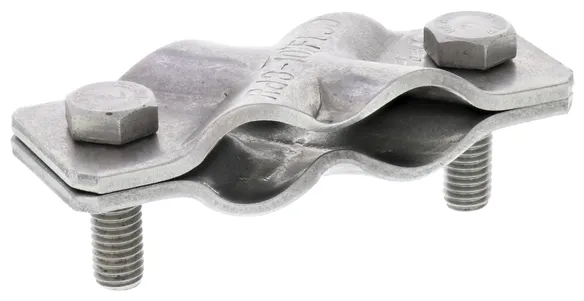

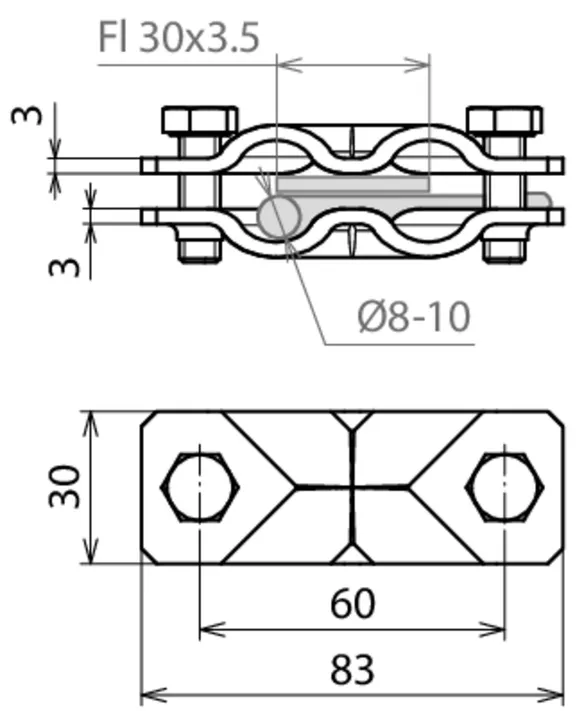

Part No. 308069 SVPK 8.10 8.10 FL30 V4A

GTIN 4013364246720, Customs tariff No. (EU): 85359000, Gross weight: 140.00 g, PU: 50.00 pc(s)

Images

Additional information

SVP clamp without StSt intermediate plate (V4A)
SVP clamps for above-ground and underground
connections for cross and parallel connections
with slotted top section
(no need to remove the screws)
Material of clamp: StSt (V4A)
Clamping range Rd / Rd: 8-10 / 8-10 mm
Clamping range Rd / Fl: 8-10 / 30 mm
Clamping range Fl / Fl: 30 / 30 mm
Standard: EN 62561-1

Brand: DEHN
Type: SVPK 8.10 8.10 FL30 V4A
Part No.: 308069
or equivalent.

Certificates



Technical data

Material of clamp StSt (V4A)
Clamping range Rd / Rd 8-10 / 8-10 mm
Clamping range Rd / Fl 8-10 / 30 mm
Clamping range Fl / Fl 30 / 30 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 308069 was added to Notepad.

Go to Notepad

Product 308069 was added to the cart.

Go to Web-Shop

With intermediate plate (slotted)

1 Product

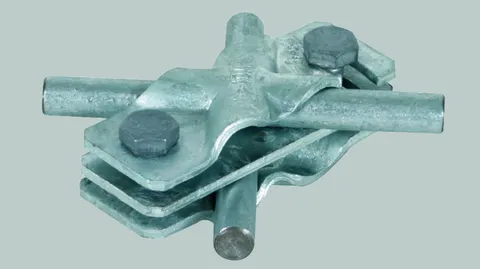

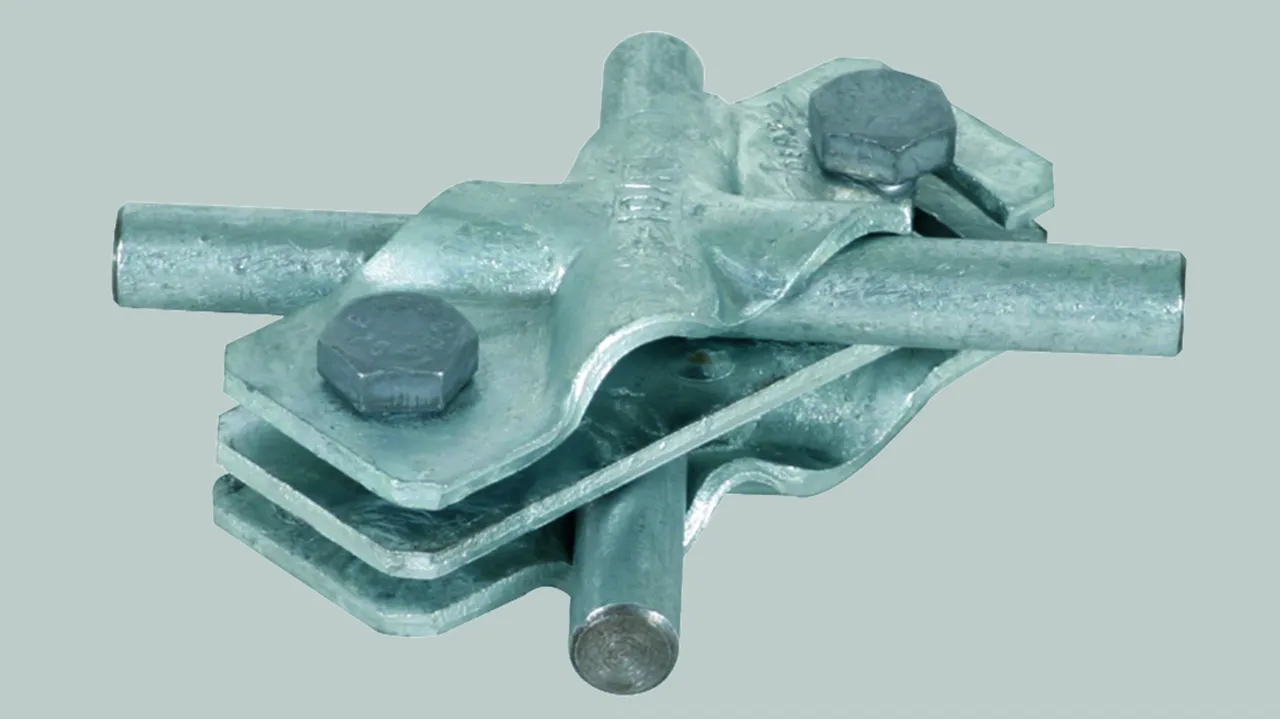

Part No. 308070 SVPK 8.10 8.10 FL30 ZP STTZN

GTIN 4013364066298, Customs tariff No. (EU): 85359000, Gross weight: 199.50 g, PU: 1.00 pc(s)

Images

Additional information

SVP clamp with intermediate plate, slotted, St/tZn
SVP clamp for aboveground and underground connections
For cross and parallel connection, with slotted top
part (no need to remove the screws)
Material of clamp: St/tZn
Clamping range Rd / Rd: 8-10 / 8-10 mm
Clamping range Rd / Fl: 8-10 / 30 mm
Clamping range Fl / Fl: 30 / 30 mm
Intermediate plate: yes
Standard: EN 62561-1

Brand: DEHN
Type: SVPK 8.10 8.10 FL30 ZP STTZN
Part No.: 308070
or equivalent.

Certificates



Technical data

Material of clamp St/tZn
Clamping range Rd / Rd 8-10 / 8-10 mm
Clamping range Rd / Fl 8-10 / 30 mm
Clamping range Fl / Fl 30 / 30 mm
Standard EN 62561-1
*) For exact assignment see test certificate.
