Bridging Cables

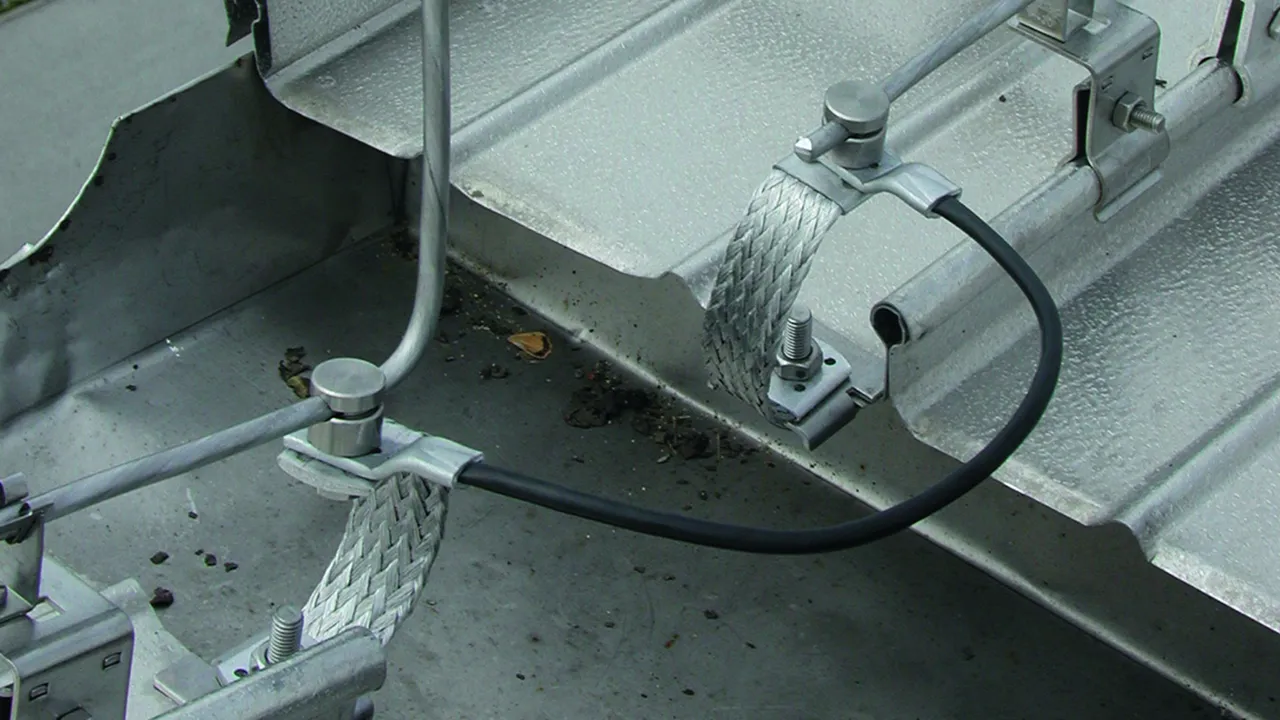

Suitable for connecting / bridging metal claddings, or as compensation for certain temperature-related changes in length for round wires; connection e.g. with KS connector part no. 301 019.
For connecting/bridging fixed earthing terminals. Suitable for protective and functional equipotential bonding.

Configurable lengths Outdoor

For use outdoors (H01N2-D)
Specify cable length when ordering (50 mm steps)

5 Products

Part No. 377316 UEBS 16 L... B10.5 CU SW OD

GTIN 4013364522459, Customs tariff No. (EU): 85359000, Gross weight: 411.90 g, PU: 1.00 pc(s)


Images

Additional information

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use in outdoor areas.
Length: 200 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H01N2-D
Cross-section: 16 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC black

Brand: DEHN
Type: UEBS 16 L... B10.5 CU SW OD
Part No.: 377316
or equivalent.

Certificates



Technical data

Length (l1) 200 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H01N2-D
Cross-section 16 mm2
Fixing [2x] Ø10.5 mm
Application note For use in outdoor areas
Insulation PVC black
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Product 377316 was added to Notepad.

Product 377316 was added to the cart.

Part No. 377325 UEBS 25 L... B10.5 CU SW OD

GTIN 4013364522466, Customs tariff No. (EU): 85359000, Gross weight: 558.80 g, PU: 1.00 pc(s)


Images

Additional information

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use in outdoor areas.
Length: 200 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H01N2-D
Cross-section: 25 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC black

Brand: DEHN
Type: UEBS 25 L... B10.5 CU SW OD
Part No.: 377325
or equivalent.

Certificates



Technical data

Length (l1) 200 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H01N2-D
Cross-section 25 mm2
Fixing [2x] Ø10.5 mm
Application note For use in outdoor areas
Insulation PVC black
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Product 377325 was added to Notepad.

Product 377325 was added to the cart.

Part No. 377335 UEBS 35 L... B10.5 CU SW OD

GTIN 4013364522473, Customs tariff No. (EU): 85359000, Gross weight: 937.30 kg, PU: 1.00 pc(s)


Images

Additional information

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use in outdoor areas.
Length: 200 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H01N2-D
Cross-section: 35 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC black

Brand: DEHN
Type: UEBS 35 L... B10.5 CU SW OD
Part No.: 377335
or equivalent.

Certificates



Technical data

Length (l1) 200 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H01N2-D
Cross-section 35 mm2
Fixing [2x] Ø10.5 mm
Application note For use in outdoor areas
Insulation PVC black
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Product 377335 was added to Notepad.

Product 377335 was added to the cart.

Part No. 377350 UEBS 50 L... B10.5 CU SW OD

GTIN 4013364522480, Customs tariff No. (EU): 85359000, Gross weight: 1.02 kg, PU: 1.00 pc(s)


Images

Additional information

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use in outdoor areas.
Length: 350 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H01N2-D
Cross-section: 50 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC black

Brand: DEHN
Type: UEBS 50 L... B10.5 CU SW OD
Part No.: 377350
or equivalent.

Certificates



Technical data

Length (l1) 350 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H01N2-D
Cross-section 50 mm2
Fixing [2x] Ø10.5 mm
Application note For use in outdoor areas
Insulation PVC black
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Product 377350 was added to Notepad.

Product 377350 was added to the cart.

Part No. 377370 UEBS 70 L... B10.5 CU SW OD

GTIN 4013364522497, Customs tariff No. (EU): 85359000, Gross weight: 1.40 kg, PU: 1.00 pc(s)


Images

Additional information

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use in outdoor areas.
Length: 350 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H01N2-D
Cross-section: 70 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC black

Brand: DEHN
Type: UEBS 70 L... B10.5 CU SW OD
Part No.: 377370
or equivalent.

Certificates



Technical data

Length (l1) 350 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H01N2-D
Cross-section 70 mm2
Fixing [2x] Ø10.5 mm
Application note For use in outdoor areas
Insulation PVC black
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Product 377370 was added to Notepad.

Product 377370 was added to the cart.


Configurable lengths Indoor

For use indoors (H07V-K)
Specify cable length when ordering (50 mm steps)

10 Products

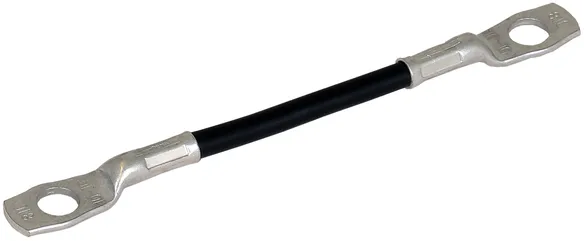

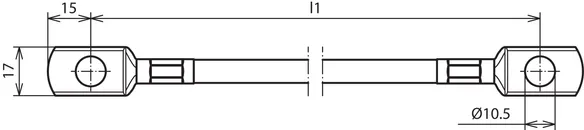

Part No. 377216 UEBS 16 L... B10.5 CU SW ID

GTIN 4013364494565, Customs tariff No. (EU): 85359000, Gross weight: 411.90 g, PU: 1.00 pc(s)


Images

Additional information

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use indoors.
Length: 200 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H07V-K
Cross-section: 16 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC black

Brand: DEHN
Type: UEBS 16 L... B10.5 CU SW ID
Part No.: 377216
or equivalent.

Certificates



Technical data

Length (l1) 200 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H07V-K
Cross-section 16 mm2
Fixing [2x] Ø10.5 mm
Application note For use indoors
Insulation PVC black
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Product 377216 was added to Notepad.

Product 377216 was added to the cart.

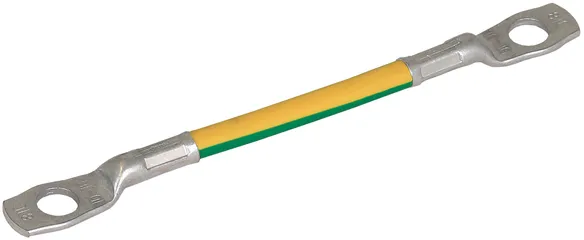

Part No. 377217 UEBS 16 L... B10.5 CU GNGE ID

GTIN 4013364494572, Customs tariff No. (EU): 85359000, Gross weight: 411.90 g, PU: 1.00 pc(s)


Images

Additional information

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use indoors.
Length: 200 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H07V-K
Cross-section: 16 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC green / yellow

Brand: DEHN
Type: UEBS 16 L... B10.5 CU GNGE ID
Part No.: 377217
or equivalent.

Certificates



Technical data

Length (l1) 200 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H07V-K
Cross-section 16 mm2
Fixing [2x] Ø10.5 mm
Application note For use indoors
Insulation PVC green / yellow
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Product 377217 was added to Notepad.

Product 377217 was added to the cart.

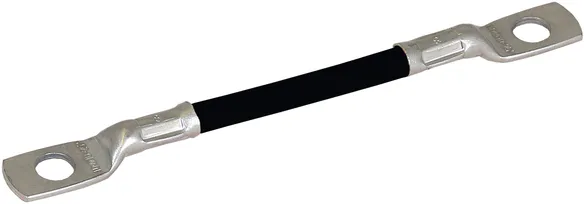

Part No. 377225 UEBS 25 L... B10.5 CU SW ID

GTIN 4013364494589, Customs tariff No. (EU): 85359000, Gross weight: 558.80 g, PU: 1.00 pc(s)


Images

Additional information

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use indoors.
Length: 200 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H07V-K
Cross-section: 25 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC black

Brand: DEHN
Type: UEBS 25 L... B10.5 CU SW ID
Part No.: 377225
or equivalent.

Certificates



Technical data

Length (l1) 200 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H07V-K
Cross-section 25 mm2
Fixing [2x] Ø10.5 mm
Application note For use indoors
Insulation PVC black
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Product 377225 was added to Notepad.

Product 377225 was added to the cart.

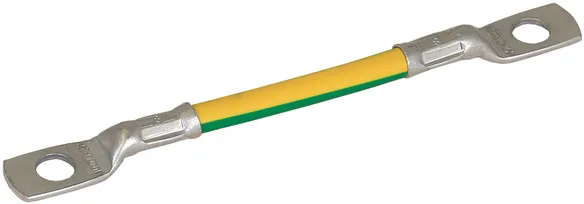

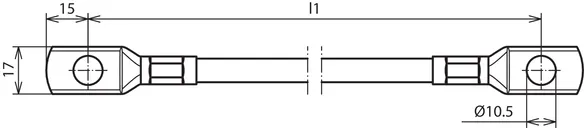

Part No. 377226 UEBS 25 L... B10.5 CU GNGE ID

GTIN 4013364494596, Customs tariff No. (EU): 85359000, Gross weight: 558.80 g, PU: 1.00 pc(s)


Images

Additional information

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use indoors.
Length: 200 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H07V-K
Cross-section: 25 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC green / yellow

Brand: DEHN
Type: UEBS 25 L... B10.5 CU GNGE ID
Part No.: 377226
or equivalent.

Certificates



Technical data

Length (l1) 200 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H07V-K
Cross-section 25 mm2
Fixing [2x] Ø10.5 mm
Application note For use indoors
Insulation PVC green / yellow
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Product 377226 was added to Notepad.

Product 377226 was added to the cart.

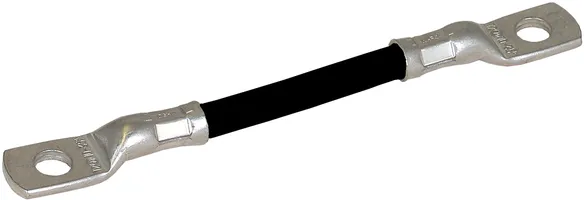

Part No. 377235 UEBS 35 L... B10.5 CU SW ID

GTIN 4013364494602, Customs tariff No. (EU): 85359000, Gross weight: 937.30 g, PU: 1.00 pc(s)


Images

Additional information

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use indoors.
Length: 200 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H07V-K
Cross-section: 35 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC black

Brand: DEHN
Type: UEBS 35 L... B10.5 CU SW ID
Part No.: 377235
or equivalent.

Certificates



Technical data

Length (l1) 200 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H07V-K
Cross-section 35 mm2
Fixing [2x] Ø10.5 mm
Application note For use indoors
Insulation PVC black
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Product 377235 was added to Notepad.

Product 377235 was added to the cart.

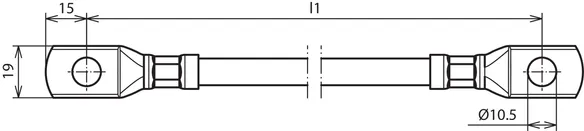

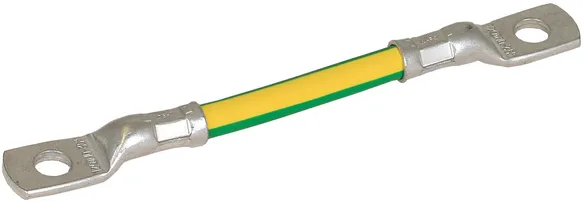

Part No. 377236 UEBS 35 L... B10.5 CU GNGE ID

GTIN 4013364494619, Customs tariff No. (EU): 85359000, Gross weight: 937.30 g, PU: 1.00 pc(s)


Images

Additional information

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use indoors.
Length: 200 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H07V-K
Cross-section: 35 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC green / yellow

Brand: DEHN
Type: UEBS 35 L... B10.5 CU GNGE ID
Part No.: 377236
or equivalent.

Certificates



Technical data

Length (l1) 200 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H07V-K
Cross-section 35 mm2
Fixing [2x] Ø10.5 mm
Application note For use indoors
Insulation PVC green / yellow
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Product 377236 was added to Notepad.

Product 377236 was added to the cart.

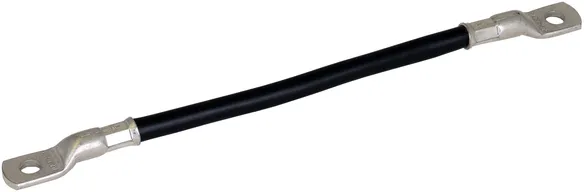

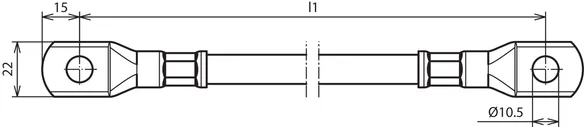

Part No. 377250 UEBS 50 L... B10.5 CU SW ID

GTIN 4013364494725, Customs tariff No. (EU): 85359000, Gross weight: 1.02 kg, PU: 1.00 pc(s)


Images

Additional information

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use indoors.
Length: 350 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H07V-K
Cross-section: 50 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC black

Brand: DEHN
Type: UEBS 50 L... B10.5 CU SW ID
Part No.: 377250
or equivalent.

Certificates



Technical data

Length (l1) 350 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H07V-K
Cross-section 50 mm2
Fixing [2x] Ø10.5 mm
Application note For use indoors
Insulation PVC black
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Product 377250 was added to Notepad.

Product 377250 was added to the cart.

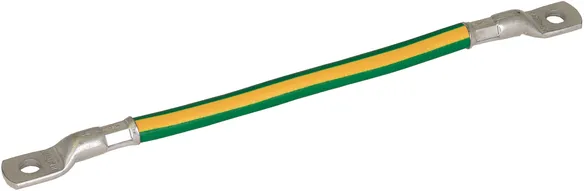

Part No. 377251 UEBS 50 L... B10.5 CU GNGE ID

GTIN 4013364494732, Customs tariff No. (EU): 85359000, Gross weight: 1.02 kg, PU: 1.00 pc(s)


Images

Additional information

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use indoors.
Length: 350 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H07V-K
Cross-section: 50 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC green / yellow

Brand: DEHN
Type: UEBS 50 L... B10.5 CU GNGE ID
Part No.: 377251
or equivalent.

Certificates



Technical data

Length (l1) 350 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H07V-K
Cross-section 50 mm2
Fixing [2x] Ø10.5 mm
Application note For use indoors
Insulation PVC green / yellow
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Product 377251 was added to Notepad.

Product 377251 was added to the cart.

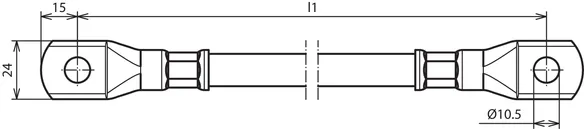

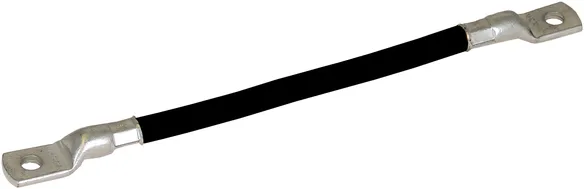

Part No. 377270 UEBS 70 L... B10.5 CU SW ID

GTIN 4013364494749, Customs tariff No. (EU): 85359000, Gross weight: 1.40 kg, PU: 1.00 pc(s)


Images

Additional information

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use indoors.
Length: 350 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H07V-K
Cross-section: 70 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC black

Brand: DEHN
Type: UEBS 70 L... B10.5 CU SW ID
Part No.: 377270
or equivalent.

Certificates



Technical data

Length (l1) 350 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H07V-K
Cross-section 70 mm2
Fixing [2x] Ø10.5 mm
Application note For use indoors
Insulation PVC black
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Product 377270 was added to Notepad.

Product 377270 was added to the cart.

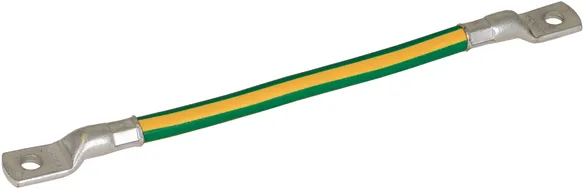

Part No. 377271 UEBS 70 L... B10.5 CU GNGE ID

GTIN 4013364494756, Customs tariff No. (EU): 85359000, Gross weight: 1.40 kg, PU: 1.00 pc(s)


Images

Additional information

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use indoors.
Length: 350 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H07V-K
Cross-section: 70 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC green / yellow

Brand: DEHN
Type: UEBS 70 L... B10.5 CU GNGE ID
Part No.: 377271
or equivalent.

Certificates



Technical data

Length (l1) 350 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H07V-K
Cross-section 70 mm2
Fixing [2x] Ø10.5 mm
Application note For use indoors
Insulation PVC green / yellow
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

Product 377271 was added to Notepad.

Product 377271 was added to the cart.


Standard lengths

Suitable for use outdoors

4 Products

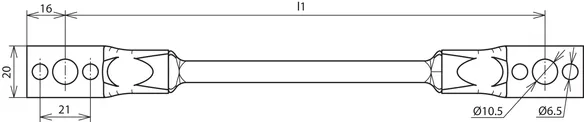

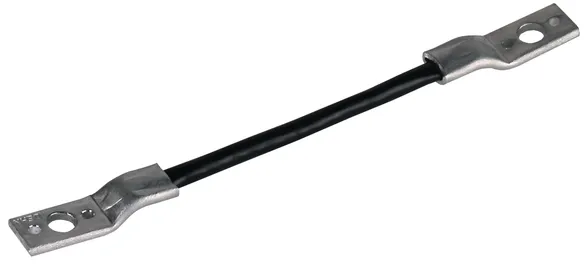

Part No. 377210 UEBS 16 L200 B10.5 B6.5 AL CU

GTIN 4013364083028, Customs tariff No. (EU): 85359000, Gross weight: 53.01 g, PU: 10.00 pc(s)

Predecessor

Images

Additional information

Bridging cable, 200 mm long
Bridging cable for connecting
or bridging
metal cladding.
Suitable for use
outdoors.
Length: 200 mm
Material of cable lug: Al
Material of cable: Cu
Cross-section: 16 mm2
Fixing : [4x] Ø6.5 / [2x] Ø10.5 mm
Insulation: rubber EM5 black

Brand: DEHN
Type: UEBS 16 L200 B10.5 B6.5 AL CU
Part No.: 377210
or equivalent.

Certificates



Technical data

Length (l1) 200 mm
Material of cable lug Al
Material of cable Cu
Cross-section 16 mm2
Fixing [4x] Ø6.5 / [2x] Ø10.5 mm
Application note Suitable for use outdoors. According to DIN EN 62305-3 Supplement 1, materials ≥ 0.5mm thick shall be connected by 2 rivets Ø6mm, or materials ≥ 2mm thick by 2 self-tapping screws Ø6.3mm StSt (on both sides)
Insulation rubber EM5 black
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 377210 was added to Notepad.

Product 377210 was added to the cart.

Part No. 377310 UEBS 16 L300 B10.5 B6.5 AL CU

GTIN 4013364033382, Customs tariff No. (EU): 85359000, Gross weight: 88.50 g, PU: 100.00 pc(s)

Predecessor

Images

Additional information

Bridging cable, 300 mm long
Bridging cable for connecting
or bridging
metal cladding.
Suitable for use
outdoors.
Length: 300 mm
Material of cable lug: Al
Material of cable: Cu
Cross-section: 16 mm2
Fixing : [4x] Ø6.5 / [2x] Ø10.5 mm
Insulation: rubber EM5 black

Brand: DEHN
Type: UEBS 16 L300 B10.5 B6.5 AL CU
Part No.: 377310
or equivalent.

Certificates



Technical data

Length (l1) 300 mm
Material of cable lug Al
Material of cable Cu
Cross-section 16 mm2
Fixing [4x] Ø6.5 / [2x] Ø10.5 mm
Application note Suitable for use outdoors. According to DIN EN 62305-3 Supplement 1, materials ≥ 0.5mm thick shall be connected by 2 rivets Ø6mm, or materials ≥ 2mm thick by 2 self-tapping screws Ø6.3mm StSt (on both sides)
Insulation rubber EM5 black
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 377310 was added to Notepad.

Product 377310 was added to the cart.

Part No. 377410 UEBS 16 L400 B10.5 B6.5 AL CU

GTIN 4013364083035, Customs tariff No. (EU): 85359000, Gross weight: 90.40 g, PU: 10.00 pc(s)

Predecessor

Images

Additional information

Bridging cable, 400 mm long
Bridging cable for connecting
or bridging
metal cladding.
Suitable for use
outdoors.
Length: 400 mm
Material of cable lug: Al
Material of cable: Cu
Cross-section: 16 mm2
Fixing : [4x] Ø6.5 / [2x] Ø10.5 mm
Insulation: rubber EM5 black

Brand: DEHN
Type: UEBS 16 L400 B10.5 B6.5 AL CU
Part No.: 377410
or equivalent.

Certificates



Technical data

Length (l1) 400 mm
Material of cable lug Al
Material of cable Cu
Cross-section 16 mm2
Fixing [4x] Ø6.5 / [2x] Ø10.5 mm
Application note Suitable for use outdoors. According to DIN EN 62305-3 Supplement 1, materials ≥ 0.5mm thick shall be connected by 2 rivets Ø6mm, or materials ≥ 2mm thick by 2 self-tapping screws Ø6.3mm StSt (on both sides)
Insulation rubber EM5 black
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 377410 was added to Notepad.

Product 377410 was added to the cart.

Part No. 377510 UEBS 16 L500 B10.5 B6.5 AL CU

GTIN 4013364033399, Customs tariff No. (EU): 85359000, Gross weight: 110.00 g, PU: 10.00 pc(s)

Predecessor

Images

Additional information

Bridging cable, 500 mm long
Bridging cable for connecting
or bridging
metal cladding.
Suitable for use
outdoors.
Length: 500 mm
Material of cable lug: Al
Material of cable: Cu
Cross-section: 16 mm2
Fixing : [4x] Ø6.5 / [2x] Ø10.5 mm
Insulation: rubber EM5 black

Brand: DEHN
Type: UEBS 16 L500 B10.5 B6.5 AL CU
Part No.: 377510
or equivalent.

Certificates



Technical data

Length (l1) 500 mm
Material of cable lug Al
Material of cable Cu
Cross-section 16 mm2
Fixing [4x] Ø6.5 / [2x] Ø10.5 mm
Application note Suitable for use outdoors. According to DIN EN 62305-3 Supplement 1, materials ≥ 0.5mm thick shall be connected by 2 rivets Ø6mm, or materials ≥ 2mm thick by 2 self-tapping screws Ø6.3mm StSt (on both sides)
Insulation rubber EM5 black
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 377510 was added to Notepad.

Product 377510 was added to the cart.


Your dashboard services.
Register to access all tools.

Request a risk assessment
back to top
