Connecting / Disconnecting Clamps

Two-piece or three-piece connection system with thread in the base part.

Two-piece, for a round and a flat conductor

2 Products

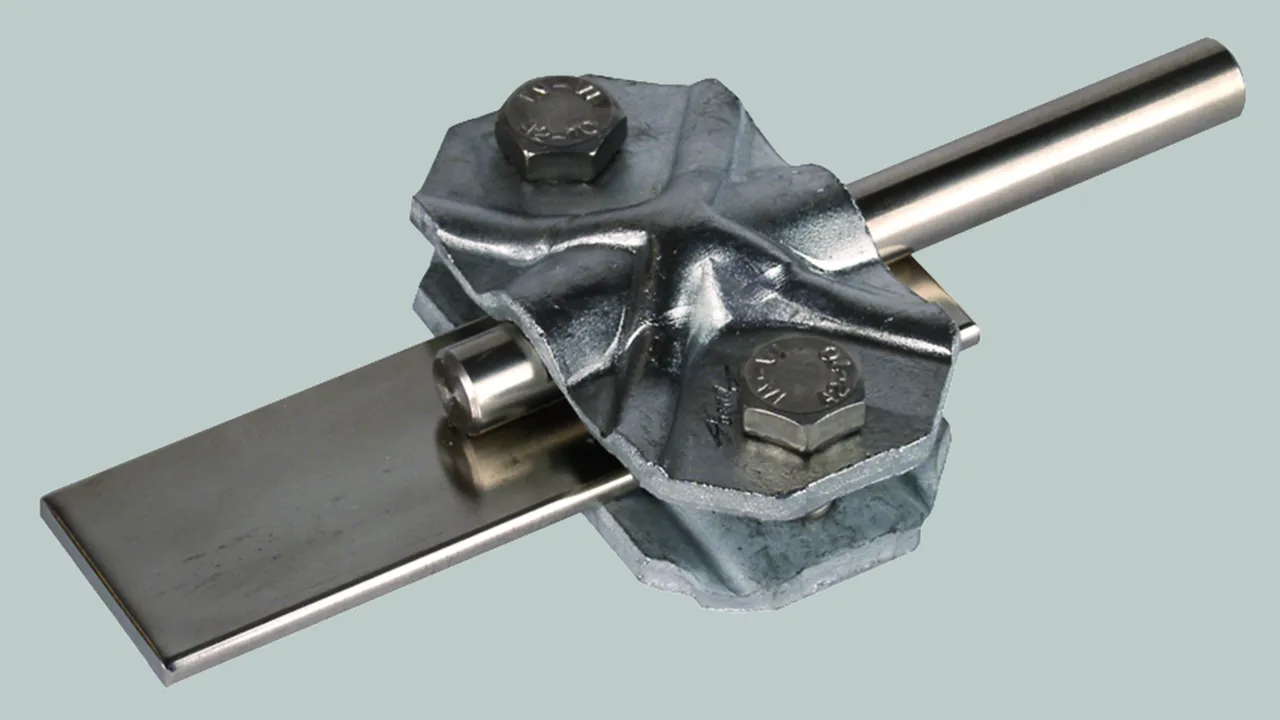

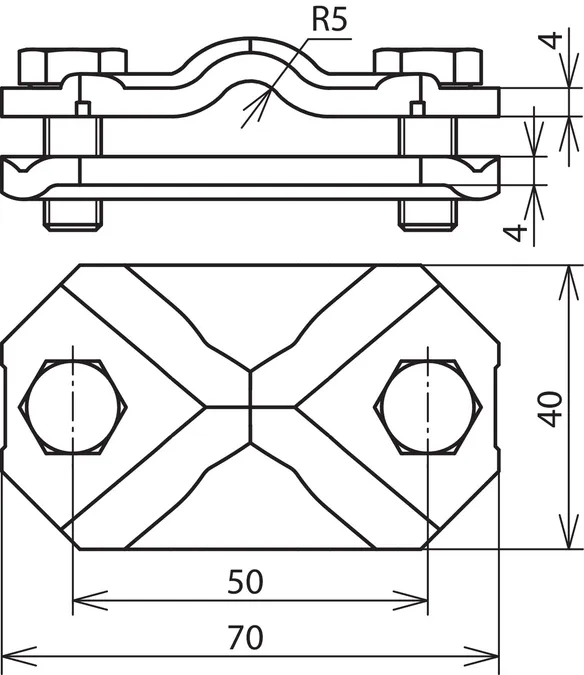

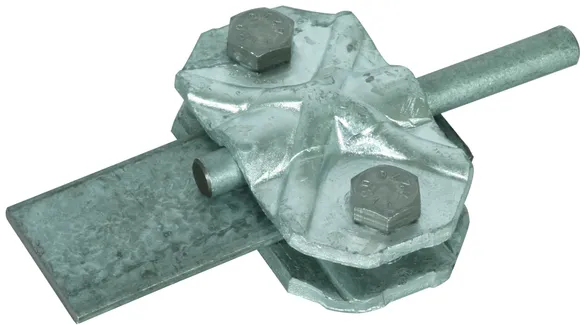

Part No. 454100 VTK 7.10 FL30.40 STTZN

GTIN 4013364035904, Customs tariff No. (EU): 85359000, Gross weight: 181.00 g, PU: 25.00 pc(s)

Images

Open PDF

Additional information

CAD files

Connecting / disconnecting clamps, St/tZn
Connecting / disconnecting clamps
Two-piece connection system for a round and a flat conductor
with threaded base part
Material: St/tZn
Clamping range Rd / Fl: 7-10 / 30-40 mm
Standard: EN 62561-1

Brand: DEHN
Type: VTK 7.10 FL30.40 STTZN
Part No.: 454100
or equivalent.

Certificates

Technical data

Material	St/tZn
Clamping range Rd / Fl	7-10 / 30-40 mm
Standard	EN 62561-1
*⁾ For exact classification, see test certificate.

Product 454100 was added to Notepad.

Go to Notepad

Product 454100 was added to the cart.

Go to Web-Shop

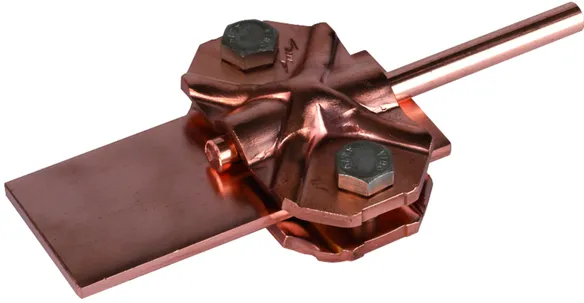

Part No. 454107 VTK 7.10 FL30.40 CU

GTIN 4013364035911, Customs tariff No. (EU): 85359000, Gross weight: 201.90 g, PU: 25.00 pc(s)

Images

Open PDF

Additional information

CAD files

Connecting / disconnecting clamps, Cu
Connecting / disconnecting clamps
Two-piece connection system for a round and a flat conductor
with threaded base part
Material: Cu
Clamping range Rd / Fl: 7-10 / 30-40 mm
Standard: EN 62561-1

Brand: DEHN
Type: VTK 7.10 FL30.40 CU
Part No.: 454107
or equivalent.

Certificates

Technical data

Material	Cu
Clamping range Rd / Fl	7-10 / 30-40 mm
Standard	EN 62561-1
*⁾ For exact classification, see test certificate.

Product 454107 was added to Notepad.

Go to Notepad

Product 454107 was added to the cart.

Go to Web-Shop

Three-piece, (with intermediate plate) for a round and a flat conductor

1 Product

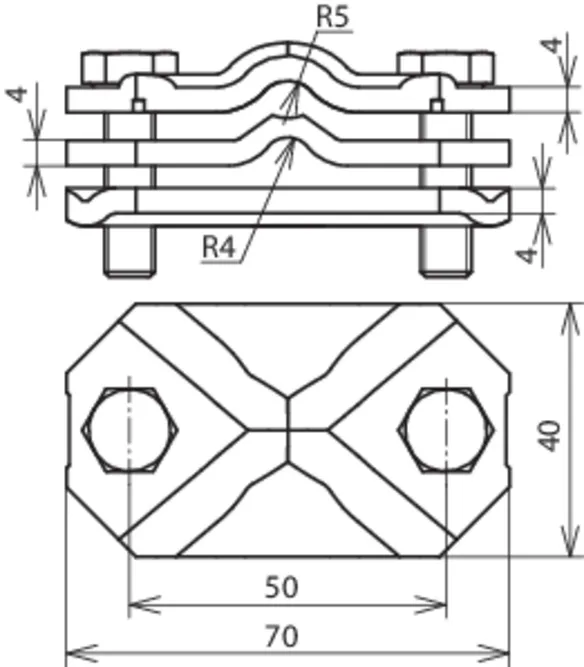

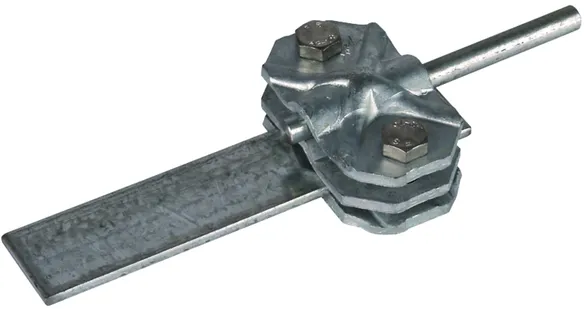

Part No. 454000 VTK 5.10 FL30.40 ZP STTZN

GTIN 4013364025387, Customs tariff No. (EU): 85359000, Gross weight: 265.00 g, PU: 25.00 pc(s)

Images

Open PDF

Additional information

CAD files

Connecting / disconnecting clamps, St/tZn
Connecting / disconnecting clamps
Three-piece connection system for a round and a flat conductor
with threaded base part
Material: St/tZn
Clamping range Rd / Fl: 5-10 / 30-40 mm
Standard: EN 62561-1

Brand: DEHN
Type: VTK 5.10 FL30.40 ZP STTZN
Part No.: 454000
or equivalent.

Certificates

Technical data

Material	St/tZn
Clamping range Rd / Fl	5-10 / 30-40 mm
Standard	EN 62561-1
*⁾ For exact classification, see test certificate.

Product 454000 was added to Notepad.

Go to Notepad

Product 454000 was added to the cart.

Go to Web-Shop

Two-piece, for two flat conductors

1 Product

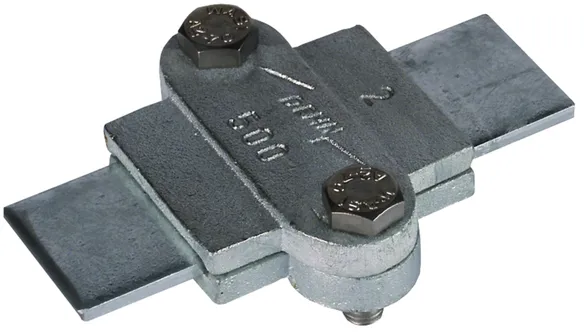

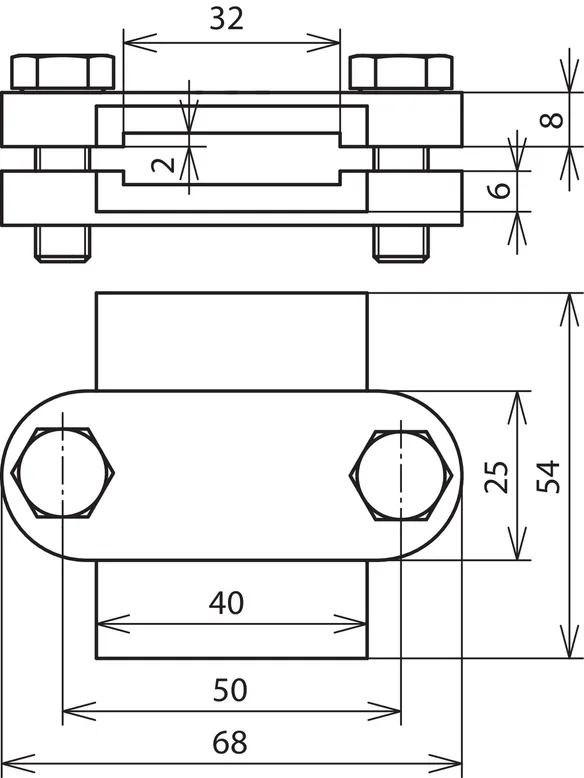

Part No. 455000 VTK FL30 TGTZN

GTIN 4013364025394, Customs tariff No. (EU): 85359000, Gross weight: 253.80 g, PU: 1.00 pc(s)

Images

Open PDF

Additional information

CAD files

Connecting / disconnecting clamps, MCI/tZn
Connecting / disconnecting clamps
Two-piece connection system for flat conductors
with threaded base part
Material: MCI/tZn
Clamping range Fl / Fl: 30 / 30 mm
Standard: EN 62561-1

Brand: DEHN
Type: VTK FL30 TGTZN
Part No.: 455000
or equivalent.

Certificates

Technical data

Material	MCI/tZn
Clamping range Fl / Fl	30 / 30 mm
Standard	EN 62561-1
*⁾ For exact classification, see test certificate.

Product 455000 was added to Notepad.

Go to Notepad

Product 455000 was added to the cart.

Go to Web-Shop
