Earth Connecting Plates

Connecting plate with high short-circuit current carrying capacity
Single-pole connection of the phase arms
For connecting single-pole earthing and short-circuiting devices to transformers of overhead line masts or to fuse holders
For fixed ball points (Ø20 mm, Ø25 mm) or ring groove pins (Ø16 mm)

Details

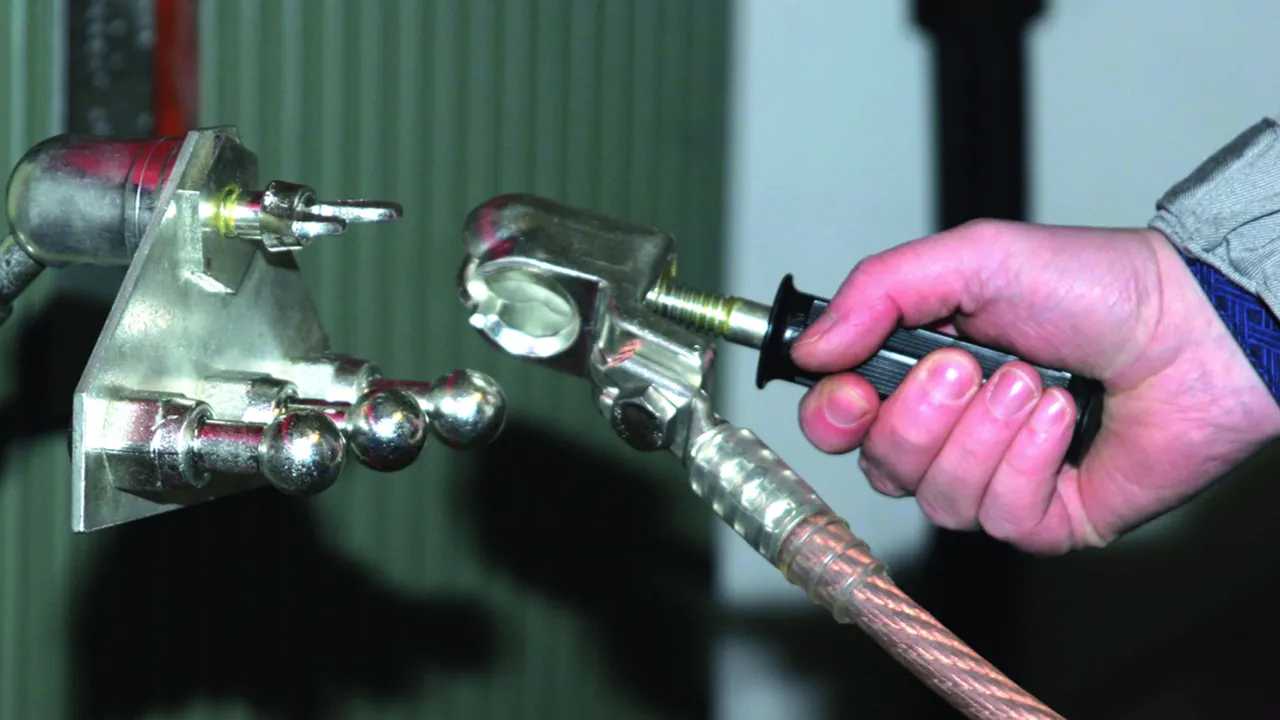

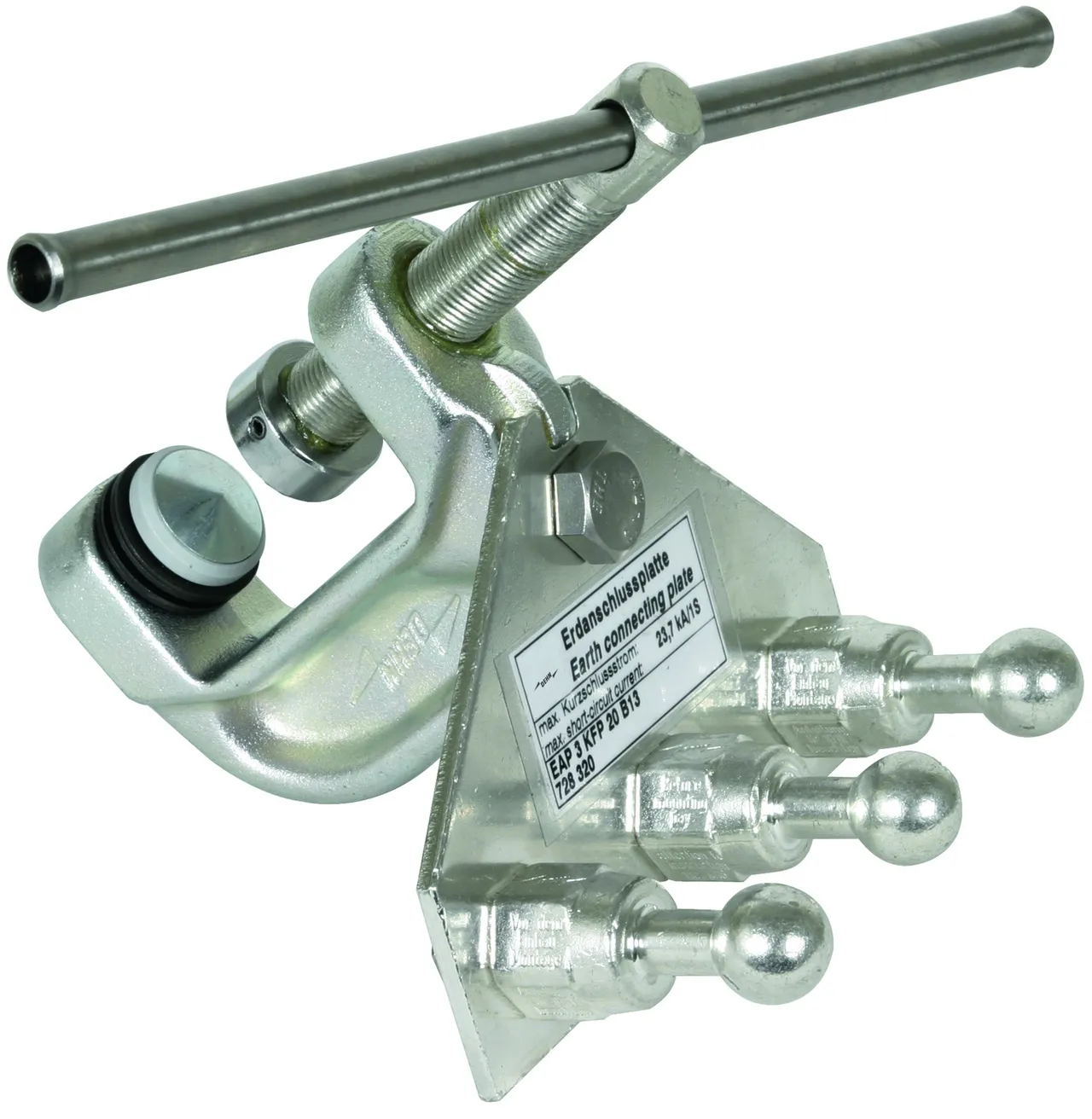

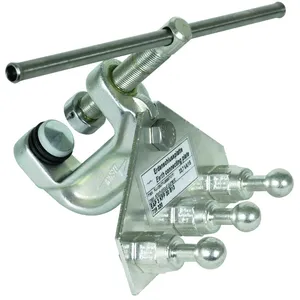

Anti-rotation earth milling clamp mounted on an earth connecting plate

lorem ipsum — Anti-rotation earth milling clamp mounted on an earth connecting plate

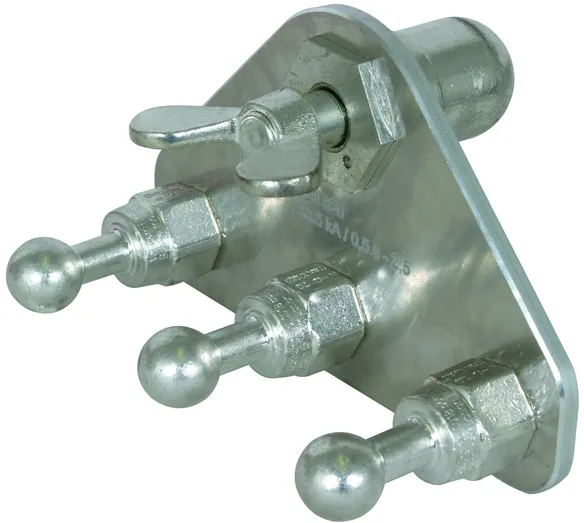

With three Fixed Ball Points and Ball Head Cap

2 Products

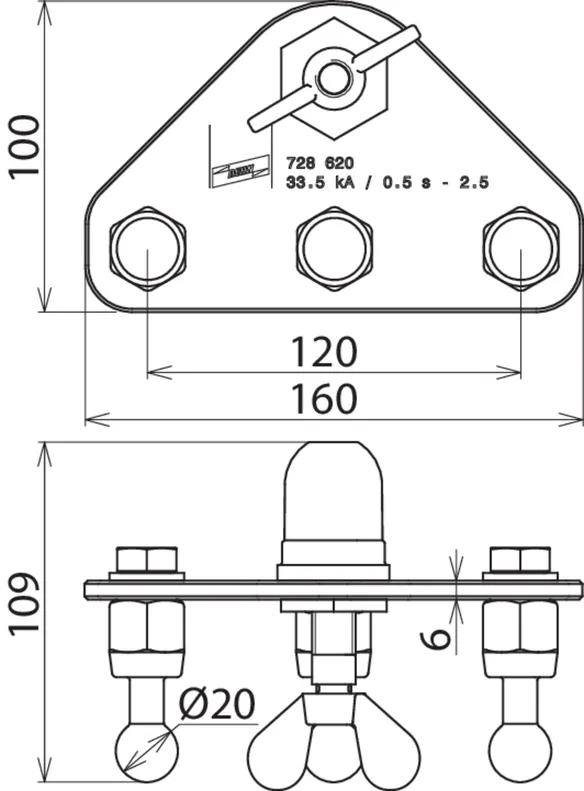

Part No. 728620 EAPA 3 KFP 20 KKH

GTIN 4013364147843, Customs tariff No. (EU): 85359000, Gross weight: 1085.00 g, PU: 1.00 pc(s)

Predecessor

Images

Open PDF

Additional information

Technical data

Fixed point Ø	20 mm
Max. cable cross-section Cu	120 mm²
Max. short-circuit current I_k0.5 s	33.5 kA
Max. short-circuit current I_k1 s	23.7 kA

Fixed point Ø	20 mm
Max. cable cross-section Cu	120 mm²
Max. short-circuit current I_k0.5 s	33.5 kA
Max. short-circuit current I_k1 s	23.7 kA
Standard	EN/IEC 61230 (DIN VDE 0683-100) and fixed points in accordance with DIN 48088-1
Material (plate)	Aluminium
Material (fixed point)	E-Cu/gal Sn
Material (threaded pin)	StSt A2-70

Product 728620 was added to Notepad.

Go to Notepad

Product 728620 was added to the cart.

Go to Web-Shop

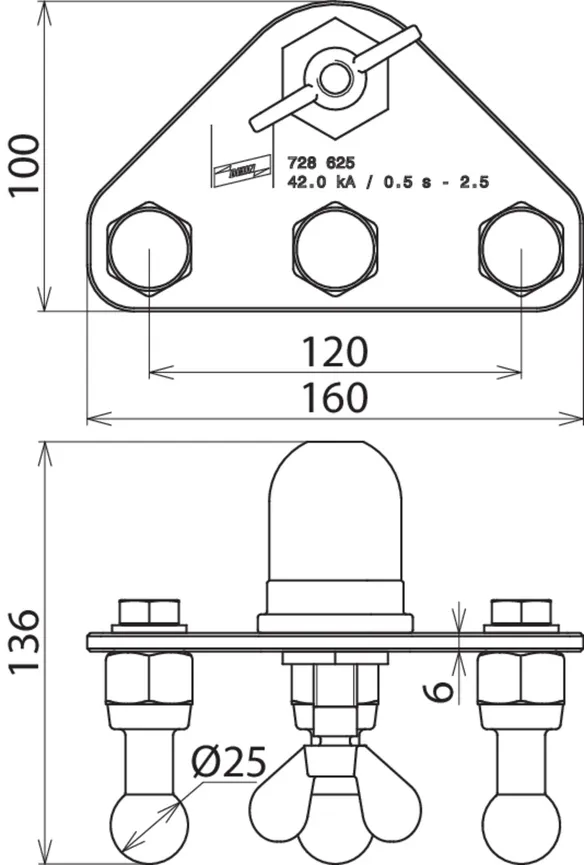

Part No. 728625 EAPA 3 KFP 25 KKH

GTIN 4013364147867, Customs tariff No. (EU): 85359000, Gross weight: 1084.00 g, PU: 1.00 pc(s)

Predecessor

Images

Open PDF

Additional information

Technical data

Fixed point Ø	25 mm
Max. cable cross-section Cu	150 mm²
Max. short-circuit current I_k0.5 s	42.0 kA
Max. short-circuit current I_k1 s	29.6 kA

Fixed point Ø	25 mm
Max. cable cross-section Cu	150 mm²
Max. short-circuit current I_k0.5 s	42.0 kA
Max. short-circuit current I_k1 s	29.6 kA
Standard	EN/IEC 61230 (DIN VDE 0683-100) and fixed points in accordance with DIN 48088-1
Material (plate)	Aluminium
Material (fixed point)	E-Cu/gal Sn
Material (threaded pin)	StSt A2-70

Product 728625 was added to Notepad.

Go to Notepad

Product 728625 was added to the cart.

Go to Web-Shop

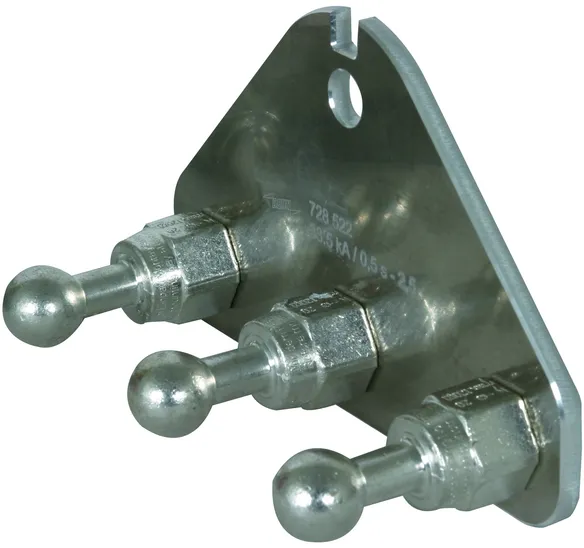

With three Fixed Ball Points

For mounting on earth connecting clamps with PK1 anti-rotation protection.

2 Products

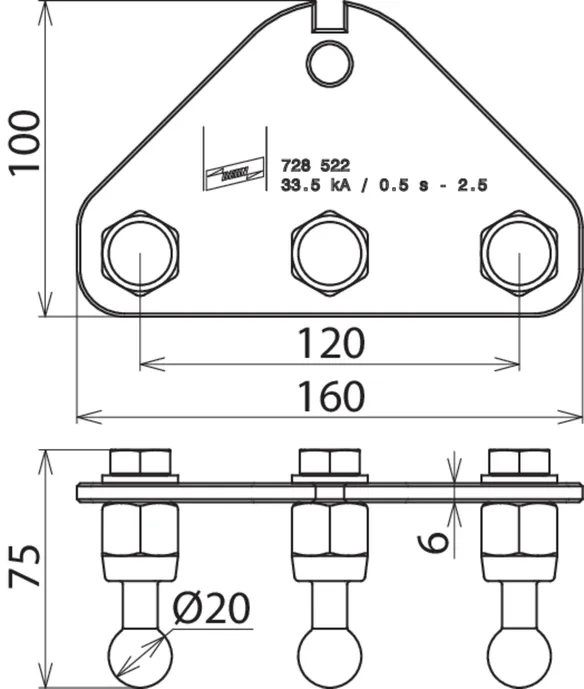

Part No. 728522 EAPA 3 KFP 20 B13

GTIN 4013364147874, Customs tariff No. (EU): 85359000, Gross weight: 756.00 g, PU: 1.00 pc(s)

Predecessor

Images

Open PDF

Additional information

Technical data

Fixed point Ø	20 mm
Max. cable cross-section Cu	120 mm²
Max. short-circuit current I_k0.5 s	33.5 kA
Max. short-circuit current I_k1 s	23.7 kA

Fixed point Ø	20 mm
Max. cable cross-section Cu	120 mm²
Max. short-circuit current I_k0.5 s	33.5 kA
Max. short-circuit current I_k1 s	23.7 kA
Standard	EN/IEC 61230 (DIN VDE 0683-100) and fixed points in accordance with DIN 48088-1
Material (plate)	Aluminium
Material (fixed point)	E-Cu/gal Sn
Material (threaded pin)	StSt A2-70

Product 728522 was added to Notepad.

Go to Notepad

Product 728522 was added to the cart.

Go to Web-Shop

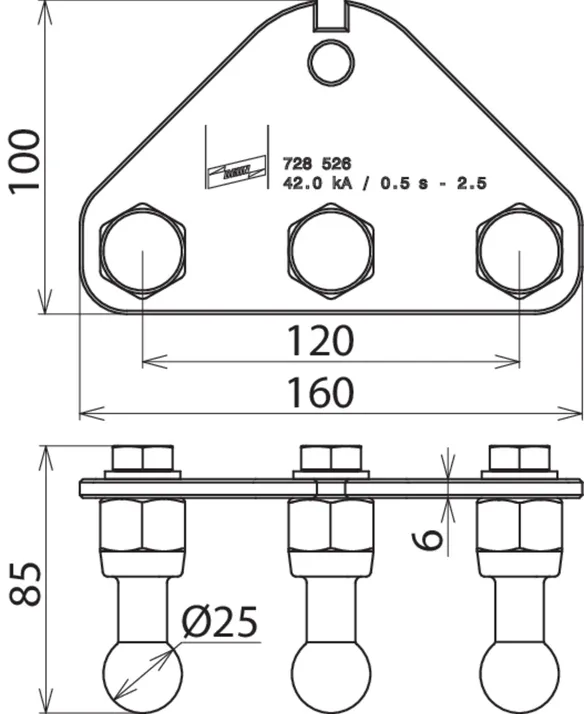

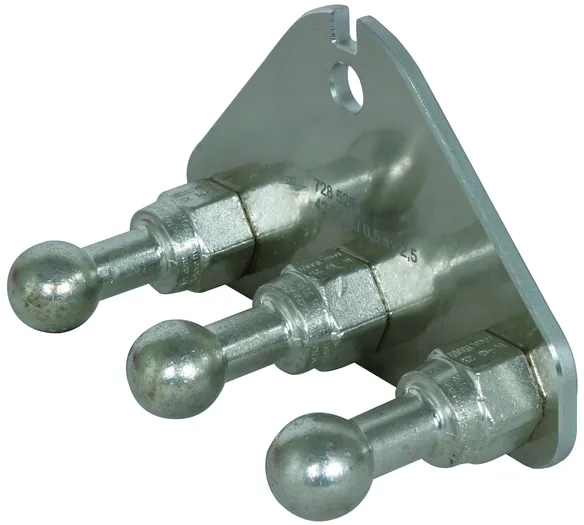

Part No. 728526 EAPA 3 KFP 25 B13

GTIN 4013364147881, Customs tariff No. (EU): 85359000, Gross weight: 1014.00 g, PU: 1.00 pc(s)

Predecessor

Images

Open PDF

Additional information

Technical data

Fixed point Ø	25 mm
Max. cable cross-section Cu	150 mm²
Max. short-circuit current I_k0.5 s	42.0 kA
Max. short-circuit current I_k1 s	29.6 kA

Fixed point Ø	25 mm
Max. cable cross-section Cu	150 mm²
Max. short-circuit current I_k0.5 s	42.0 kA
Max. short-circuit current I_k1 s	29.6 kA
Standard	EN/IEC 61230 (DIN VDE 0683-100) and fixed points in accordance with DIN 48088-1
Material (plate)	Aluminium
Material (fixed point)	E-Cu/gal Sn
Material (threaded pin)	StSt A2-70

Product 728526 was added to Notepad.

Go to Notepad

Product 728526 was added to the cart.

Go to Web-Shop

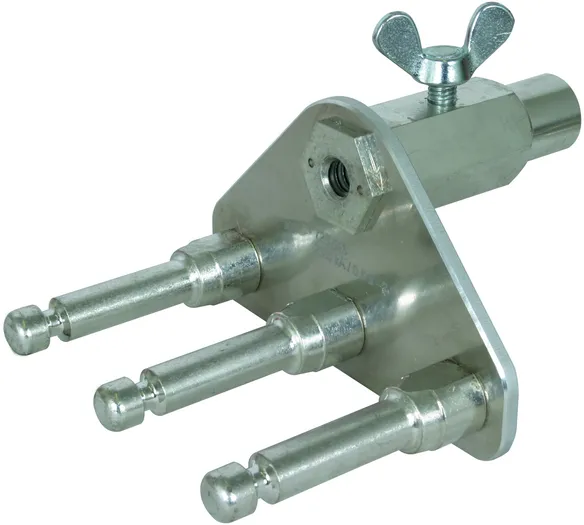

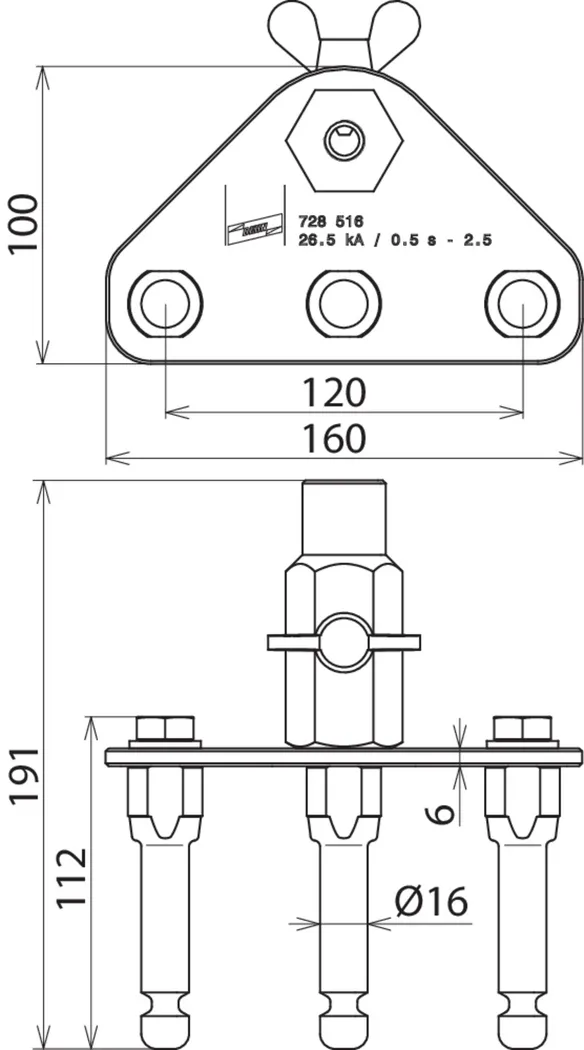

With three Ring Groove Fixed Points and Earth Bushing

1 Product

Part No. 728516 EAPA 3 RN 16 EAB

GTIN 4013364147898, Customs tariff No. (EU): 85359000, Gross weight: 1.54 kg, PU: 1.00 pc(s)

Predecessor

Images

Open PDF

Additional information

Technical data

Fixed point Ø	16 mm
Max. cable cross-section Cu	95 mm²
Max. short-circuit current I_k0.5 s	26.5 kA
Max. short-circuit current I_k1 s	18.7 kA

Fixed point Ø	16 mm
Max. cable cross-section Cu	95 mm²
Max. short-circuit current I_k0.5 s	26.5 kA
Max. short-circuit current I_k1 s	18.7 kA
Standard	EN/IEC 61230 (DIN VDE 0683-100) and fixed points in accordance with DIN 48088-1
Material (plate)	Aluminium
Material (fixed point)	Brass (CuNi2Si) / gal Sn
Material (threaded pin)	StSt A2-70

Product 728516 was added to Notepad.

Go to Notepad

Product 728516 was added to the cart.

Go to Web-Shop

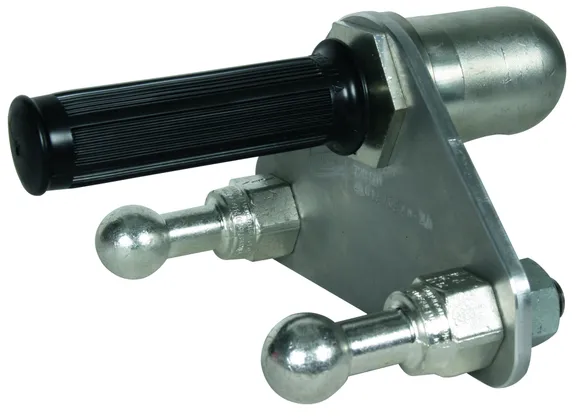

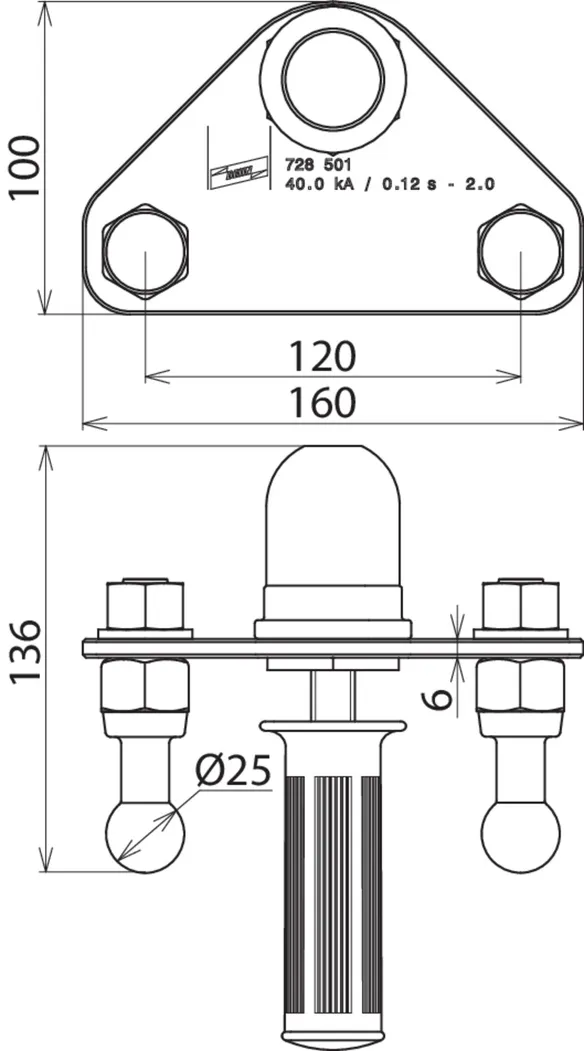

With two Fixed Ball Points and Ball Head Cap

With adjustable ball head cap (Ø25 mm) and plastic handle.
For connecting two single-pole earthing and short-circuiting devices to one fixed ball point (Ø25 mm).

1 Product

Part No. 728501 EAP 2 25 KKH HG

GTIN 4013364079618, Customs tariff No. (EU): 85359000, Gross weight: 1015.00 g, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Technical data

Fixed point Ø	25 mm
DB drawing No.	3 Ebgw 01.66
DB material No.	157 540

Product 728501 was added to Notepad.

Go to Notepad

Product 728501 was added to the cart.

Go to Web-Shop

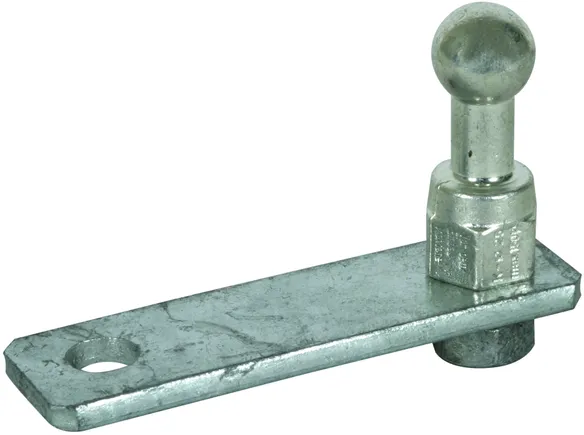

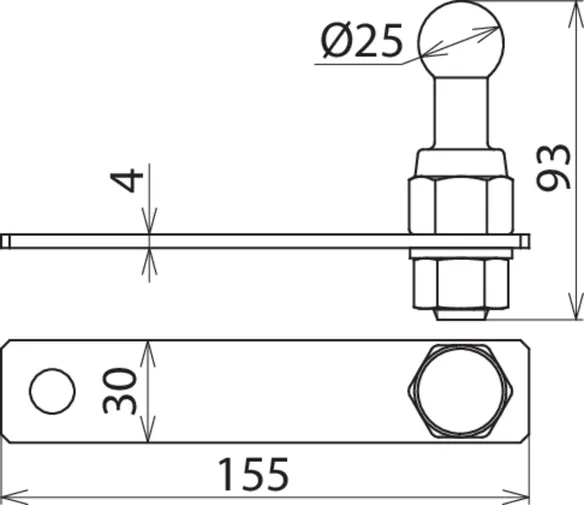

Terminal Lug with one Fixed Ball Point

For connection to a fuse holder.

1 Product

Part No. 728503 EAP 25 SIT US OL

GTIN 4013364079564, Customs tariff No. (EU): 85359000, Gross weight: 453.00 g, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Technical data

Fixed point Ø	25 mm
DB drawing No.	4 Ebgw 01.60
DB material No.	157 545

Product 728503 was added to Notepad.

Go to Notepad

Product 728503 was added to the cart.

Go to Web-Shop

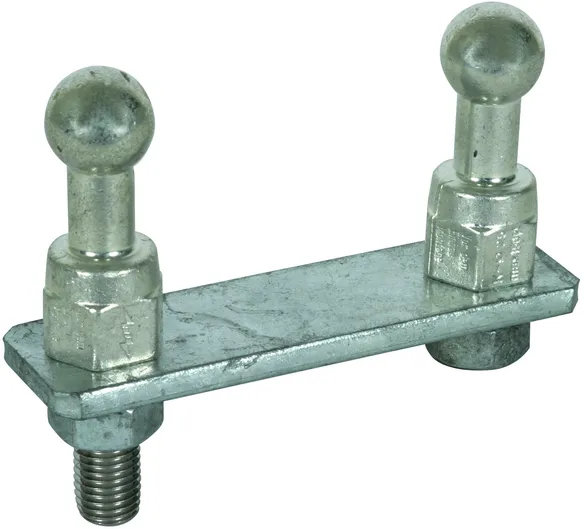

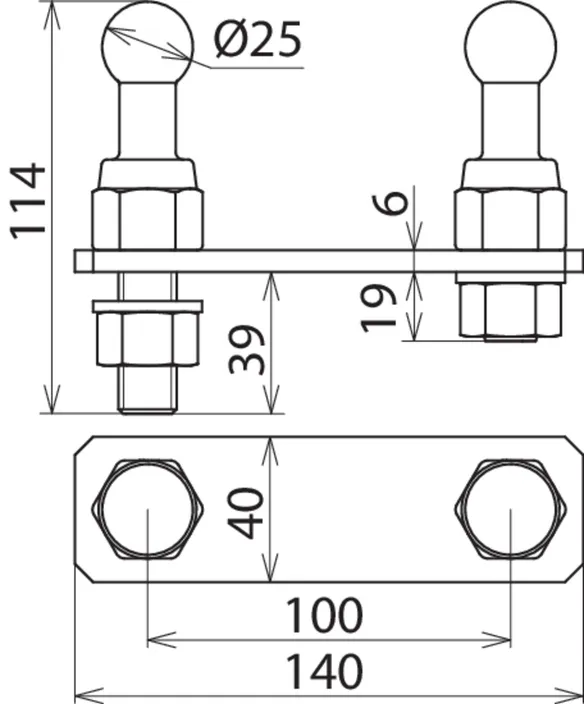

Terminal Lug with two Fixed Ball Points

For connection to the mast.

1 Product

Part No. 728502 EAP 2 25 MA US OL

GTIN 4013364079571, Customs tariff No. (EU): 85359000, Gross weight: 708.00 g, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Technical data

Fixed point Ø	25 mm
DB drawing No.	3 Ebgw 01.61
DB material No.	157 548

Product 728502 was added to Notepad.

Go to Notepad

Product 728502 was added to the cart.

Go to Web-Shop
