Hammer Inserts for Earth Rods

For driving in earth rods with a vibration hammer.
For earth rods type Z and AZ.
Ø20 mm (pin Ø12 mm Part No. 620...) or
Ø25 mm (pin Ø15 mm Part No. 625...)

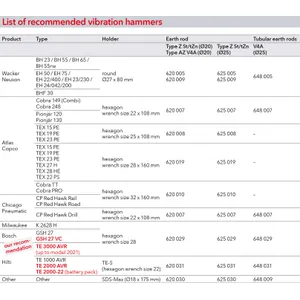

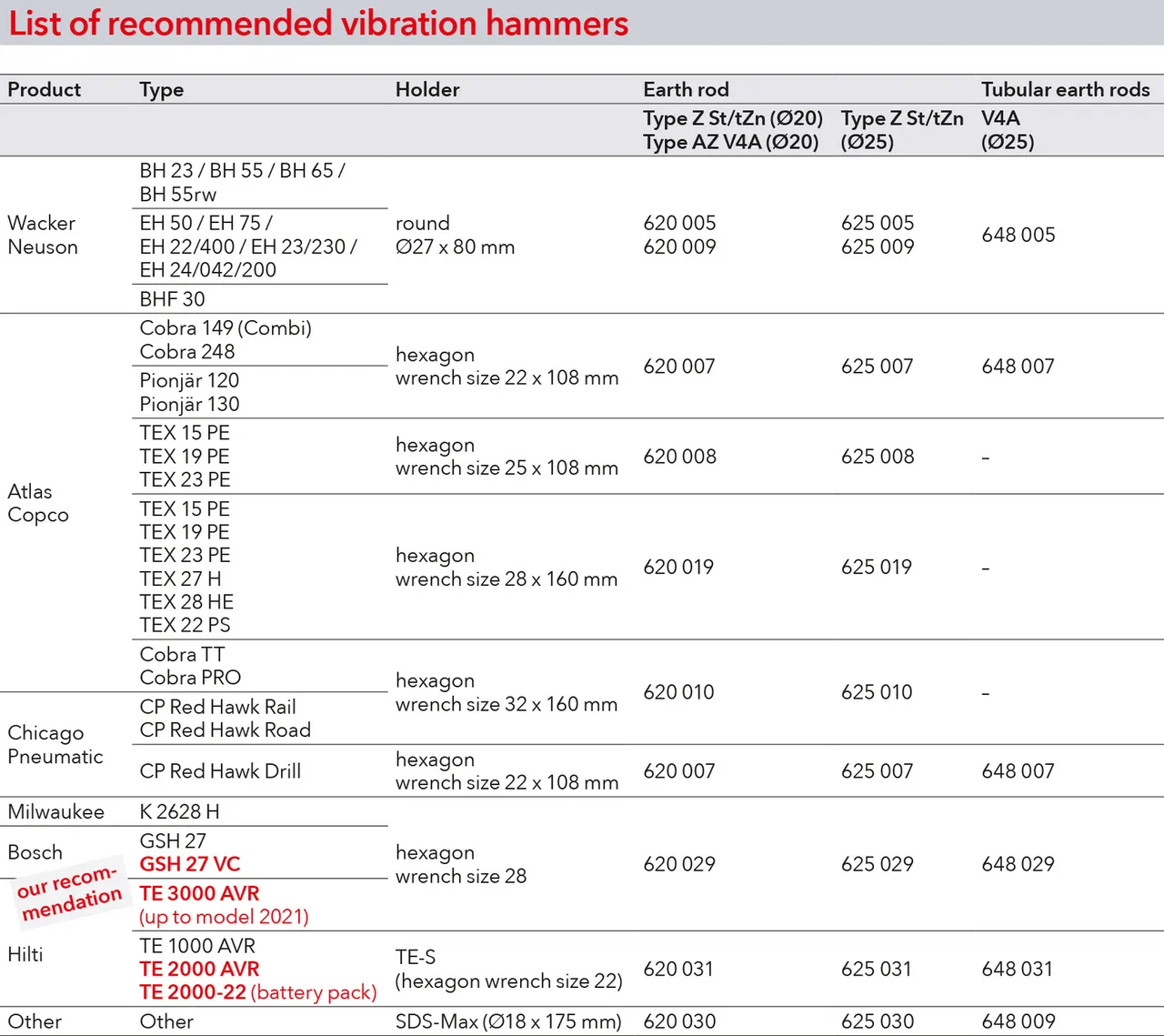

With the Atlas Copco equipment different adapter types can be used. Please note that when placing your order.

Details

Hammer inserts for earth rods and tubular earth electrodes
lorem ipsum

Design for Wacker Neuson

2 Products

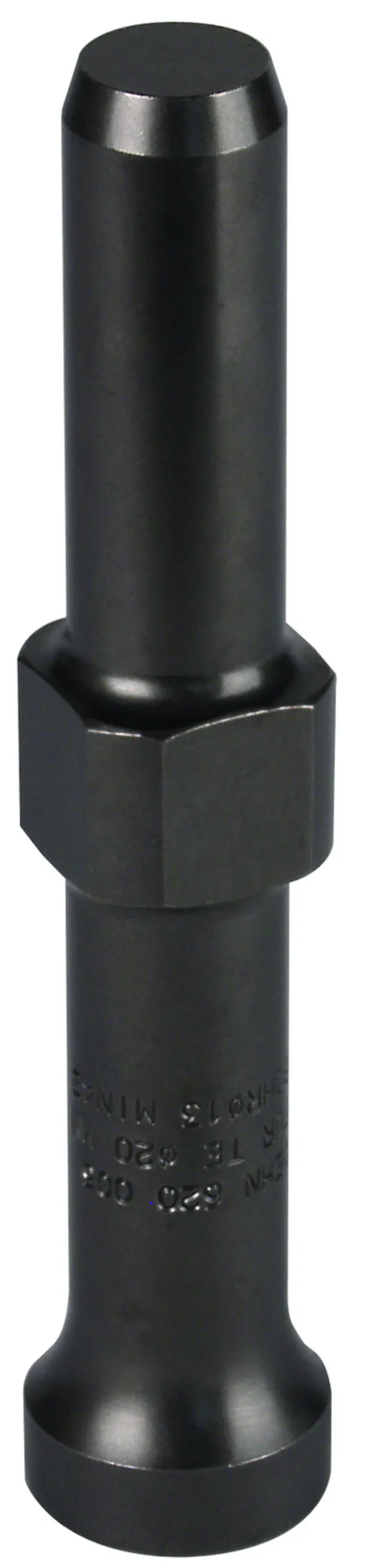

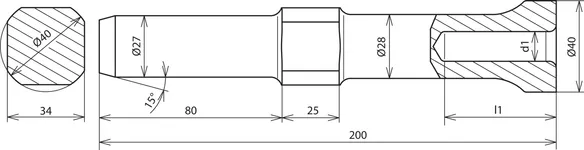

Part No. 620005 HE TE 20 R27 VH WN STBLANK

GTIN 4013364027039, Customs tariff No. (EU): 82079099, Gross weight: 1.07 kg, PU: 1.00 pc(s)

Images

Additional information

Hammer inserts for earth rods
Hammer insert for earth rods
For driving down earth rods with a vibration hammer
Type: BHF 30
Adapter: round Ø27 x 80 mm
Material: St/bare
Hole: 13 x 50 mm

Brand: DEHN
Type: HE TE 20 R27 VH WN STBLANK
Part No.: 620005
or equivalent.



Technical data

Type BHF 30
Adapter round Ø27 x 80 mm
Material St/bare
Hole (d1 x l1) 13 x 50 mm
Length 200 mm
Earth rod diameter 20 mm
Earth rod type Z, AZ
Special hammer insert Part No. 620 039 for earth rods Part No. 620 902 TYPE AZ StSt (V4A).

Product 620005 was added to Notepad.

Go to Notepad

Product 620005 was added to the cart.

Go to Web-Shop

Part No. 625005 HE TE 25 R27 VH WN STBLANK

GTIN 4013364027046, Customs tariff No. (EU): 82079099, Gross weight: 1.05 kg, PU: 1.00 pc(s)

Images

Additional information

Hammer inserts for earth rods
Hammer insert for earth rods
For driving down earth rods with a vibration hammer
Type: BHF 30
Adapter: round Ø27 x 80 mm
Material: St/bare
Hole: 16 x 55 mm

Brand: DEHN
Type: HE TE 25 R27 VH WN STBLANK
Part No.: 625005
or equivalent.



Technical data

Type BHF 30
Adapter round Ø27 x 80 mm
Material St/bare
Hole (d1 x l1) 16 x 55 mm
Length 200 mm
Earth rod diameter 25 mm
Earth rod type S, Z
Special hammer insert Part No. 620 039 for earth rods Part No. 620 902 TYPE AZ StSt (V4A).

Product 625005 was added to Notepad.

Go to Notepad

Product 625005 was added to the cart.

Go to Web-Shop

Heavy design for Wacker Neuson

2 Products

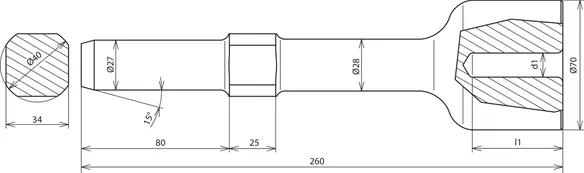

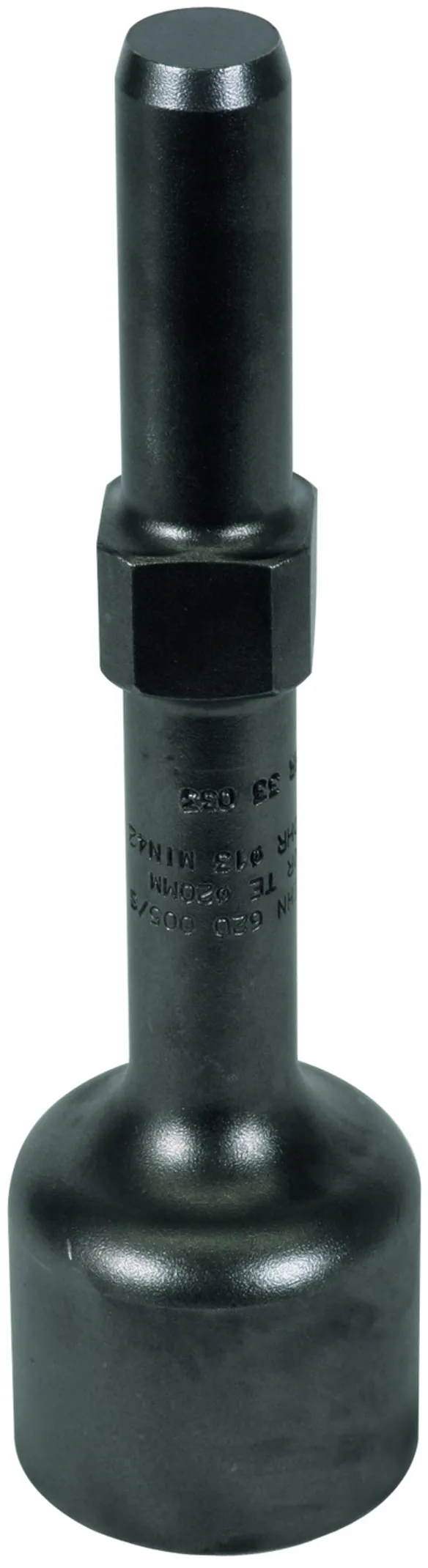

Part No. 620009 HE TE 20 R27 LVH WN STBLANK

GTIN 4013364118119, Customs tariff No. (EU): 82079099, Gross weight: 2.80 kg, PU: 1.00 pc(s)

Images

Additional information

Hammer inserts for earth rods
Hammer insert for earth rods
For driving down earth rods with a vibration hammer
Type: BH 55, BH 65, BH 55rw, EH 50, EH 75 and EH 22/400
Adapter: round Ø27 x 80 mm
Material: St/bare
Hole: 13 x 50 mm

Brand: DEHN
Type: HE TE 20 R27 LVH WN STBLANK
Part No.: 620009
or equivalent.



Technical data

Type BH 55, BH 65, BH 55rw, EH 50, EH 75 and EH 22/400
Adapter round Ø27 x 80 mm
Material St/bare
Hole (d1 x l1) 13 x 50 mm
Length 260 mm
Earth rod diameter 20 mm
Earth rod type Z, AZ

Product 620009 was added to Notepad.

Go to Notepad

Product 620009 was added to the cart.

Go to Web-Shop

Part No. 625009 HE TE 25 R27 LVH WN STBLANK

GTIN 4013364118126, Customs tariff No. (EU): 82079099, Gross weight: 2.80 kg, PU: 1.00 pc(s)

Images

Additional information

Hammer inserts for earth rods
Hammer insert for earth rods
For driving down earth rods with a vibration hammer
Type: BH 55, BH 65, BH 55rw, EH 50, EH 75 and EH 22/400
Adapter: round Ø27 x 80 mm
Material: St/bare
Hole: 16 x 55 mm

Brand: DEHN
Type: HE TE 25 R27 LVH WN STBLANK
Part No.: 625009
or equivalent.



Technical data

Type BH 55, BH 65, BH 55rw, EH 50, EH 75 and EH 22/400
Adapter round Ø27 x 80 mm
Material St/bare
Hole (d1 x l1) 16 x 55 mm
Length 260 mm
Earth rod diameter 25 mm
Earth rod type Z

Product 625009 was added to Notepad.

Go to Notepad

Product 625009 was added to the cart.

Go to Web-Shop

Design for Atlas Copco AF 22

2 Products

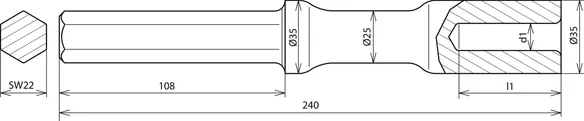

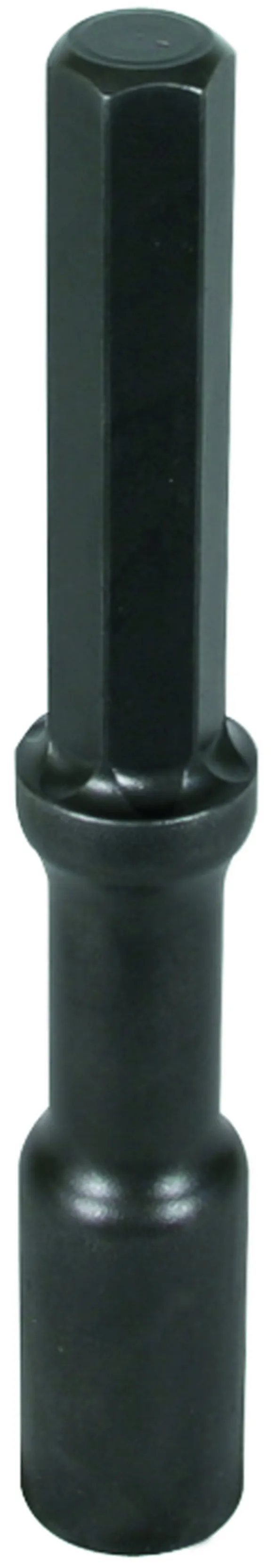

Part No. 620007 HE TE 20 SW22 VH AC STBLANK

GTIN 4013364027084, Customs tariff No. (EU): 82079099, Gross weight: 1.08 kg, PU: 1.00 pc(s)

Images

Additional information

Hammer inserts for earth rods
Hammer insert for earth rods
For driving down earth rods with a vibration hammer
Type: Cobra Combi, Pionjär 120+130, CP Red Hawk (Cobra Standard)
Adapter: hexagon, wrench size 22 x 108 mm
Material: St/bare
Hole: 13 x 50 mm

Brand: DEHN
Type: HE TE 20 SW22 VH AC STBLANK
Part No.: 620007
or equivalent.



Technical data

Type Cobra Combi, Pionjär 120+130, CP Red Hawk (Cobra Standard)
Adapter hexagon, wrench size 22 x 108 mm
Material St/bare
Hole (d1 x l1) 13 x 50 mm
Length 240 mm
Earth rod diameter 20 mm
Earth rod type Z, AZ

Product 620007 was added to Notepad.

Go to Notepad

Product 620007 was added to the cart.

Go to Web-Shop

Part No. 625007 HE TE 25 SW22 VH AC STBLANK

GTIN 4013364027091, Customs tariff No. (EU): 82079099, Gross weight: 1.03 kg, PU: 1.00 pc(s)

Images

Additional information

Hammer inserts for earth rods
Hammer insert for earth rods
For driving down earth rods with a vibration hammer
Type: Cobra Combi, Pionjär 120+130, CP Red Hawk (Cobra Standard)
Adapter: hexagon, wrench size 22 x 108 mm
Material: St/bare
Hole: 16 x 55 mm

Brand: DEHN
Type: HE TE 25 SW22 VH AC STBLANK
Part No.: 625007
or equivalent.



Technical data

Type Cobra Combi, Pionjär 120+130, CP Red Hawk (Cobra Standard)
Adapter hexagon, wrench size 22 x 108 mm
Material St/bare
Hole (d1 x l1) 16 x 55 mm
Length 240 mm
Earth rod diameter 25 mm
Earth rod type Z

Product 625007 was added to Notepad.

Go to Notepad

Product 625007 was added to the cart.

Go to Web-Shop

Design for Atlas Copco AF 25

2 Products

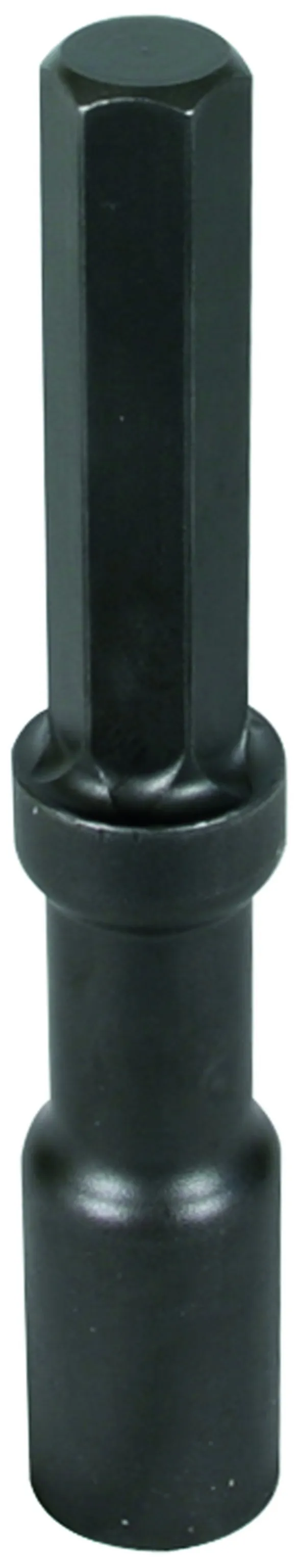

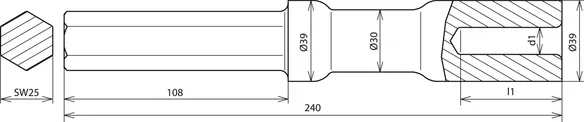

Part No. 620008 HE TE 20 SW25 VH AC STBLANK

GTIN 4013364066151, Customs tariff No. (EU): 82079099, Gross weight: 1.44 kg, PU: 1.00 pc(s)

Images

Additional information

Hammer inserts for earth rods
Hammer insert for earth rods
For driving down earth rods with a vibration hammer
Type: TEX 15 PE, 19 PE, 23 PE
Adapter: hexagon, wrench size 25 x 108 mm
Material: St/bare
Hole: 13 x 50 mm

Brand: DEHN
Type: HE TE 20 SW25 VH AC STBLANK
Part No.: 620008
or equivalent.



Technical data

Type TEX 15 PE, 19 PE, 23 PE
Adapter hexagon, wrench size 25 x 108 mm
Material St/bare
Hole (d1 x l1) 13 x 50 mm
Length 240 mm
Earth rod diameter 20 mm
Earth rod type Z, AZ

Product 620008 was added to Notepad.

Go to Notepad

Product 620008 was added to the cart.

Go to Web-Shop

Part No. 625008 HE TE 25 SW25 VH AC STBLANK

GTIN 4013364066144, Customs tariff No. (EU): 82079099, Gross weight: 1.41 kg, PU: 1.00 pc(s)

Images

Additional information

Hammer inserts for earth rods
Hammer insert for earth rods
For driving down earth rods with a vibration hammer
Type: TEX 15 PE, 19 PE, 23 PE
Adapter: hexagon, wrench size 25 x 108 mm
Material: St/bare
Hole: 16 x 55 mm

Brand: DEHN
Type: HE TE 25 SW25 VH AC STBLANK
Part No.: 625008
or equivalent.



Technical data

Type TEX 15 PE, 19 PE, 23 PE
Adapter hexagon, wrench size 25 x 108 mm
Material St/bare
Hole (d1 x l1) 16 x 55 mm
Length 240 mm
Earth rod diameter 25 mm
Earth rod type Z

Product 625008 was added to Notepad.

Go to Notepad

Product 625008 was added to the cart.

Go to Web-Shop

Design for Atlas Copco AF 28

2 Products

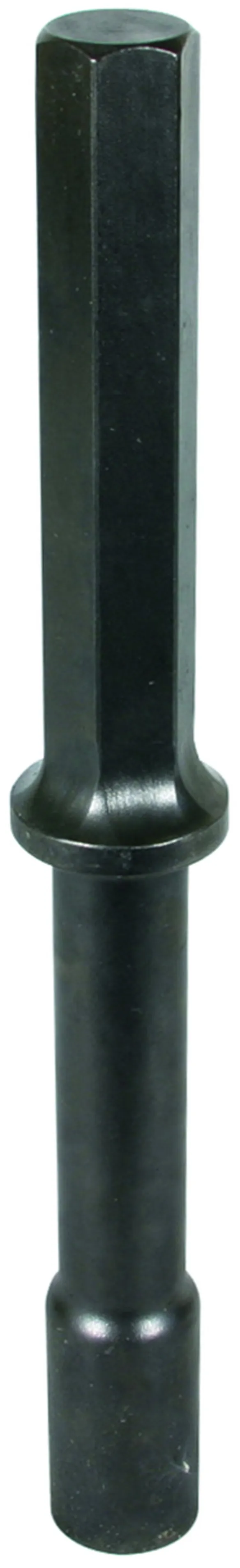

Part No. 620019 HE TE 20 SW28 VH AC STBLANK

GTIN 4013364027008, Customs tariff No. (EU): 82079099, Gross weight: 1.98 kg, PU: 1.00 pc(s)

Images

Additional information

Hammer inserts for earth rods
Hammer insert for earth rods
For driving down earth rods with a vibration hammer
Type: TEX 28 HE, 27 H, 15 PE, 19 PE, 23 PE, 22 PS
Adapter: hexagon, wrench size 28 x 160 mm
Material: St/bare
Hole: 13 x 50 mm

Brand: DEHN
Type: HE TE 20 SW28 VH AC STBLANK
Part No.: 620019
or equivalent.



Technical data

Type TEX 28 HE, 27 H, 15 PE, 19 PE, 23 PE, 22 PS
Adapter hexagon, wrench size 28 x 160 mm
Material St/bare
Hole (d1 x l1) 13 x 50 mm
Length 350 mm
Earth rod diameter 20 mm
Earth rod type Z, AZ

Product 620019 was added to Notepad.

Go to Notepad

Product 620019 was added to the cart.

Go to Web-Shop

Part No. 625019 HE TE 25 SW28 VH AC STBLANK

GTIN 4013364027015, Customs tariff No. (EU): 82079099, Gross weight: 2.08 kg, PU: 1.00 pc(s)

Images

Additional information

Hammer inserts for earth rods
Hammer insert for earth rods
For driving down earth rods with a vibration hammer
Type: TEX 28 HE, 27 H, 15 PE, 19 PE, 23 PE, 22 PS
Adapter: hexagon, wrench size 28 x 160 mm
Material: St/bare
Hole: 16 x 55 mm

Brand: DEHN
Type: HE TE 25 SW28 VH AC STBLANK
Part No.: 625019
or equivalent.



Technical data

Type TEX 28 HE, 27 H, 15 PE, 19 PE, 23 PE, 22 PS
Adapter hexagon, wrench size 28 x 160 mm
Material St/bare
Hole (d1 x l1) 16 x 55 mm
Length 350 mm
Earth rod diameter 25 mm
Earth rod type Z

Product 625019 was added to Notepad.

Go to Notepad

Product 625019 was added to the cart.

Go to Web-Shop

Design for Atlas Copco AF 32

2 Products

Part No. 620010 HE TE 20 SW32 VH AC STBLANK

GTIN 4013364244764, Customs tariff No. (EU): 82079099, Gross weight: 2.31 kg, PU: 1.00 pc(s)

Images

Additional information

Hammer inserts for earth rods
Hammer insert for earth rods
For driving down earth rods with a vibration hammer
Type: TT, PRO, MK1
Adapter: hexagon, wrench size 32 x 160 mm
Material: St/bare
Hole: 13 x 50 mm

Brand: DEHN
Type: HE TE 20 SW32 VH AC STBLANK
Part No.: 620010
or equivalent.



Technical data

Type TT, PRO, MK1
Adapter hexagon, wrench size 32 x 160 mm
Material St/bare
Hole (d1 x l1) 13 x 50 mm
Length 350 mm
Earth rod diameter 20 mm
Earth rod type Z, AZ

Product 620010 was added to Notepad.

Go to Notepad

Product 620010 was added to the cart.

Go to Web-Shop

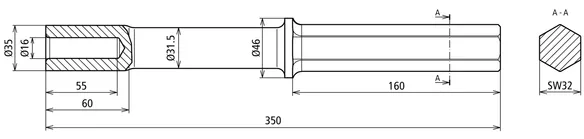

Part No. 625010 HE TE 25 SW32 VH AC STBLANK

GTIN 4013364157613, Customs tariff No. (EU): 82079099, Gross weight: 2.25 kg, PU: 1.00 pc(s)

Images

Additional information

Hammer inserts for earth rods
Hammer insert for earth rods
For driving down earth rods with a vibration hammer
Type: TT, PRO, MK1
Adapter: hexagon, wrench size 32 x 160 mm
Material: St/bare
Hole: 16 x 55 mm

Brand: DEHN
Type: HE TE 25 SW32 VH AC STBLANK
Part No.: 625010
or equivalent.



Technical data

Type TT, PRO, MK1
Adapter hexagon, wrench size 32 x 160 mm
Material St/bare
Hole (d1 x l1) 16 x 55 mm
Length 350 mm
Earth rod diameter 25 mm
Earth rod type Z, AZ

Product 625010 was added to Notepad.

Go to Notepad

Product 625010 was added to the cart.

Go to Web-Shop

Design for Bosch / Hilti / Milwaukee

2 Products

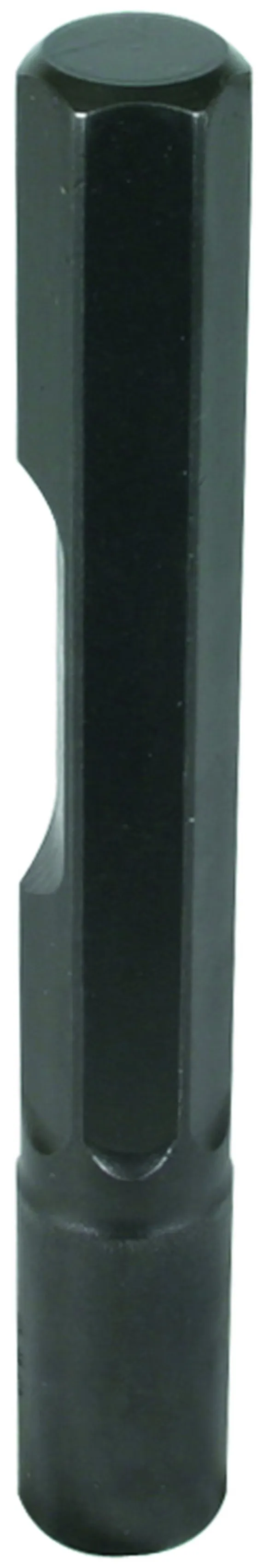

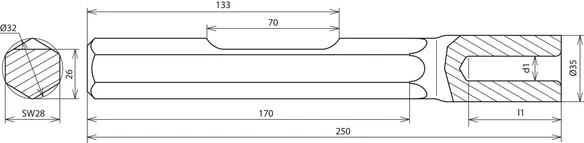

Part No. 620029 HE TE 20 SW28 VH BO STBLANK

GTIN 4013364066113, Customs tariff No. (EU): 82079099, Gross weight: 1.43 kg, PU: 1.00 pc(s)

Images

Additional information

Hammer inserts for earth rods
Hammer insert for earth rods
For driving down earth rods with vibrating hammers
Type: GSH 27 / TE 3000 AVR (up to 2021 model) / K 2628 h
Adapter: hexagon, wrench size 28 (1 1/8'')
Material: St/bare
Hole: 13 x 50 mm

Brand: DEHN
Type: HE TE 20 SW28 VH BO STBLANK
Part No.: 620029
or equivalent.



Technical data

Type GSH 27 / TE 3000 AVR (up to 2021 model) / K 2628 h
Adapter hexagon, wrench size 28 (1 1/8'')
Material St/bare
Hole (d1 x l1) 13 x 50 mm
Length 250 mm
Earth rod diameter 20 mm
Earth rod type Z, AZ

Product 620029 was added to Notepad.

Go to Notepad

Product 620029 was added to the cart.

Go to Web-Shop

Part No. 625029 HE TE 25 SW28 VH BO STBLANK

GTIN 4013364066120, Customs tariff No. (EU): 82079099, Gross weight: 1.41 kg, PU: 1.00 pc(s)

Images

Additional information

Hammer inserts for earth rods
Hammer insert for earth rods
For driving down earth rods with vibrating hammers
Type: GSH 27 / TE 3000 AVR (up to 2021 model) / K 2628 h
Adapter: hexagon, wrench size 28 (1 1/8'')
Material: St/bare
Hole: 16 x 55 mm

Brand: DEHN
Type: HE TE 25 SW28 VH BO STBLANK
Part No.: 625029
or equivalent.



Technical data

Type GSH 27 / TE 3000 AVR (up to 2021 model) / K 2628 h
Adapter hexagon, wrench size 28 (1 1/8'')
Material St/bare
Hole (d1 x l1) 16 x 55 mm
Length 250 mm
Earth rod diameter 25 mm
Earth rod type Z

Product 625029 was added to Notepad.

Go to Notepad

Product 625029 was added to the cart.

Go to Web-Shop

Design for Hilti TE-S

2 Products

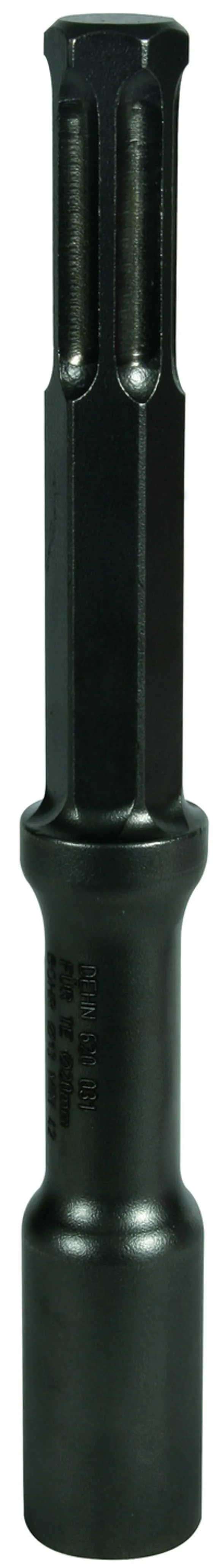

Part No. 620031 HE TE 20 TES VH HI STBLANK

GTIN 4013364244849, Customs tariff No. (EU): 82079099, Gross weight: 1.13 kg, PU: 1.00 pc(s)

Images

Additional information

Hammer inserts for earth rods
Hammer insert for earth rods
For driving down earth rods with a vibration hammer
Type: vibration / impact hammer with TE-S adapter
Adapter: hexagon, wrench size 22
Material: St/bare
Hole: 13 x 50 mm

Brand: DEHN
Type: HE TE 20 TES VH HI STBLANK
Part No.: 620031
or equivalent.

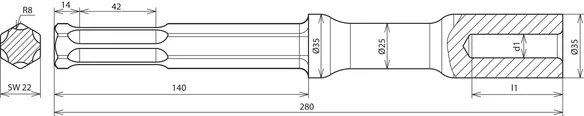

Technical data

Type vibration / impact hammer with TE-S adapter
Adapter hexagon, wrench size 22
Material St/bare
Hole (d1 x l1) 13 x 50 mm
Length 280 mm
Earth rod diameter 20 mm
Earth rod type Z, AZ

Product 620031 was added to Notepad.

Go to Notepad

Product 620031 was added to the cart.

Go to Web-Shop

Part No. 625031 HE TE 25 TES VH HI STBLANK

GTIN 4013364244856, Customs tariff No. (EU): 82079099, Gross weight: 1.44 kg, PU: 1.00 pc(s)

Images

Additional information

Hammer inserts for earth rods
Hammer insert for earth rods
For driving down earth rods with a vibration hammer
Type: vibration / impact hammer with TE-S adapter
Adapter: hexagon, wrench size 22
Material: St/bare
Hole: 16 x 55 mm

Brand: DEHN
Type: HE TE 25 TES VH HI STBLANK
Part No.: 625031
or equivalent.



Technical data

Type vibration / impact hammer with TE-S adapter
Adapter hexagon, wrench size 22
Material St/bare
Hole (d1 x l1) 16 x 55 mm
Length 280 mm
Earth rod diameter 25 mm
Earth rod type Z

Product 625031 was added to Notepad.

Go to Notepad

Product 625031 was added to the cart.

Go to Web-Shop

Design for SDS-max

2 Products

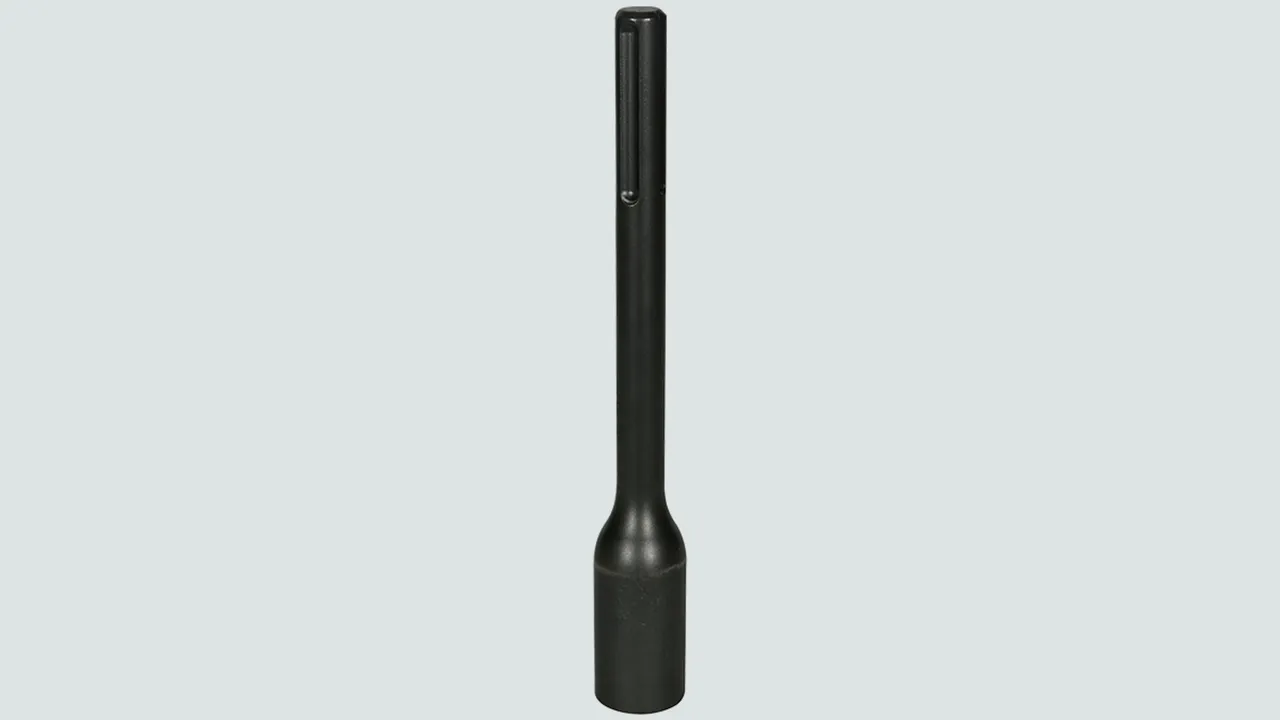

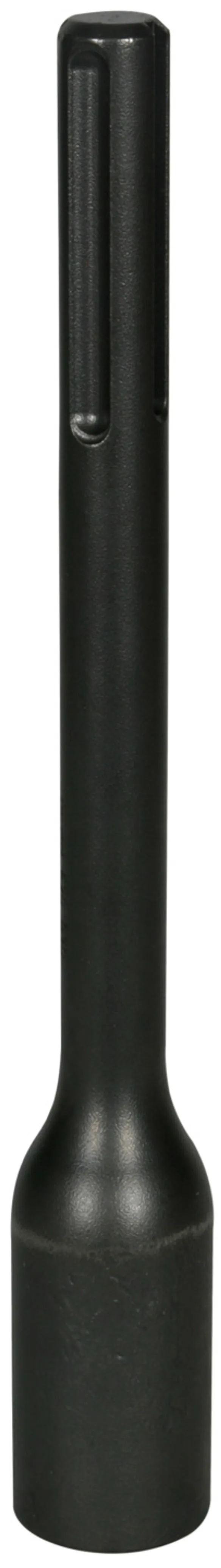

Part No. 620030 HE TE 20 SDS MAX VH STBLANK

GTIN 4013364244818, Customs tariff No. (EU): 82079099, Gross weight: 800.00 g, PU: 1.00 pc(s)

Images

Additional information

Hammer inserts for earth rods
Hammer insert for earth rods
For driving down earth rods with a vibration hammer
Type: vibration / impact hammer with SDS-max adapter
Adapter: round Ø18 x 175 mm
Material: St/bare
Hole: 13 x 50 mm

Brand: DEHN
Type: HE TE 20 SDS MAX VH STBLANK
Part No.: 620030
or equivalent.

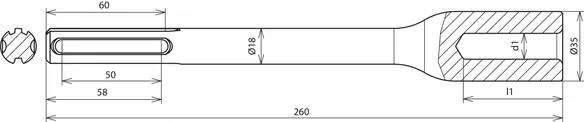

Technical data

Type vibration / impact hammer with SDS-max adapter
Adapter round Ø18 x 175 mm
Material St/bare
Hole (d1 x l1) 13 x 50 mm
Length 260 mm
Earth rod diameter 20 mm
Earth rod type Z, AZ
Note: It is recommended to use a hammer with a minimum striking force of 26 joules. The maximum drive-in depth depends on the soil conditions.

Product 620030 was added to Notepad.

Go to Notepad

Product 620030 was added to the cart.

Go to Web-Shop

Part No. 625030 HE TE 25 SDS MAX VH STBLANK

GTIN 4013364244825, Customs tariff No. (EU): 82079099, Gross weight: 760.00 g, PU: 1.00 pc(s)

Images

Additional information

Hammer inserts for earth rods
Hammer insert for earth rods
For driving down earth rods with a vibration hammer
Type: vibration / impact hammer with SDS-max adapter
Adapter: round Ø18 x 175 mm
Material: St/bare
Hole: 16 x 55 mm

Brand: DEHN
Type: HE TE 25 SDS MAX VH STBLANK
Part No.: 625030
or equivalent.



Technical data

Type vibration / impact hammer with SDS-max adapter
Adapter round Ø18 x 175 mm
Material St/bare
Hole (d1 x l1) 16 x 55 mm
Length 260 mm
Earth rod diameter 25 mm
Earth rod type Z
Note: It is recommended to use a hammer with a minimum striking force of 26 joules. The maximum drive-in depth depends on the soil conditions.

Product 625030 was added to Notepad.

Go to Notepad

Product 625030 was added to the cart.

Go to Web-Shop

Your dashboard services.
Register to access all tools.

Notepad
Request a risk assessment
back to top
