Two-pole SPN voltage detector for power supply
:quality(98)/dehn.us/store/f/49313670/HDVORSCHAU/766541a1_16-9.jpg)
:quality(98)/dehn.us/store/f/49313670/HDVORSCHAU/766541a1_16-9.jpg)
- Extremely shock-resistant, waterproof and dust-proof enclosure
- Test ball with additional phase, rotation field and continuity test
- Two versions with different measuring ranges
- For use in overhead line networks by attaching extension prods
- No battery required

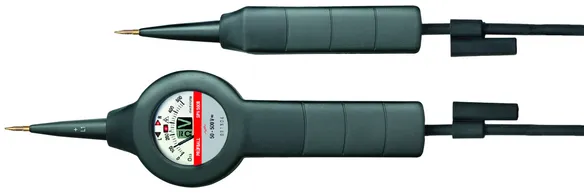

Part No. 766660 SPN 500B
GTIN 4013364302464, Customs tariff No. (EU): 90303370, Gross weight: 460.00 g, PU: 1.00 pc(s)
Images
:quality(98)/dehn.us/store/f/49313676/HDVORSCHAU/766660.jpg)
:quality(98)/dehn.us/store/f/49313676/HDVORSCHAU/766660.jpg)
Certificates
Technical data
| Nominal voltage range (UN ) | 50 ... 500 V |
| Frequency range | 15 ... 500 Hz and DC |
| Dimensions (indicator) | 274 x 75 x 47 mm |
Part No. 766665 SPN 1000B
GTIN 4013364302488, Customs tariff No. (EU): 90303370, Gross weight: 460.00 g, PU: 1.00 pc(s)
Images
:quality(98)/dehn.us/store/f/49313684/HDVORSCHAU/766660.jpg)
:quality(98)/dehn.us/store/f/49313684/HDVORSCHAU/766660.jpg)
Certificates
Technical data
| Nominal voltage range (UN ) | 50 ... 1000 V |
| Frequency range | 15 ... 500 Hz and DC |
| Dimensions (indicator) | 274 x 75 x 47 mm |
