Discharge and Equipotential Bonding Devices

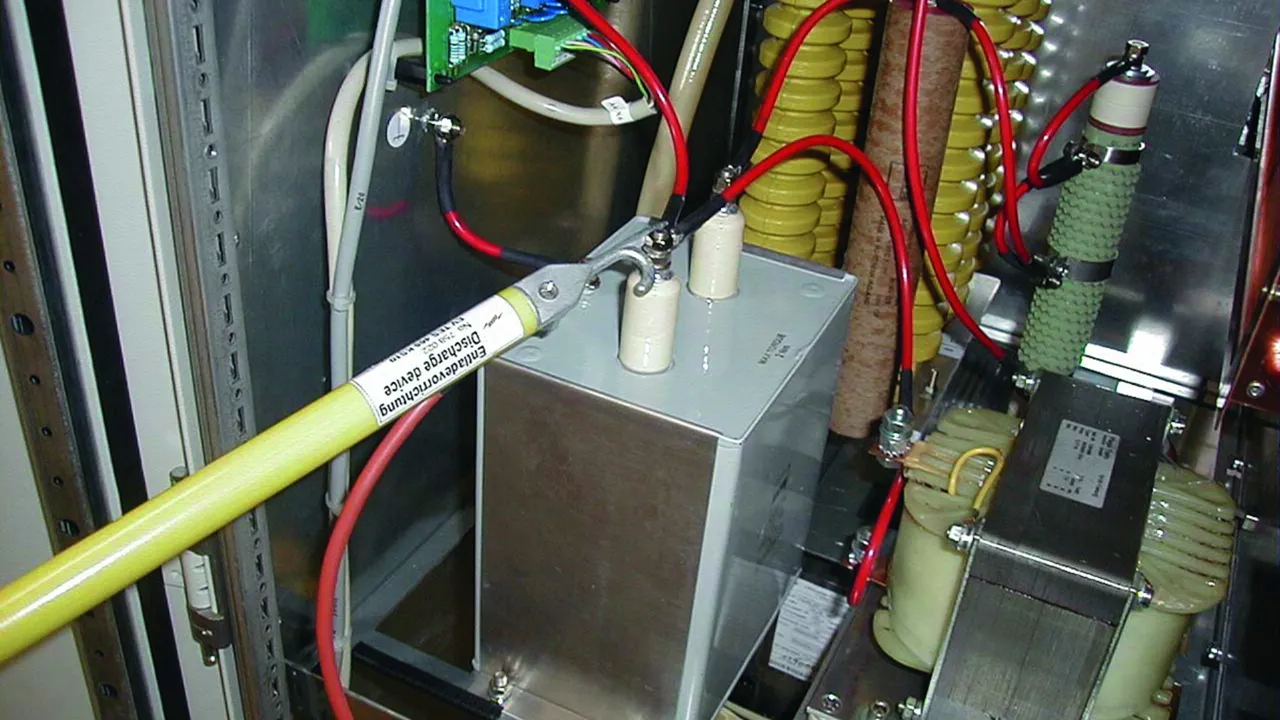

For discharging static charges
Different contact electrodes
Coupling electrode, especially for round conductors (Ø12 ... 26.5 mm) of electrostatic precipitator systems
Waterproof, plastic-sheathed cable entries, with additional anti-kink protection

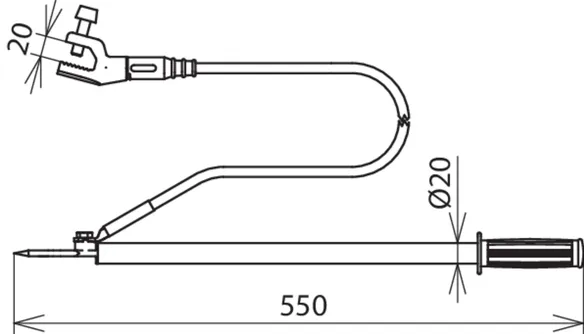

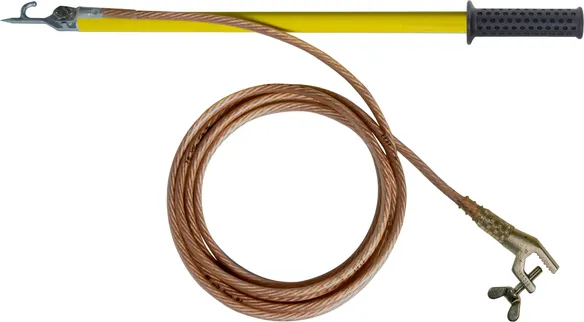

Discharge Device with Handle and Earth Clamp with Wing Bolt

1 Product

Part No. 758020 EV TES 465 EK

GTIN 4013364098992, Customs tariff No. (EU): 85369095, Gross weight: 1.44 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Technical data

Cable length	3500 mm
Cable cross-section	16 mm²
Cable sheath	Transparent
Tube length	465 mm
Total length (l_G )	550 mm
Clamping range	Up to 20 mm
Material (contact and coupling electrode)	Zamak

Cable length	3500 mm
Cable cross-section	16 mm²
Cable sheath	Transparent
Material (earthing cable)	Cu , highly flexible
Tube length	465 mm
Total length (l_G )	550 mm
Clamping range	Up to 20 mm
Use	Not suitable for use in wet weather conditions
Material (contact and coupling electrode)	Zamak
Material (insulating tube)	Glass-fibre reinforced polyester tube

Product 758020 was added to Notepad.

Go to Notepad

Product 758020 was added to the cart.

Go to Web-Shop

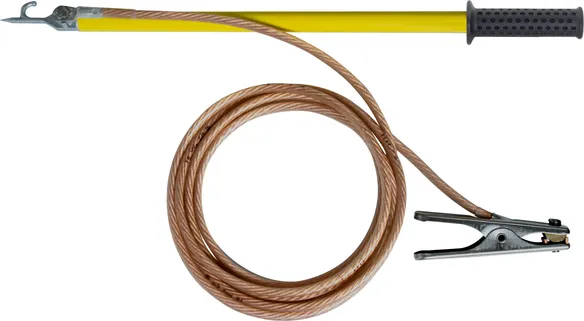

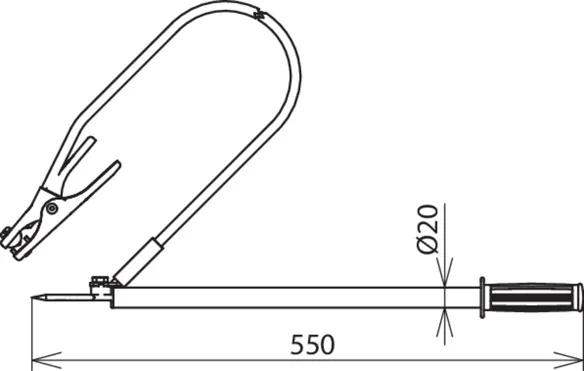

Discharge Device with Handle and Spring-loaded Earth Pliers

1 Product

Part No. 758021 EV TES 465 EZ

GTIN 4013364099005, Customs tariff No. (EU): 85369095, Gross weight: 1.20 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Technical data

Cable length	3500 mm
Cable cross-section	16 mm²
Cable sheath	Transparent
Tube length	465 mm
Total length (l_G )	550 mm
Clamping range Rd / Fl	up to Ø16 / up to 13 mm
Material (contact and coupling electrode)	Zamak

Cable length	3500 mm
Cable cross-section	16 mm²
Cable sheath	Transparent
Material (earthing cable)	Cu , highly flexible
Tube length	465 mm
Total length (l_G )	550 mm
Clamping range Rd / Fl	up to Ø16 / up to 13 mm
Use	Not suitable for use in wet weather conditions
Material (contact and coupling electrode)	Zamak
Material (insulating tube)	Glass-fibre reinforced polyester tube

Product 758021 was added to Notepad.

Go to Notepad

Product 758021 was added to the cart.

Go to Web-Shop

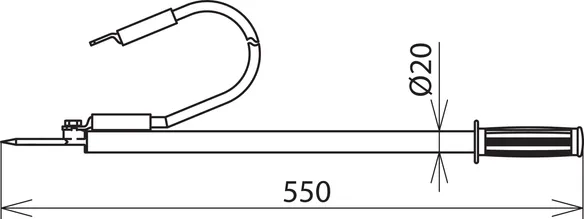

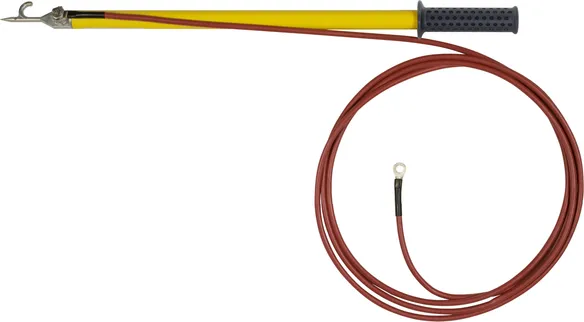

Discharge Device with Handle and Cable Lug at the Earth Cable End

Hole (Ø8.4 mm) and silicone cable

1 Product

Part No. 758022 EV TES 465 KS10

GTIN 4013364099012, Customs tariff No. (EU): 85369095, Gross weight: 750.00 g, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Technical data

Cable length	3500 mm
Cable cross-section	10 mm²
Cable sheath	Red silicone cable
Tube length	465 mm
Total length (l_G )	550 mm
Material (contact and coupling electrode)	Zamak

Cable length	3500 mm
Cable cross-section	10 mm²
Cable sheath	Red silicone cable
Material (earthing cable)	Cu , highly flexible
Tube length	465 mm
Total length (l_G )	550 mm
Use	Not suitable for use in wet weather conditions
Material (contact and coupling electrode)	Zamak
Material (insulating tube)	Glass-fibre reinforced polyester tube

Product 758022 was added to Notepad.

Go to Notepad

Product 758022 was added to the cart.

Go to Web-Shop

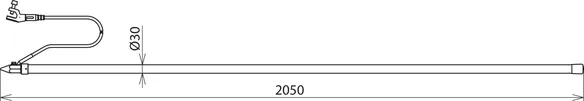

Discharge Device with Earth Clamp with Wing Bolt

1 Product

Part No. 758001 EV TS 2000 EK

GTIN 4013364004030, Customs tariff No. (EU): 85369095, Gross weight: 3.22 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Technical data

Cable length	3500 mm
Cable cross-section	16 mm²
Cable sheath	Transparent
Tube length	2000 mm
Total length (l_G )	2050 mm
Clamping range	Up to 20 mm
Material (contact electrode)	Cu alloy/gal Sn

Cable length	3500 mm
Cable cross-section	16 mm²
Cable sheath	Transparent
Material (earthing cable)	Cu , highly flexible
Tube length	2000 mm
Total length (l_G )	2050 mm
Clamping range	Up to 20 mm
Use	Not suitable for use in wet weather conditions
Material (contact electrode)	Cu alloy/gal Sn
Material (insulating tube)	Glass-fibre reinforced polyester tube

Product 758001 was added to Notepad.

Go to Notepad

Product 758001 was added to the cart.

Go to Web-Shop

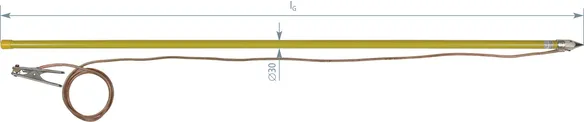

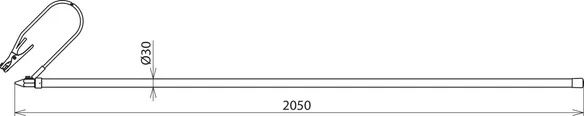

Discharge Device with Spring-loaded Earth Pliers

1 Product

Part No. 758003 EV TS 2000 EZ

GTIN 4013364004047, Customs tariff No. (EU): 85369095, Gross weight: 2.95 kg, PU: 1.00 pc(s)

Images

Additional information

Technical data

Cable length	3500 mm
Cable cross-section	16 mm²
Cable sheath	Transparent
Tube length	2000 mm
Total length (l_G )	2050 mm
Clamping range	Up to 18 mm
Material (contact electrode)	Cu alloy/gal Sn
*) Check according to own data

Cable length	3500 mm
Cable cross-section	16 mm²
Cable sheath	Transparent
Material (earthing cable)	Cu , highly flexible
Tube length	2000 mm
Total length (l_G )	2050 mm
Clamping range	Up to 18 mm
Insulating capacity of the insulating tube (based on DIN VDE 0681-1)	75 kV
Max. discharge current (8/20 µs)*	50 kA
Use	Not suitable for use in wet weather conditions
Material (contact electrode)	Cu alloy/gal Sn
Material (insulating tube)	Glass-fibre reinforced polyester tube
*) Check according to own data

Product 758003 was added to Notepad.

Go to Notepad

Product 758003 was added to the cart.

Go to Web-Shop

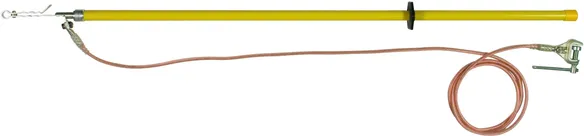

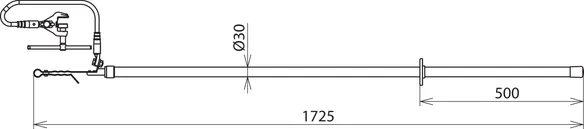

Earthing Device with Earth Clamp with Tommy Bar

For round conductors (Ø12 ... 26.5 mm) of electrostatic precipitator systems

1 Product

Part No. 758015 EV EH 1725 EK

GTIN 4013364041608, Customs tariff No. (EU): 85369095, Gross weight: 3.62 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Technical data

Cable length	3500 mm
Cable cross-section	25 mm²
Cable sheath	Transparent
Tube length	1500 mm
Total length (l_G )	1725 mm
Clamping range	Up to 30 mm
Material (coupling electrode)	Bronze/gal Sn

Cable length	3500 mm
Cable cross-section	25 mm²
Cable sheath	Transparent
Material (earthing cable)	Cu , highly flexible
Earth clamp	Earth clamp of type F 2, clamping range up to 30 mm
Tube length	1500 mm
Total length (l_G )	1725 mm
Clamping range	Up to 30 mm
Use	Not suitable for use in wet weather conditions
Material (coupling electrode)	Bronze/gal Sn
Material (insulating tube)	Glass-fibre reinforced polyester tube

Product 758015 was added to Notepad.

Go to Notepad

Product 758015 was added to the cart.

Go to Web-Shop

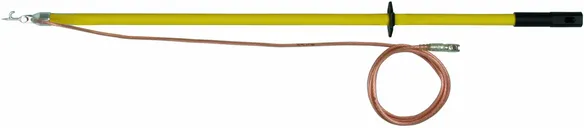

Discharge Device with Contact and Coupling Electrode and Cable Lug at the Earth Cable End

PK1 anti-rotation crimped cable lug (hole Ø12.5 mm).

1 Product

Part No. 758025 EV TES STK 1500 KS

GTIN 4013364127838, Customs tariff No. (EU): 85369095, Gross weight: 2.29 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Technical data

Cable length	3500 mm
Cable cross-section	16 mm²
Cable sheath	Transparent
Tube length	1310 mm
Total length (l_G )	1500 mm
Material (contact and coupling electrode)	Zamak

Cable length	3500 mm
Cable cross-section	16 mm²
Cable sheath	Transparent
Material (earthing cable)	Cu , highly flexible
Tube length	1310 mm
Total length (l_G )	1500 mm
Use	Not suitable for use in wet weather conditions
Material (contact and coupling electrode)	Zamak
Material (insulating tube)	Glass-fibre reinforced polyester tube

Product 758025 was added to Notepad.

Go to Notepad

Product 758025 was added to the cart.

Go to Web-Shop

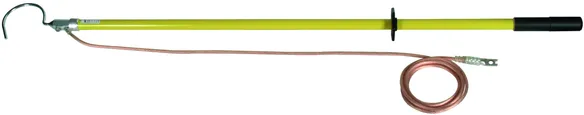

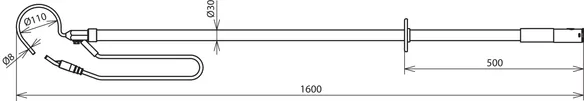

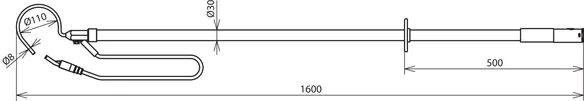

Discharge Device with Clamp and Cable Lug at the Earth Cable End

PK1 anti-rotation crimped cable lug (hole Ø12.5 mm).

1 Product

Part No. 758028 EV EHB 1600 SN7114

GTIN 4013364132450, Customs tariff No. (EU): 85369095, Gross weight: 5.16 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Technical data

Cable length	3500 mm
Cable cross-section	16 mm²
Cable sheath	Transparent
Tube length	1310 mm
Total length (l_G )	1600 mm
Material (bracket)	StSt

Cable length	3500 mm
Cable cross-section	16 mm²
Cable sheath	Transparent
Material (earthing cable)	Cu , highly flexible
Tube length	1310 mm
Total length (l_G )	1600 mm
Use	Not suitable for use in wet weather conditions
Material (bracket)	StSt
Material (insulating tube)	Glass-fibre reinforced polyester tube

Product 758028 was added to Notepad.

Go to Notepad

Product 758028 was added to the cart.

Go to Web-Shop

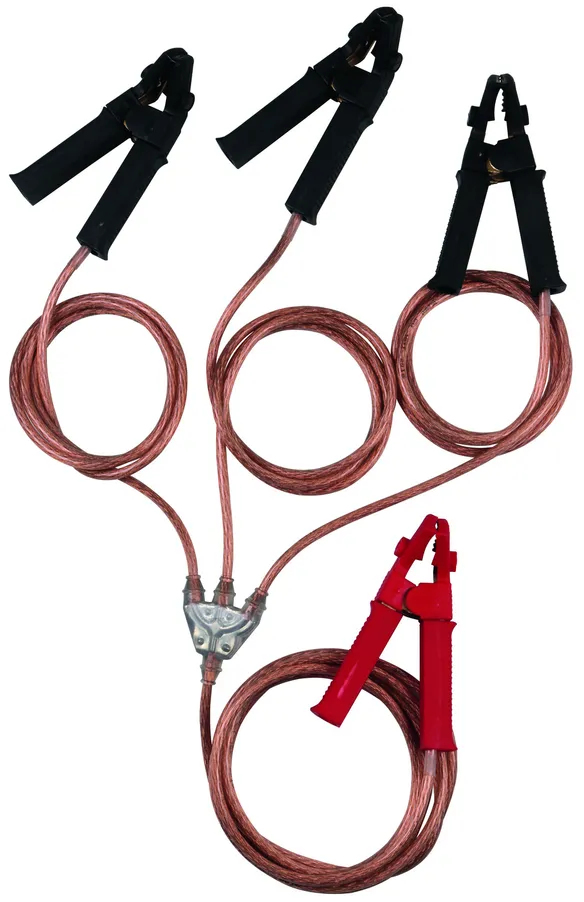

Equipotential Bonding Device with Insulated Earth Clamps

1 Product

Part No. 758099 PAV 3+1 16 ZAK

GTIN 4013364287587, Customs tariff No. (EU): 85369095, Gross weight: 3.21 kg, PU: 1.00 pc(s)

Images

Additional information

Technical data

Cable length (A / B / C)	1750 mm
Cable length (D)	3200 mm
Cable cross-section	16 mm²
Cable sheath	transparent
Clamping range	5-25 mm

Cable length (A / B / C)	1750 mm
Cable length (D)	3200 mm
Cable cross-section	16 mm²
Cable sheath	transparent
Clamping range	5-25 mm
Colour (clamp A / B / C)	black
Colour (clamp D)	red
Possible clamp operations	> 500
Max. continuous operating current	10 A
Operating temperature range	-30 °C ... +50 °C
Storage temperature range	-40 °C ... +70 °C
Cable structure	bare fine-stranded Cu wire according to VDE 0295-6
Dielectric strength (cable sheath)	min. 10 kV/mm
Wall thickness (insulation)	1.20 mm (typical)
Insulation	PVC compound TM2 according to HD21.1

Product 758099 was added to Notepad.

Go to Notepad

Product 758099 was added to the cart.

Go to Web-Shop

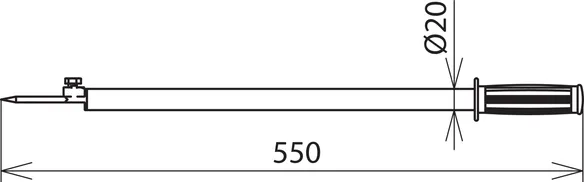

Discharge Device with Handle, without Earth Cable

1 Product

Part No. 758036 EV TES 465 SN7215

GTIN 4013364133884, Customs tariff No. (EU): 85369095, Gross weight: 1.35 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Technical data

Tube length	465 mm
Total length (l_G )	550 mm
Screw	M8 x 20 mm
Material (contact and coupling electrode)	Zamak

Product 758036 was added to Notepad.

Go to Notepad

Product 758036 was added to the cart.

Go to Web-Shop

Discharge Device with Contact Electrode without Earth Cable

1 Product

Part No. 758075 EV TS STK 1470

GTIN 4013364247789, Customs tariff No. (EU): 85369095, Gross weight: 1.75 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Technical data

Tube length	1310 mm
Total length (l_G )	1470 mm
Screw	M8 x 20 mm
Material (contact electrode)	Cu alloy/gal Sn

Product 758075 was added to Notepad.

Go to Notepad

Product 758075 was added to the cart.

Go to Web-Shop

Discharge Device with Contact and Coupling Electrode without Earth Cable

1 Product

Part No. 758085 EV TES STK 1500

GTIN 4013364247819, Customs tariff No. (EU): 85369095, Gross weight: 1.42 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Technical data

Tube length	1310 mm
Total length (l_G )	1500 mm
Screw	M8 x 20 mm
Material (contact and coupling electrode)	Zamak

Product 758085 was added to Notepad.

Go to Notepad

Product 758085 was added to the cart.

Go to Web-Shop

Discharge Device with Hook without Earth Cable

1 Product

Part No. 758095 EV EHB STK 1600

GTIN 4013364247826, Customs tariff No. (EU): 85369095, Gross weight: 2.32 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

CAD files

Technical data

Tube length	1310 mm
Total length (l_G )	1600 mm
Screw	M8 x 20 mm
Material (bracket)	StSt

Product 758095 was added to Notepad.

Go to Notepad

Product 758095 was added to the cart.

Go to Web-Shop

Discharge and Equipotential Bonding Devices

Discharge Device with Handle and Earth Clamp with Wing Bolt

Part No. 758020 EV TES 465 EK

Product 758020 was added to Notepad.

Product 758020 was added to the cart.

Discharge Device with Handle and Spring-loaded Earth Pliers

Part No. 758021 EV TES 465 EZ

Product 758021 was added to Notepad.

Product 758021 was added to the cart.

Discharge Device with Handle and Cable Lug at the Earth Cable End

Part No. 758022 EV TES 465 KS10

Product 758022 was added to Notepad.

Product 758022 was added to the cart.

Discharge Device with Earth Clamp with Wing Bolt

Part No. 758001 EV TS 2000 EK

Product 758001 was added to Notepad.

Product 758001 was added to the cart.

Discharge Device with Spring-loaded Earth Pliers

Part No. 758003 EV TS 2000 EZ

Product 758003 was added to Notepad.

Product 758003 was added to the cart.

Earthing Device with Earth Clamp with Tommy Bar

Part No. 758015 EV EH 1725 EK

Product 758015 was added to Notepad.

Product 758015 was added to the cart.

Discharge Device with Contact and Coupling Electrode and Cable Lug at the Earth Cable End

Part No. 758025 EV TES STK 1500 KS

Product 758025 was added to Notepad.

Product 758025 was added to the cart.

Discharge Device with Clamp and Cable Lug at the Earth Cable End

Part No. 758028 EV EHB 1600 SN7114

Product 758028 was added to Notepad.

Product 758028 was added to the cart.

Equipotential Bonding Device with Insulated Earth Clamps

Part No. 758099 PAV 3+1 16 ZAK

Product 758099 was added to Notepad.

Product 758099 was added to the cart.

Discharge Device with Handle, without Earth Cable

Part No. 758036 EV TES 465 SN7215

You are not authorized to download 758036.stp

You are not authorized to download 758036.igs

You are not authorized to download 758036.jt

You are not authorized to download 758036.dwg

Product 758036 was added to Notepad.

Product 758036 was added to the cart.

Discharge Device with Contact Electrode without Earth Cable

Part No. 758075 EV TS STK 1470

Product 758075 was added to Notepad.

Product 758075 was added to the cart.

Discharge Device with Contact and Coupling Electrode without Earth Cable

Part No. 758085 EV TES STK 1500

Product 758085 was added to Notepad.

Product 758085 was added to the cart.

Discharge Device with Hook without Earth Cable

Part No. 758095 EV EHB STK 1600

You are not authorized to download 758095.stp

You are not authorized to download 758095.igs

You are not authorized to download 758095.jt

You are not authorized to download 758095.dwg

You are not authorized to download 758095m_D.dxf

Product 758095 was added to Notepad.

Product 758095 was added to the cart.
