Phase Connecting Elements for Switchgear Installations

  • To be fitted to the phase cable end of single-pole to five-pole earthing and short-circuiting devices

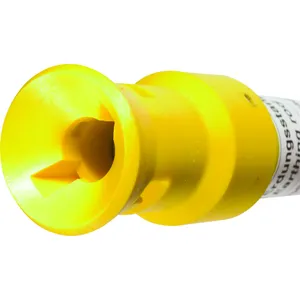

  • Type PK1 anti-rotation protection
  • Other earthing and short-circuiting devices can be configured online via the earthing and short-circuiting configurator

Details

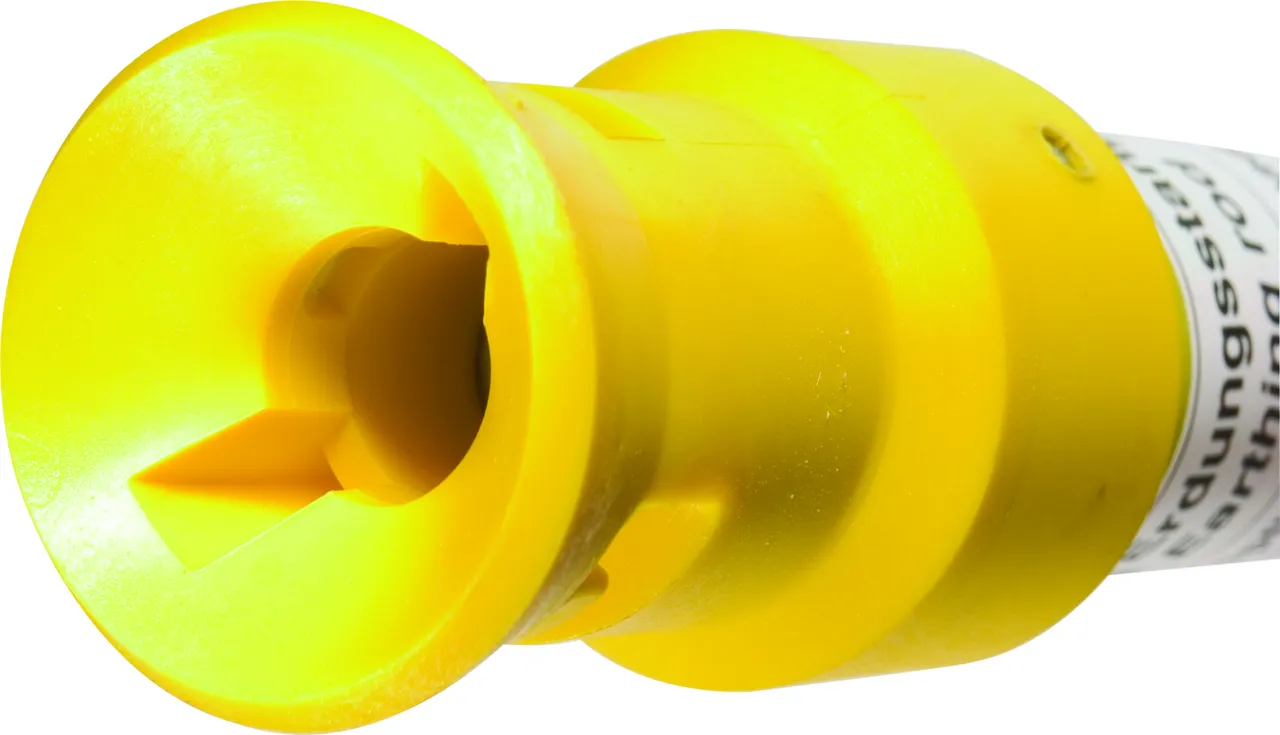

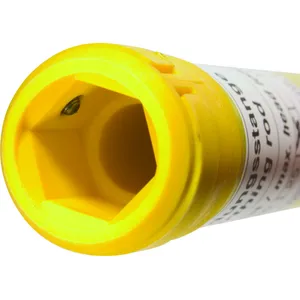

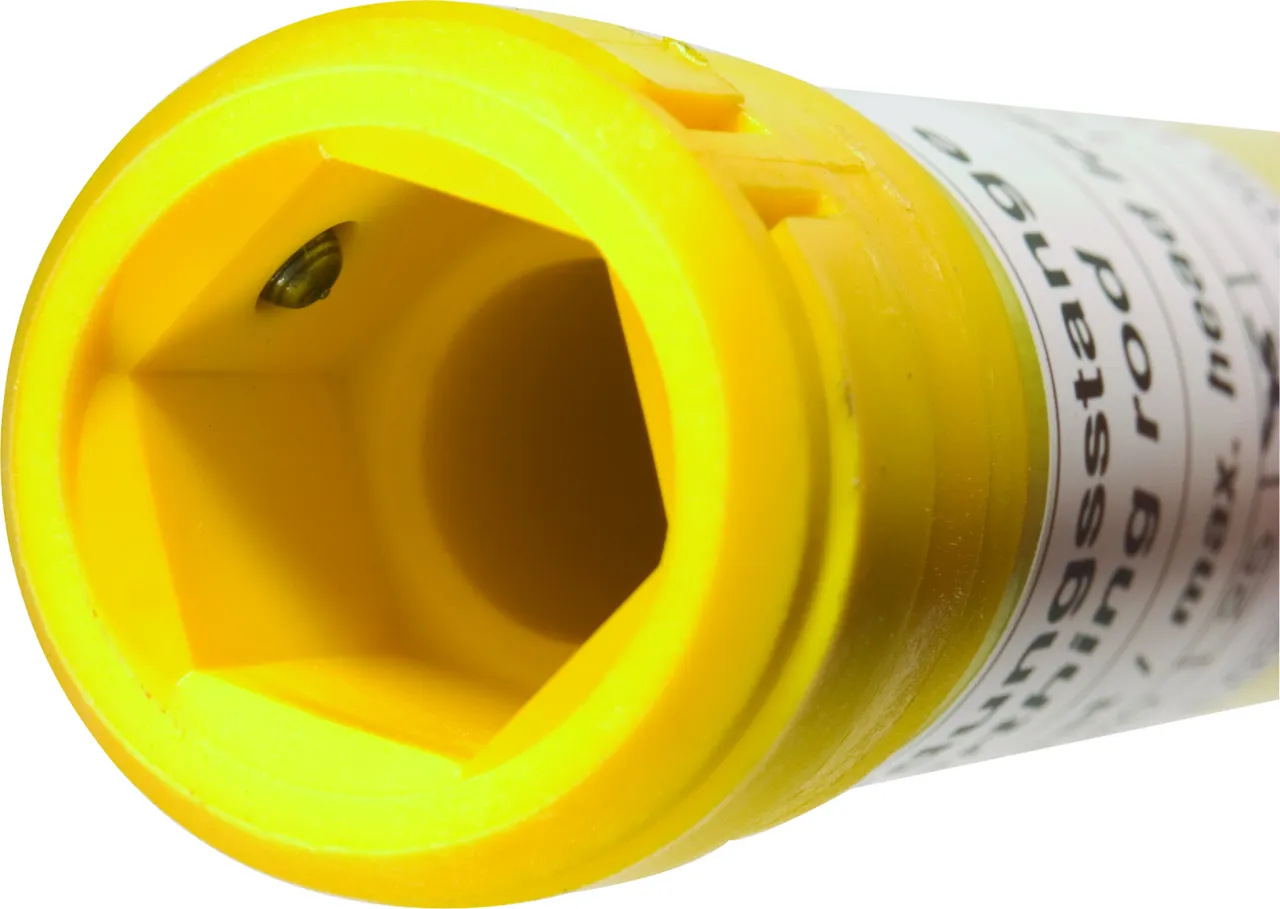

lorem ipsum
lorem ipsum
lorem ipsum
Adjustable ball head cap (4x 90°).
lorem ipsum
Rigid ball head cap.
lorem ipsum
lorem ipsum
lorem ipsum
lorem ipsum

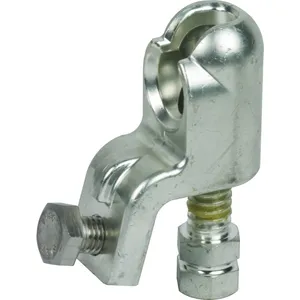

Rigid Ball Head Cap, Hexagon Shaft

2 Products

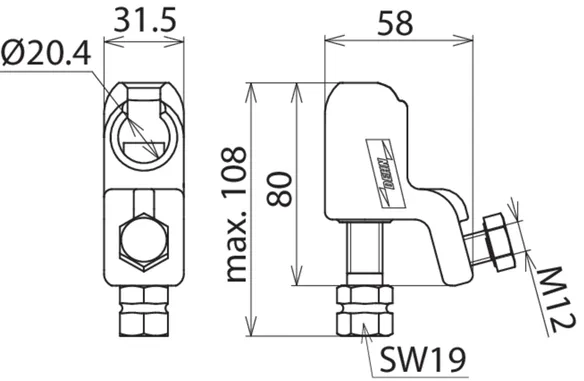

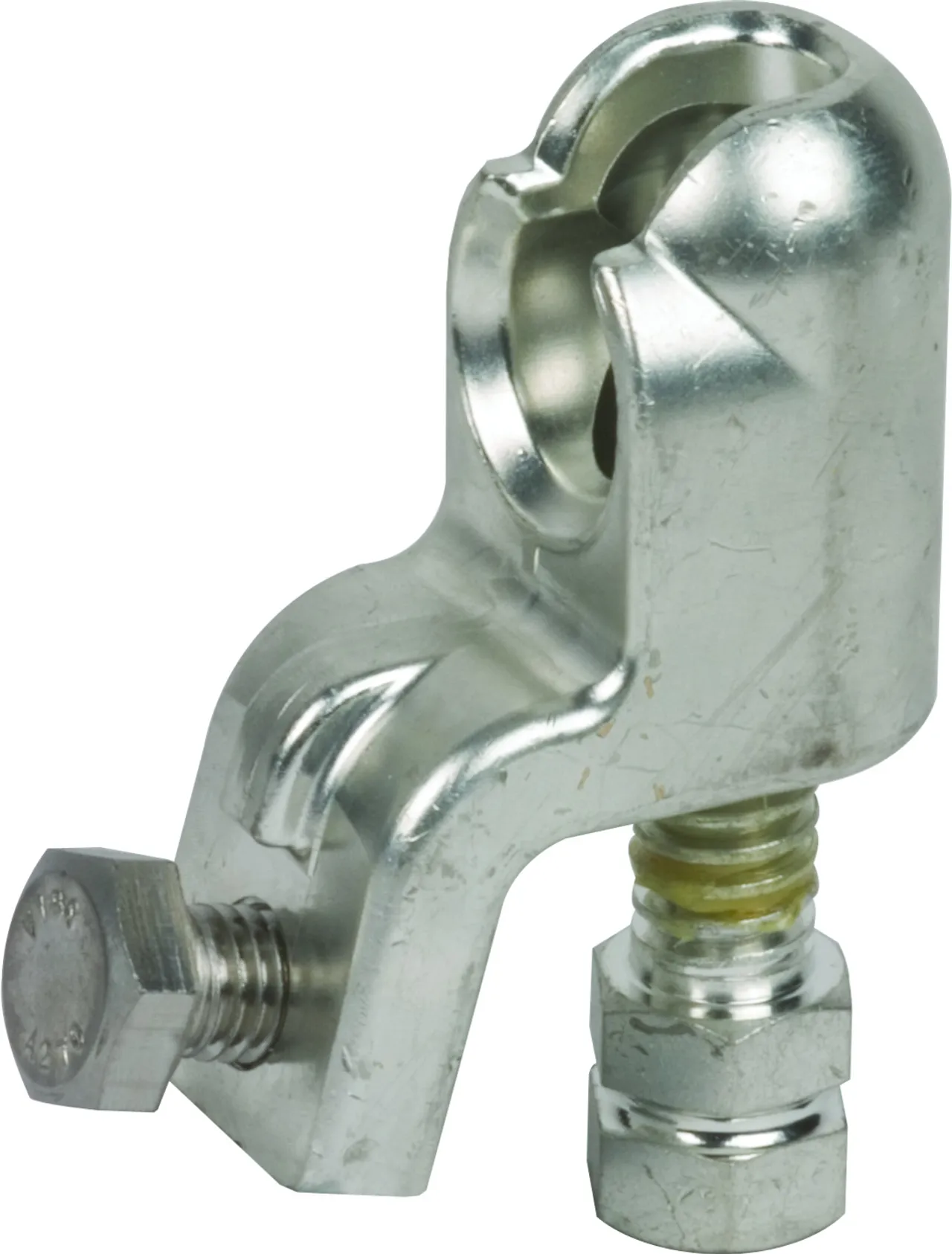

Part No. 772310 KKH 20 SK

GTIN 4013364057593, Customs tariff No. (EU): 85359000, Gross weight: 469.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

For fixed ball point Ø 20 mm
Anti-rotation protection PK1
For cable cross-section Cu 16 ... 120 mm2
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA

Product 772310 was added to Notepad.

Go to Notepad

Product 772310 was added to the cart.

Go to Web-Shop

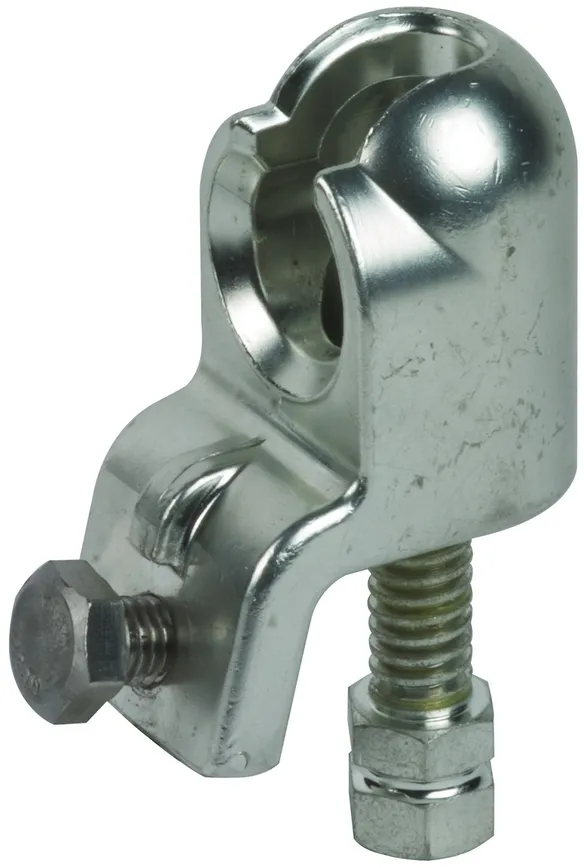

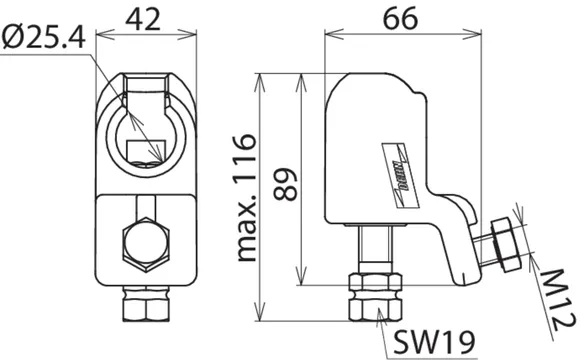

Part No. 772320 KKH 25 SK

GTIN 4013364057432, Customs tariff No. (EU): 85359000, Gross weight: 785.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

For fixed ball point Ø 25 mm
Anti-rotation protection PK1
For cable cross-section Cu 16 ... 150 mm2
Max. short-circuit current Ik 0.5 s 42.0 kA
Max. short-circuit current Ik 1 s 29.6 kA

Product 772320 was added to Notepad.

Go to Notepad

Product 772320 was added to the cart.

Go to Web-Shop

Rigid Ball Head Cap, T Pin Shaft

2 Products

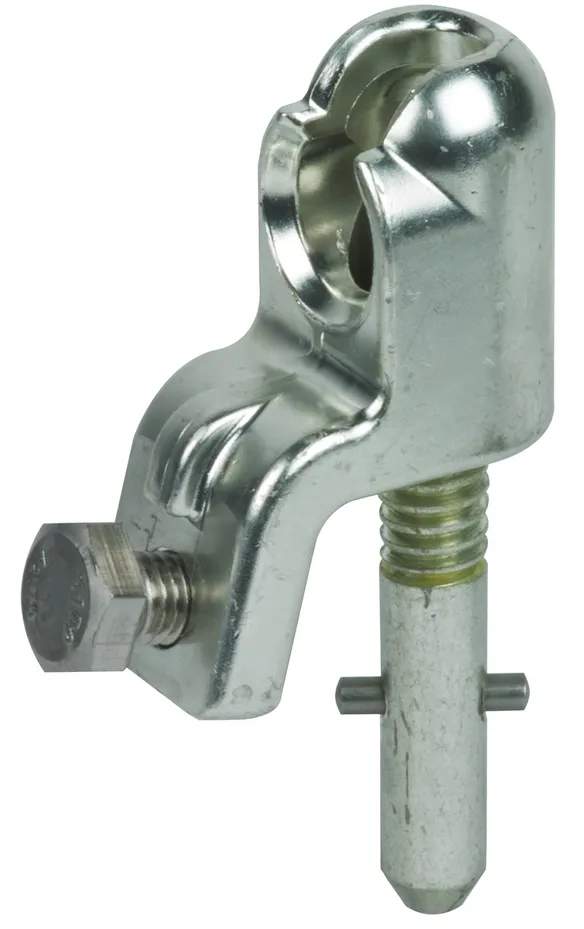

Part No. 772311 KKH 20 SQ

GTIN 4013364057586, Customs tariff No. (EU): 85359000, Gross weight: 482.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

For fixed ball point Ø 20 mm
Anti-rotation protection PK1
For cable cross-section Cu 16 ... 120 mm2
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA

Product 772311 was added to Notepad.

Go to Notepad

Product 772311 was added to the cart.

Go to Web-Shop

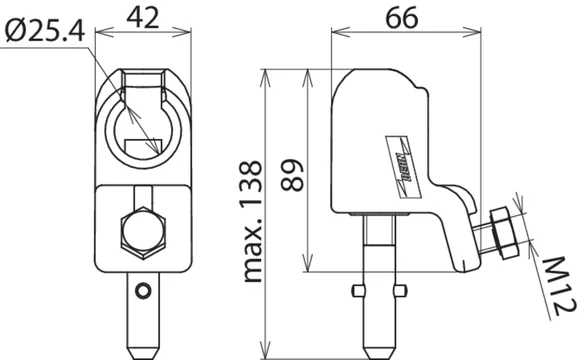

Part No. 772321 KKH 25 SQ

GTIN 4013364057449, Customs tariff No. (EU): 85359000, Gross weight: 756.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

For fixed ball point Ø 25 mm
Anti-rotation protection PK1
For cable cross-section Cu 16 ... 150 mm2
Max. short-circuit current Ik 0.5 s 42.0 kA
Max. short-circuit current Ik 1 s 29.6 kA

Product 772321 was added to Notepad.

Go to Notepad

Product 772321 was added to the cart.

Go to Web-Shop

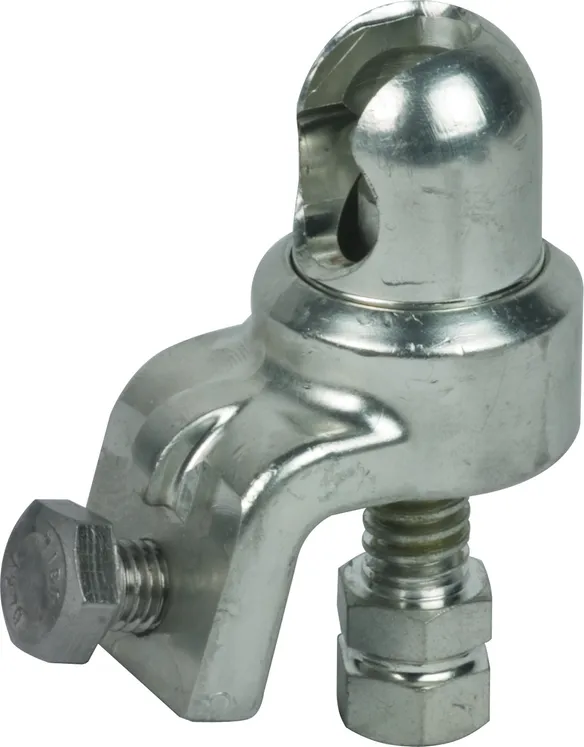

Adjustable Ball Head Cap (4x 90°), Hexagon Shaft

2 Products

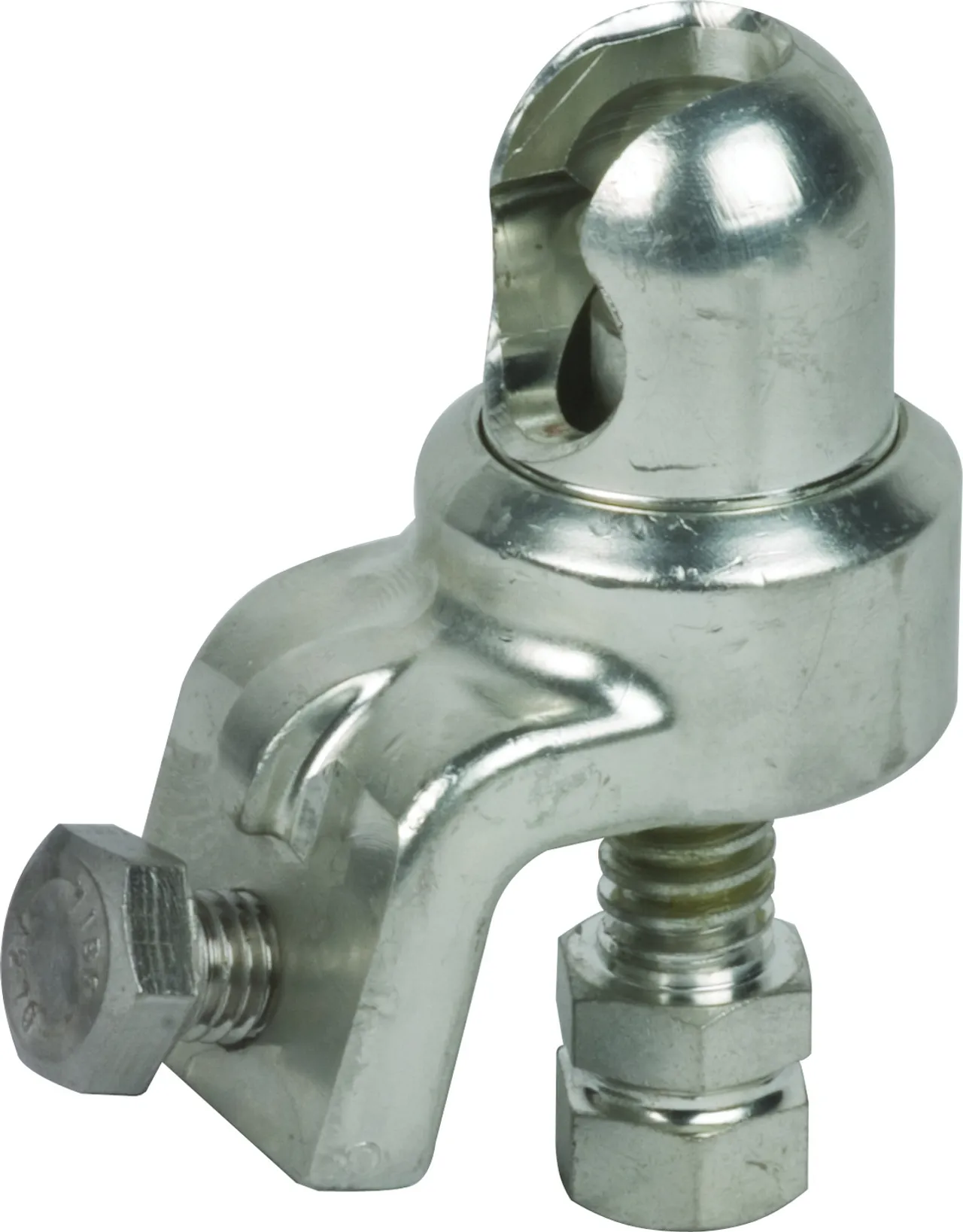

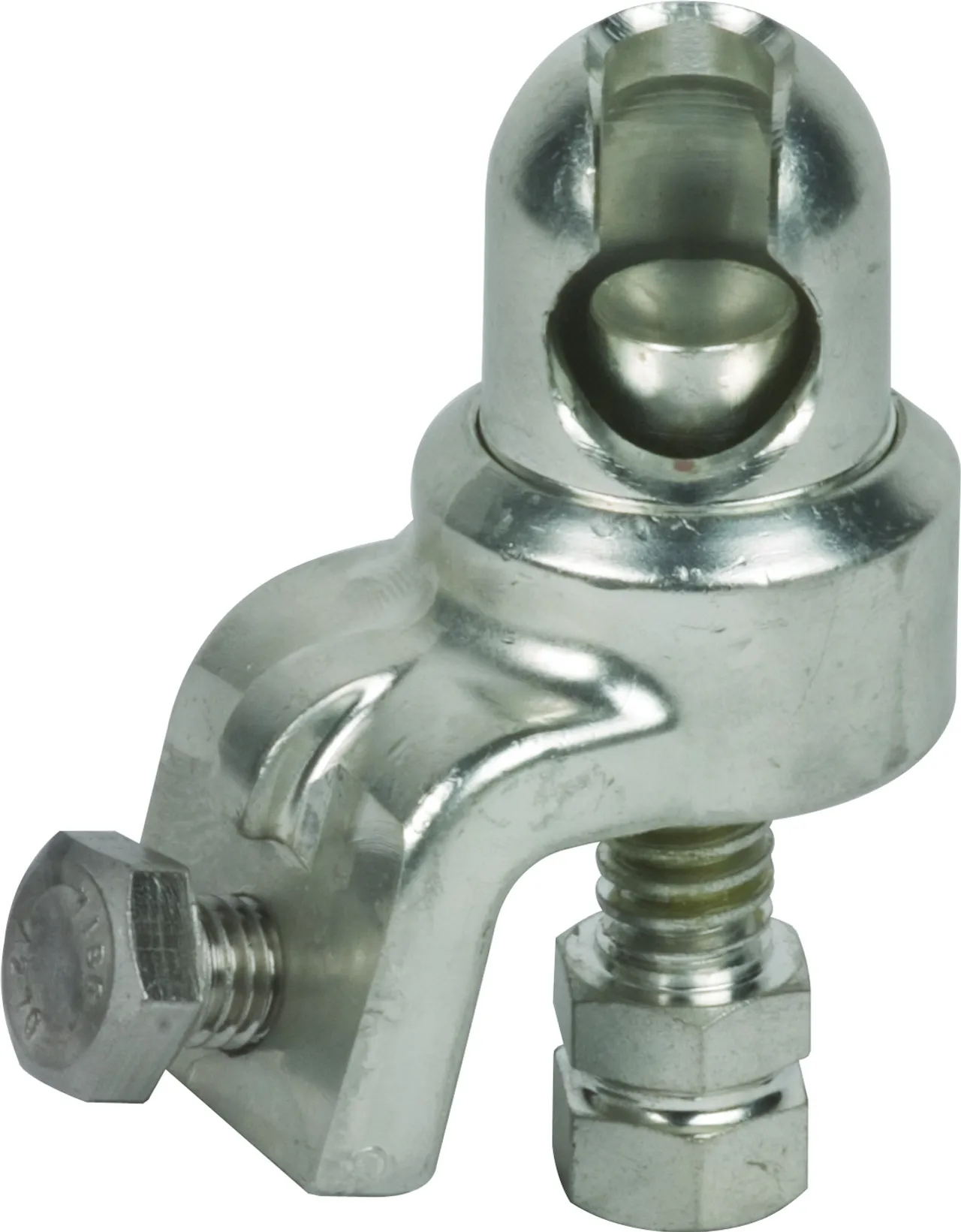

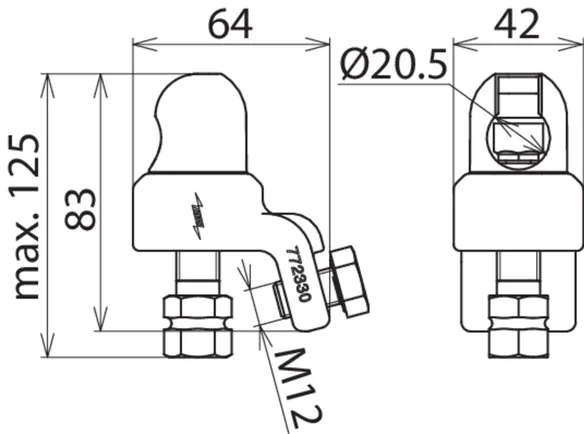

Part No. 772330 KKH 20 D SK

GTIN 4013364069220, Customs tariff No. (EU): 85359000, Gross weight: 560.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

For fixed ball point Ø 20 mm
Anti-rotation protection PK1
For cable cross-section Cu 16 ... 120 mm2
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA

Product 772330 was added to Notepad.

Go to Notepad

Product 772330 was added to the cart.

Go to Web-Shop

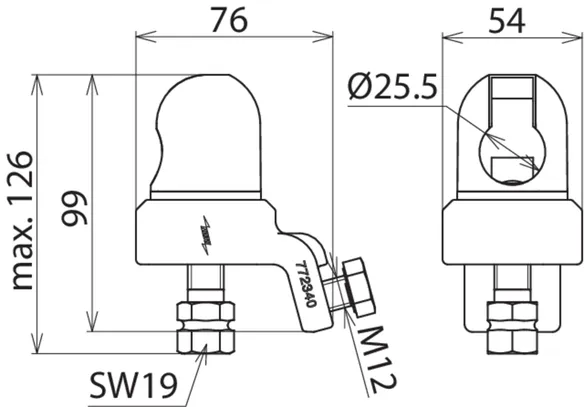

Part No. 772340 KKH 25 D SK

GTIN 4013364057456, Customs tariff No. (EU): 85359000, Gross weight: 878.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

For fixed ball point Ø 25 mm
Anti-rotation protection PK1
For cable cross-section Cu 16 ... 150 mm2
Max. short-circuit current Ik 0.5 s 42.0 kA
Max. short-circuit current Ik 1 s 29.6 kA

Product 772340 was added to Notepad.

Go to Notepad

Product 772340 was added to the cart.

Go to Web-Shop

Adjustable Ball Head Cap (4x 90°), T Pin Shaft

2 Products

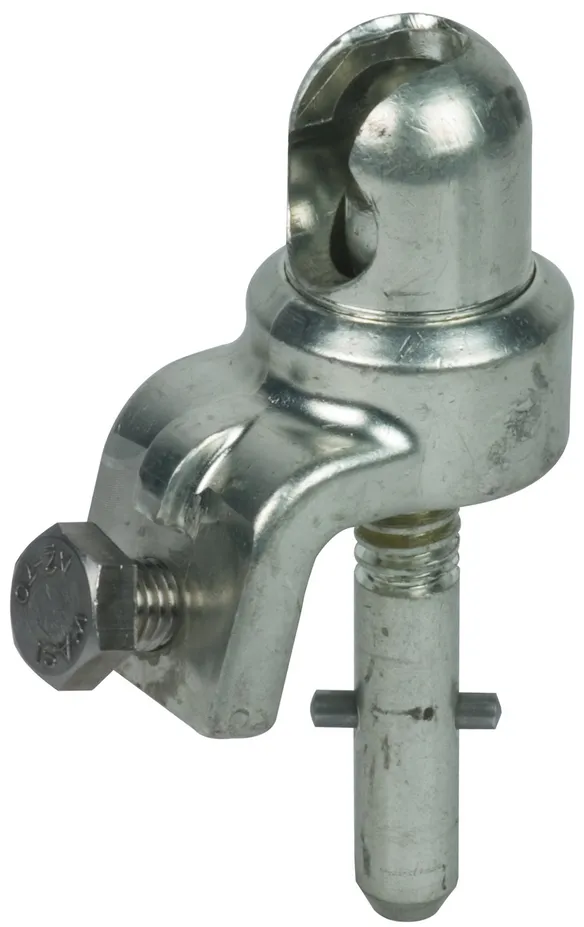

Part No. 772331 KKH 20 D SQ

GTIN 4013364066304, Customs tariff No. (EU): 85359000, Gross weight: 566.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

For fixed ball point Ø 20 mm
Anti-rotation protection PK1
For cable cross-section Cu 16 ... 120 mm2
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA

Product 772331 was added to Notepad.

Go to Notepad

Product 772331 was added to the cart.

Go to Web-Shop

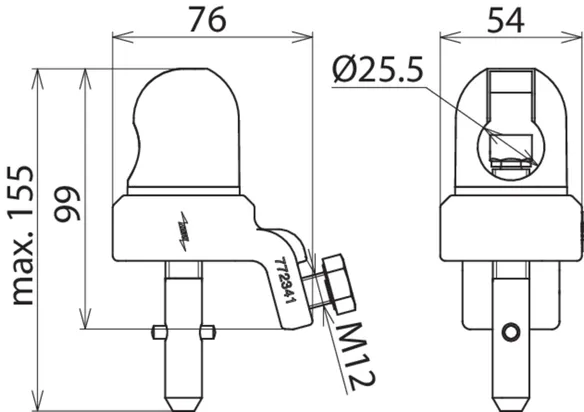

Part No. 772341 KKH 25 D SQ

GTIN 4013364057425, Customs tariff No. (EU): 85359000, Gross weight: 902.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

For fixed ball point Ø 25 mm
Anti-rotation protection PK1
For cable cross-section Cu 16 ... 150 mm2
Max. short-circuit current Ik 0.5 s 42.0 kA
Max. short-circuit current Ik 1 s 29.6 kA

Product 772341 was added to Notepad.

Go to Notepad

Product 772341 was added to the cart.

Go to Web-Shop

Round Pin Clamp, T Pin Shaft

For round pins in switchgear installations.

4 Products

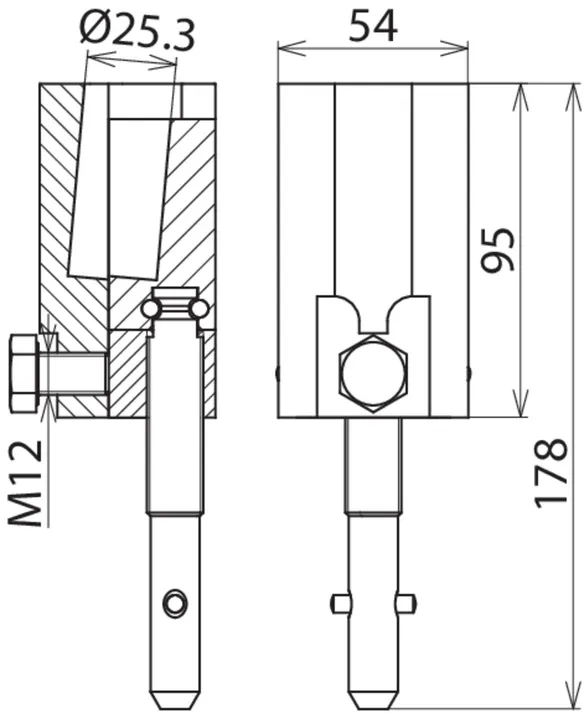

Part No. 715314 RBK 25 SQ SN7151

GTIN 4013364132474, Customs tariff No. (EU): 85359000, Gross weight: 1.61 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

For round pins Ø 25 mm
Anti-rotation protection PK1
For cable cross-section Cu 16 ... 150 mm2
Max. short-circuit current Ik 0.5 s 42.0 kA
Max. short-circuit current Ik 1 s 29.6 kA

Product 715314 was added to Notepad.

Go to Notepad

Product 715314 was added to the cart.

Go to Web-Shop

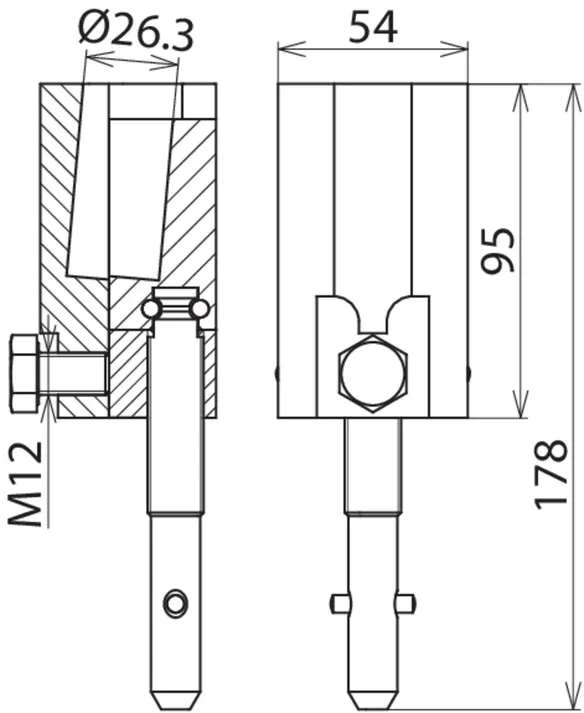

Part No. 715315 RBK 26 SQ SN7255

GTIN 4013364135338, Customs tariff No. (EU): 85359000, Gross weight: 1.60 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

For round pins Ø 26 mm
Anti-rotation protection PK1
For cable cross-section Cu 16 ... 150 mm2
Max. short-circuit current Ik 0.5 s 42.0 kA
Max. short-circuit current Ik 1 s 29.6 kA

Product 715315 was added to Notepad.

Go to Notepad

Product 715315 was added to the cart.

Go to Web-Shop

Part No. 715313 RBK 30 SQ SN7642

GTIN 4013364154971, Customs tariff No. (EU): 85359000, Gross weight: 1.55 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

For round pins Ø 30 mm
Anti-rotation protection PK1
For cable cross-section Cu 16 ... 150 mm2
Max. short-circuit current Ik 0.5 s 42.0 kA
Max. short-circuit current Ik 1 s 29.6 kA

Product 715313 was added to Notepad.

Go to Notepad

Product 715313 was added to the cart.

Go to Web-Shop

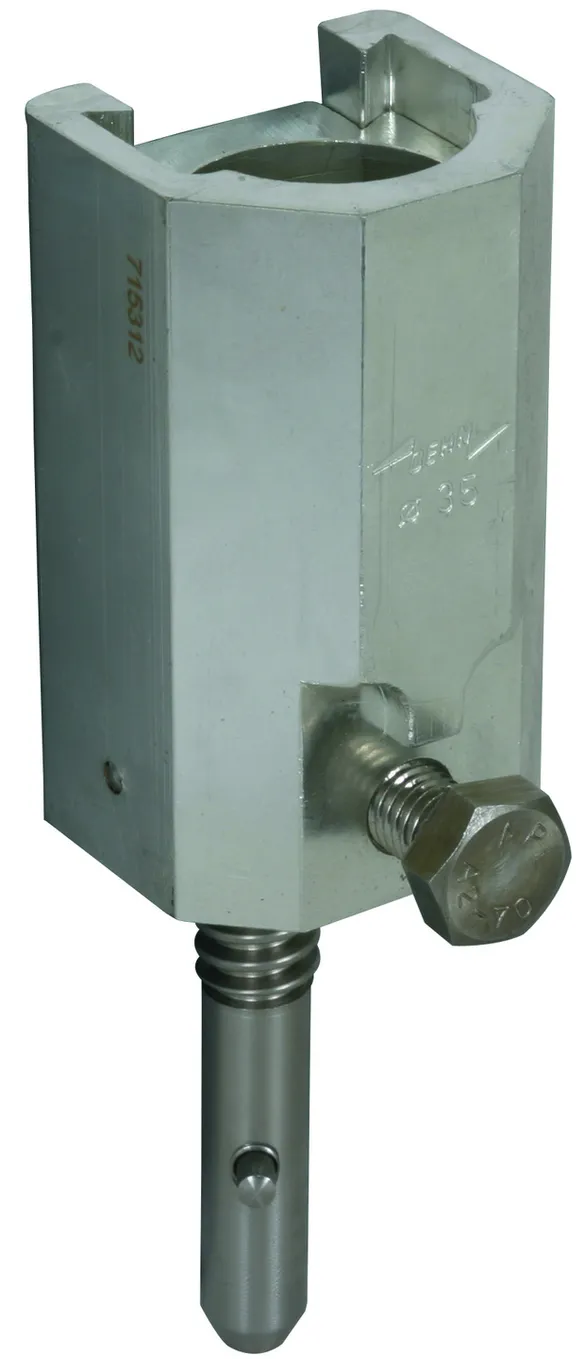

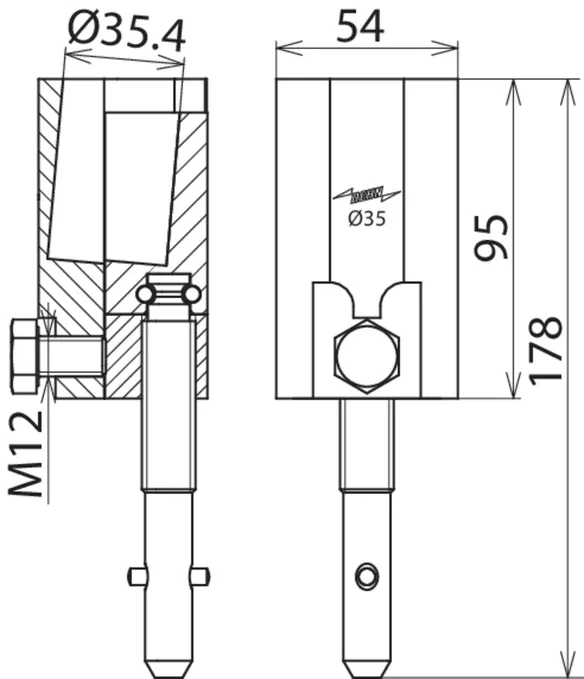

Part No. 715312 RBK 35 SQ

GTIN 4013364150386, Customs tariff No. (EU): 85359000, Gross weight: 1.50 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

For round pins Ø 35 mm
Anti-rotation protection PK1
For cable cross-section Cu 16 ... 150 mm2
Max. short-circuit current Ik 0.5 s 42.0 kA
Max. short-circuit current Ik 1 s 29.6 kA

Product 715312 was added to Notepad.

Go to Notepad

Product 715312 was added to the cart.

Go to Web-Shop

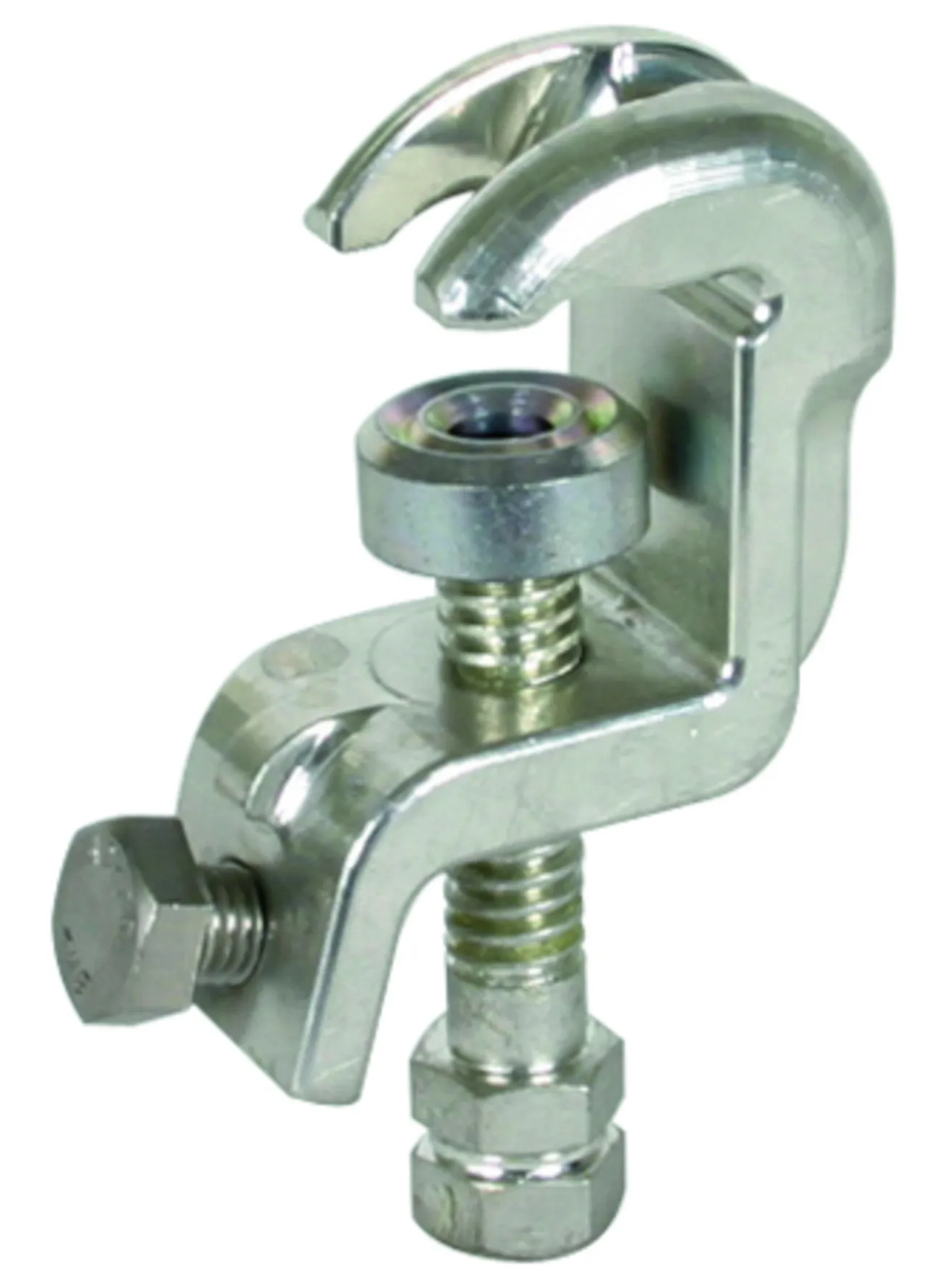

Universal Clamp, Hexagon Shaft

2 Products

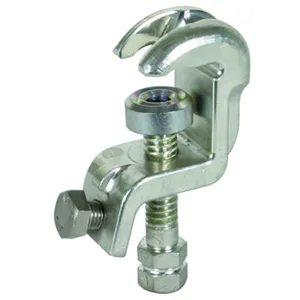

Part No. 773034 UK 25 SK

GTIN 4013364114562, Customs tariff No. (EU): 85359000, Gross weight: 634.40 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

For fixed ball point Ø 20 / 25 mm
For T pins with a collar width of 15 mm
Rd / Fl clamping range 20 mm
Anti-rotation protection PK1
For cable cross-section Cu 16 ... 120*) mm2
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA

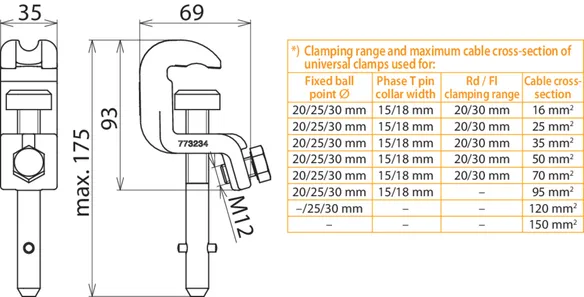

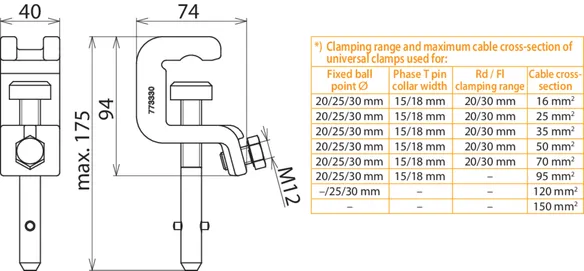

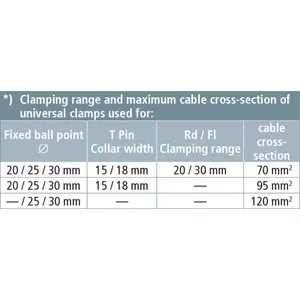

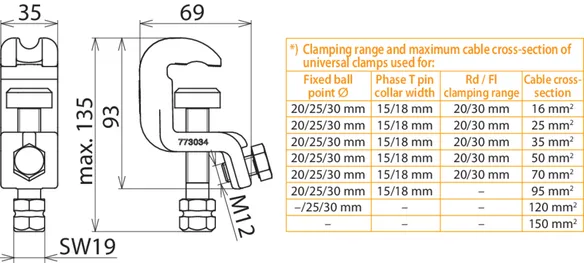

*) See table for „Clamping range and maximum cable cross-section of universal clamps used for“

Product 773034 was added to Notepad.

Go to Notepad

Product 773034 was added to the cart.

Go to Web-Shop

Part No. 773130 UK 30 SK

GTIN 4013364057722, Customs tariff No. (EU): 85359000, Gross weight: 801.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

For fixed ball point Ø 25 / 30 mm
For T pins with a collar width of 18 mm
Rd / Fl clamping range 30 mm
Anti-rotation protection PK1
For cable cross-section Cu 16 ... 120*) mm2
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA

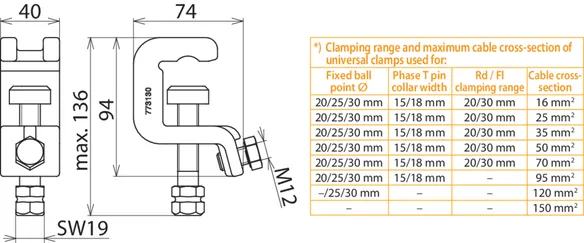

*) See table for „Clamping range and maximum cable cross-section of universal clamps used for“

Product 773130 was added to Notepad.

Go to Notepad

Product 773130 was added to the cart.

Go to Web-Shop

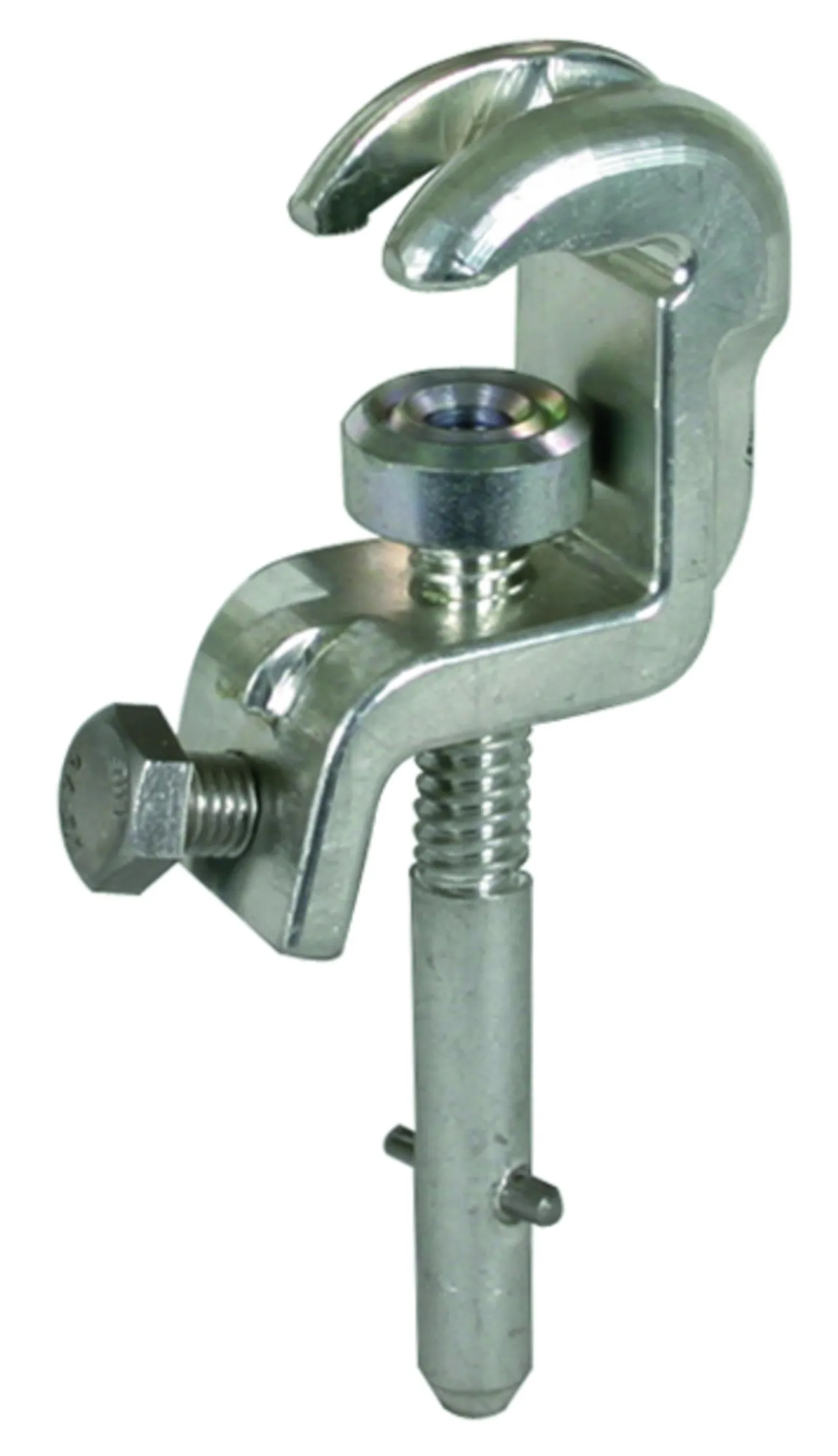

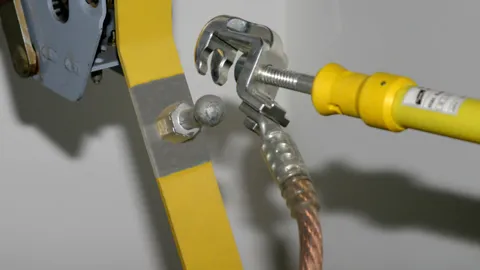

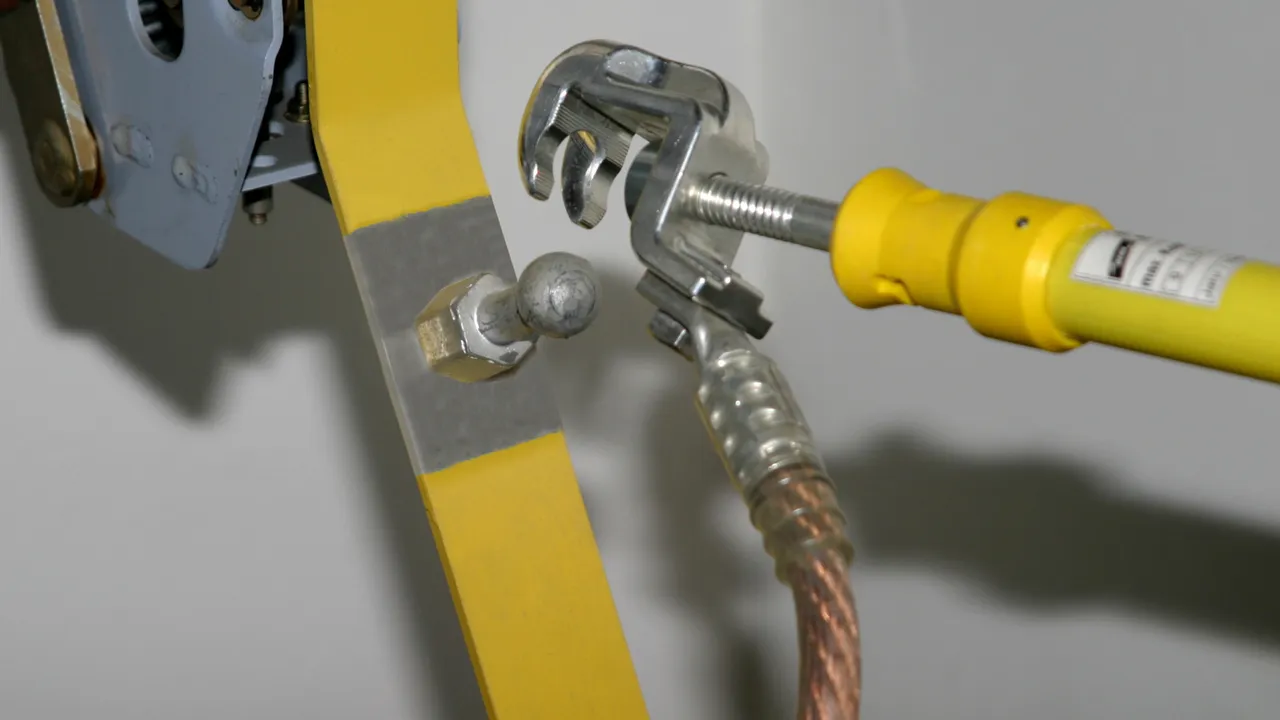

Universal Clamp, T Pin Shaft

2 Products

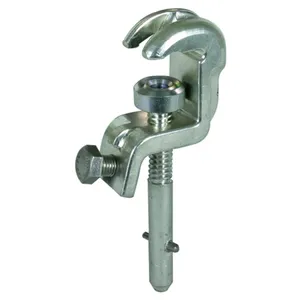

Part No. 773234 UK 25 SQ

GTIN 4013364114555, Customs tariff No. (EU): 85359000, Gross weight: 660.60 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

For fixed ball point Ø 20 / 25 mm
For T pins with a collar width of 15 mm
Rd / Fl clamping range 20 mm
Anti-rotation protection PK1
For cable cross-section Cu 16 ... 120*) mm2
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA
*) See table for „Clamping range and maximum cable cross-section of universal clamps used for"

Product 773234 was added to Notepad.

Go to Notepad

Product 773234 was added to the cart.

Go to Web-Shop

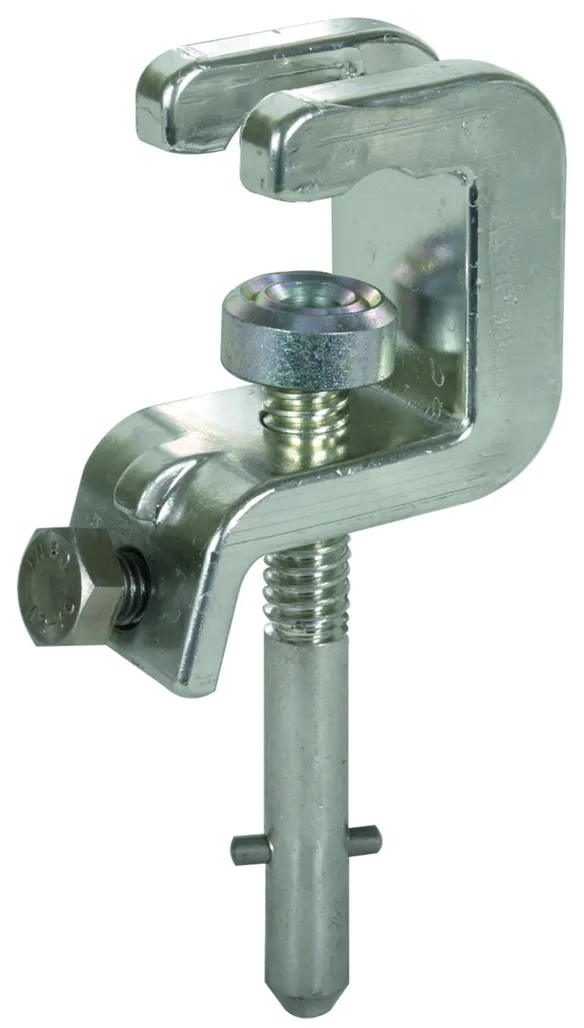

Part No. 773330 UK 30 SQ

GTIN 4013364057760, Customs tariff No. (EU): 85359000, Gross weight: 830.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

For fixed ball point Ø 25 / 30 mm
For T pins with a collar width of 18 mm
Rd / Fl clamping range 30 mm
Anti-rotation protection PK1
For cable cross-section Cu 16 ... 120*) mm2
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA
*) See table for „Clamping range and maximum cable cross-section of universal clamps used for"

Product 773330 was added to Notepad.

Go to Notepad

Product 773330 was added to the cart.

Go to Web-Shop

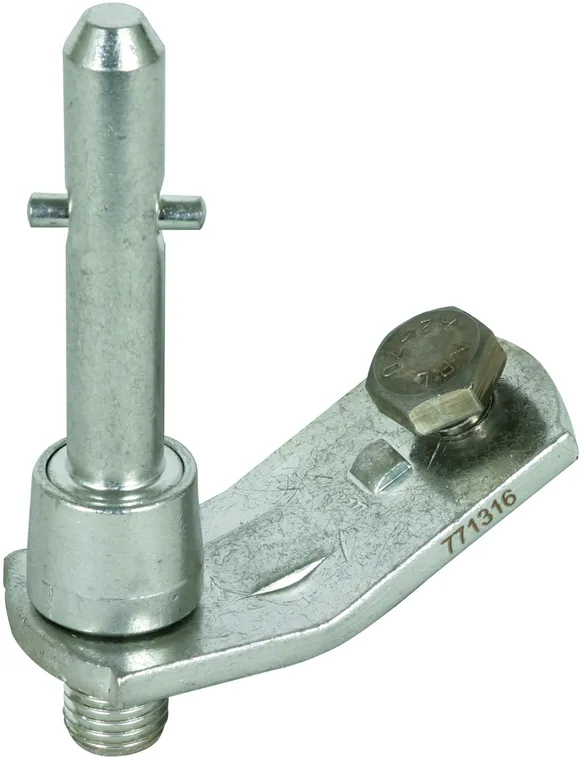

Phase Connecting Element, T Pin Shaft

With M16 threaded pin for installation in switchgear installations.

1 Product

Part No. 771316 PAS EK SQ 16

GTIN 4013364150393, Customs tariff No. (EU): 85359000, Gross weight: 418.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Dimensions M16
Anti-rotation protection PK1
For cable cross-section Cu 16 ... 150 mm2
Max. short-circuit current Ik 0.5 s 42.0 kA
Max. short-circuit current Ik 1 s 29.6 kA

Product 771316 was added to Notepad.

Go to Notepad

Product 771316 was added to the cart.

Go to Web-Shop
