Wiring accessories STAK

Enables EMC-optimised through-wiring according to IEC 60364-5-53

Details

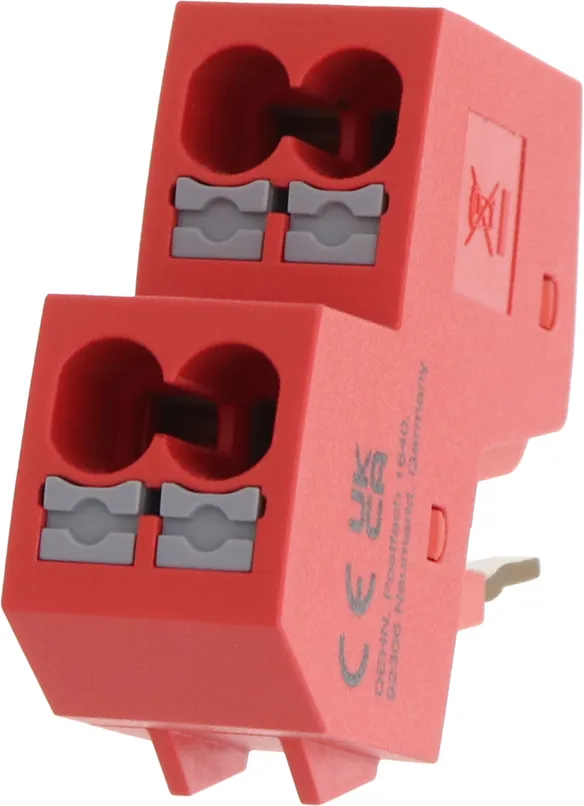

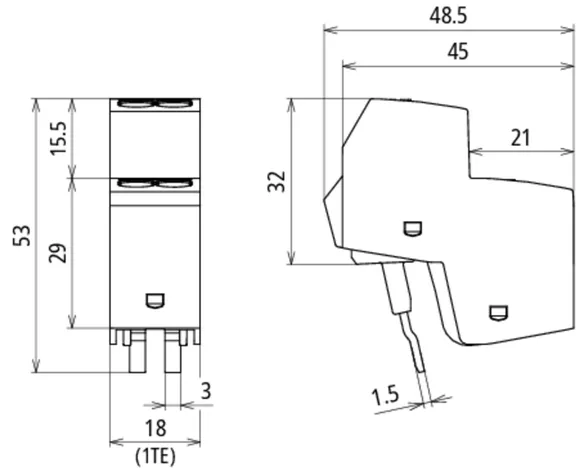

STAK 2X16 for EMC-optimised through-wiring of lightning current and surge arresters according to IEC 60364-5-53.

lorem ipsum — STAK 2X16 for EMC-optimised through-wiring of lightning current and surge arresters according to IEC 60364-5-53.

STAK 25 Pin-shaped Terminal

Pin-shaped terminal for EMC-optimised through-wiring of lightning current and surge arresters according to IEC 60364-5-53.

1 Product

Part No. 952589 STAK 25

GTIN 4013364132306, Customs tariff No. (EU): 85369010, Gross weight: 17.40 g, PU: 4.00 pc(s)

Images

Additional information

CAD files

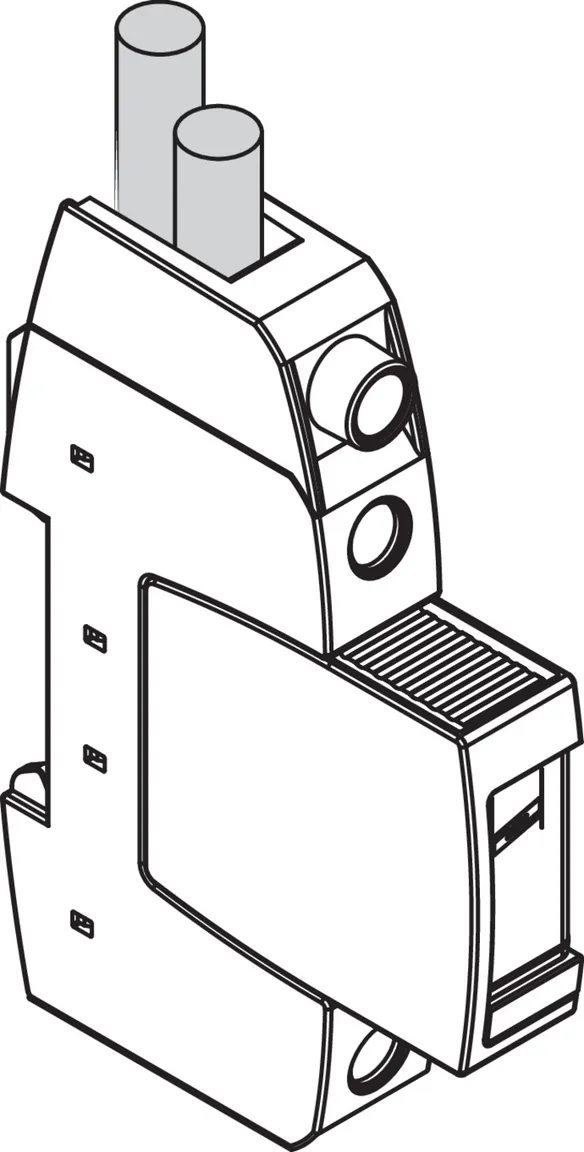

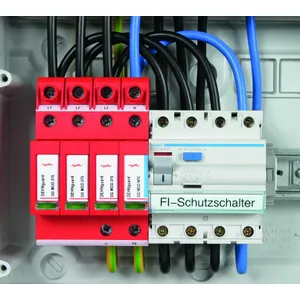

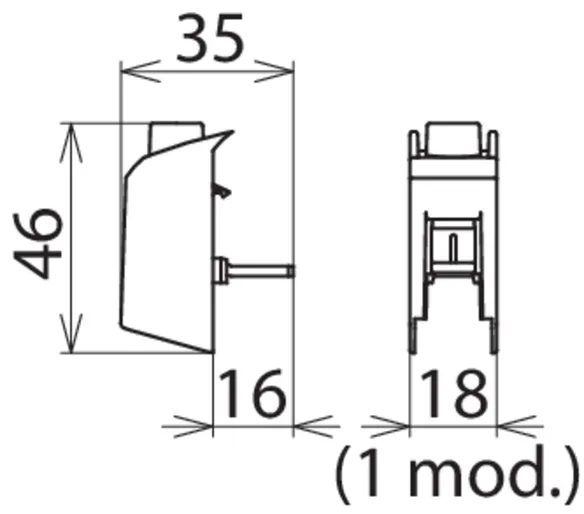

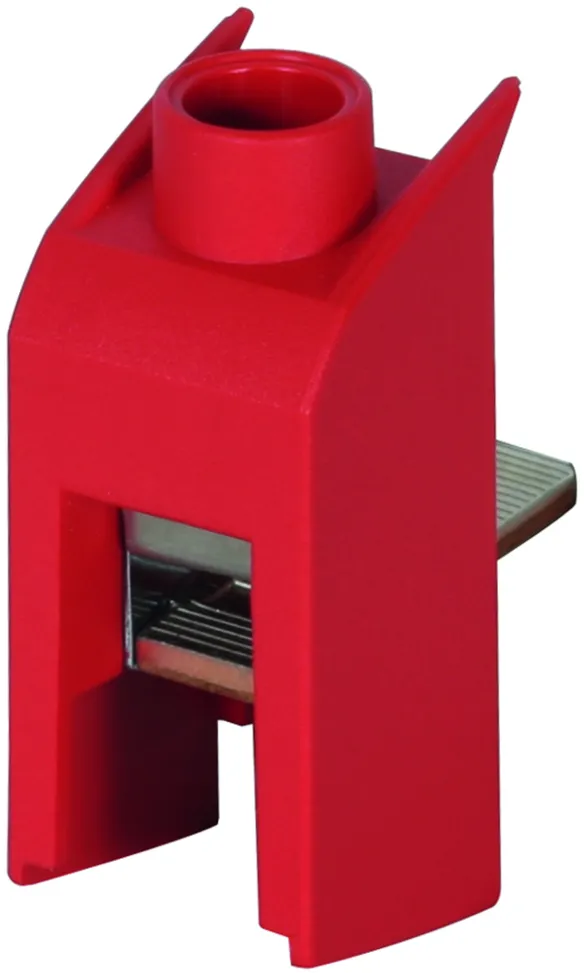

STAK 25 pin-shaped terminal

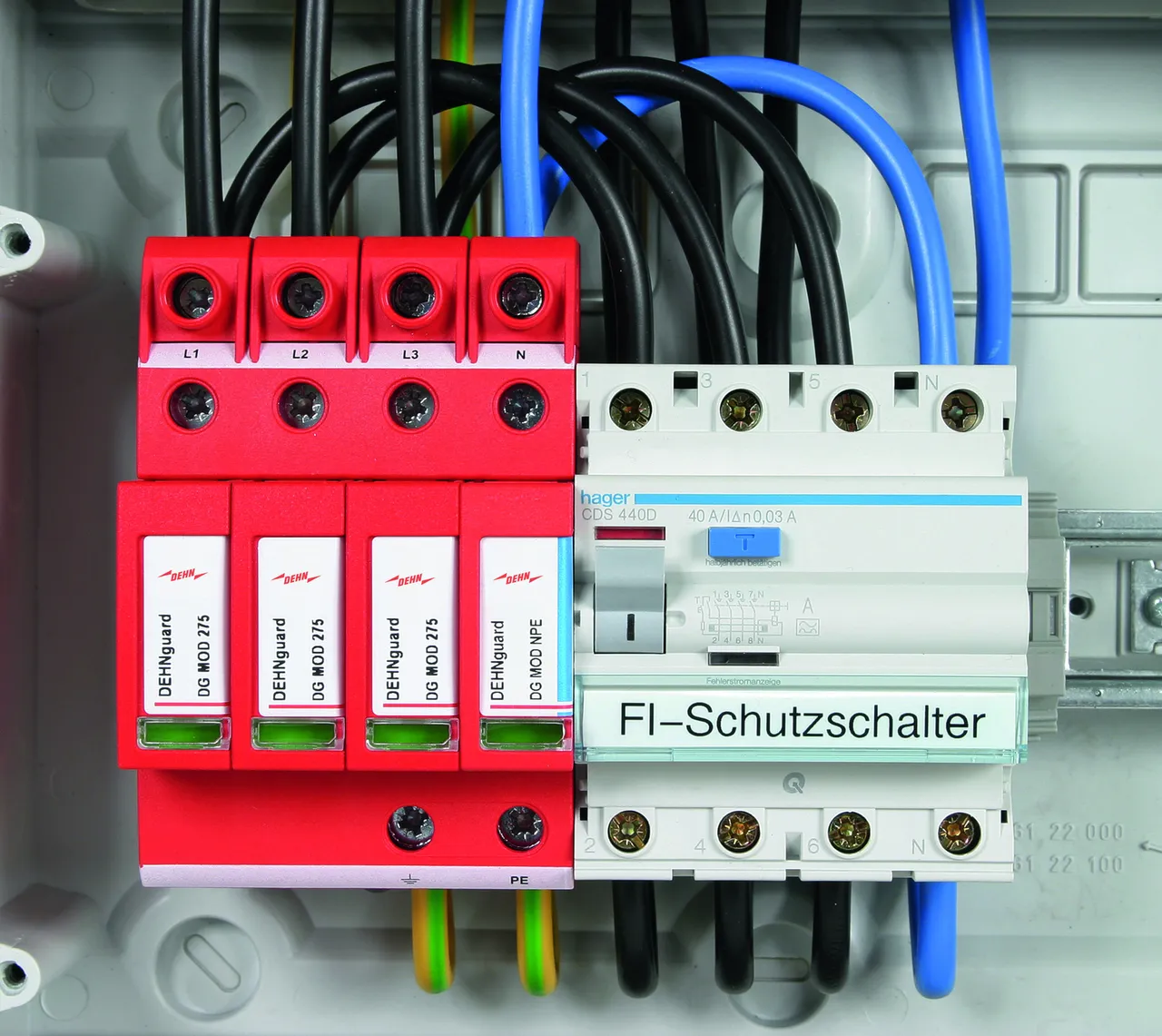

Pin-shaped terminal for "V-connection" to
surge protective devices up to 25mm²

Brand: DEHN
Type: STAK 25
Part No.: 952589
or equivalent.

Certificates

Technical data

Nominal voltage (a.c. / d.c.) (U_N )	600 V
Max. PV voltage (U_CPV) when used in combination with DEHNguard M YPV ...	1200 V
Nominal load current (a.c.) (I_L )	100 A
Lightning impulse current (10/350 µs) (I_imp )	25 kA
Discharge current (8/20 µs)	50 kA
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	25 mm² stranded / 16 mm² flexible
Type of connection	front

Nominal voltage (a.c. / d.c.) (U_N )	600 V
Max. PV voltage (U_CPV) when used in combination with DEHNguard M YPV ...	1200 V
Nominal load current (a.c.) (I_L )	100 A
Lightning impulse current (10/350 µs) (I_imp )	25 kA
Discharge current (8/20 µs)	50 kA
Rated insulation voltage (U_i )	630 V
Rated impulse withstand voltage (U_imp )	6 kV
Operating temperature range (T_U )	-40 °C ... +80 °C
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	25 mm² stranded / 16 mm² flexible
Type of connection	front
Suitable for	DEHNguard S, DEHNguard M, DEHNgap C S, DEHNshield, DK 25 feed-through terminal

Product 952589 was added to Notepad.

Go to Notepad

Product 952589 was added to the cart.

Go to Web-Shop

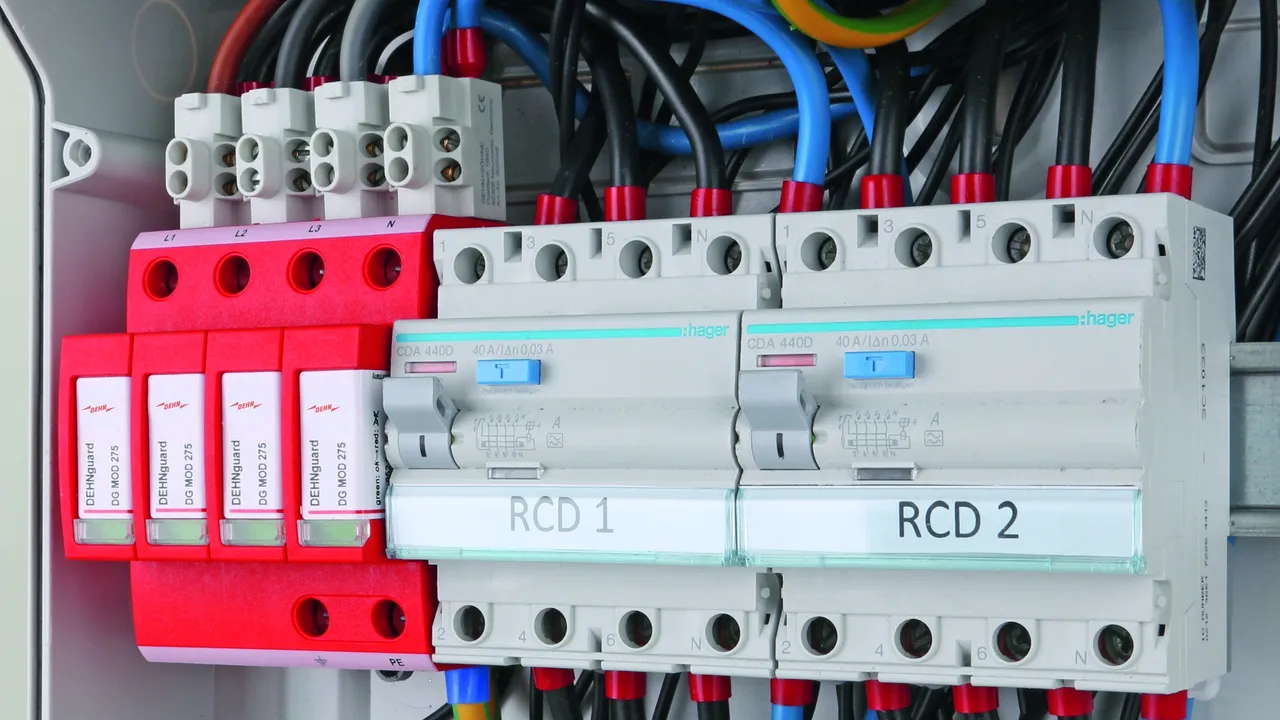

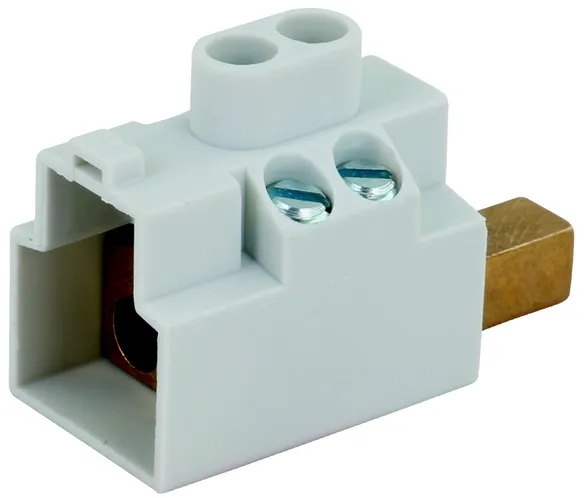

STAK 3X16 Pin-shaped Terminal

Pin-shaped terminal for EMC-optimised through-wiring of lightning current and surge arresters according to IEC 60364-5-53.

1 Product

Part No. 900588 STAK 3X16

GTIN 4013364323933, Customs tariff No. (EU): 85369010, Gross weight: 40.00 g, PU: 4.00 pc(s)

Images

Open PDF

Additional information

CAD files

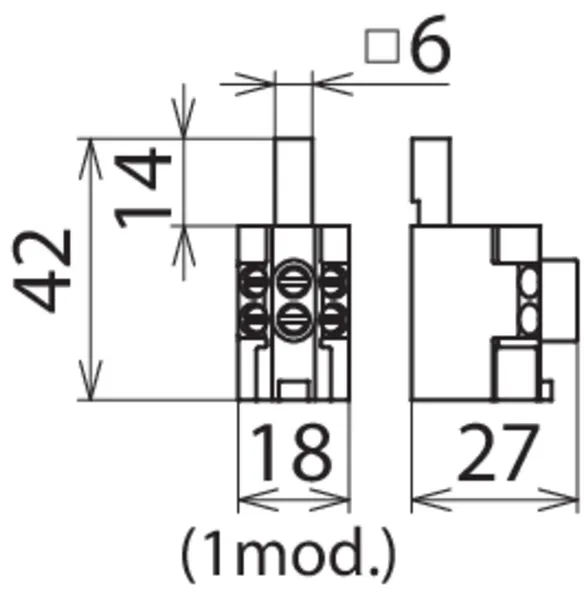

Pin-shaped terminal STAK 3X16
Terminal for "V-connection"
Cross-sectional area: 3 x 16 mm2

Brand: DEHN
Type: STAK 3X16
Part No.: 900588
or equivalent.

Certificates

Technical data

Nominal voltage (a.c. / d.c.) (U_N )	690 V / 1500 V
Nominal load current (a.c.) (I_L )	160 A
Load current at V-wiring	80 A
Lightning impulse current (10/350 µs) (I_imp )	25 kA
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	16 mm² stranded / 10 mm² flexible
Type of connection	front

Nominal voltage (a.c. / d.c.) (U_N )	690 V / 1500 V
Nominal load current (a.c.) (I_L )	160 A
Load current at V-wiring	80 A
Lightning impulse current (10/350 µs) (I_imp )	25 kA
Rated insulation voltage (U_i )	1000 V
Rated impulse withstand voltage (U_imp )	8 kV
Operating temperature range (T_U )	-40 °C ... +80 °C
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	16 mm² stranded / 10 mm² flexible
Type of connection	front

Product 900588 was added to Notepad.

Go to Notepad

Product 900588 was added to the cart.

Go to Web-Shop

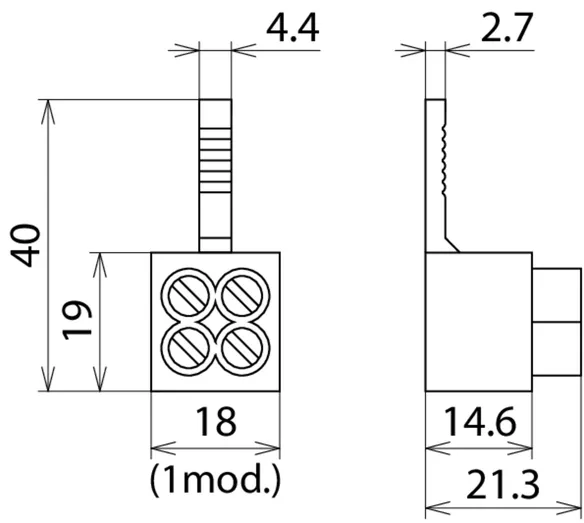

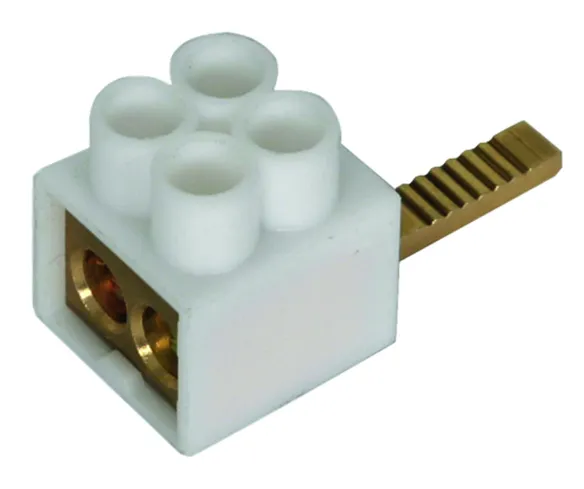

STAK 2X16 Pin-shaped Terminal

Pin-shaped terminal for EMC-optimised through-wiring of lightning current and surge arresters according to IEC 60364-5-53.

1 Product

Part No. 900589 STAK 2X16

GTIN 4013364109339, Customs tariff No. (EU): 85369010, Gross weight: 20.00 g, PU: 1.00 pc(s)

Images

Open PDF

Additional information

STAK 2X16 pin-shaped terminal
Double terminal design for
EMC-optimised feed-through wiring
Cross-sectional area: 2 x 16 mm2

Brand: DEHN
Type: STAK 2X16
Part No.: 900589
or equivalent.

Technical data

Lightning impulse current (10/350 µs) (I_imp )	25 kA
Cross-sectional area (min.)	2x 1.5 mm²
Cross-sectional area (max.)	2x max. 16 mm²
Type of connection	front (double terminal)
