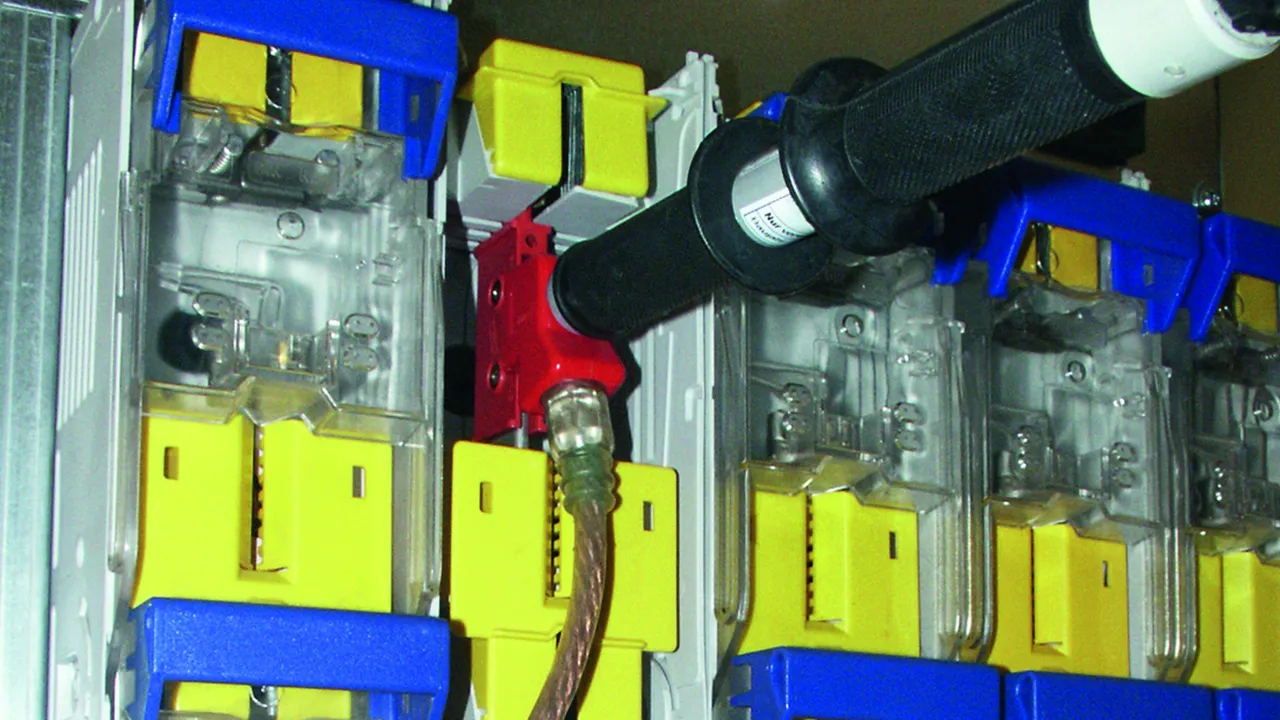

Earthing and Short-Circuiting Devices (fully insulated) for Low-Voltage Cable Distribution Cabinets
:quality(98)/dehn.us/store/f/52283266/HDVORSCHAU/745923~2.jpg)
:quality(98)/dehn.us/store/f/52283266/HDVORSCHAU/745923~2.jpg)
- Fully insulated, shock-proof version
- Complete kit for cable distribution cabinets (CDCs)

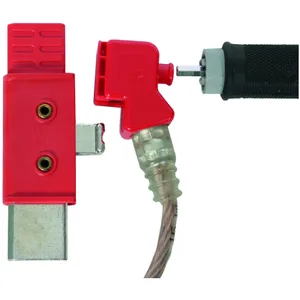

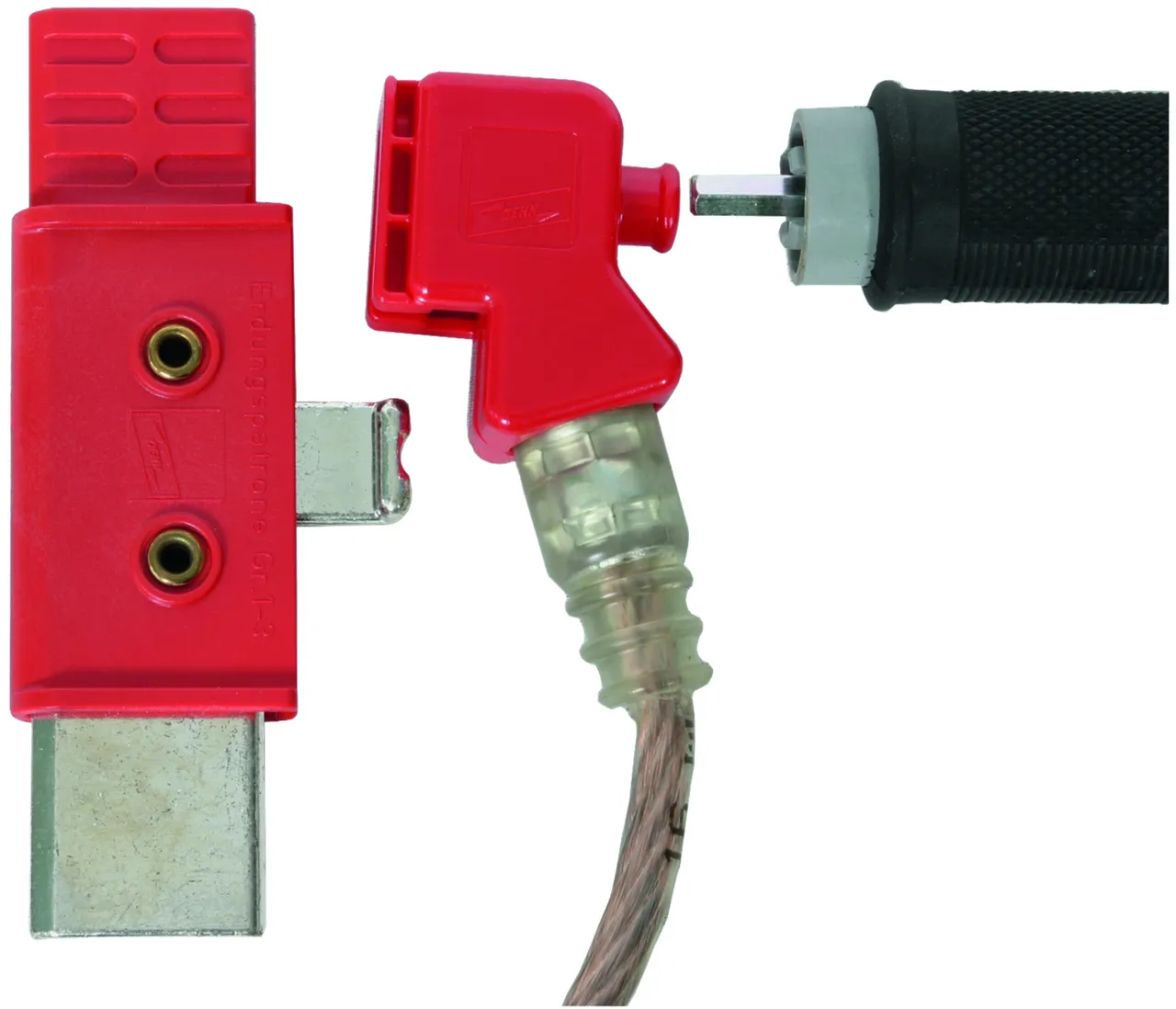

- Safe operation with insulated earthing handle of type VI (with dual function), suitable for both inserting and removing earthing cartridges with T connection as well as for attaching earthing and short-circuiting devices (EaS devices)
- Waterproof, plastic-sheathed cable guide and node unit, with additional anti-kink protection
- Other cable lengths can be selected online via the earthing and short-circuiting configurator
Details
:quality(98)/dehn.us/store/f/52283267/HDVORSCHAU/745910a1.jpg)
:quality(98)/dehn.us/store/f/52283267/HDVORSCHAU/745910a1.jpg)

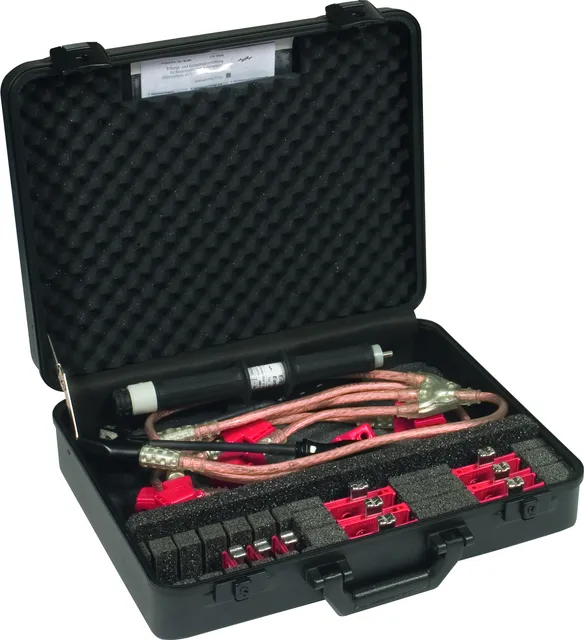

Part No. 745903 EKS VI 2F KVS KK
GTIN 4013364093577, Customs tariff No. (EU): 85369095, Gross weight: 7.00 kg, PU: 1.00 pc(s)
Images
:quality(98)/dehn.us/store/f/52283273/HDVORSCHAU/745903.jpg)
:quality(98)/dehn.us/store/f/52283273/HDVORSCHAU/745903.jpg)
:quality(98)/dehn.us/store/f/52283274/HDVORSCHAU/745903_Set_D.jpg)
:quality(98)/dehn.us/store/f/52283274/HDVORSCHAU/745903_Set_D.jpg)
Technical data
| Variant No. of EaS device | V162LDM |
| Dimensions | 450 x 350 x 110 mm |
| Attention: Please state the relevant Variant No. when ordering. | |

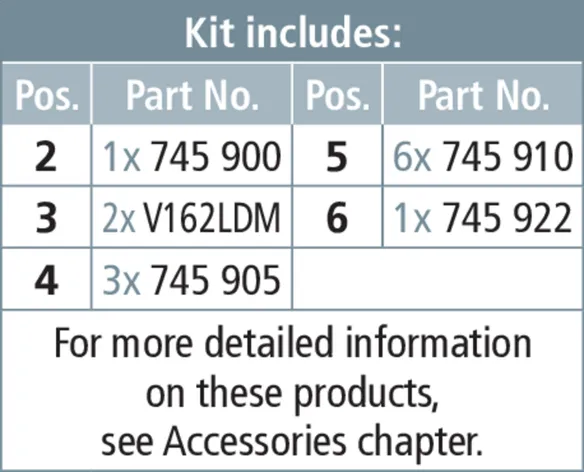

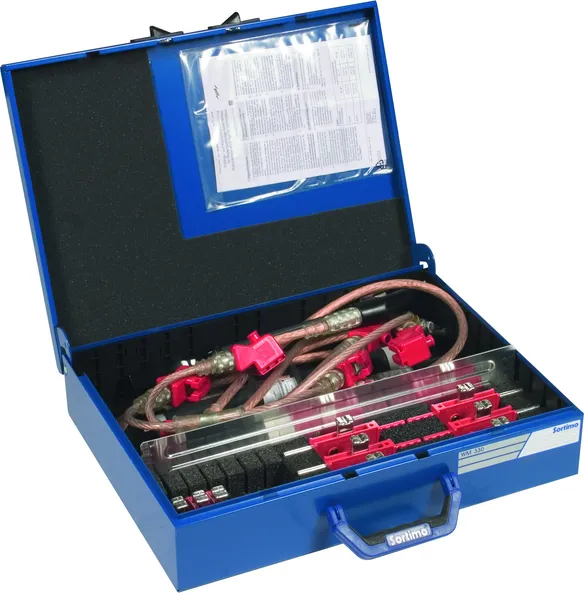

Part No. 745901 EKS VI 2F KVS SBK
GTIN 4013364083530, Customs tariff No. (EU): 85369095, Gross weight: 6.89 kg, PU: 1.00 pc(s)
Images
:quality(98)/dehn.us/store/f/52283318/HDVORSCHAU/745901.jpg)
:quality(98)/dehn.us/store/f/52283318/HDVORSCHAU/745901.jpg)
:quality(98)/dehn.us/store/f/52283319/HDVORSCHAU/745901_Set_E.jpg)
:quality(98)/dehn.us/store/f/52283319/HDVORSCHAU/745901_Set_E.jpg)
Technical data
| Variant No. of EaS device | V162LDM |
| Dimensions | 440 x 330 x 100 mm |
| Attention: Please state the relevant Variant No. when ordering. | |
