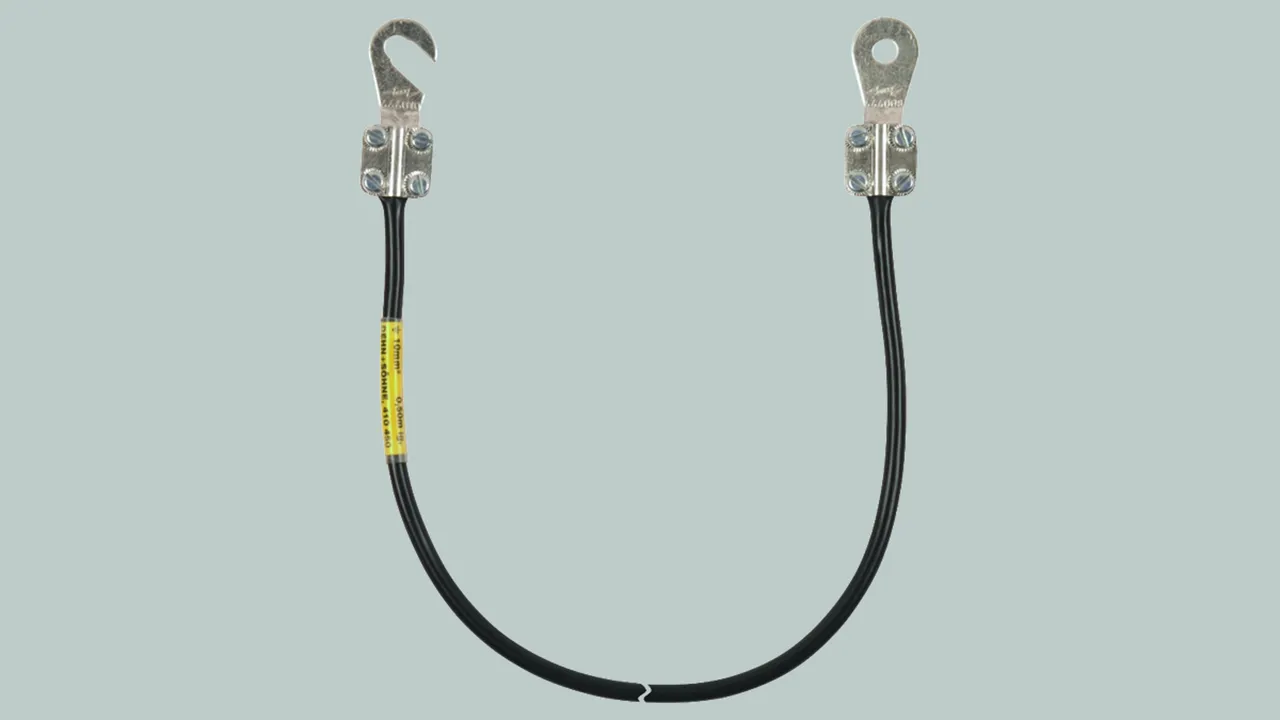

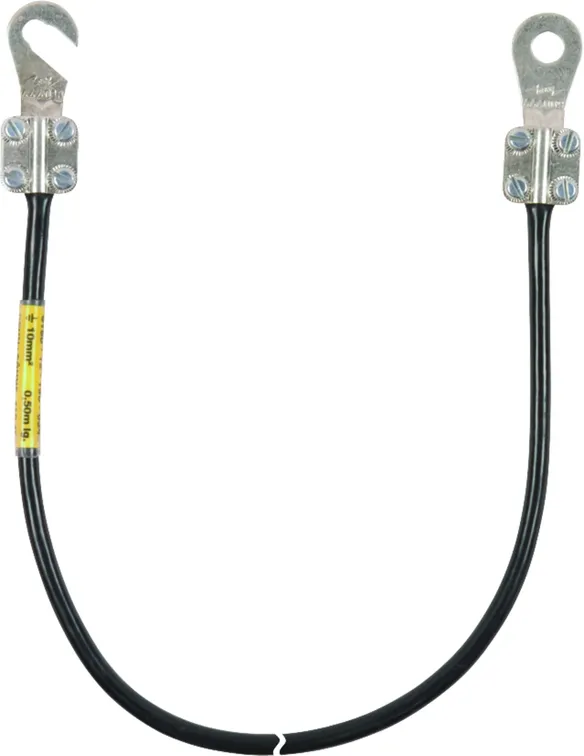

Earthing Cables with Cable Lugs open / closed

Highly flexible copper cable, frost-resistant, UV-stabilised.
Packing in accordance with VG 96927-11 (cable assemblies).

Cable lug, 1x open M5 / M6 and 1x closed M8

7 Products

Part No. 410503 EL10 L0.35M 1KSO 5.6 1KSG 8

GTIN 4013364029408, Customs tariff No. (EU): 85444290, Gross weight: 99.60 g, PU: 1.00 pc(s)


Images

Additional information

Earthing cable, 1x open cable lug, 1x closed cable lug, 0.35 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M5/M6 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 0.35 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L0.35M 1KSO 5.6 1KSG 8
Part No.: 410503
or equivalent.

Certificates



Technical data

Cable cross section 10 mm2
Cable length (l1) 0.35 m
Cable lug open M5 / M6
Cable lug closed M8
Hole Ø 8.5 mm
Colour black ●

Product 410503 was added to Notepad.

Product 410503 was added to the cart.

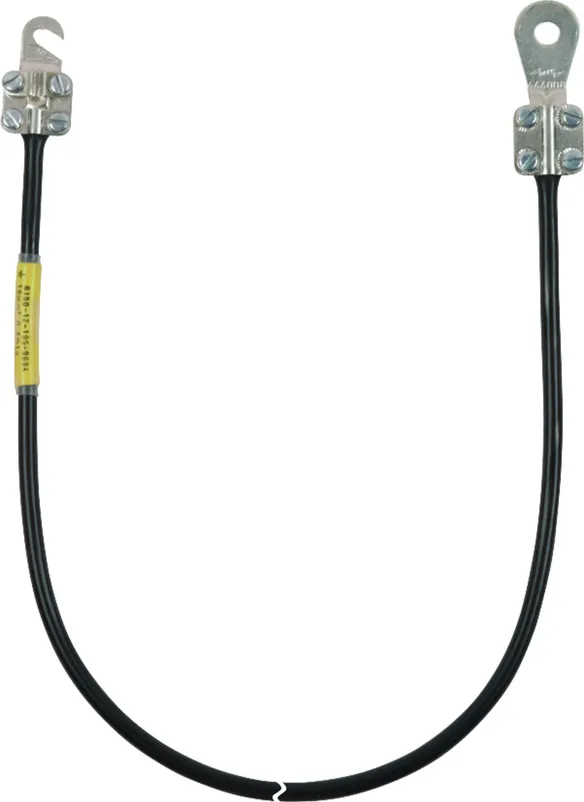

Part No. 410506 EL10 L0.65M 1KSO 5.6 1KSG 8

GTIN 4013364029415, Customs tariff No. (EU): 85444290, Gross weight: 115.80 g, PU: 1.00 pc(s)


Images

Additional information

Earthing cable, 1x open cable lug, 1x closed cable lug, 0.65 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M5/M6 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 0.65 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L0.65M 1KSO 5.6 1KSG 8
Part No.: 410506
or equivalent.

Certificates



Technical data

Cable cross section 10 mm2
Cable length (l1) 0.65 m
Cable lug open M5 / M6
Cable lug closed M8
Hole Ø 8.5 mm
Colour black ●

Product 410506 was added to Notepad.

Product 410506 was added to the cart.

Part No. 410510 EL10 L1.05M 1KSO 5.6 1KSG 8

GTIN 4013364029422, Customs tariff No. (EU): 85444290, Gross weight: 185.00 g, PU: 1.00 pc(s)


Images

Additional information

Earthing cable, 1x open cable lug, 1x closed cable lug, 1.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M5/M6 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 1.05 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L1.05M 1KSO 5.6 1KSG 8
Part No.: 410510
or equivalent.

Certificates



Technical data

Cable cross section 10 mm2
Cable length (l1) 1.05 m
Cable lug open M5 / M6
Cable lug closed M8
Hole Ø 8.5 mm
Colour black ●

Product 410510 was added to Notepad.

Product 410510 was added to the cart.

Part No. 410515 EL10 L1.55M 1KSO 5.6 1KSG 8

GTIN 4013364029439, Customs tariff No. (EU): 85444290, Gross weight: 250.00 g, PU: 1.00 pc(s)


Images

Additional information

Earthing cable, 1x open cable lug, 1x closed cable lug, 1.55 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M5/M6 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 1.55 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L1.55M 1KSO 5.6 1KSG 8
Part No.: 410515
or equivalent.

Certificates



Technical data

Cable cross section 10 mm2
Cable length (l1) 1.55 m
Cable lug open M5 / M6
Cable lug closed M8
Hole Ø 8.5 mm
Colour black ●

Product 410515 was added to Notepad.

Product 410515 was added to the cart.

Part No. 410520 EL10 L2.05M 1KSO 5.6 1KSG 8

GTIN 4013364029446, Customs tariff No. (EU): 85444290, Gross weight: 300.00 g, PU: 1.00 pc(s)


Images

Additional information

Earthing cable, 1x open cable lug, 1x closed cable lug, 2.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M5/M6 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 2.05 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L2.05M 1KSO 5.6 1KSG 8
Part No.: 410520
or equivalent.

Certificates



Technical data

Cable cross section 10 mm2
Cable length (l1) 2.05 m
Cable lug open M5 / M6
Cable lug closed M8
Hole Ø 8.5 mm
Colour black ●

Product 410520 was added to Notepad.

Product 410520 was added to the cart.

Part No. 410525 EL10 L2.55M 1KSO 5.6 1KSG 8

GTIN 4013364029453, Customs tariff No. (EU): 85444290, Gross weight: 365.00 g, PU: 1.00 pc(s)


Images

Additional information

Earthing cable, 1x open cable lug, 1x closed cable lug, 2.55 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M5/M6 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 2.55 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L2.55M 1KSO 5.6 1KSG 8
Part No.: 410525
or equivalent.

Certificates



Technical data

Cable cross section 10 mm2
Cable length (l1) 2.55 m
Cable lug open M5 / M6
Cable lug closed M8
Hole Ø 8.5 mm
Colour black ●

Product 410525 was added to Notepad.

Product 410525 was added to the cart.

Part No. 410530 EL10 L3.05M 1KSO 5.6 1KSG 8

GTIN 4013364029460, Customs tariff No. (EU): 85444290, Gross weight: 425.00 g, PU: 1.00 pc(s)


Images

Additional information

Earthing cable, 1x open cable lug, 1x closed cable lug, 3.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M5/M6 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 3.05 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L3.05M 1KSO 5.6 1KSG 8
Part No.: 410530
or equivalent.

Certificates



Technical data

Cable cross section 10 mm2
Cable length (l1) 3.05 m
Cable lug open M5 / M6
Cable lug closed M8
Hole Ø 8.5 mm
Colour black ●

Product 410530 was added to Notepad.

Product 410530 was added to the cart.


Cable lug, 1x open M8 / M10 and 1x closed M8

10 Products

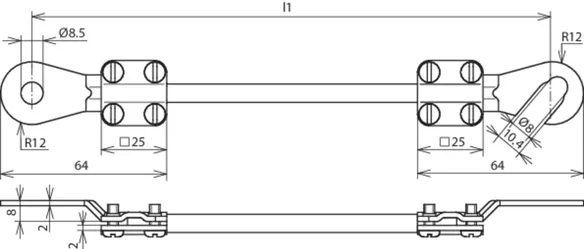

Part No. 410401 EL10 L0.20M 1KSO 8.10 1KSG 8

GTIN 4013364029200, Customs tariff No. (EU): 85444290, Gross weight: 90.00 g, PU: 1.00 pc(s)


Images

Additional information

Earthing cable, open and closed cable lug, 0.20 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 0.20 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L0.20M 1KSO 8.10 1KSG 8
Part No.: 410401
or equivalent.

Certificates



Technical data

Cable cross section 10 mm2
Cable length (l1) 0.20 m
Cable lug open M8 / M10
Cable lug closed M8
Hole Ø 8.5 mm
Colour black ●

Product 410401 was added to Notepad.

Product 410401 was added to the cart.

Part No. 410403 EL10 L0.35M 1KSO 8.10 1KSG 8

GTIN 4013364029194, Customs tariff No. (EU): 85444290, Gross weight: 109.20 g, PU: 1.00 pc(s)


Images

Additional information

Earthing cable, open and closed cable lug, 0.35 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 0.35 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L0.35M 1KSO 8.10 1KSG 8
Part No.: 410403
or equivalent.

Certificates



Technical data

Cable cross section 10 mm2
Cable length (l1) 0.35 m
Cable lug open M8 / M10
Cable lug closed M8
Hole Ø 8.5 mm
Colour black ●

Product 410403 was added to Notepad.

Product 410403 was added to the cart.

Part No. 410404 EL10 L0.45M 1KSO 8.10 1KSG 8

GTIN 4013364029187, Customs tariff No. (EU): 85444290, Gross weight: 122.00 g, PU: 1.00 pc(s)


Images

Additional information

Earthing cable, open and closed cable lug, 0.45 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 0.45 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L0.45M 1KSO 8.10 1KSG 8
Part No.: 410404
or equivalent.

Certificates



Technical data

Cable cross section 10 mm2
Cable length (l1) 0.45 m
Cable lug open M8 / M10
Cable lug closed M8
Hole Ø 8.5 mm
Colour black ●

Product 410404 was added to Notepad.

Product 410404 was added to the cart.

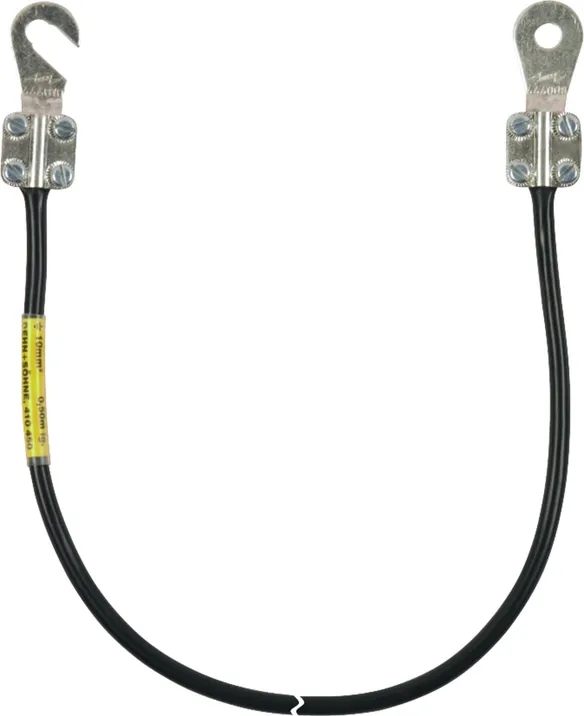

Part No. 410450 EL10 L0.55M 1KSO 8.10 1KSG 8

GTIN 4013364029170, Customs tariff No. (EU): 85444290, Gross weight: 135.00 g, PU: 1.00 pc(s)


Images

Additional information

Earthing cable, open and closed cable lug, 0.55 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 0.55 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L0.55M 1KSO 8.10 1KSG 8
Part No.: 410450
or equivalent.

Certificates



Technical data

Cable cross section 10 mm2
Cable length (l1) 0.55 m
Cable lug open M8 / M10
Cable lug closed M8
Hole Ø 8.5 mm
Colour black ●

Product 410450 was added to Notepad.

Product 410450 was added to the cart.

Part No. 410406 EL10 L0.65M 1KSO 8.10 1KSG 8

GTIN 4013364029163, Customs tariff No. (EU): 85444290, Gross weight: 147.00 g, PU: 1.00 pc(s)


Images

Additional information

Earthing cable, open and closed cable lug, 0.65 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 0.65 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L0.65M 1KSO 8.10 1KSG 8
Part No.: 410406
or equivalent.

Certificates



Technical data

Cable cross section 10 mm2
Cable length (l1) 0.65 m
Cable lug open M8 / M10
Cable lug closed M8
Hole Ø 8.5 mm
Colour black ●

Product 410406 was added to Notepad.

Product 410406 was added to the cart.

Part No. 410411 EL10 L1.05M 1KSO 8.10 1KSG 8

GTIN 4013364029156, Customs tariff No. (EU): 85444290, Gross weight: 197.00 g, PU: 1.00 pc(s)


Images

Additional information

Earthing cable, open and closed cable lug, 1.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 1.05 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L1.05M 1KSO 8.10 1KSG 8
Part No.: 410411
or equivalent.

Certificates



Technical data

Cable cross section 10 mm2
Cable length (l1) 1.05 m
Cable lug open M8 / M10
Cable lug closed M8
Hole Ø 8.5 mm
Colour black ●

Product 410411 was added to Notepad.

Product 410411 was added to the cart.

Part No. 410415 EL10 L1.55M 1KSO 8.10 1KSG 8

GTIN 4013364029149, Customs tariff No. (EU): 85444290, Gross weight: 261.00 g, PU: 1.00 pc(s)


Images

Additional information

Earthing cable, open and closed cable lug, 1.55 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 1.55 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L1.55M 1KSO 8.10 1KSG 8
Part No.: 410415
or equivalent.

Certificates



Technical data

Cable cross section 10 mm2
Cable length (l1) 1.55 m
Cable lug open M8 / M10
Cable lug closed M8
Hole Ø 8.5 mm
Colour black ●

Product 410415 was added to Notepad.

Product 410415 was added to the cart.

Part No. 410420 EL10 L2.05M 1KSO 8.10 1KSG 8

GTIN 4013364029132, Customs tariff No. (EU): 85444290, Gross weight: 320.00 g, PU: 1.00 pc(s)


Images

Additional information

Earthing cable, open and closed cable lug, 2.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 2.05 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L2.05M 1KSO 8.10 1KSG 8
Part No.: 410420
or equivalent.

Certificates



Technical data

Cable cross section 10 mm2
Cable length (l1) 2.05 m
Cable lug open M8 / M10
Cable lug closed M8
Hole Ø 8.5 mm
Colour black ●

Product 410420 was added to Notepad.

Product 410420 was added to the cart.

Part No. 410425 EL10 L2.55M 1KSO 8.10 1KSG 8

GTIN 4013364029125, Customs tariff No. (EU): 85444290, Gross weight: 385.00 g, PU: 1.00 pc(s)


Images

Additional information

Earthing cable, open and closed cable lug, 2.55 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 2.55 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L2.55M 1KSO 8.10 1KSG 8
Part No.: 410425
or equivalent.

Certificates



Technical data

Cable cross section 10 mm2
Cable length (l1) 2.55 m
Cable lug open M8 / M10
Cable lug closed M8
Hole Ø 8.5 mm
Colour black ●

Product 410425 was added to Notepad.

Product 410425 was added to the cart.

Part No. 410430 EL10 L3.05M 1KSO 8.10 1KSG 8

GTIN 4013364029118, Customs tariff No. (EU): 85444290, Gross weight: 445.00 g, PU: 1.00 pc(s)


Images

Additional information

Earthing cable, open and closed cable lug, 3.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 3.05 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L3.05M 1KSO 8.10 1KSG 8
Part No.: 410430
or equivalent.

Certificates



Technical data

Cable cross section 10 mm2
Cable length (l1) 3.05 m
Cable lug open M8 / M10
Cable lug closed M8
Hole Ø 8.5 mm
Colour black ●

Product 410430 was added to Notepad.

Product 410430 was added to the cart.


Cable lug, 1x open M8 / M10 and 1x closed M10

8 Products

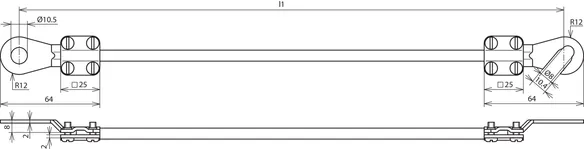

Part No. 410413 EL10 L0.35M 1KSO 8.10 1KSG 10

GTIN 4013364029279, Customs tariff No. (EU): 85444290, Gross weight: 110.00 g, PU: 1.00 pc(s)


Images

Additional information

Earthing cable, open / closed cable lug, 0.35 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 10 mm2
Cable length: 0.35 m
Hole Ø: 10.5 mm

Brand: DEHN
Type: EL10 L0.35M 1KSO 8.10 1KSG 10
Part No.: 410413
or equivalent.

Certificates



Technical data

Cable cross section 10 mm2
Cable length (l1) 0.35 m
Cable lug open M8 / M10
Cable lug closed M10
Hole Ø 10.5 mm
Colour black ●

Product 410413 was added to Notepad.

Product 410413 was added to the cart.

Part No. 410405 EL10 L0.55M 1KSO 8.10 1KSG 10

GTIN 4013364029262, Customs tariff No. (EU): 85444290, Gross weight: 140.00 g, PU: 1.00 pc(s)


Images

Additional information

Earthing cable, open and closed cable lug, 0.55 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 10 mm2
Cable length: 0.55 m
Hole Ø: 10.5 mm

Brand: DEHN
Type: EL10 L0.55M 1KSO 8.10 1KSG 10
Part No.: 410405
or equivalent.

Certificates



Technical data

Cable cross section 10 mm2
Cable length (l1) 0.55 m
Cable lug open M8 / M10
Cable lug closed M10
Hole Ø 10.5 mm
Colour black ●

Product 410405 was added to Notepad.

Product 410405 was added to the cart.

Part No. 410407 EL10 L0.65M 1KSO 8.10 1KSG 10

GTIN 4013364029255, Customs tariff No. (EU): 85444290, Gross weight: 145.00 g, PU: 1.00 pc(s)


Images

Additional information

Earthing cable, open and closed cable lug, 0.65 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 10 mm2
Cable length: 0.65 m
Hole Ø: 10.5 mm

Brand: DEHN
Type: EL10 L0.65M 1KSO 8.10 1KSG 10
Part No.: 410407
or equivalent.

Certificates



Technical data

Cable cross section 10 mm2
Cable length (l1) 0.65 m
Cable lug open M8 / M10
Cable lug closed M10
Hole Ø 10.5 mm
Colour black ●

Product 410407 was added to Notepad.

Product 410407 was added to the cart.

Part No. 410410 EL10 L1.05M 1KSO 8.10 1KSG 10

GTIN 4013364029248, Customs tariff No. (EU): 85444290, Gross weight: 200.00 g, PU: 1.00 pc(s)


Images

Additional information

Earthing cable, open and closed cable lug, 1.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 10 mm2
Cable length: 1.05 m
Hole Ø: 10.5 mm

Brand: DEHN
Type: EL10 L1.05M 1KSO 8.10 1KSG 10
Part No.: 410410
or equivalent.

Certificates



Technical data

Cable cross section 10 mm2
Cable length (l1) 1.05 m
Cable lug open M8 / M10
Cable lug closed M10
Hole Ø 10.5 mm
Colour black ●

Product 410410 was added to Notepad.

Product 410410 was added to the cart.

Part No. 410416 EL10 L1.55M 1KSO 8.10 1KSG 10

GTIN 4013364029231, Customs tariff No. (EU): 85444290, Gross weight: 250.00 g, PU: 1.00 pc(s)


Images

Additional information

Earthing cable, open and closed cable lug, 1.55 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 10 mm2
Cable length: 1.55 m
Hole Ø: 10.5 mm

Brand: DEHN
Type: EL10 L1.55M 1KSO 8.10 1KSG 10
Part No.: 410416
or equivalent.

Certificates



Technical data

Cable cross section 10 mm2
Cable length (l1) 1.55 m
Cable lug open M8 / M10
Cable lug closed M10
Hole Ø 10.5 mm
Colour black ●

Product 410416 was added to Notepad.

Product 410416 was added to the cart.

Part No. 410421 EL10 L2.05M 1KSO 8.10 1KSG 10

GTIN 4013364029224, Customs tariff No. (EU): 85444290, Gross weight: 320.00 g, PU: 1.00 pc(s)


Images

Additional information

Earthing cable, open and closed cable lug, 2.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 10 mm2
Cable length: 2.05 m
Hole Ø: 10.5 mm

Brand: DEHN
Type: EL10 L2.05M 1KSO 8.10 1KSG 10
Part No.: 410421
or equivalent.

Certificates



Technical data

Cable cross section 10 mm2
Cable length (l1) 2.05 m
Cable lug open M8 / M10
Cable lug closed M10
Hole Ø 10.5 mm
Colour black ●

Product 410421 was added to Notepad.

Product 410421 was added to the cart.

Part No. 410426 EL10 L2.55M 1KSO 8.10 1KSG 10

GTIN 4013364029217, Customs tariff No. (EU): 85444290, Gross weight: 370.00 g, PU: 1.00 pc(s)


Images

Additional information

Earthing cable, open and closed cable lug, 2.55 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 10 mm2
Cable length: 2.55 m
Hole Ø: 10.5 mm

Brand: DEHN
Type: EL10 L2.55M 1KSO 8.10 1KSG 10
Part No.: 410426
or equivalent.

Certificates



Technical data

Cable cross section 10 mm2
Cable length (l1) 2.55 m
Cable lug open M8 / M10
Cable lug closed M10
Hole Ø 10.5 mm
Colour black ●

Product 410426 was added to Notepad.

Product 410426 was added to the cart.

Part No. 410431 EL10 L3.05M 1KSO 8.10 1KSG 10

GTIN 4013364029590, Customs tariff No. (EU): 85444290, Gross weight: 430.00 g, PU: 1.00 pc(s)


Images

Additional information

Earthing cable, open and closed cable lug, 3.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 10 mm2
Cable length: 3.05 m
Hole Ø: 10.5 mm

Brand: DEHN
Type: EL10 L3.05M 1KSO 8.10 1KSG 10
Part No.: 410431
or equivalent.

Certificates



Technical data

Cable cross section 10 mm2
Cable length (l1) 3.05 m
Cable lug open M8 / M10
Cable lug closed M10
Hole Ø 10.5 mm
Colour black ●

Product 410431 was added to Notepad.

Product 410431 was added to the cart.


Cable lug, 1x open M5 / M6 and 1x closed M8

1 Product

Part No. 416505 EL16 L0.55M 1KSO 5.6 1KSG 8

GTIN 4013364029477, Customs tariff No. (EU): 85444290, Gross weight: 158.00 g, PU: 1.00 pc(s)


Images

Additional information

Earthing cable, open and closed cable lug, 0.55 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M5/M6 and 1x closed M8
Cable cross section: 16 mm2
Cable length: 0.55 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL16 L0.55M 1KSO 5.6 1KSG 8
Part No.: 416505
or equivalent.

Certificates



Technical data

Cable cross section 16 mm2
Cable length (l1) 0.55 m
Cable lug open M5 / M6
Cable lug closed M8
Hole Ø 8.5 mm
Colour black ●

Product 416505 was added to Notepad.

Product 416505 was added to the cart.


Cable lug, 1x open M8 / M10 and 1x closed M8

7 Products

Part No. 416411 EL16 L1.05M 1KSO 8.10 1KSG 8

GTIN 4013364032545, Customs tariff No. (EU): 85444290, Gross weight: 266.00 g, PU: 1.00 pc(s)


Images

Additional information

Earthing cable, open and closed cable lug, 1.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 16 mm2
Cable length: 1.05 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL16 L1.05M 1KSO 8.10 1KSG 8
Part No.: 416411
or equivalent.

Certificates



Technical data

Cable cross section 16 mm2
Cable length (l1) 1.05 m
Cable lug open M8 / M10
Cable lug closed M8
Hole Ø 8.5 mm
Colour black ●

Product 416411 was added to Notepad.

Product 416411 was added to the cart.

Part No. 416415 EL16 L1.55M KSO 8.10 KSG 8

GTIN 4013364032439, Customs tariff No. (EU): 85444290, Gross weight: 364.00 g, PU: 1.00 pc(s)


Images

Additional information

Earthing cable, open and closed cable lug, 1.55 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 16 mm2
Cable length: 1.55 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL16 L1.55M KSO 8.10 KSG 8
Part No.: 416415
or equivalent.

Certificates



Technical data

Cable cross section 16 mm2
Cable length (l1) 1.55 m
Cable lug open M8 / M10
Cable lug closed M8
Hole Ø 8.5 mm
Colour black ●

Product 416415 was added to Notepad.

Product 416415 was added to the cart.

Part No. 416420 EL16 L2.05M 1KSO 8.10 1KSG 8

GTIN 4013364032446, Customs tariff No. (EU): 85444290, Gross weight: 464.00 g, PU: 1.00 pc(s)


Images

Additional information

Earthing cable, open and closed cable lug, 2.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 16 mm2
Cable length: 2.05 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL16 L2.05M 1KSO 8.10 1KSG 8
Part No.: 416420
or equivalent.

Certificates



Technical data

Cable cross section 16 mm2
Cable length (l1) 2.05 m
Cable lug open M8 / M10
Cable lug closed M8
Hole Ø 8.5 mm
Colour black ●

Product 416420 was added to Notepad.

Product 416420 was added to the cart.

Part No. 416425 EL16 L2.55M 1KSO 8.10 1KSG 8

GTIN 4013364032460, Customs tariff No. (EU): 85444290, Gross weight: 558.00 g, PU: 1.00 pc(s)


Images

Additional information

Earthing cable, open and closed cable lug, 2.55 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 16 mm2
Cable length: 2.55 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL16 L2.55M 1KSO 8.10 1KSG 8
Part No.: 416425
or equivalent.

Certificates



Technical data

Cable cross section 16 mm2
Cable length (l1) 2.55 m
Cable lug open M8 / M10
Cable lug closed M8
Hole Ø 8.5 mm
Colour black ●

Product 416425 was added to Notepad.

Product 416425 was added to the cart.

Part No. 416430 EL16 L3.05M 1KSO 8.10 1KSG 8

GTIN 4013364032484, Customs tariff No. (EU): 85444290, Gross weight: 654.00 g, PU: 1.00 pc(s)


Images

Additional information

Earthing cable, open and closed cable lug, 3.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 16 mm2
Cable length: 3.05 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL16 L3.05M 1KSO 8.10 1KSG 8
Part No.: 416430
or equivalent.

Certificates



Technical data

Cable cross section 16 mm2
Cable length (l1) 3.05 m
Cable lug open M8 / M10
Cable lug closed M8
Hole Ø 8.5 mm
Colour black ●

Product 416430 was added to Notepad.

Product 416430 was added to the cart.

Part No. 416440 EL16 L4.05M 1KSO 8.10 1KSG 8

GTIN 4013364032507, Customs tariff No. (EU): 85444290, Gross weight: 849.00 g, PU: 1.00 pc(s)


Images

Additional information

Earthing cable, open and closed cable lug, 4.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 16 mm2
Cable length: 4.05 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL16 L4.05M 1KSO 8.10 1KSG 8
Part No.: 416440
or equivalent.

Certificates



Technical data

Cable cross section 16 mm2
Cable length (l1) 4.05 m
Cable lug open M8 / M10
Cable lug closed M8
Hole Ø 8.5 mm
Colour black ●

Product 416440 was added to Notepad.

Product 416440 was added to the cart.

Part No. 416450 EL16 L5.05M 1KSO 8.10 1KSG 8

GTIN 4013364032521, Customs tariff No. (EU): 85444290, Gross weight: 1.04 kg, PU: 1.00 pc(s)


Images

Additional information

Earthing cable, open and closed cable lug, 5.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 16 mm2
Cable length: 5.05 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL16 L5.05M 1KSO 8.10 1KSG 8
Part No.: 416450
or equivalent.

Certificates



Technical data

Cable cross section 16 mm2
Cable length (l1) 5.05 m
Cable lug open M8 / M10
Cable lug closed M8
Hole Ø 8.5 mm
Colour black ●

Product 416450 was added to Notepad.

Product 416450 was added to the cart.


Cable lug, 1x open M8 / M10 and 1x closed M10

8 Products

Part No. 416403 EL16 L0.35M 1KSO 8.10 1KSG 10

GTIN 4013364029286, Customs tariff No. (EU): 85444290, Gross weight: 130.00 g, PU: 1.00 pc(s)


Images

Additional information

Earthing cable, open and closed cable lug, 0.35 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 16 mm2
Cable length: 0.35 m
Hole Ø: 10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L0.35M 1KSO 8.10 1KSG 10
Part No.: 416403
or equivalent.

Certificates



Technical data

Cable cross section 16 mm2
Cable length (l1) 0.35 m
Cable lug open M8 / M10
Cable lug closed M10
Hole Ø 10.5 mm
Colour black ●
Standard EN 62561-1

Product 416403 was added to Notepad.

Product 416403 was added to the cart.

Part No. 416410 EL16 L1.05M 1KSO 8.10 1KSG 10

GTIN 4013364032422, Customs tariff No. (EU): 85444290, Gross weight: 265.00 g, PU: 1.00 pc(s)


Images

Additional information

Earthing cable, open and closed cable lug, 1.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 16 mm2
Cable length: 1.05 m
Hole Ø: 10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L1.05M 1KSO 8.10 1KSG 10
Part No.: 416410
or equivalent.

Certificates



Technical data

Cable cross section 16 mm2
Cable length (l1) 1.05 m
Cable lug open M8 / M10
Cable lug closed M10
Hole Ø 10.5 mm
Colour black ●
Standard EN 62561-1

Product 416410 was added to Notepad.

Product 416410 was added to the cart.

Part No. 416416 EL16 L1.55M 1KSO 8.10 1KSG 10

GTIN 4013364032453, Customs tariff No. (EU): 85444290, Gross weight: 364.00 g, PU: 1.00 pc(s)


Images

Additional information

Earthing cable, open and closed cable lug, 1.55 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 16 mm2
Cable length: 1.55 m
Hole Ø: 10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L1.55M 1KSO 8.10 1KSG 10
Part No.: 416416
or equivalent.

Certificates



Technical data

Cable cross section 16 mm2
Cable length (l1) 1.55 m
Cable lug open M8 / M10
Cable lug closed M10
Hole Ø 10.5 mm
Colour black ●
Standard EN 62561-1

Product 416416 was added to Notepad.

Product 416416 was added to the cart.

Part No. 416421 EL16 L2.05M 1KSO 8.10 1KSG 10

GTIN 4013364036116, Customs tariff No. (EU): 85444290, Gross weight: 461.00 g, PU: 1.00 pc(s)


Images

Additional information

Earthing cable, open and closed cable lug, 2.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 16 mm2
Cable length: 2.05 m
Hole Ø: 10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L2.05M 1KSO 8.10 1KSG 10
Part No.: 416421
or equivalent.

Certificates



Technical data

Cable cross section 16 mm2
Cable length (l1) 2.05 m
Cable lug open M8 / M10
Cable lug closed M10
Hole Ø 10.5 mm
Colour black ●
Standard EN 62561-1

Product 416421 was added to Notepad.

Product 416421 was added to the cart.

Part No. 416426 EL16 L2.55M 1KSO 8.10 1KSG 10

GTIN 4013364032477, Customs tariff No. (EU): 85444290, Gross weight: 558.00 g, PU: 1.00 pc(s)


Images

Additional information

Earthing cable, open and closed cable lug, 2.55 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 16 mm2
Cable length: 2.55 m
Hole Ø: 10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L2.55M 1KSO 8.10 1KSG 10
Part No.: 416426
or equivalent.

Certificates



Technical data

Cable cross section 16 mm2
Cable length (l1) 2.55 m
Cable lug open M8 / M10
Cable lug closed M10
Hole Ø 10.5 mm
Colour black ●
Standard EN 62561-1

Product 416426 was added to Notepad.

Product 416426 was added to the cart.

Part No. 416431 EL16 L3.05M 1KSO 8.10 1KSG 10

GTIN 4013364032491, Customs tariff No. (EU): 85444290, Gross weight: 655.00 g, PU: 1.00 pc(s)


Images

Additional information

Earthing cable, open and closed cable lug, 3.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 16 mm2
Cable length: 3.05 m
Hole Ø: 10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L3.05M 1KSO 8.10 1KSG 10
Part No.: 416431
or equivalent.

Certificates



Technical data

Cable cross section 16 mm2
Cable length (l1) 3.05 m
Cable lug open M8 / M10
Cable lug closed M10
Hole Ø 10.5 mm
Colour black ●
Standard EN 62561-1

Product 416431 was added to Notepad.

Product 416431 was added to the cart.

Part No. 416441 EL16 L4.05M 1KSO 8.10 1KSG 10

GTIN 4013364032514, Customs tariff No. (EU): 85444290, Gross weight: 849.00 g, PU: 1.00 pc(s)


Images

Additional information

Earthing cable, open and closed cable lug, 4.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 16 mm2
Cable length: 4.05 m
Hole Ø: 10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L4.05M 1KSO 8.10 1KSG 10
Part No.: 416441
or equivalent.

Certificates



Technical data

Cable cross section 16 mm2
Cable length (l1) 4.05 m
Cable lug open M8 / M10
Cable lug closed M10
Hole Ø 10.5 mm
Colour black ●
Standard EN 62561-1

Product 416441 was added to Notepad.

Product 416441 was added to the cart.

Part No. 416451 EL16 L5.05M 1KSO 8.10 1KSG 10

GTIN 4013364032538, Customs tariff No. (EU): 85444290, Gross weight: 1.04 kg, PU: 1.00 pc(s)


Images

Additional information

Earthing cable, open and closed cable lug, 5.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 16 mm2
Cable length: 5.05 m
Hole Ø: 10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L5.05M 1KSO 8.10 1KSG 10
Part No.: 416451
or equivalent.

Certificates



Technical data

Cable cross section 16 mm2
Cable length (l1) 5.05 m
Cable lug open M8 / M10
Cable lug closed M10
Hole Ø 10.5 mm
Colour black ●
Standard EN 62561-1

Product 416451 was added to Notepad.

Product 416451 was added to the cart.


Your dashboard services.
Register to access all tools.

Request a risk assessment
back to top
