Connecting Clamps for Foundation Earth Electrodes and Reinforcements

For connecting round and flat conductors in the concrete foundation or reinforcing steel meshes and reinforcements with round and flat conductors.

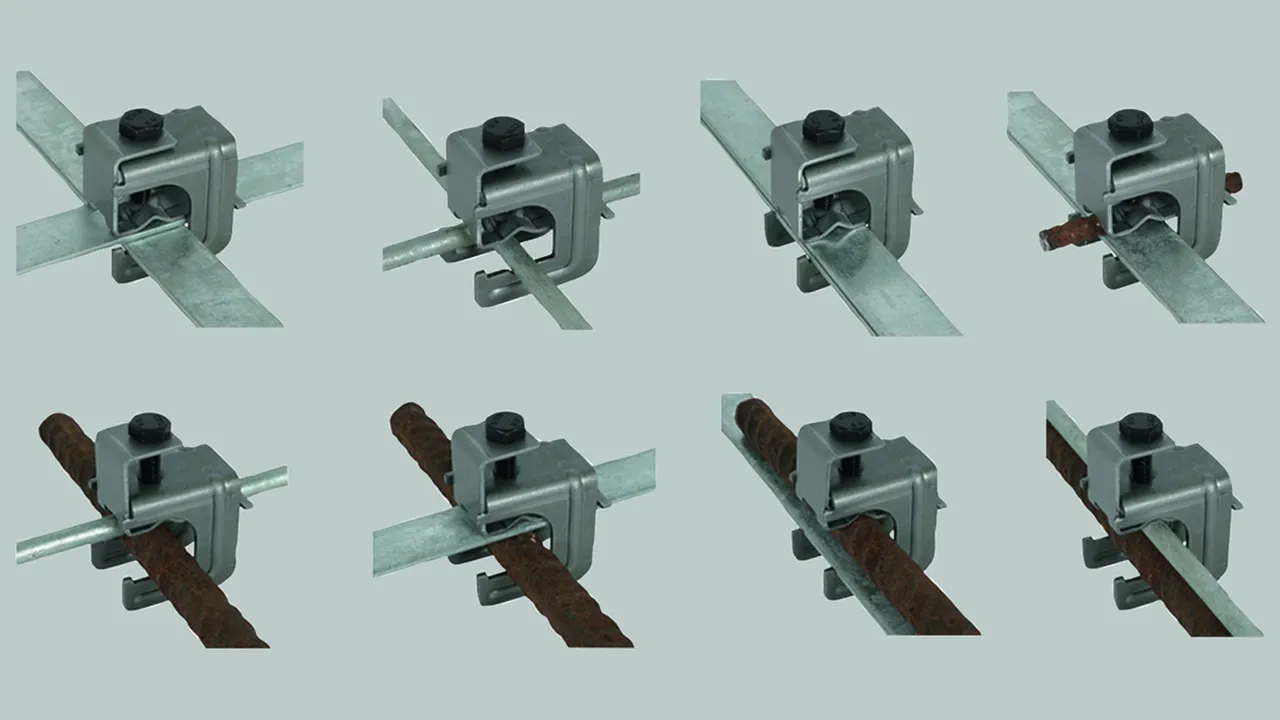

Arrangement:
(II) = parallel
(+) = cross

Connecting clamp with thrust bracket

For T, cross and parallel connections.

2 Products

Part No. 308031 VK DB 6.20 8.10 FL30 BSB STBL

GTIN 4013364136571, Customs tariff No. (EU): 85359000, Gross weight: 239.60 g, PU: 25.00 pc(s)

Images

Open PDF

Additional information

CAD files

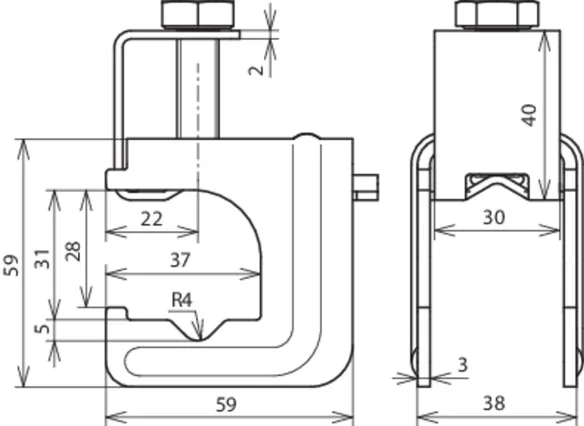

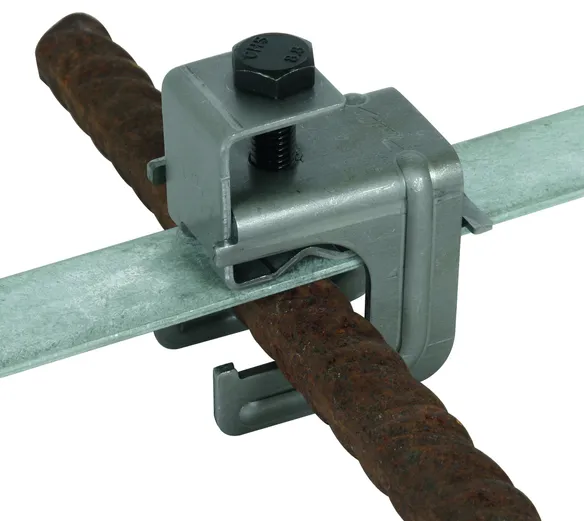

Connecting clamp with thrust bracket, St/bare
Connecting clamp with thrust bracket for connecting round and flat conductors in the concrete
foundation or reinforcing steel meshes and reinforcements with
round and flat conductors
For T, cross and parallel connections
Material: St/bare
Clamping range Rd / Rd: (+/II) 6-20 / 8-10 mm
Clamping range Rd / Fl: (+/II) 6-20 / 30 x 3-4 mm
Clamping range Fl / Fl: (+/II) 30 x 3-4 / 30 x 3-4 mm
Version: Without clamping ring
Standard: EN 62561-1

Brand: DEHN
Type: VK DB 6.20 8.10 FL30 BSB STBL
Part No.: 308031
or equivalent.

Certificates

Technical data

Material	St/bare
Clamping range Rd / Rd	(+/II) 6-20 / 8-10 mm
Clamping range Rd / Fl	(+/II) 6-20 / 30 x 3-4 mm
Clamping range Fl / Fl	(+/II) 30 x 3-4 / 30 x 3-4 mm
Version	Without clamping ring
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C)	8.4 kA
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Material	St/bare
Clamping range Rd / Rd	(+/II) 6-20 / 8-10 mm
Clamping range Rd / Fl	(+/II) 6-20 / 30 x 3-4 mm
Clamping range Fl / Fl	(+/II) 30 x 3-4 / 30 x 3-4 mm
Screw	di M10 x 35 mm
Material of screw	St/bare
Version	Without clamping ring
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C)	8.4 kA
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Product 308031 was added to Notepad.

Go to Notepad

Product 308031 was added to the cart.

Go to Web-Shop

Part No. 308033 VK DB KR 6.20 8.10 FL30 BSB STBL

GTIN 4013364519978, Customs tariff No. (EU): 85359000, Gross weight: 240.40 g, PU: 1.00 pc(s)

Images

Open PDF

Additional information

CAD files

Connection clamp with thrust bracket, St/bare
Connection clamp with thrust bracket with clamping ring,
for connecting round and
flat conductors in the concrete foundation
or reinforcing steel mats and
reinforcements with round and flat conductors
for T, cross and parallel connections
Material: St/bare
Clamping range Rd / Rd: (+/II) 6-20 / 8-10 mm
Clamping range Rd / Fl: (+/II) 6-20 / 30 x 3-4 mm
Clamping range Fl / Fl: (+/II) 30 x 3-4 / 30 x 3-4 mm
Version: With clamping ring
Standard: EN 62561-1

Brand: DEHN
Type: VK DB KR 6.20 8.10 FL30 BSB STBL
Part No.: 308033
or equivalent.

Certificates

Technical data

Material	St/bare
Clamping range Rd / Rd	(+/II) 6-20 / 8-10 mm
Clamping range Rd / Fl	(+/II) 6-20 / 30 x 3-4 mm
Clamping range Fl / Fl	(+/II) 30 x 3-4 / 30 x 3-4 mm
Version	With clamping ring
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C)	8.4 kA
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Material	St/bare
Clamping range Rd / Rd	(+/II) 6-20 / 8-10 mm
Clamping range Rd / Fl	(+/II) 6-20 / 30 x 3-4 mm
Clamping range Fl / Fl	(+/II) 30 x 3-4 / 30 x 3-4 mm
Screw	di M10 x 35 mm
Material of screw	St/bare
Version	With clamping ring
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C)	8.4 kA
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Product 308033 was added to Notepad.

Go to Notepad

Product 308033 was added to the cart.

Go to Web-Shop

Connecting clamp MAXI with thrust bracket

For T, cross and parallel connections.

1 Product

Part No. 308036 VK DB 20.32 8.10 FL40 BSB STBL

GTIN 4013364136588, Customs tariff No. (EU): 85359000, Gross weight: 275.60 g, PU: 25.00 pc(s)

Images

Open PDF

Additional information

CAD files

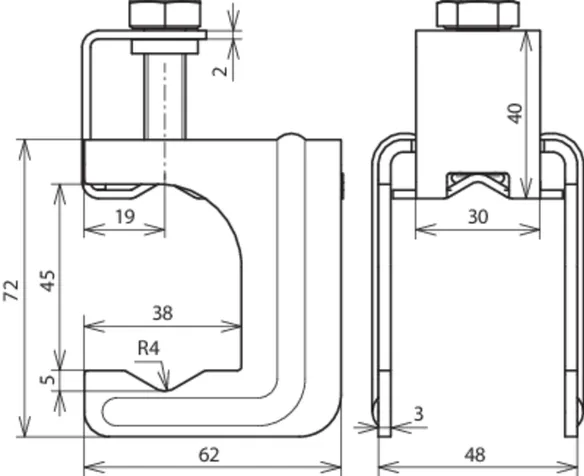

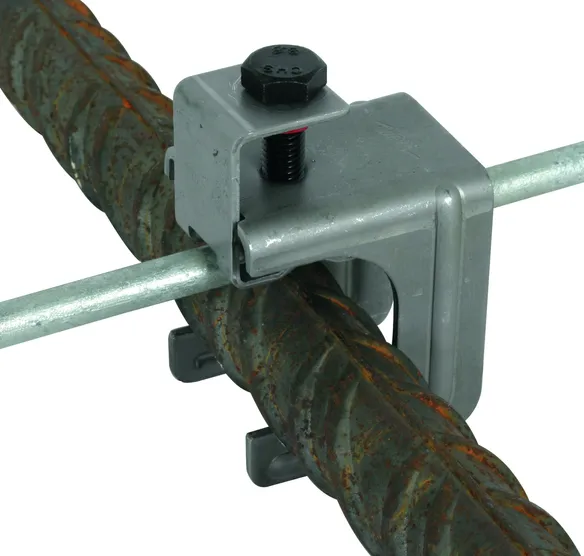

MAXI connecting clamp with thrust bracket, St/bare
Connecting clamp with thrust bracket for connecting round and flat conductors
in the concrete foundation or reinforcing steel meshes
and reinforcements with round and flat conductors
For T, cross and parallel connections
Material: St/bare
Clamping range Rd / Rd: (+/II) 20-32 / 8-10 mm
Clamping range Rd / Fl: (+/II) 20-32 / 40 x 4-5 mm
Version: With clamping ring
Standard: EN 62561-1

Brand: DEHN
Type: VK DB 20.32 8.10 FL40 BSB STBL
Part No.: 308036
or equivalent.

Certificates

Technical data

Material	St/bare
Clamping range Rd / Rd	(+/II) 20-32 / 8-10 mm
Clamping range Rd / Fl	(+/II) 20-32 / 40 x 4-5 mm
Version	With clamping ring
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C)	14.0 kA
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Material	St/bare
Clamping range Rd / Rd	(+/II) 20-32 / 8-10 mm
Clamping range Rd / Fl	(+/II) 20-32 / 40 x 4-5 mm
Screw	di M10 x 35 mm
Material of screw	St/bare
Version	With clamping ring
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C)	14.0 kA
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Product 308036 was added to Notepad.

Go to Notepad

Product 308036 was added to the cart.

Go to Web-Shop

Connecting clamp without thrust bracket

For cross connections.

1 Product

Part No. 308032 VK 6.20 FL30 BSB STBL

GTIN 4013364152823, Customs tariff No. (EU): 85359000, Gross weight: 178.50 g, PU: 25.00 pc(s)

Images

Open PDF

Additional information

CAD files

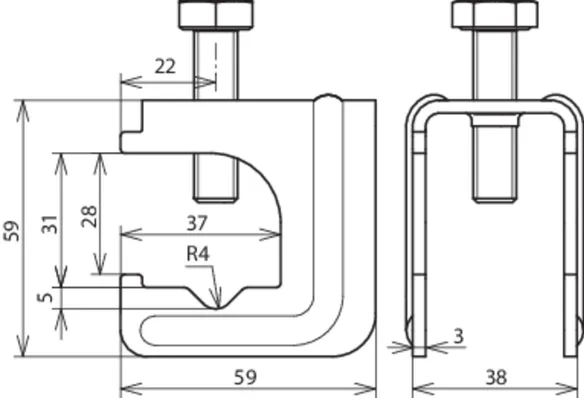

Connecting clamp without thrust bracket, St/bare
Connecting clamp for foundation earth electrodes
For connecting round and flat conductors in the concrete foundation
For cross connections, without having to insert the conductor

Material: St/bare
Clamping range Rd / Fl: (+) 6-20 / 30 x 3-4 mm
Clamping range Fl / Fl: (+/II) 30 x 3-4 / 30 x 3-4 mm
Standard: EN 62561-1

Brand: DEHN
Type: VK 6.20 FL30 BSB STBL
Part No.: 308032
or equivalent.

Certificates

Technical data

Material	St/bare
Clamping range Rd / Fl	(+) 6-20 / 30 x 3-4 mm
Clamping range Fl / Fl	(+/II) 30 x 3-4 / 30 x 3-4 mm
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C)	7.0 kA
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Material	St/bare
Clamping range Rd / Fl	(+) 6-20 / 30 x 3-4 mm
Clamping range Fl / Fl	(+/II) 30 x 3-4 / 30 x 3-4 mm
Screw	di M10 x 40 mm
Material of screw	St/bare
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C)	7.0 kA
Lightning current carrying capability (10/350 µs)	= *⁾
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Product 308032 was added to Notepad.

Go to Notepad

Product 308032 was added to the cart.

Go to Web-Shop

Connecting clamp MAXI without thrust bracket

For cross connections.

1 Product

Part No. 308037 VK 20.32 FL40 BSB STBL

GTIN 4013364154704, Customs tariff No. (EU): 85359000, Gross weight: 218.00 g, PU: 25.00 pc(s)

Images

Open PDF

Additional information

CAD files

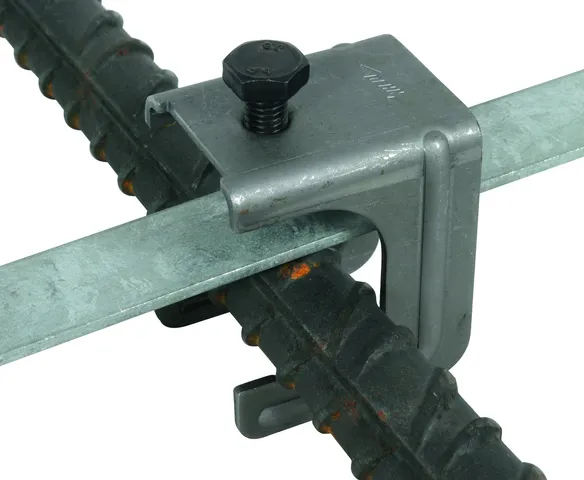

Connecting clamp MAXI without thrust bracket, St/bare
Connecting clamp for foundation earth electrodes
For connecting round and flat conductors in the concrete foundation
For cross connections, without having to insert the conductor

Material: St/bare
Clamping range Rd / Fl: (+) 20-32 / 30 x 3-40 x 5 mm
Standard: EN 62561-1

Brand: DEHN
Type: VK 20.32 FL40 BSB STBL
Part No.: 308037
or equivalent.

Certificates

Technical data

Material	St/bare
Clamping range Rd / Fl	(+) 20-32 / 30 x 3-40 x 5 mm
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Product 308037 was added to Notepad.

Go to Notepad

Product 308037 was added to the cart.

Go to Web-Shop
