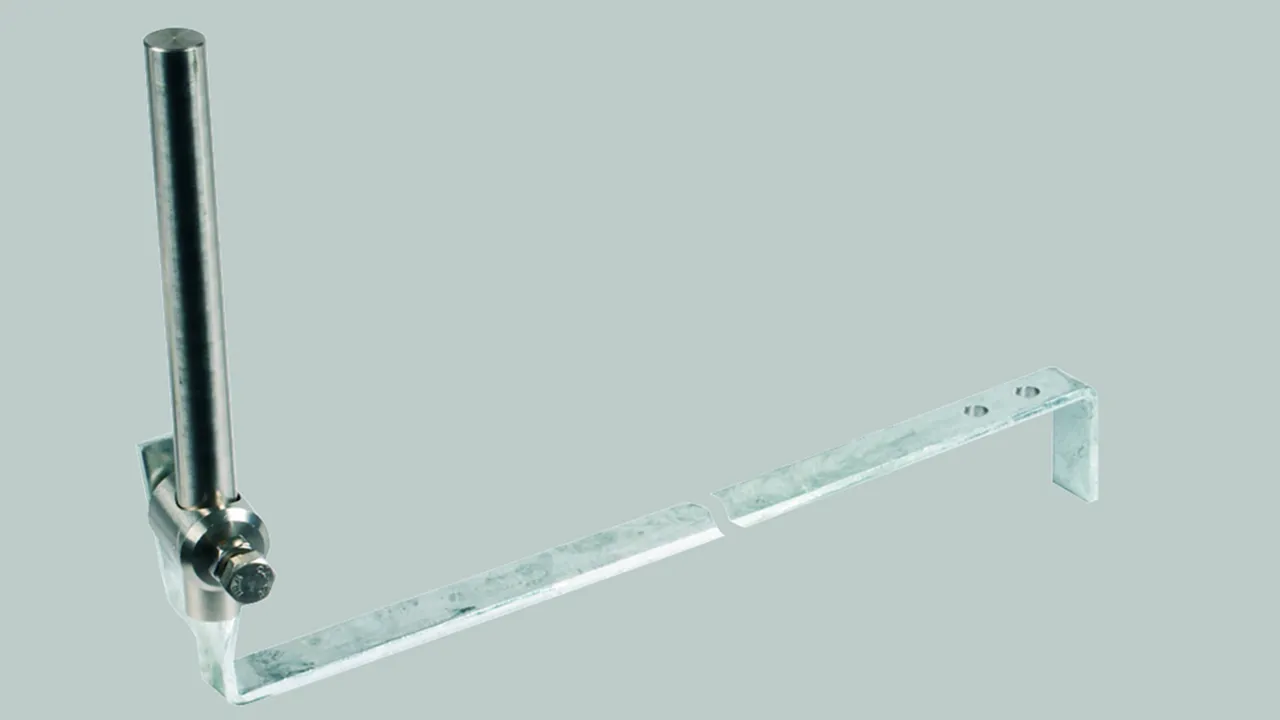

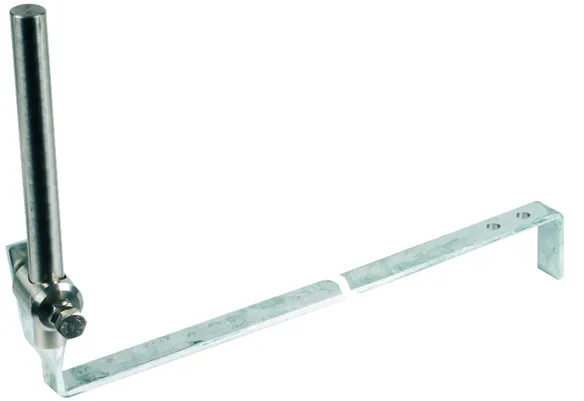

Rod Holder for Gable Roofs

Footing for fitting air-termination rods on gable roofs with anti-rotation lock (toothed washer) and lock nut as well as bores for screwing the brace on the roof battens.
At the chimney the air-termination rod has to be fixed additionally e.g. by means of DEHNiso spacer.

1 Product

Part No. 223005 SH BB16 L475 WS V2A STTZN

GTIN 4013364099937, Customs tariff No. (EU): 85389099, Gross weight: 481.30 g, PU: 1.00 pc(s)

Images

Additional information

Rod holder for gable roofs
Rod holder for gable roofs as footing for fixing air-termination rods on gable roofs with
rotation locking.
Additional fixing of the air-termination rod, e.g. to the
chimney with DEHNiso spacer is necessary
Material of brace: St/tZn
Material of bolt: StSt

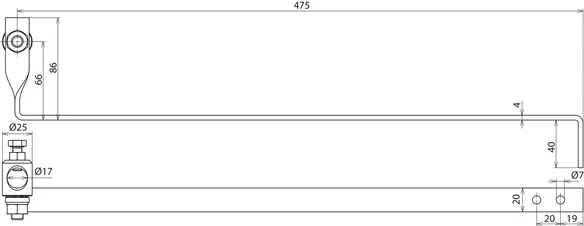

Length of bolt: 475 mm
Conductor holder support Rd: 16 mm

Brand: DEHN
Type: SH BB16 L475 WS V2A STTZN
Part No.: 223005
or equivalent.



Technical data

Material of brace St/tZn
Material of bolt StSt
Length of bolt 475 mm
Conductor holder support Rd 16 mm
