BLITZDUCTORconnect accessories

Earthing module

1 Product

Part No. 927318 BCO M2 E

GTIN 4013364470644, Customs tariff No. (EU): 85369010, Gross weight: 56.10 g, PU: 1.00 pc(s)

Images

Open PDF
Open PDF

Additional information

CAD files

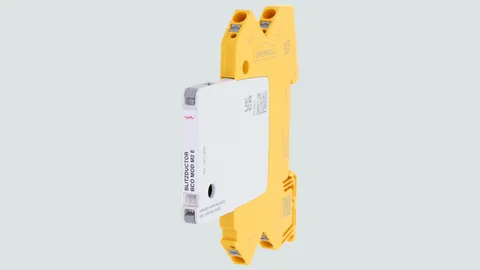

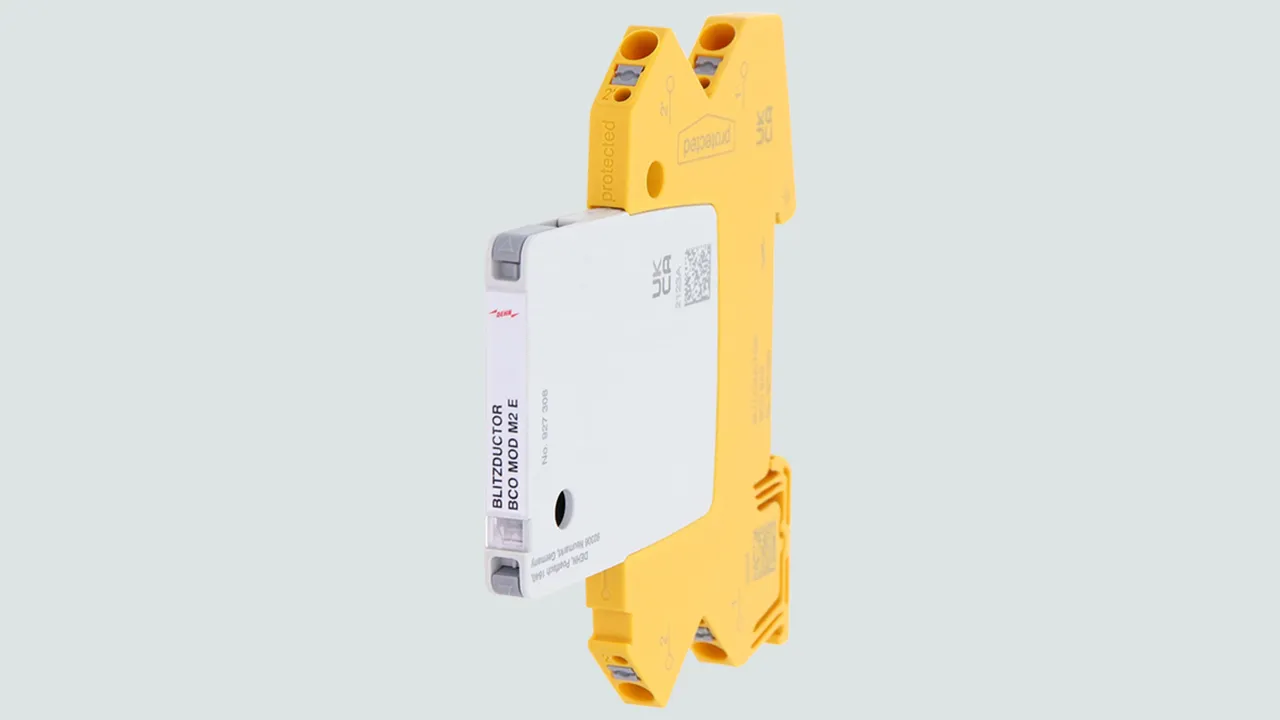

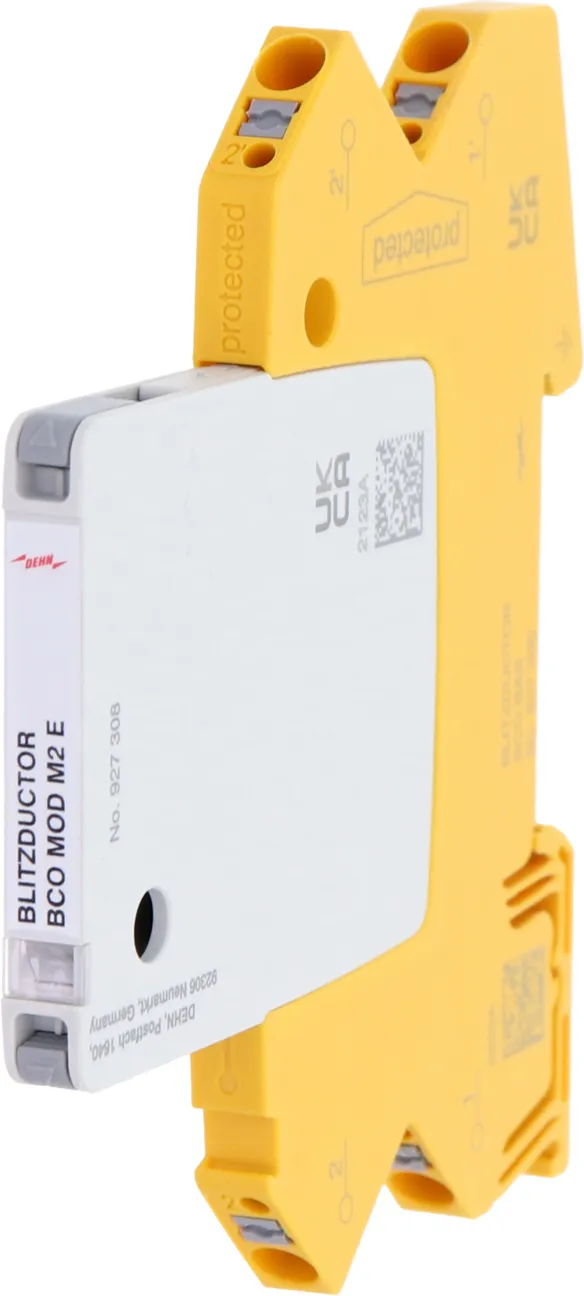

BLITZDUCTORconnect M2 E earthing module
Pluggable module for the defined
equipotential bonding of all lines
connected (not actively used) to the base part

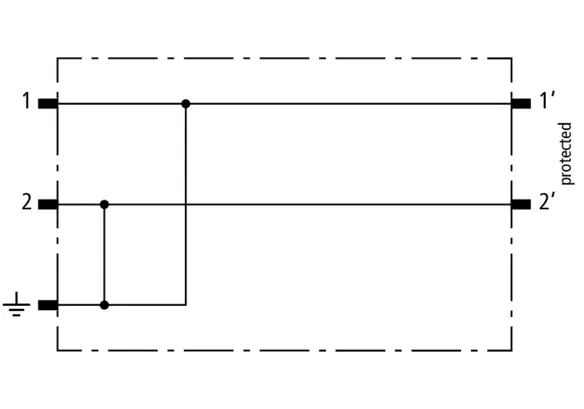

For directly earthing 2 cable cores
Prewired unit consisting of
Earthing module with base part for DIN rail mounting

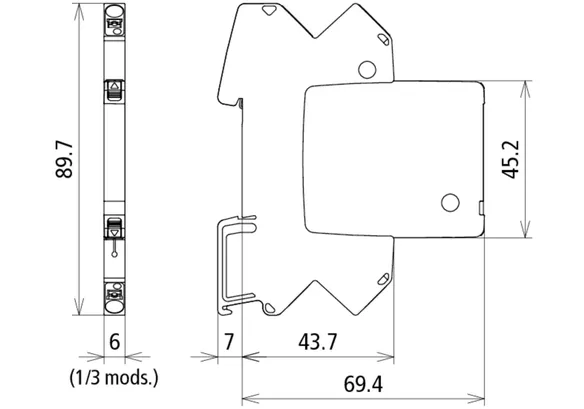

Width: 6 mm
Conductor connection: Push-in

Brand: DEHN
Type: BCO M2 E
Part No.: 927318
or equivalent.

Technical data

D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
Plugs into	BCO base part

Product 927318 was added to Notepad.

Go to Notepad

Product 927318 was added to the cart.

Go to Web-Shop

D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
Operating temperature range (T_U )	-40 °C ... +80 °C
Degree of protection (with plugged-in protection module)	IP 20
Plugs into	BCO base part
Enclosure material	polyamide PA 6.6
Colour (module)	grey ●
