DEHNcon-H Supporting Tubes for HVI light Conductor

Supporting tubes for HVI light Conductor for on-site assembly, air-termination tip, StSt, Ø10 mm.

With air-termination tip

4 Products

Part No. 105272 SR D30 1990 FSP10 500 GFK AL V2A

GTIN 4013364255777, Customs tariff No. (EU): 85389099, Gross weight: 2.40 kg, PU: 1.00 pc(s)

Images

Additional information

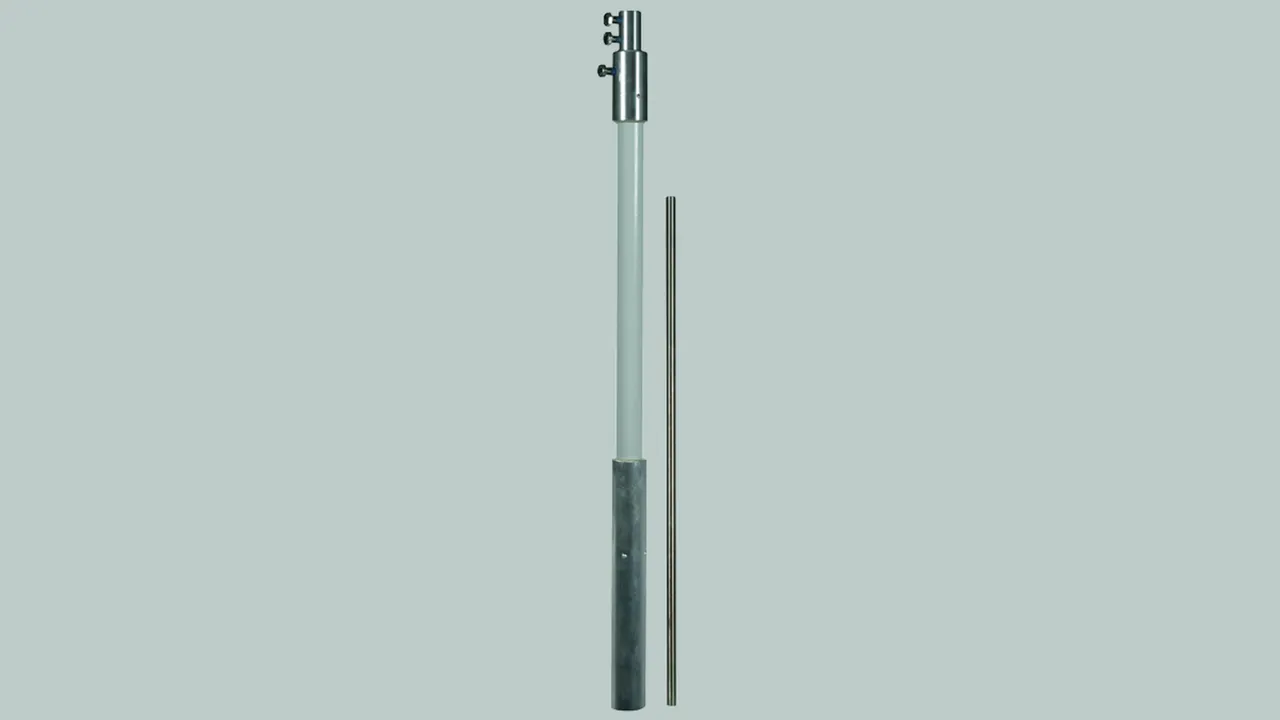

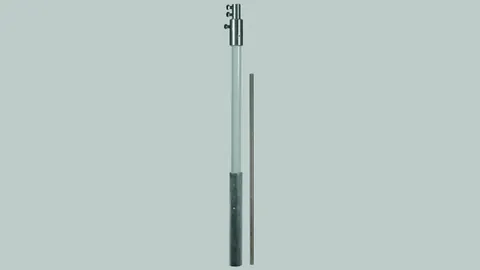

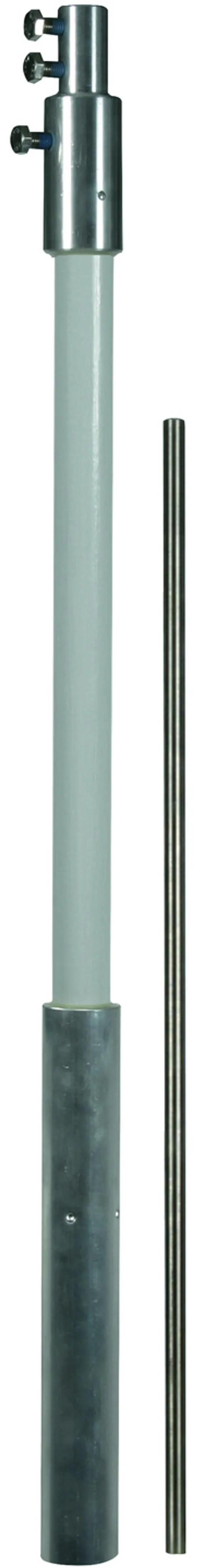

DEHNcon-H supporting tube for HVI light Conductor with air-termination tip 500 mm, GRP/Al
GRP/Al supporting tubes with internal sealing end for
the HVI light Conductor for maintaining the
separation distance to electrically conductive parts as per
DIN EN 62305 (VDE 0185-305-3).
The supporting tubes are dimensioned to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
for a max. gust wind speed of 240 km/h.
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one-piece
Combined with air-termination tip, Ø10 mm, length 500 mm, StSt
Material of supporting tube: GRP / Al
Length of supporting tube: 1990 mm
Transport length: 1990 mm
Outside diameter Ø GRP: 30 mm
Outside diameter Ø Al (clamping range): 40 mm
Length of insulating clearance: 1070 mm
Max. gust wind speed: (Max. free length 1,890 mm, 1x HVI light inside) 240 km/h
Max. free length: 1890 mm
Min. clamping length: 600 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D30 1990 FSP10 500 GFK AL V2A
Part No.: 105272
or equivalent.

Certificates

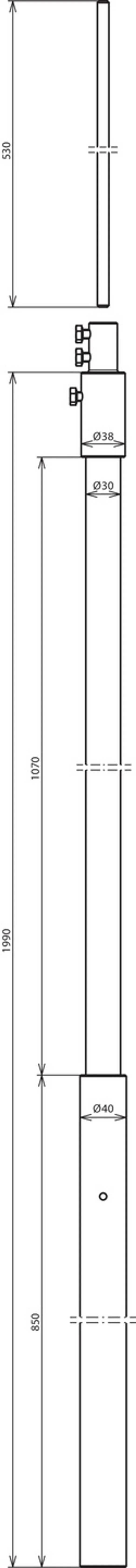

Technical data

Material of supporting tube GRP / Al
Length of supporting tube 1990 mm
Length of air-termination tip 500 mm
Outside diameter Ø GRP 30 mm
Outside diameter Ø Al (clamping range) 40 mm
Max. gust wind speed (Max. free length 1,890 mm, 1x HVI light inside) 240 km/h
Max. free length 1890 mm
Min. clamping length 600 mm
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)
