Lightning Strike Counter
:quality(98)/dehn.us/store/f/50186891/HDVORSCHAU/599101a1_16-9.jpg)
:quality(98)/dehn.us/store/f/50186891/HDVORSCHAU/599101a1_16-9.jpg)
Counter for digitally recording impulse currents.

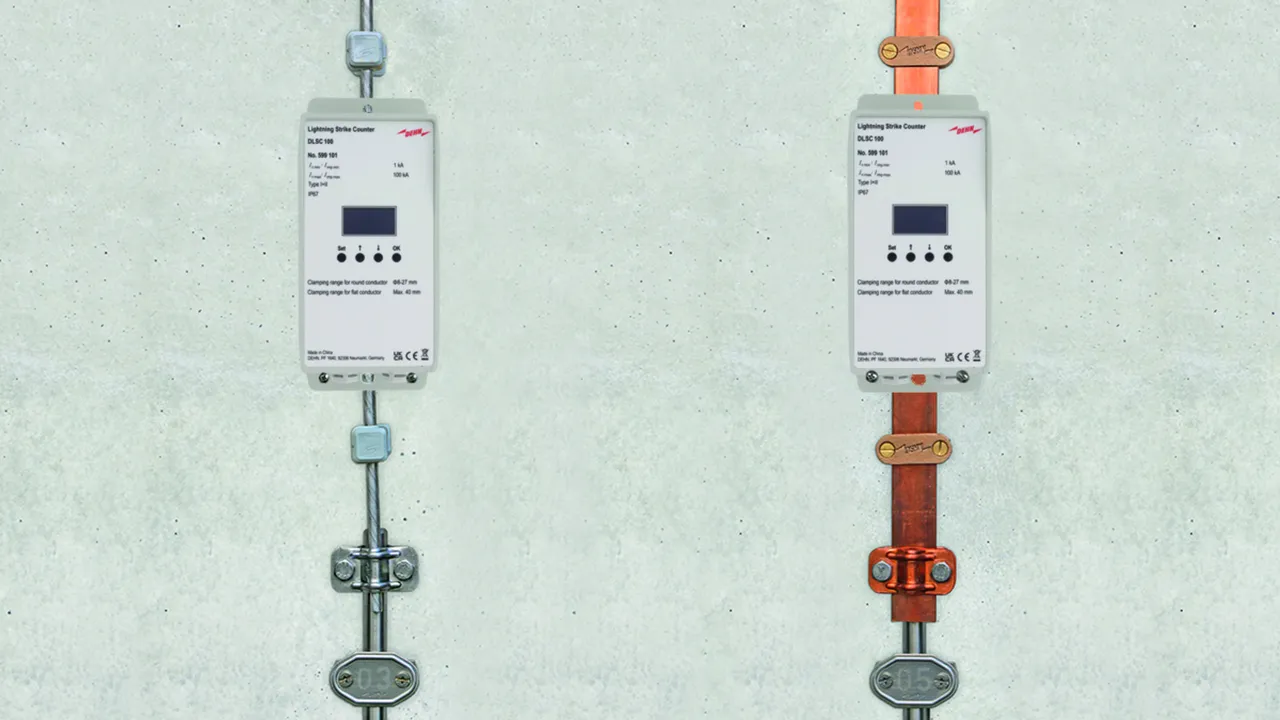

The discharge current counter is preferably installed between the equipotential bonding bar and the earth-termination system.
Material for fixing the counter on round or flat conductors is included in delivery.
The discharge current counter is preferably installed between the equipotential bonding bar and the earth-termination system.
Material for fixing the counter on round or flat conductors is included in delivery.

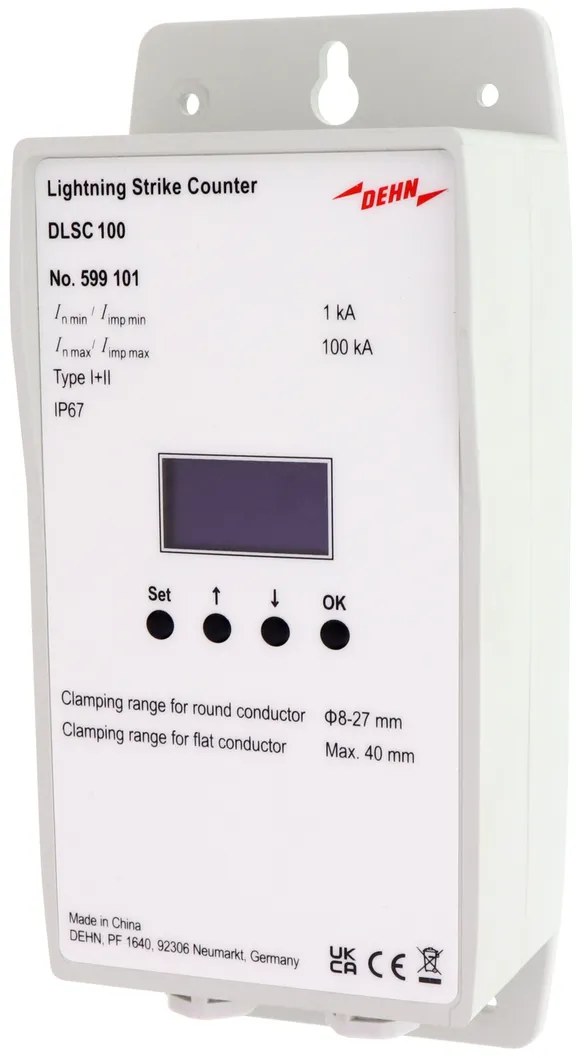

Part No. 599101 DLSC 100
GTIN 6942299506327, Customs tariff No. (EU): 90291000, Gross weight: 663.10 g, PU: 1.00 pc(s)
Predecessor:quality(98)/dehn.us/store/f/50186899/HDVORSCHAU/599101.jpg)
:quality(98)/dehn.us/store/f/50186899/HDVORSCHAU/599101.jpg)
:quality(98)/dehn.us/store/f/50186900/HDVORSCHAU/599101m.jpg)
:quality(98)/dehn.us/store/f/50186900/HDVORSCHAU/599101m.jpg)
Technical data
| Lightning strike counter as per GB/T 33588.6 and IEC 62561-6 | Type 1 + type 2 |
| Max. countable impulse current (10/350 µs) (Iimp ) | 100 kA |
| Min. countable impulse current (10/350 µs) (Iimp ) | 1 kA |
| Max. countable nominal discharge current (8/20 µs) (In ) | 100 kA |
| Min. countable nominal discharge current (8/20 µs) (In ) | 1 kA |
| OLED display | Electronic counter 0–999 |
| Internal power supply (battery operation) | 2x lithium battery, type CR17335 (replaceable) |
| Battery status check | OLED on the device |
| Setting device | Buttons on the device |
| Resetting function | Buttons on the device (e.g. to reset the meter reading to 0) |
| Operating temperature range (TU ) | -20°C to +70°C |
| Storage temperature range | -30°C to +80°C |
| For mounting on | Round/flat conductor, HVI, HVI light, HVI light plus, HVI power Conductor |
| Clamping range Rd | 8-12; 12-20 / HVI 20-27 mm |
| Clamping range Fl | 25-40 mm |
| Enclosure material: Counter | thermoplastic, grey, UL 94 V-0 |
| Enclosure material: sensor | - (integrated) |
| Installation point | Outdoor area |
| Degree of protection | IP 67 |
| Standard | IEC 62561-6 |
| Approvals | CE, GB, UKCA |

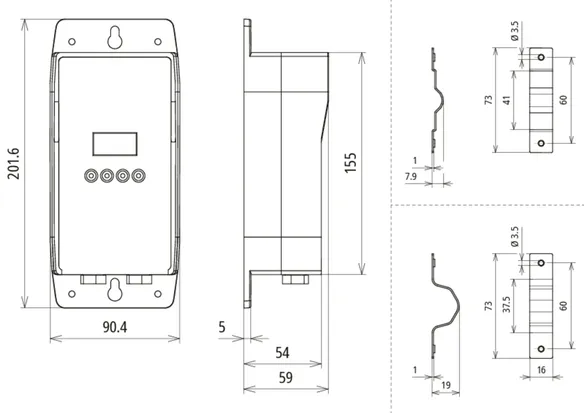

| Dimensions (l x w x h) | 202 x 90 x 59 mm |
