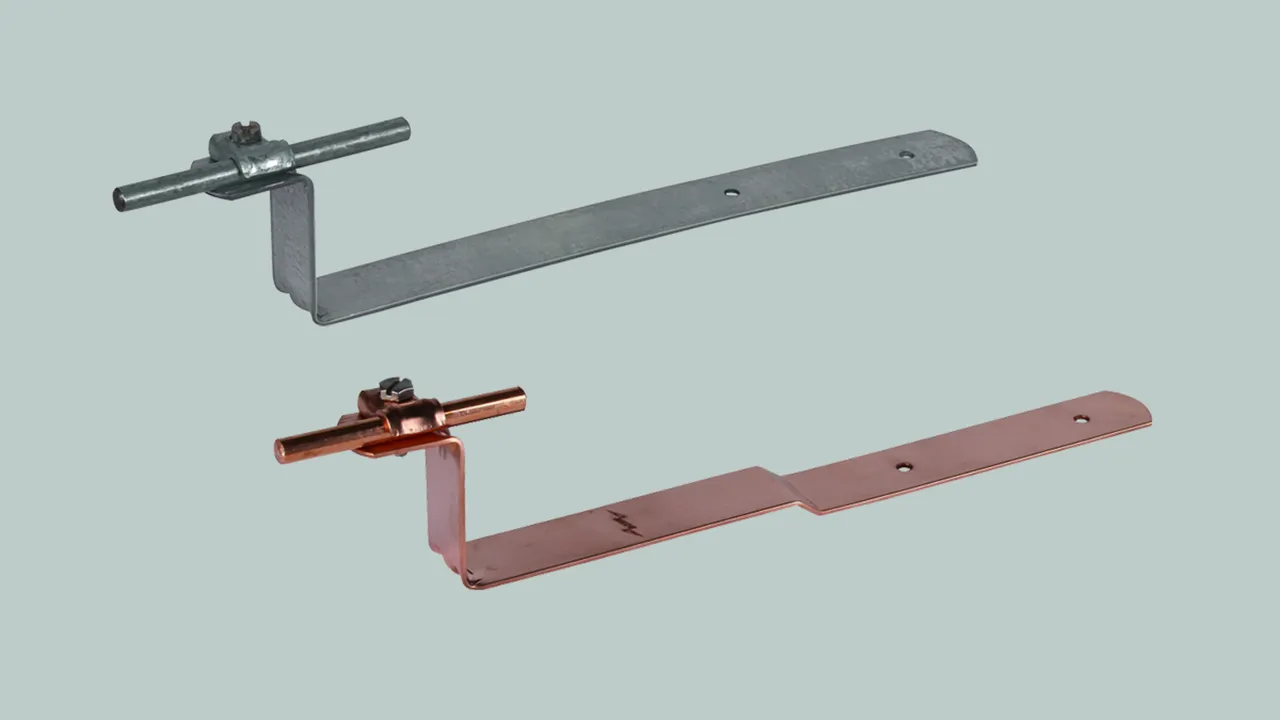

Roof Conductor Holders with Brace for Roof Surfaces

For inserting on tiled, slated and roofing felt roofs.

Straight

Straight, with conductor holder DEHNquick, for conductors Rd 6-10 mm, fixed conductor leading.

3 Products

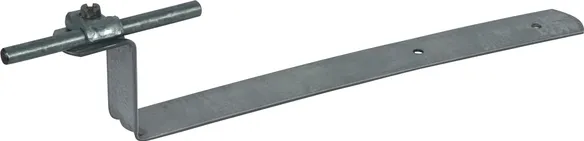

Part No. 202040 DLH DQ 6.10 H55 L260 STTZN

GTIN 4013364019935, Customs tariff No. (EU): 85389099, Gross weight: 175.26 g, PU: 50.00 pc(s)

Predecessor

Images

Additional information

Roof conductor holder for pitched roofs, straight, St/tZn, height: 55 mm
Roof conductor holder with brace for roof surfaces for inserting in tiled, slated and cardboard roofs
Straight unit, with DEHNQUICK conductor holder
Material of roof conductor holder: St/tZn
Height of brace: 55 mm
Length of brace : 260 / 2 mm

Brand: DEHN
Type: DLH DQ 6.10 H55 L260 STTZN
Part No.: 202040
or equivalent.



Technical data

Material of roof conductor holder St/tZn
Height of brace (h1) 55 mm
Length of brace (l1 / t1) 260 / 2 mm
Material of conductor holder St/tZn
Conductor holder support Rd 6-10 mm

Product 202040 was added to Notepad.

Go to Notepad

Product 202040 was added to the cart.

Go to Web-Shop

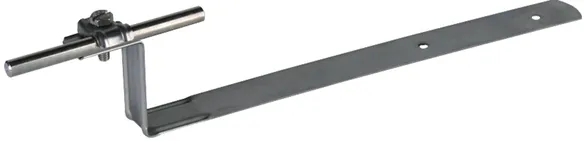

Part No. 202902 DLH DQ 6.10 H55 L260 V2A

GTIN 4013364020467, Customs tariff No. (EU): 85389099, Gross weight: 86.36 g, PU: 50.00 pc(s)

Images

Additional information

Roof conductor holder for pitched roofs, straight, StSt, height: 55 mm
Roof conductor holder with brace for roof surfaces for inserting in tiled, slated and cardboard roofs
Straight unit, with DEHNQUICK conductor holder
Material of roof conductor holder: StSt
Height of brace: 55 mm
Length of brace : 260 / 1 mm

Brand: DEHN
Type: DLH DQ 6.10 H55 L260 V2A
Part No.: 202902
or equivalent.



Technical data

Material of roof conductor holder StSt
Height of brace (h1) 55 mm
Length of brace (l1 / t1) 260 / 1 mm
Material of conductor holder StSt
Conductor holder support Rd 6-10 mm

Product 202902 was added to Notepad.

Go to Notepad

Product 202902 was added to the cart.

Go to Web-Shop

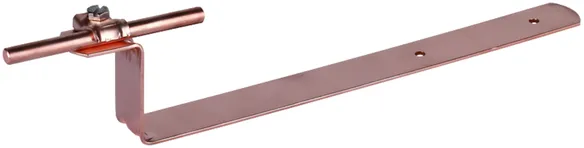

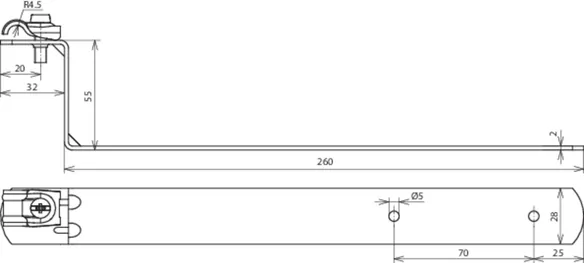

Part No. 202037 DLH DQ 6.10 H55 L260 CU

GTIN 4013364019942, Customs tariff No. (EU): 85389099, Gross weight: 192.16 g, PU: 50.00 pc(s)

Images

Additional information

Roof conductor holder for pitched roofs, straight, Cu, height: 55 mm
Roof conductor holder with brace for roof surfaces for inserting in tiled, slated and cardboard roofs
Straight unit, with DEHNQUICK conductor holder
Material of roof conductor holder: Cu
Height of brace: 55 mm
Length of brace : 260 / 2 mm

Brand: DEHN
Type: DLH DQ 6.10 H55 L260 CU
Part No.: 202037
or equivalent.



Technical data

Material of roof conductor holder Cu
Height of brace (h1) 55 mm
Length of brace (l1 / t1) 260 / 2 mm
Material of conductor holder Cu
Conductor holder support Rd 6-10 mm

Product 202037 was added to Notepad.

Go to Notepad

Product 202037 was added to the cart.

Go to Web-Shop

Cranked

With conductor holder DEHNquick, fixed conductor leading.

3 Products

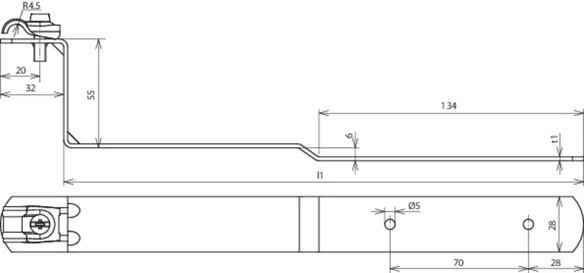

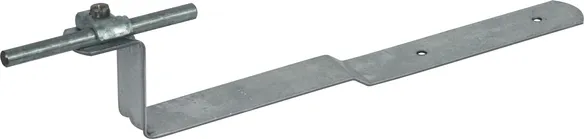

Part No. 202010 DLH DQ 6.10 H55 L260 GS STTZN

GTIN 4013364019874, Customs tariff No. (EU): 85389099, Gross weight: 164.36 g, PU: 50.00 pc(s)

Images

Additional information

Roof conductor holder for pitched roofs, cranked, St/tZn, height: 55 mm
Roof conductor holder with brace for roof surfaces for inserting in tiled, slated and cardboard roofs
Cranked unit, with DEHNQUICK conductor holder
Material of roof conductor holder: St/tZn
Height of brace: 55 mm
Length of brace : 260 / 2 mm

Brand: DEHN
Type: DLH DQ 6.10 H55 L260 GS STTZN
Part No.: 202010
or equivalent.



Technical data

Material of roof conductor holder St/tZn
Height of brace (h1) 55 mm
Length of brace (l1 / t1) 260 / 2 mm
Material of conductor holder St/tZn
Conductor holder support Rd 6-10 mm

Product 202010 was added to Notepad.

Go to Notepad

Product 202010 was added to the cart.

Go to Web-Shop

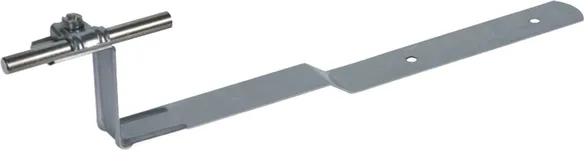

Part No. 202901 DLH DQ 6.10 H55 L260 GS V2A

GTIN 4013364019928, Customs tariff No. (EU): 85389099, Gross weight: 87.56 g, PU: 50.00 pc(s)

Images

Additional information

Roof conductor holder for pitched roofs, cranked, StSt, height: 55 mm
Roof conductor holder with brace for roof surfaces for inserting in tiled, slated and cardboard roofs
Cranked unit, with DEHNQUICK conductor holder
Material of roof conductor holder: StSt
Height of brace: 55 mm
Length of brace : 260 / 1 mm

Brand: DEHN
Type: DLH DQ 6.10 H55 L260 GS V2A
Part No.: 202901
or equivalent.



Technical data

Material of roof conductor holder StSt
Height of brace (h1) 55 mm
Length of brace (l1 / t1) 260 / 1 mm
Material of conductor holder StSt
Conductor holder support Rd 6-10 mm

Product 202901 was added to Notepad.

Go to Notepad

Product 202901 was added to the cart.

Go to Web-Shop

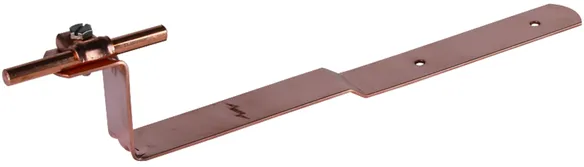

Part No. 202017 DLH DQ 6.10 H55 L260 GS CU

GTIN 4013364019904, Customs tariff No. (EU): 85389099, Gross weight: 194.06 g, PU: 1.00 pc(s)

Images

Additional information

Roof conductor holder for pitched roofs, cranked, Cu, height: 55 mm
Roof conductor holder with brace for roof surfaces for inserting in tiled, slated and cardboard roofs
Cranked unit, with DEHNQUICK conductor holder
Material of roof conductor holder: Cu
Height of brace: 55 mm
Length of brace : 260 / 2 mm

Brand: DEHN
Type: DLH DQ 6.10 H55 L260 GS CU
Part No.: 202017
or equivalent.



Technical data

Material of roof conductor holder Cu
Height of brace (h1) 55 mm
Length of brace (l1 / t1) 260 / 2 mm
Material of conductor holder Cu
Conductor holder support Rd 6-10 mm

Product 202017 was added to Notepad.

Go to Notepad

Product 202017 was added to the cart.

Go to Web-Shop
