Pitched Roof – Roof Conductor Holders

Roof conductor holders for ridge tiles, hip tiles and roof surfaces on a gable roof.

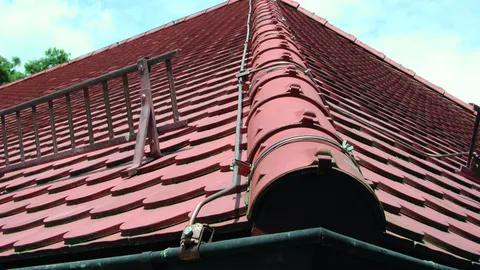

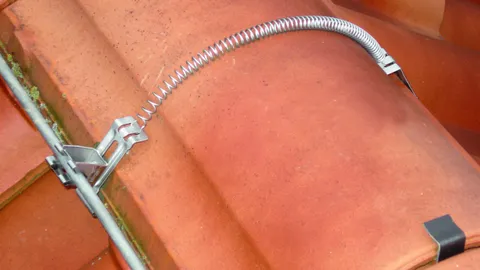

Roof Conductor Holders with Tension Spring for Ridge and Hip Tiles

For fixing air-termination conductors on the ridge e.g. of tiled roofs.

Roof Conductor Holders Adjustable to Ridge and Hip Tiles

For fixing air-termination conductors on the ridge e.g. of tiled roofs.

Roof Conductor Holders for Ridge and Hip Tiles

For fixing air-termination conductors on the ridge.

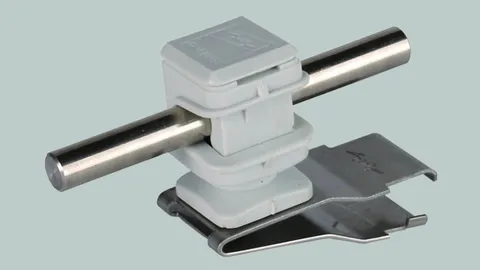

Roof Conductor Holders with Angled Flexible Base Brace for Roof Surfaces

With thin, flexible StSt base brace (0.3 mm), hookable and adjustable to interlocking roof tiles.

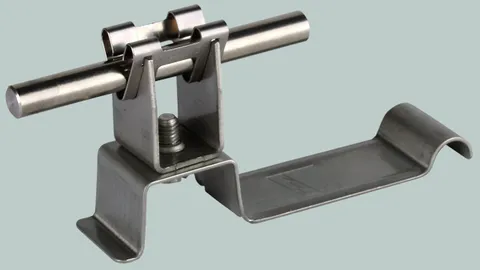

Roof Conductor Holders with Embossed Brace for Roof Surfaces

For fixing air-termination and down conductors.

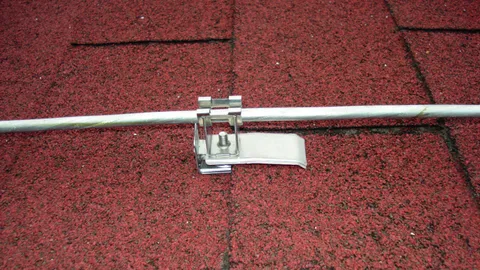

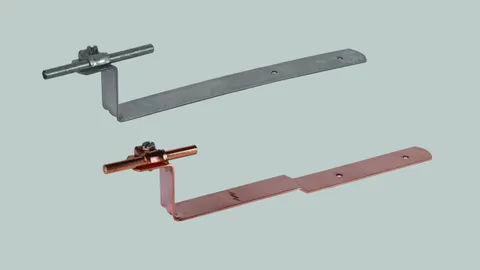

Roof Conductor Holders with Brace for Roof Surfaces

For inserting on tiled, slated and roofing felt roofs.

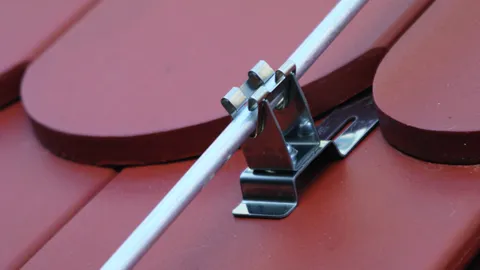

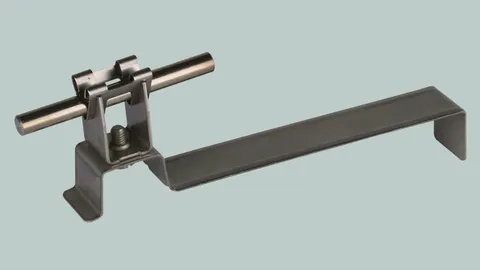

Roof Conductor Holders with Angled Brace for Roof Surfaces

For hooking on the roof tiles.

Roof Conductor Holders with Clamping Device for Roof Surfaces

For fixing air-termination and down conductors.

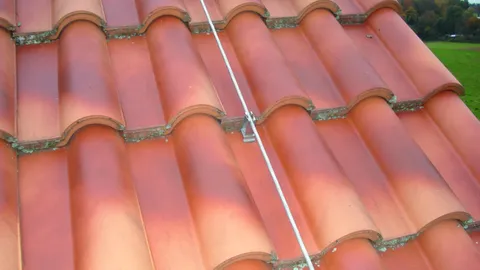

Roof Conductor Holders with Preformed Brace for Roof Surfaces

For hooking onto the seams of roof tiles.

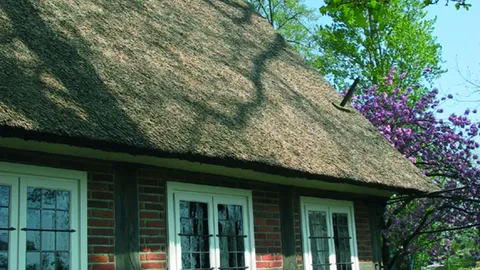

Components for Buildings with Thatched Roof

Lightning protection system components for buildings with thatched roofs.
Air-termination conductors on thatched roofs have to be installed at a distance to the roof, e.g. on isolating supports. Certain distances also have to be kept to the eaves.
The span width for ridge conductors is approx. 15 m and for down conductors approx. 10 m without additional supports. Span stakes have to be fastened to the roof construction (rafters and crossbars) using anchor bolts and flat washers.

Today an isolated (HVI) lightning protection system is often used as an external lightning protection system for buildings with thatched roofs.
