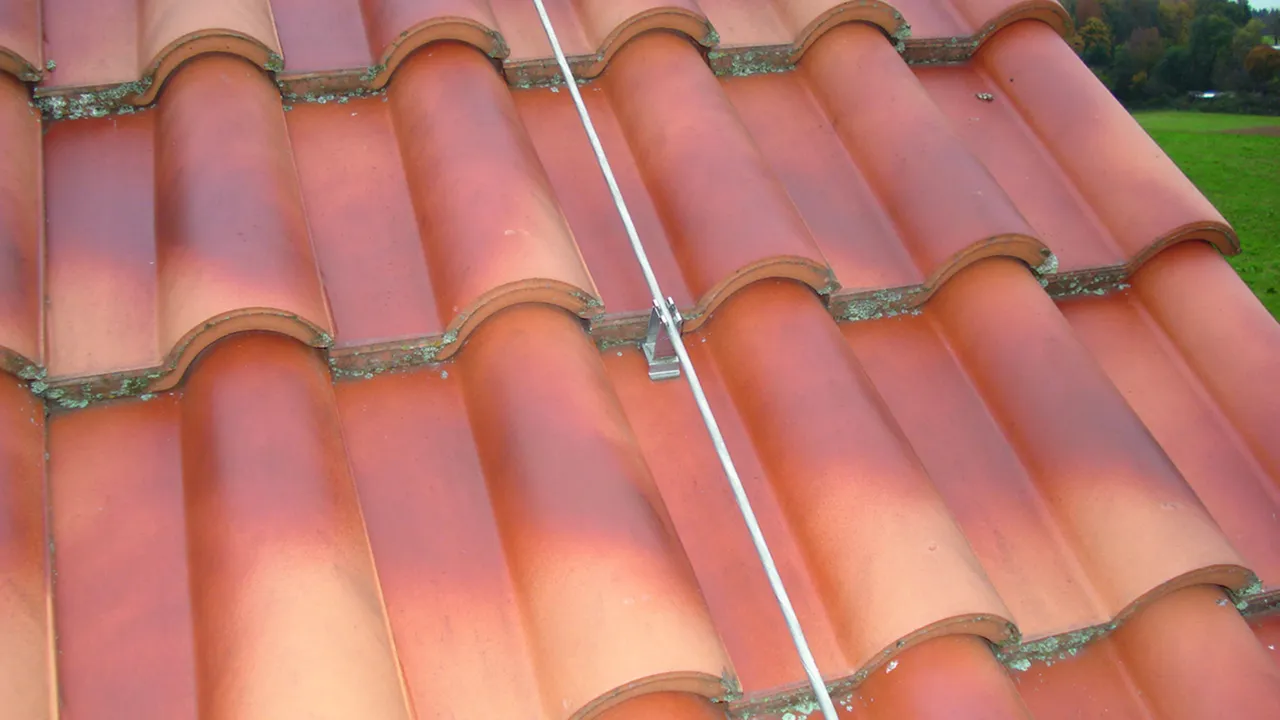

Roof Conductor Holders with Angled Flexible Base Brace for Roof Surfaces

With thin, flexible StSt base brace (0.3 mm), hookable and adjustable to interlocking roof tiles.

FLEXIsnap

With flexible base brace, hookable on interlocking tiles, loose conductor leading.

4 Products

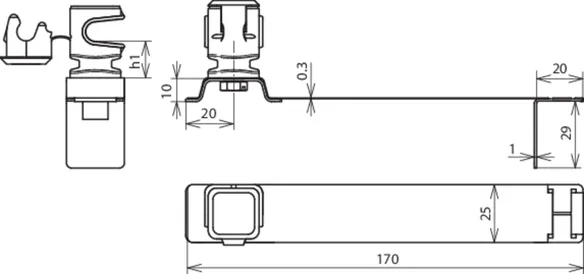

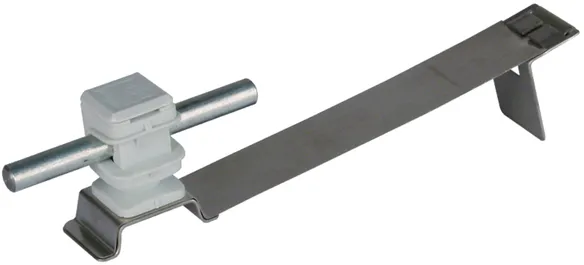

Part No. 204935 DLH FS 8 H16 L170 GR V2A

GTIN 4013364029958, Customs tariff No. (EU): 85389099, Gross weight: 43.02 g, PU: 1.00 pc(s)

Images

Additional information

Pitched roofs - FLEXIsnap roof conductor holder, height: 16 mm
Roof conductor holder with preformed brace for tile slots
FLEXIsnap for hanging in slot tiles with flexible base brace
Material of roof conductor holder: StSt
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●
Conductor holder support Rd: 8 mm

Brand: DEHN
Type: DLH FS 8 H16 L170 GR V2A
Part No.: 204935
or equivalent.

Certificates



Technical data

Material of roof conductor holder StSt
Length of brace 170 mm
Height of conductor holder (h1) 16 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor holder support Rd 8 mm

Product 204935 was added to Notepad.

Go to Notepad

Product 204935 was added to the cart.

Go to Web-Shop

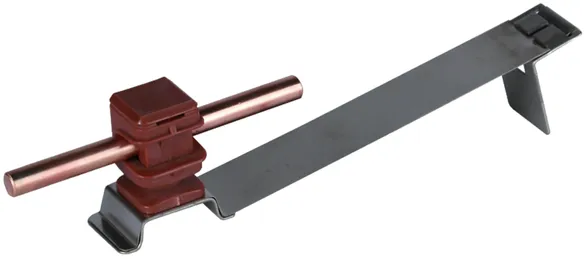

Part No. 204936 DLH FS 8 H16 L170 BR V2A

GTIN 4013364029927, Customs tariff No. (EU): 85389099, Gross weight: 43.02 g, PU: 50.00 pc(s)

Images

Additional information

Pitched roofs - FLEXIsnap roof conductor holder, height: 16 mm
Roof conductor holder with preformed brace for tile slots
FLEXIsnap for hanging in slot tiles with flexible base brace
Material of roof conductor holder: StSt
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●
Conductor holder support Rd: 8 mm

Brand: DEHN
Type: DLH FS 8 H16 L170 BR V2A
Part No.: 204936
or equivalent.

Certificates



Technical data

Material of roof conductor holder StSt
Length of brace 170 mm
Height of conductor holder (h1) 16 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor holder support Rd 8 mm

Product 204936 was added to Notepad.

Go to Notepad

Product 204936 was added to the cart.

Go to Web-Shop

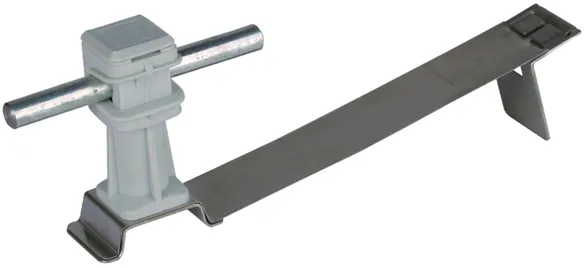

Part No. 204937 DLH FS 8 H36 L170 GR V2A

GTIN 4013364029941, Customs tariff No. (EU): 85389099, Gross weight: 49.22 g, PU: 50.00 pc(s)

Images

Additional information

Pitched roofs - FLEXIsnap roof conductor holder, height: 36 mm
Roof conductor holder with preformed brace for tile slots
FLEXIsnap for hanging in slot tiles with flexible base brace
Material of roof conductor holder: StSt
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●
Conductor holder support Rd: 8 mm

Brand: DEHN
Type: DLH FS 8 H36 L170 GR V2A
Part No.: 204937
or equivalent.

Certificates



Technical data

Material of roof conductor holder StSt
Length of brace 170 mm
Height of conductor holder (h1) 36 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor holder support Rd 8 mm

Product 204937 was added to Notepad.

Go to Notepad

Product 204937 was added to the cart.

Go to Web-Shop

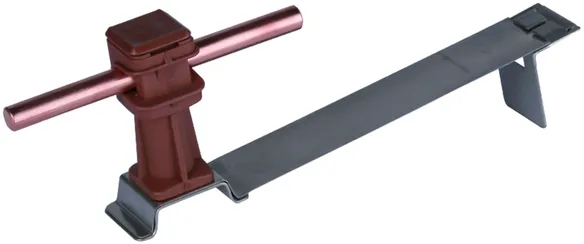

Part No. 204938 DLH FS 8 H36 L170 BR V2A

GTIN 4013364029989, Customs tariff No. (EU): 85389099, Gross weight: 50.22 g, PU: 50.00 pc(s)

Images

Additional information

Pitched roofs - FLEXIsnap roof conductor holder, height: 36 mm
Roof conductor holder with preformed brace for tile slots
FLEXIsnap for hanging in slot tiles with flexible base brace
Material of roof conductor holder: StSt
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●
Conductor holder support Rd: 8 mm

Brand: DEHN
Type: DLH FS 8 H36 L170 BR V2A
Part No.: 204938
or equivalent.

Certificates



Technical data

Material of roof conductor holder StSt
Length of brace 170 mm
Height of conductor holder (h1) 36 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor holder support Rd 8 mm

Product 204938 was added to Notepad.

Go to Notepad

Product 204938 was added to the cart.

Go to Web-Shop

FLEXIgrip

With flexible base brace, hookable on interlocking tiles, loose conductor leading.

2 Products

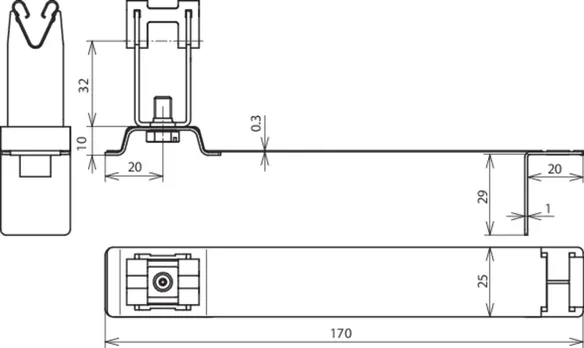

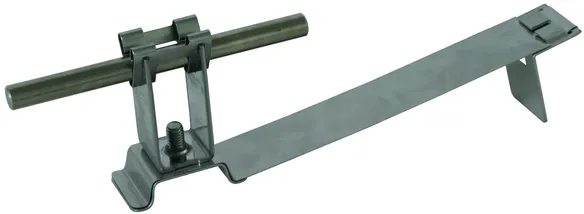

Part No. 204949 DLH FG 8 H32 L170 V2A

GTIN 4013364129290, Customs tariff No. (EU): 85389099, Gross weight: 57.02 g, PU: 50.00 pc(s)

Images

Additional information

Gable roof - FLEXIgrip roof conductor holder, height: 32 mm
Roof conductor holder with preformed brace for tile slots
FLEXIsnap for hanging in slot tiles with flexible base brace
Material of roof conductor holder: StSt
Height of conductor holder: 32 mm
Material of conductor holder: StSt
Conductor holder support Rd: 8 mm

Brand: DEHN
Type: DLH FG 8 H32 L170 V2A
Part No.: 204949
or equivalent.



Technical data

Material of roof conductor holder StSt
Length of brace 170 mm
Height of conductor holder (h1) 32 mm
Material of conductor holder StSt
Conductor holder support Rd 8 mm
Standard EN 62561-4

Product 204949 was added to Notepad.

Go to Notepad

Product 204949 was added to the cart.

Go to Web-Shop

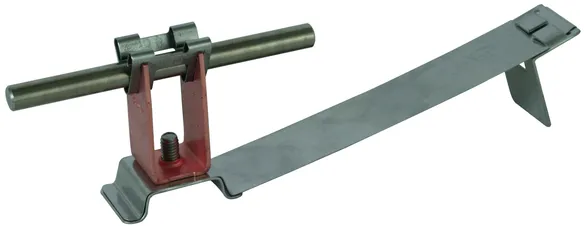

Part No. 204957 DLH FG 8 H32 L170 V2A GALCU

GTIN 4013364129269, Customs tariff No. (EU): 85389099, Gross weight: 58.02 g, PU: 50.00 pc(s)

Images

Additional information

Gable roof - FLEXIgrip roof conductor holder, height: 32 mm
Roof conductor holder with preformed brace for tile slots
FLEXIsnap for hanging in slot tiles with flexible base brace
Material of roof conductor holder: StSt
Height of conductor holder: 32 mm
Material of conductor holder: Cu
Conductor holder support Rd: 8 mm

Brand: DEHN
Type: DLH FG 8 H32 L170 V2A GALCU
Part No.: 204957
or equivalent.



Technical data

Material of roof conductor holder StSt
Length of brace 170 mm
Height of conductor holder (h1) 32 mm
Material of conductor holder Cu
Conductor holder support Rd 8 mm
Standard EN 62561-4
