Wire Straighteners

For straightening round conductors of different materials (semi-rigid).

5 guide pulleys, with handles

1 Product

Part No. 597004 DRG 5RO 7.10 HG STGALZN

GTIN 4013364027701, Customs tariff No. (EU): 84625900, Gross weight: 6.27 kg, PU: 1.00 pc(s)

Images

Additional information

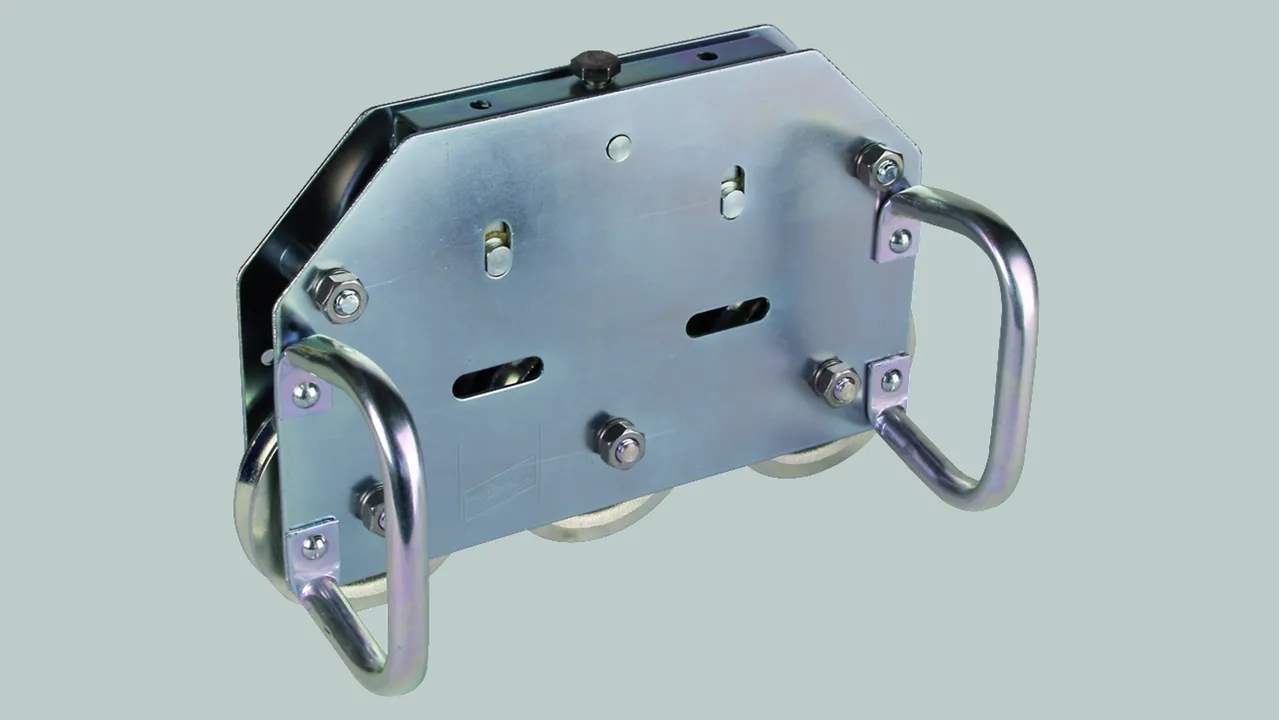

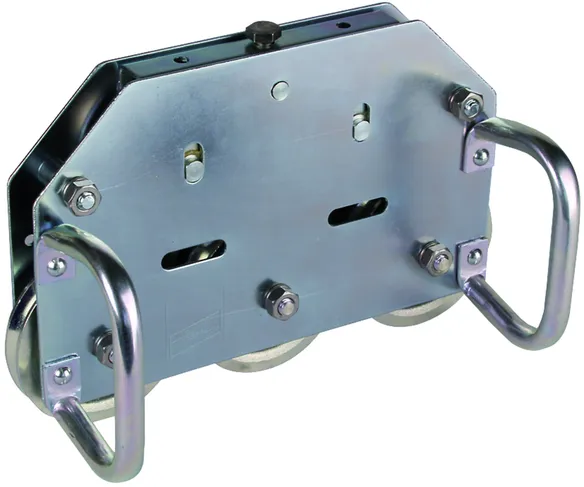

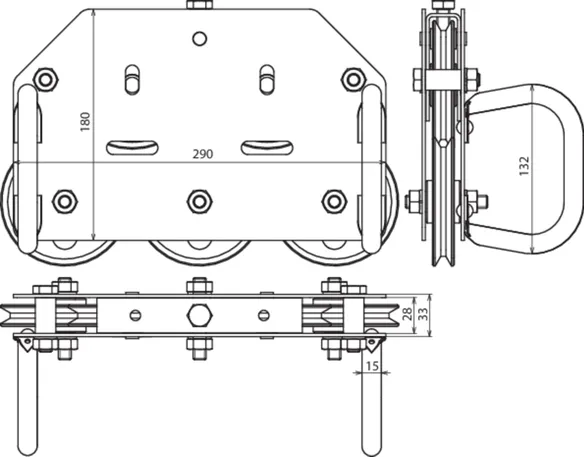

Wire straightener with 5 guide pulleys
Wire straightener
For straightening round conductors made of different
(medium-hard) materials
5 guide pulleys, with handles
Material: St/gal Zn
Support Rd: 7-10 mm
Material of guide pulleys: St/gal Zn
Dimension: approx. 180 x 290 mm

Brand: DEHN
Type: DRG 5RO 7.10 HG STGALZN
Part No.: 597004
or equivalent.



Technical data

Material St/gal Zn
Support Rd 7-10 mm
Material of guide pulleys St/gal Zn
Dimension approx. 180 x 290 mm

Product 597004 was added to Notepad.

Go to Notepad

Product 597004 was added to the cart.

Go to Web-Shop

10 guide pulleys, with handles

1 Product

Part No. 597005 DRG 10RO 7.10 HG STGALZN

GTIN 4013364027718, Customs tariff No. (EU): 84625900, Gross weight: 15.70 kg, PU: 1.00 pc(s)

Images

Additional information

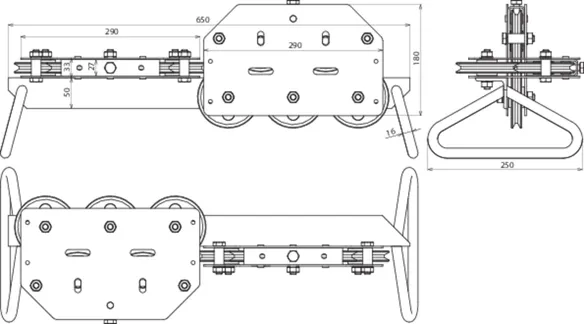

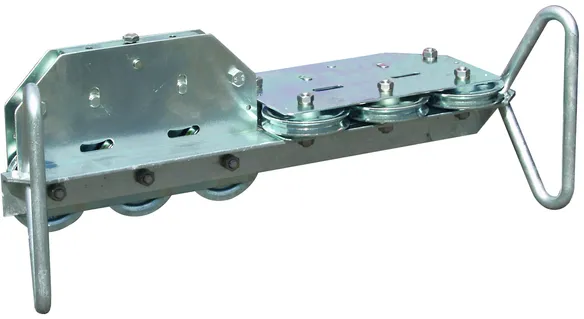

Wire straightener with 10 guide pulleys
Wire straightener
For straightening round conductors made of different
(medium-hard) materials

Material: St/gal Zn
Support Rd: 7-10 mm
Material of guide pulleys: St/gal Zn
Dimension: approx. 650 x 180 mm

Brand: DEHN
Type: DRG 10RO 7.10 HG STGALZN
Part No.: 597005
or equivalent.



Technical data

Material St/gal Zn
Support Rd 7-10 mm
Material of guide pulleys St/gal Zn
Dimension approx. 650 x 180 mm

Product 597005 was added to Notepad.

Go to Notepad

Product 597005 was added to the cart.

Go to Web-Shop

10 guide pulleys, with derrick

For stationary set-up.

1 Product

Part No. 597003 DRG 10RO 7.10 DB STTZN

GTIN 4013364027725, Customs tariff No. (EU): 84625900, Gross weight: 30.44 kg, PU: 1.00 pc(s)

Images

Additional information

Wire straightener with 10 guide pulleys (derrick)
Wire straightener
For straightening round conductors made of different
(medium-hard) materials
Material: St/tZn
Support Rd: 7-10 mm
Material of guide pulleys: St/gal Zn
Dimension: approx. 1350 x 580 mm

Brand: DEHN
Type: DRG 10RO 7.10 DB STTZN
Part No.: 597003
or equivalent.



Technical data

Material St/tZn
Support Rd 7-10 mm
Material of guide pulleys St/gal Zn
Dimension approx. 1350 x 580 mm

Product 597003 was added to Notepad.

Go to Notepad

Product 597003 was added to the cart.

Go to Web-Shop

10 guide pulleys, movable on rubber wheels

With wire unwinding device, for handling of coils (St/tZn, Cu and Al) with an inner diameter of 450-800 mm and coil widths up to 150 mm.

1 Product

Part No. 597006 DRG 10RO 7.10 FB STTZN

GTIN 4013364029606, Customs tariff No. (EU): 84625900, Gross weight: 42.80 kg, PU: 1.00 pc(s)

Images

Additional information

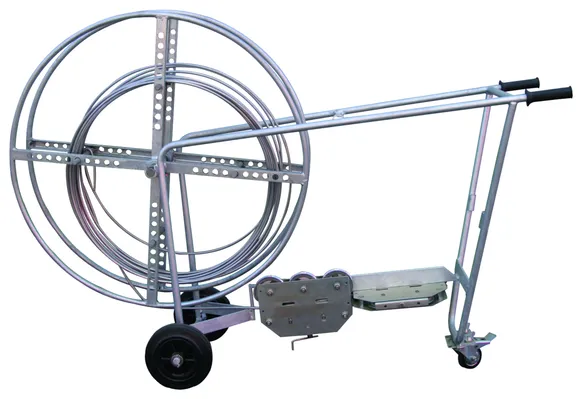

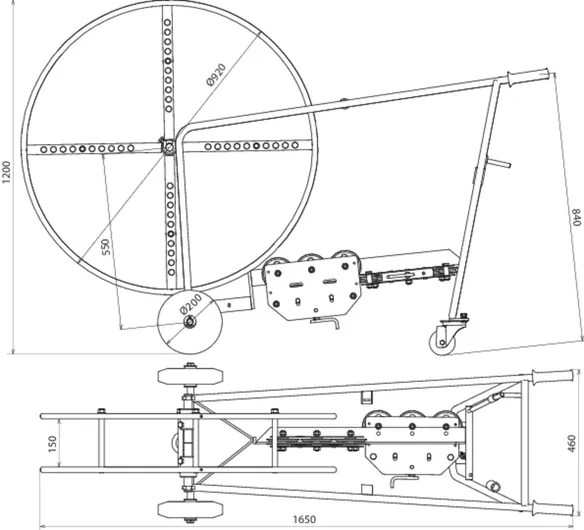

Wire straightener with 10 guide pulleys (movable on rubber wheels)
Wire straightener
For straightening round conductors made of different
(medium-hard) materials
10 guide pulleys, movable on rubber wheels, with wire unwinding device
Material: St/tZn
Support Rd: 7-10 mm
Material of guide pulleys: St/gal Zn
Dimension: approx. 1650 x 1200 mm

Brand: DEHN
Type: DRG 10RO 7.10 FB STTZN
Part No.: 597006
or equivalent.



Technical data

Material St/tZn
Support Rd 7-10 mm
Material of guide pulleys St/gal Zn
Dimension approx. 1650 x 1200 mm
